Features:
Designed for a single 88lb door
Rattle-free bottom guide for smooth and quiet operation
Designed for minimum installation height required
Includes door stop with adjustable spring

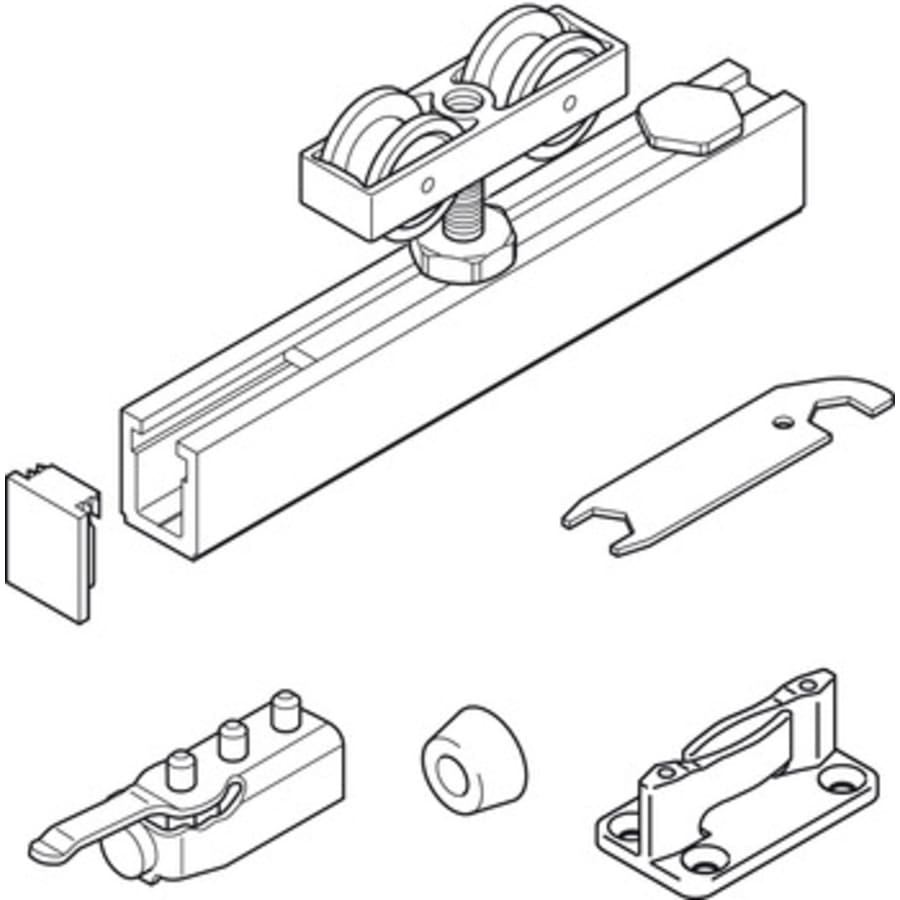

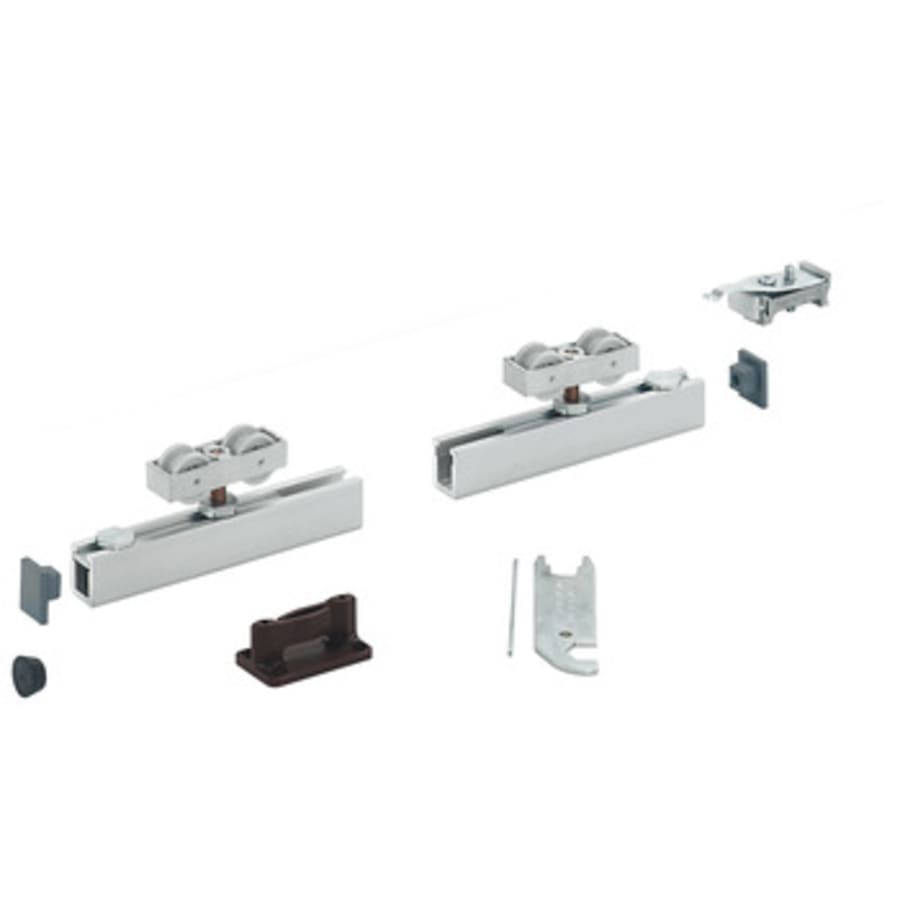

Kit Includes:

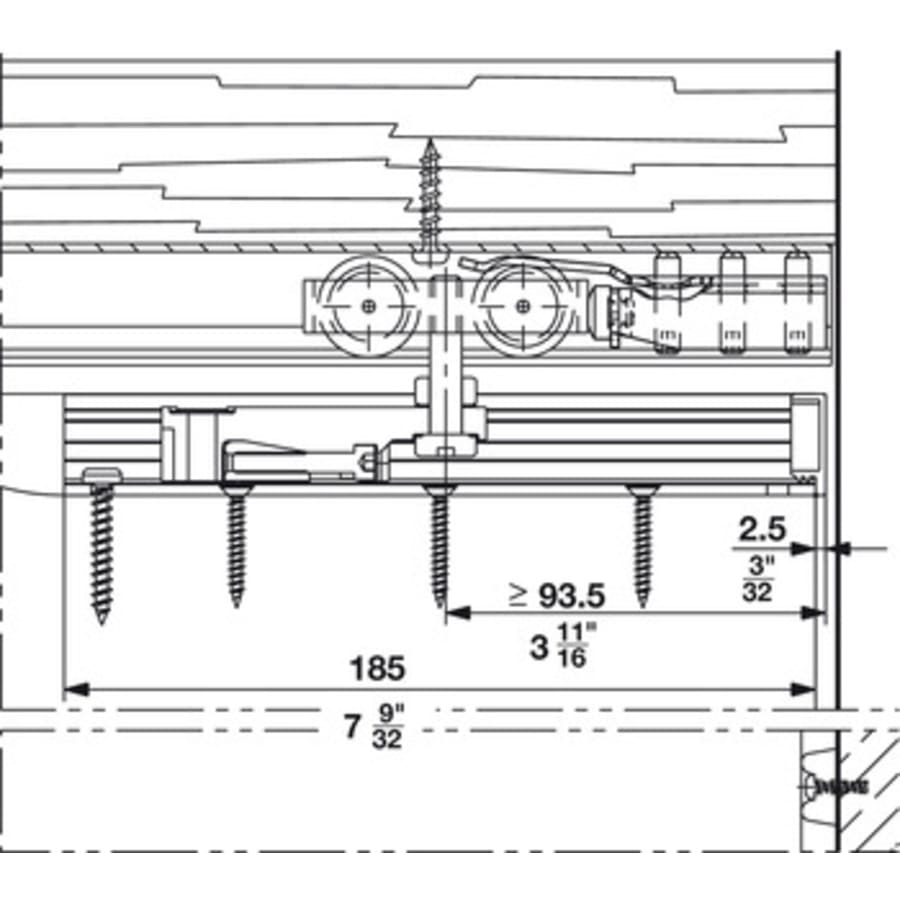

2 running gears

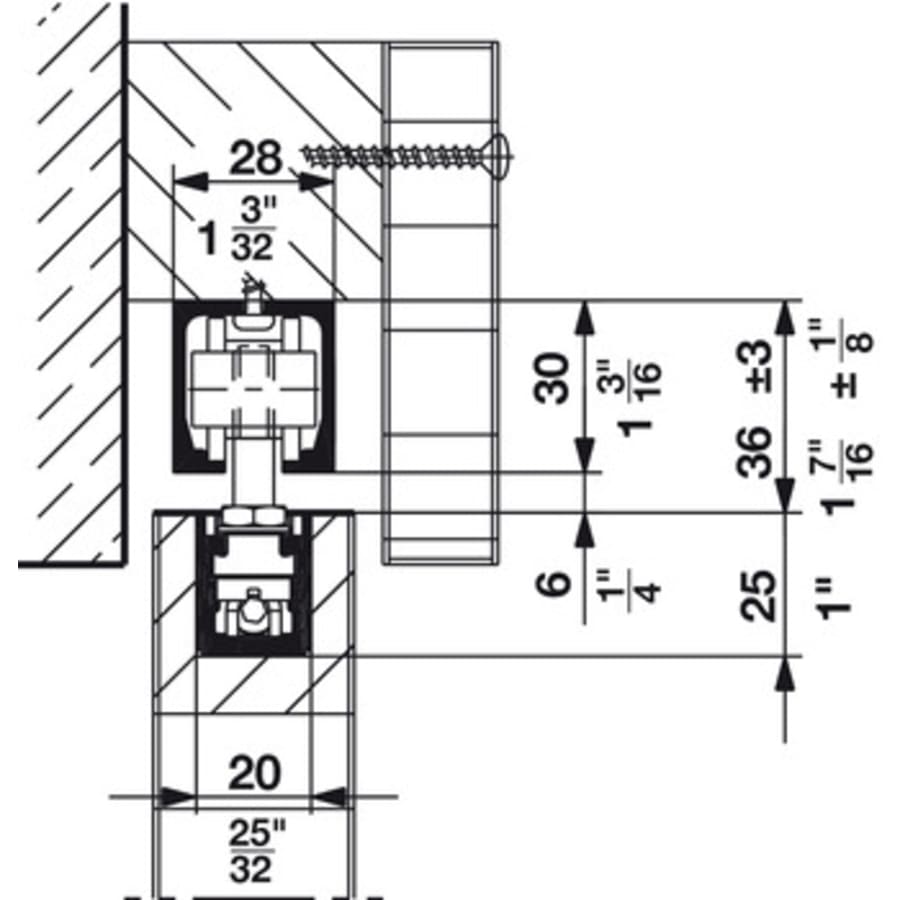

2 suspension plate carrier profile
2 carrier profile end caps

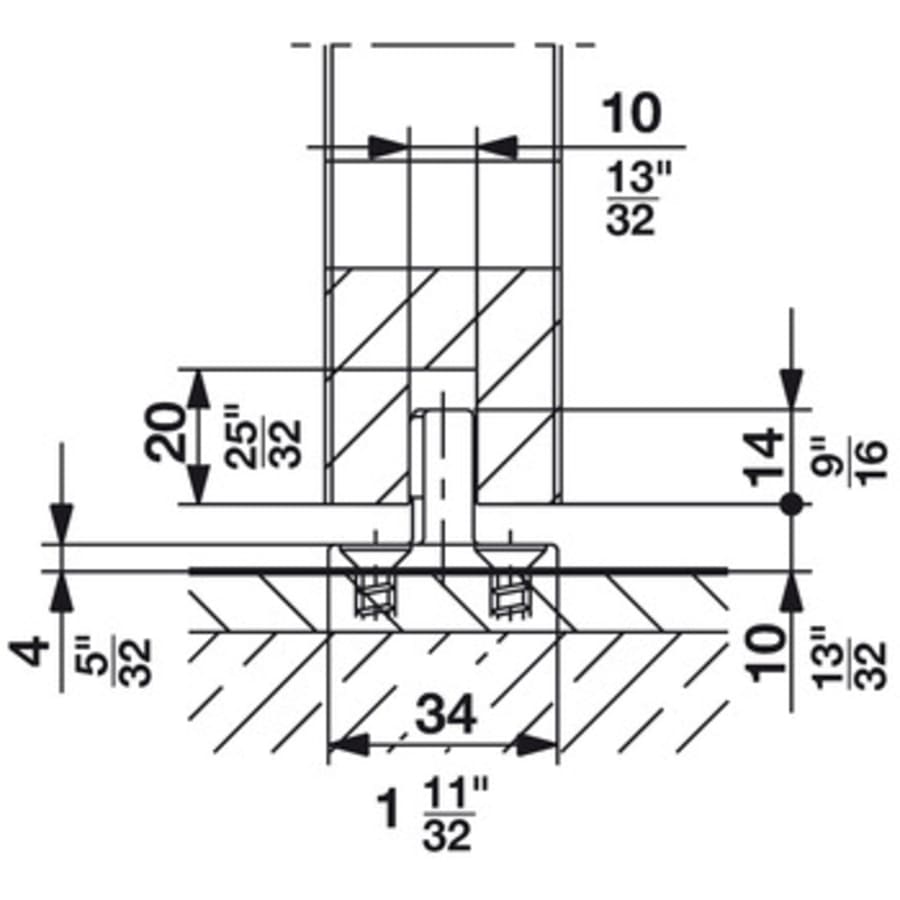

1 floor mounted guide
1 track stopper with adjustable retention spring
1 wall buffer
1 locking wrench
1 hex key

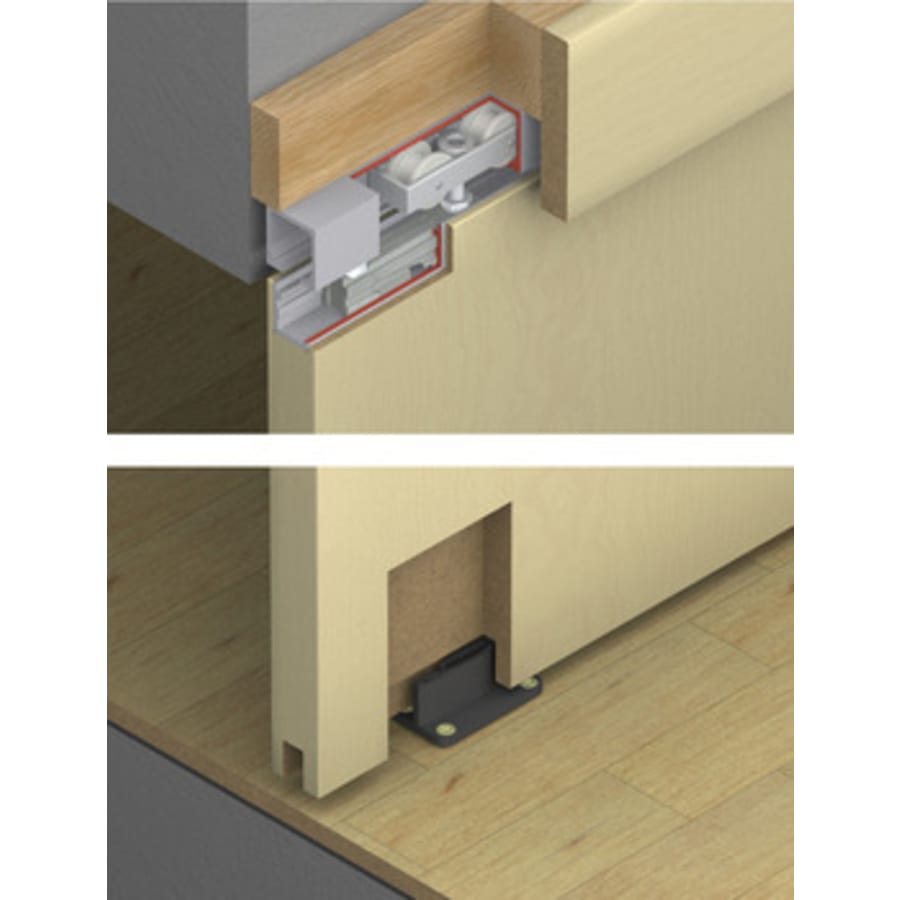

Mounting Instructions
Specifications:
Minimum Door Thickness: 1″
Max Door Weight: 88 LB
Number of Doors: 1
Material: Aluminum
Quantity: 1
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele HAWA Junior Collection
Specifications
Characteristics and Features
| Material | Aluminum |
| Number Of Doors | 1 |
Warranty and Product Information
| Collection | HAWA Junior |
| ADA | No |
| Approved for Commercial Use | No |
Dimensions and Measurements
| Quantity | 1 |
| Door Thickness | 1" |
| Max Door Weight | 88 lbs. |
Reviews
There are no reviews yet.
