The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Infrared controls, hybrid baffle filters and LED lighting lends a pro-style edge to your kitchen.
Features:
Blower outputs up to 450 CFM to keep your kitchen free of cooking fumes and odors
Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
Smooth-flow blower wheel design ensures quiet operation at less than 0.5 audible sones
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
Can be installed for ADA compliance with the purchase of a standard UL approved wall switch (sold separately)
2 LED lights illuminate the cooking area
Complements items from the Alta 3 collection
Range hood is installed as hardwired or with an optional power cord kit (SHCK44 sold separately)
Hood can be converted to ductless ventilation with the use of charcoal filters (not included) for improved efficiency and flexible installation options
Optional HCR3 handheld remote enables control from anywhere in the kitchen
Touch controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
Covered under a 1 year manufacturer warranty and a 3 year LED module manufacturer warranty
Product Technologies:
Captur™ : Advanced blower design features a forward positioned centric inlet to remove smoke and odor faster

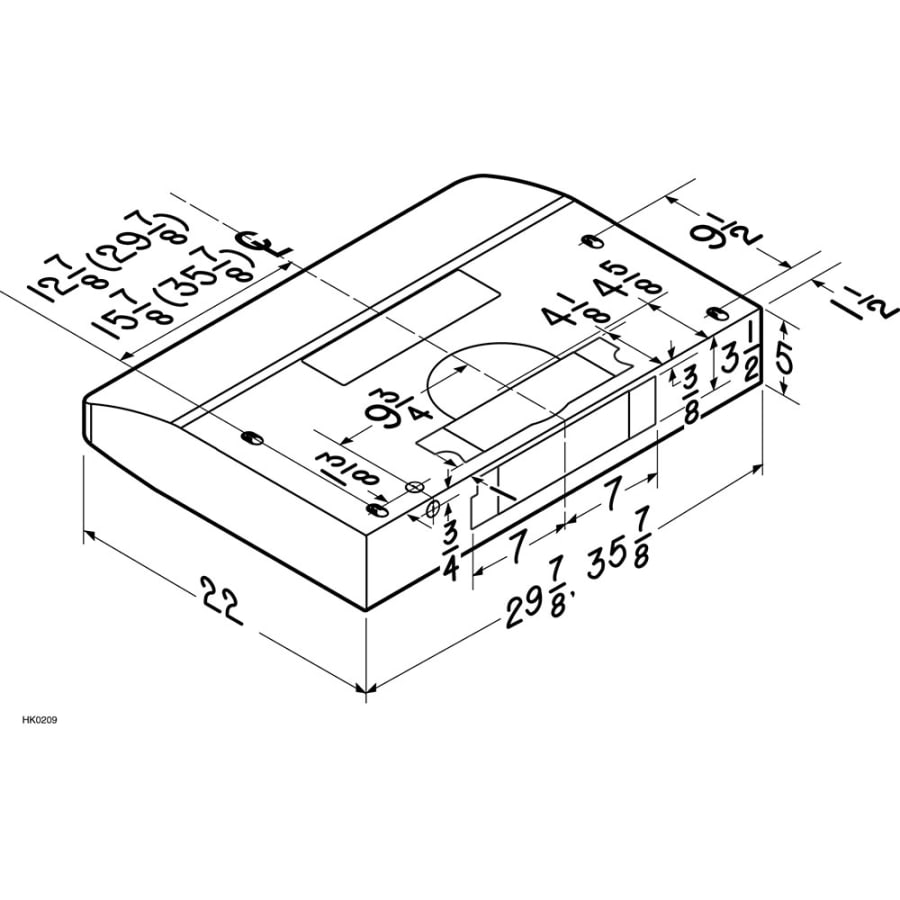

Specifications:
CFM: 400
Sones: 0.5
Nominal Width: 36″
Width: 29-7/8″, 35-7/8″
Height: 5″
Depth: 22″
Duct Size: 3-1/4″ x 10″, 7″ Round
Height Above Cooktop: 18″ to 30″
Frequency: 60 Hz
Amperage: 1.4A
Voltage: 120V
Wattage: 168W
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Broan Alta 3 Collection
Specifications
| Height | 5 in. |
| Width | 29.875, 35.875 in. |
| Depth | 22 in. |
| Nominal Width | 36 in. |
| Product Weight | 35.1 lbs. |
| CFM | 400 |
| CFM (High) | 450 |
| Duct Size | 3-1/4" x 10", 7" Round |
| Height Above Cooktop | 18" to 30" |
| Height Above Cooktop (Max) | 30 in. |
| Height Above Cooktop (Min) | 18 in. |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Insulation Type | Full Installation |
| Material | Steel |
| Blower Type | Internal |
| Control Type | Touch |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Baffle Filters |
| Panel Ready | No |
| Voltage | 120 |
| Wattage | 168 |
| Amperage | 1.4 |
| Frequency | 60 Hertz |
| Sones | 0.5 |
| Speeds | 3 |
| ADA | Yes |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 1 Year, 3 Year LED |
| Outdoor Approved | No |
| Title 24 | Yes |
| Collection | Alta 3 |
| Approved for Commercial Use | No |
| Certifications | HVI, UL |
| Energy Star | No |
| Color | Stainless Steel |
