Features:
Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Press-in installation securely fastens hinges to material
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle
Specifications:

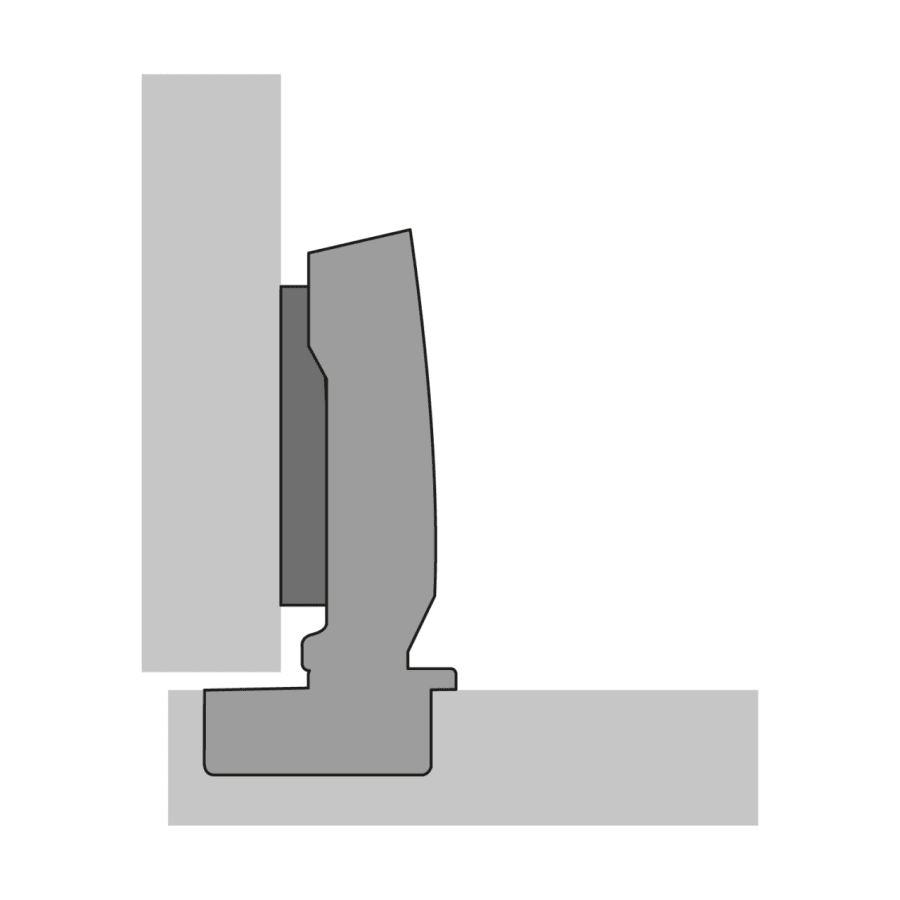

Hinge Mount: Full Overlay
Opening Angle: 110
Material: Steel, Zinc

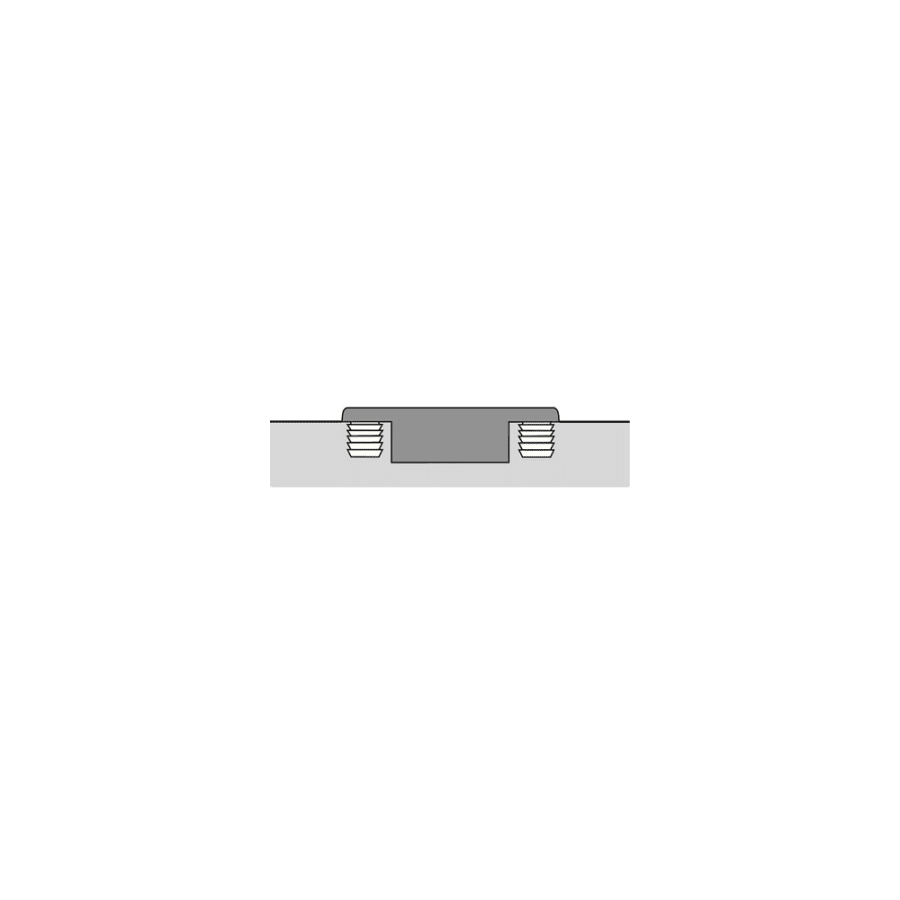

Installation Type: Press-In

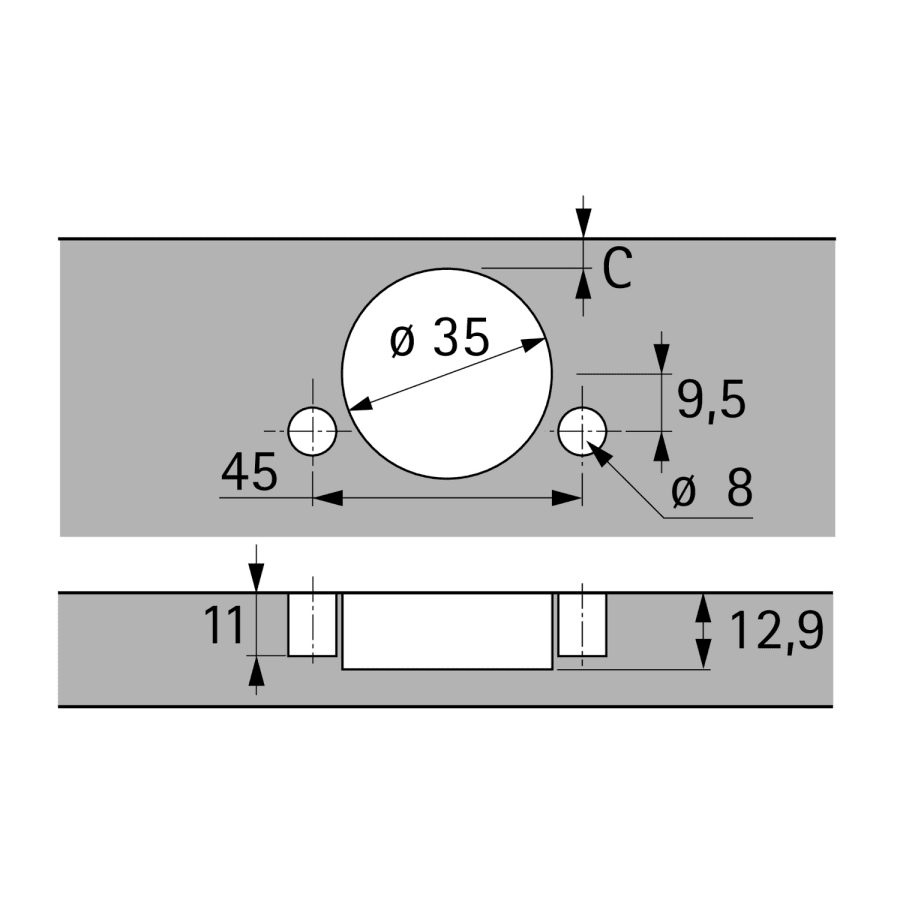

Cup Diameter: 1-3/8″
Bore Distance: 3/16″
Cup Depth: 1/2″
Mount Centers: 1-11/16″
Additional Hettich Links
Browse all Hettich Products
Hettich Sensys Collection
Specifications
Characteristics and Features
| Material | Steel, Zinc |
| Insulation Type | Press-In |
| Bulk Pack | No |
| Hinge Type | Concealed Euro |
| Soft Close | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Straight Arm |
| Demountable | No |
| Hinge Mount | Full Overlay |
| Self Closing | Yes |
Warranty and Product Information
| Collection | Sensys |
Dimensions and Measurements
| Quantity | 1 |
| Bottom Diameter | 0.2 mm |
| Cup Depth | 0.5 in. |
| Cup Depth mm | 12.8 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.94 in. |
| Mount Centers | 1.69 in. |
| Mount Centers mm | 43 mm |
| Opening Angle | 110 |
| Overlay | 5/8 Inch |
| Color | Zinc |
