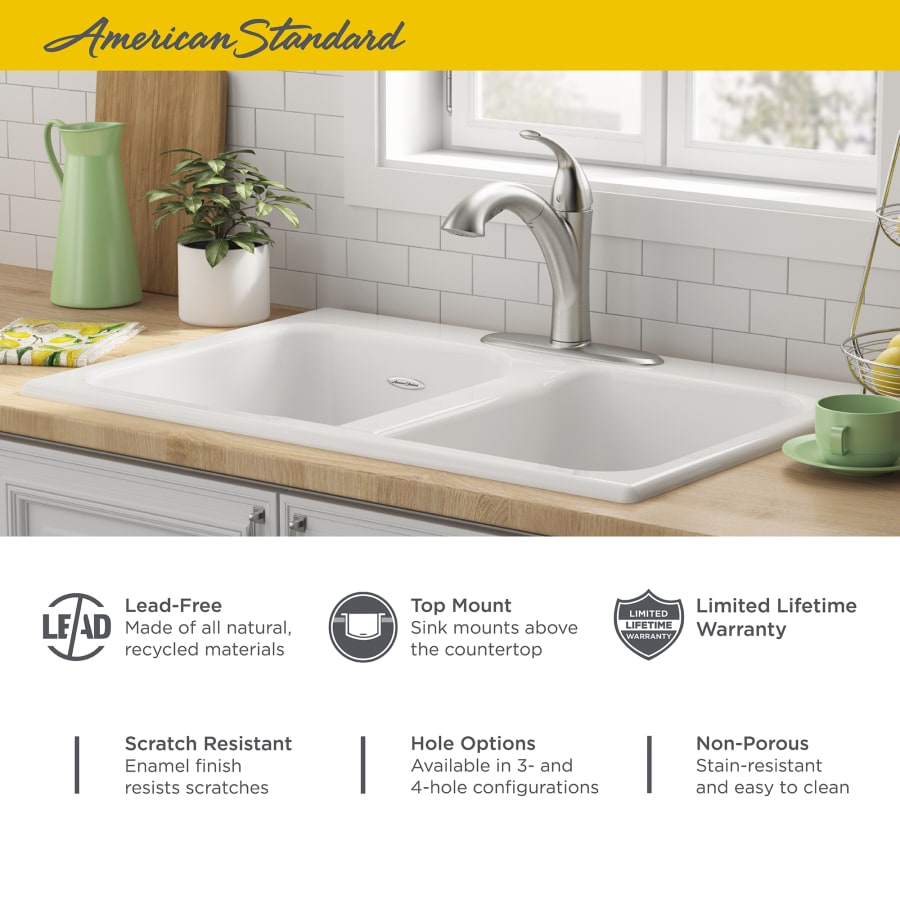

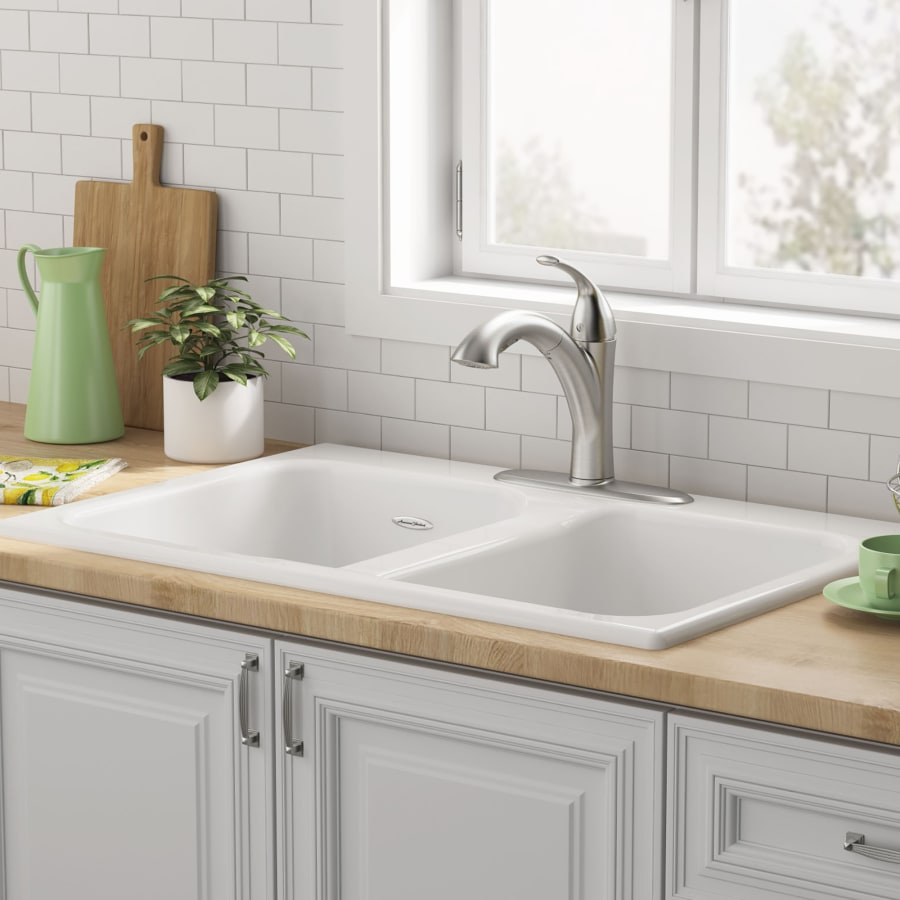

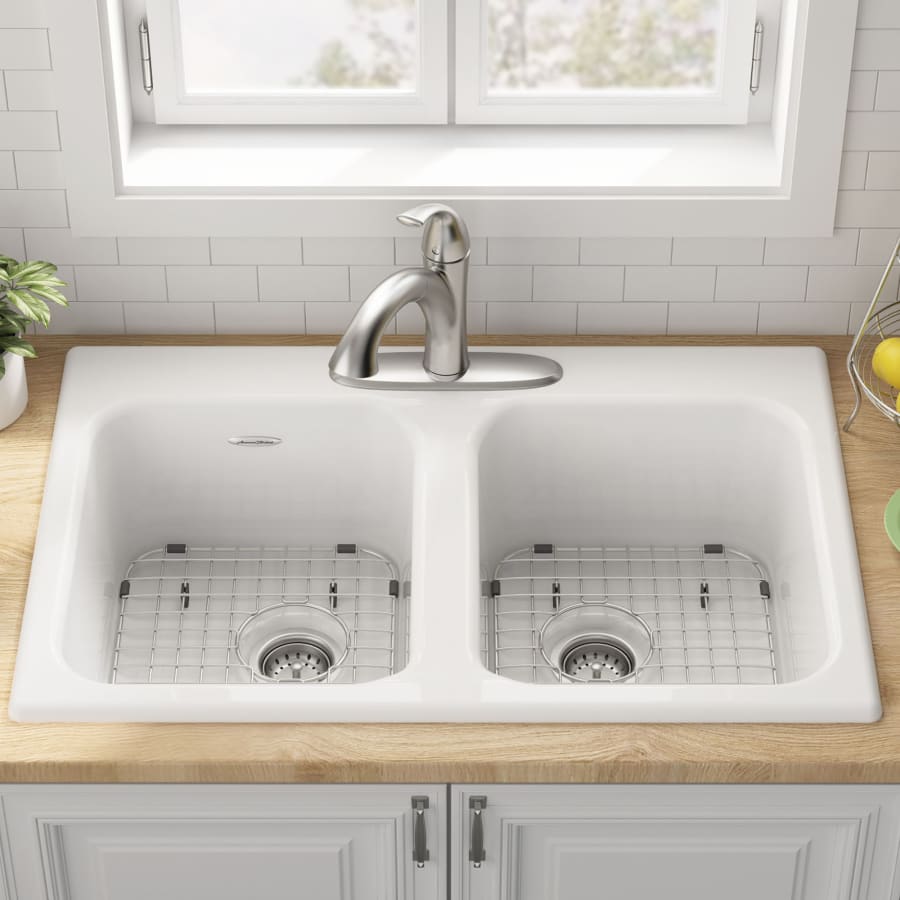

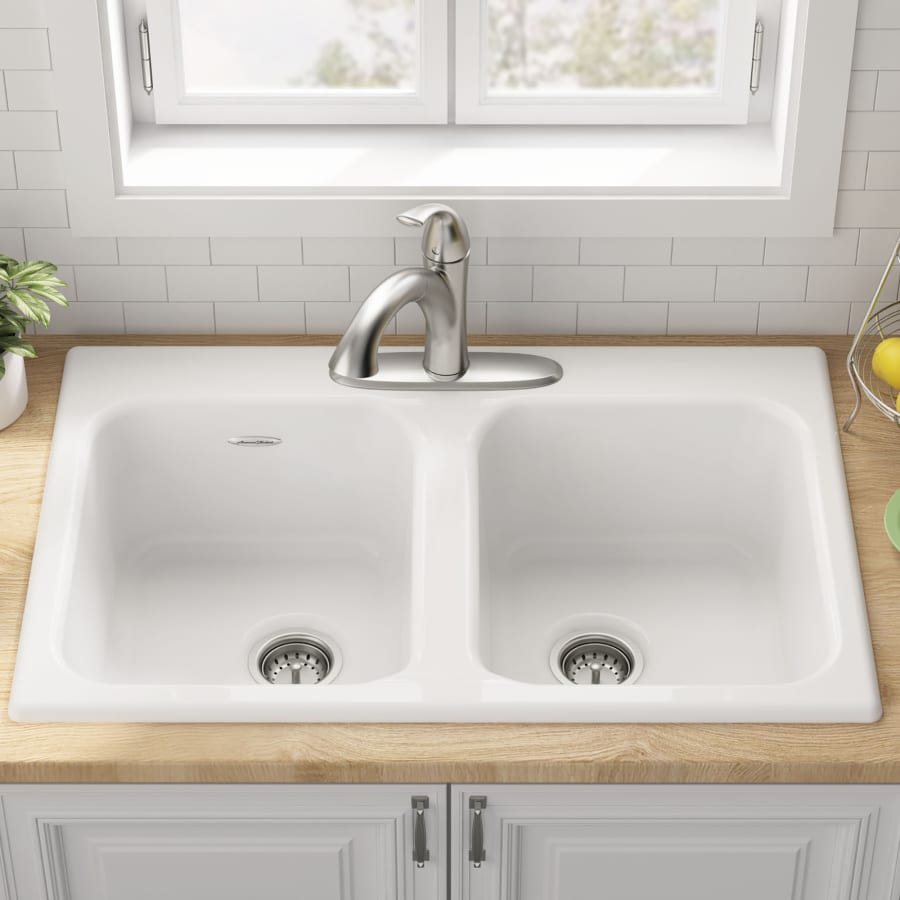

Whether you are replacing your existing sink or creating your dream kitchen, the Quince double bowl cast iron sink from American Standard adds the perfect combination of rustic charm and versatility for every day and entertaining. Crafted from durable cast iron, this double bowl design retains heat for effective soaking and dish washing. With a smooth, glossy finish, the thick, nonporous enamel surface is easy to clean and resistant to stains, chips, and cracks. Available in 3 and 4 hole styles to accommodate multiple faucet configurations.
American Standard 77DB.33223 Features:

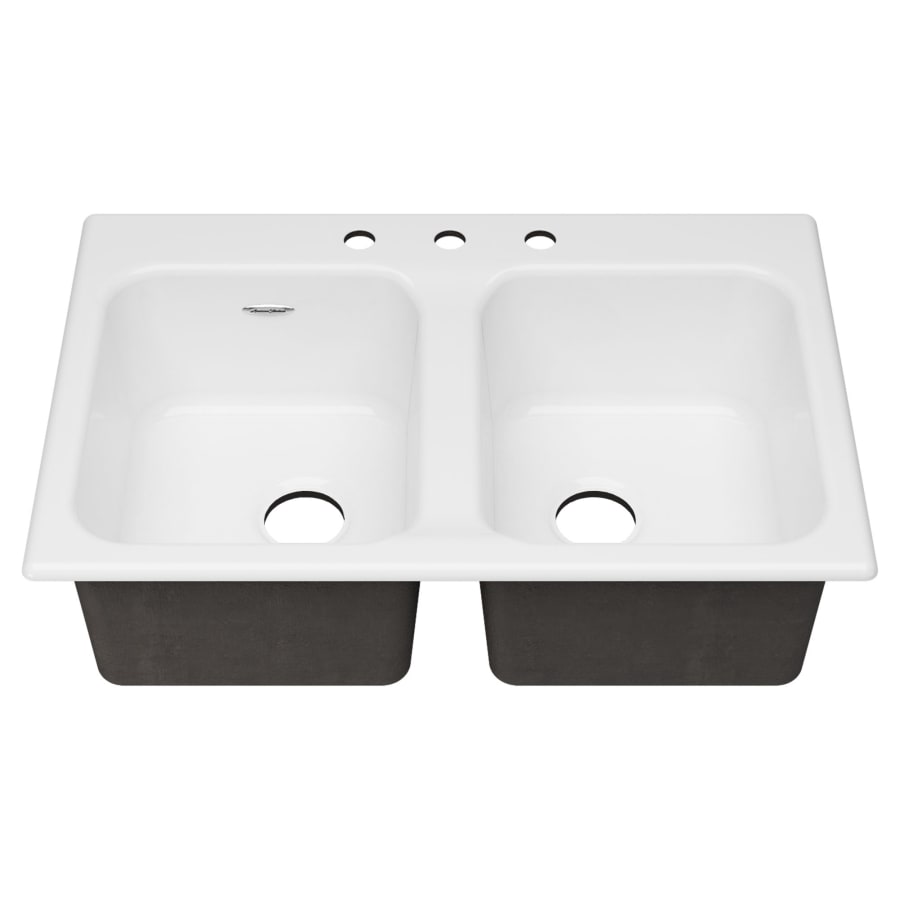

Cast iron double bowl sink
3 Hole faucet installation
9″ Deep basins
Drop-in installation
36″ Cabinet required for installation
Covered under American Standard’s limited lifetime warranty
American Standard 77DB.33223 Specifications:
Sink Length: 32-7/8″ (from left to right)
Sink Width: 22-1/4″ (from front to back)
Sink Height: 9″ (from top to bottom)
Basin Dimensions (Left): 13-1/2″ L x 16-1/8″ W
Basin Dimensions (Right): 13-1/2″ L x 16-1/8″ W
Faucet Holes: 3
Faucet Centers: 8″ (distance between the installation holes for the faucet handles)
Minimum Cabinet Size: 36″
Drain Connection: 3-9/16″
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Quince Collection
Specifications
| Manufacturer Warranty | Limited Lifetime |
| Collection | Quince |
| Country Of Origin | China |
| Certifications | ASME, CSA |
| ASSE Code | A112.19.1 |
| CSA Code | B45.2 |
| Length | 32.875 in. |
| Width | 22.25 in. |
| Height | 9 in. |
| Nominal Width | 23 in. |
| Faucet Centers | 8 in. |
| Faucet Hole Size | 1.375 in. |
| Drain Connection | 3.5625 in. |
| Minimum Cabinet Size | 36 in. |
| Nominal Length | 33 in. |
| Basin Length (Left) | 13.5 in. |
| Basin Length (Right) | 13.5 in. |
| Basin Width (Left) | 16.125 in. |
| Basin Width (Right) | 16.125 in. |
| Material | Cast Iron |
| Thermostat | Transitional |
| Faucet Holes | 3 |
| Insulation Type | Drop In |
| Basin Split | 50/50 |
| Drain Placement | Center |
| Farmhouse | No |
| Number Of Bathers | 2 |
| Sink Shape | Rectangular |
| Apron Front | No |
| Corner Sink | No |
| Faucet Installation Type | Deck Mounted |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Faucet Included | No |
| Soap Dispenser Included | No |
| Drainboard | No |
| Color | Brilliant White |
Reviews
There are no reviews yet.
