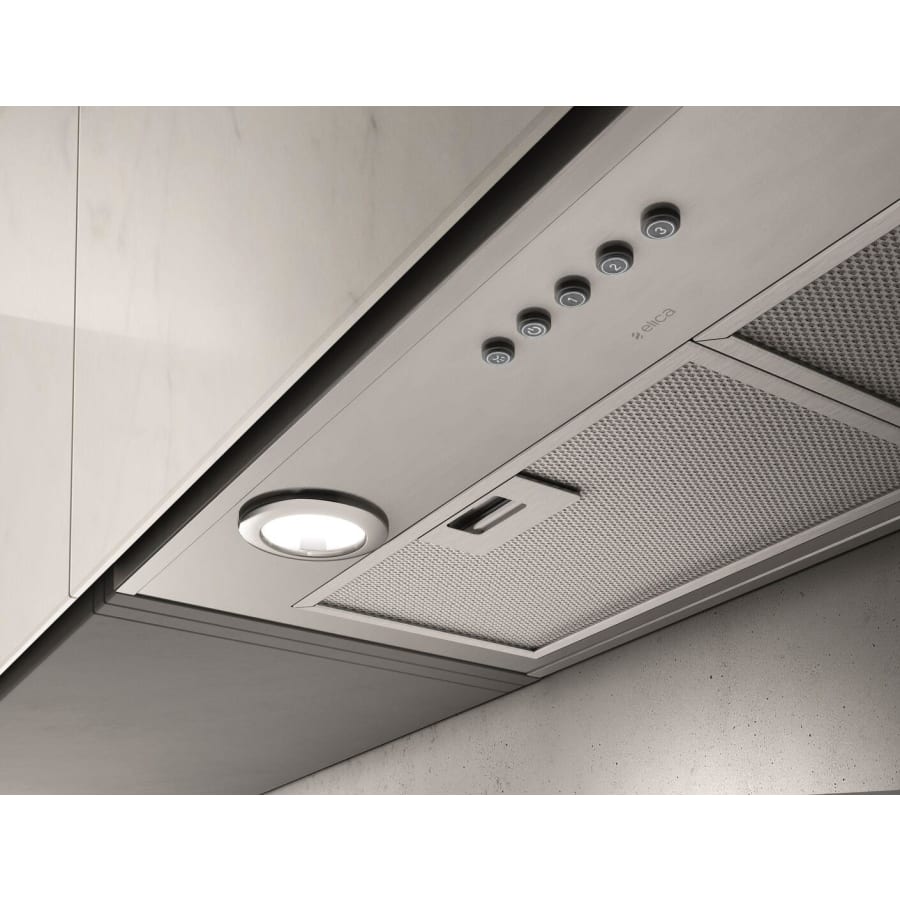

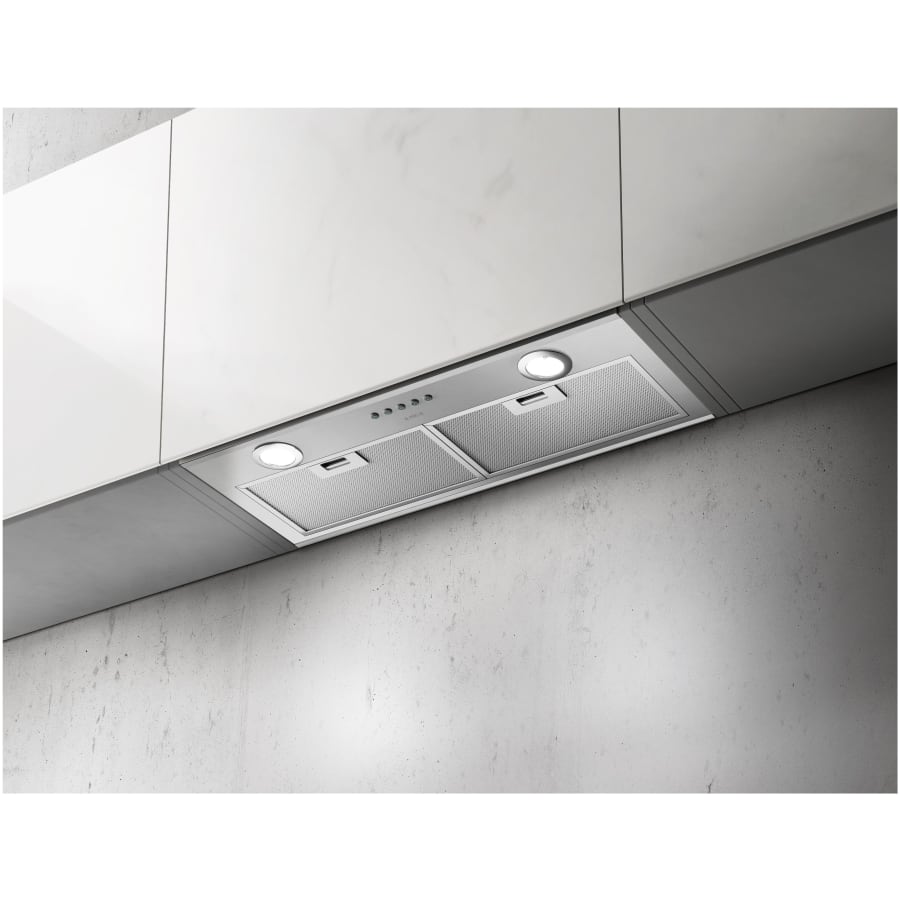

Asti is designed for discreet mounting inside cabinetry, fits perfectly into 12″ deep cabinetry and is ideal for kitchens where space is limited, or where the range hood needs to be out of sight. Available in 22″ and 28″ sizes.
Features:
Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
2 LED lights illuminate the cooking area (bulbs included)
Complements items from the Asti collection
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
Covered under a 3 year limited parts and labor manufacturer warranty
Specifications:
CFM: 400
Sones: 5.9
Nominal Width: 22″
Width: 22-1/2″
Height: 9-1/2″
Depth: 10-3/4″
Duct Size: 6″ Round
Height Above Cooktop: 30″
Amperage: 2.3A
Voltage: 120V
Wattage: 289W
Additional Elica Links
Browse all Elica Products
Elica Asti Collection
Specifications
| Depth | 10.75 in. |
| Height | 9.5 in. |
| Nominal Width | 22 in. |
| Width | 22.5 in. |
| Product Weight | 18.96 lbs. |
| CFM | 400 |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" |
| Ceiling Height (Max) | 86.56 in. |
| Ceiling Height (Min) | 80.56 in. |
| Height Above Cooktop (Min) | 30 in. |
| Height Above Cooktop (Max) | 36 in. |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Insulation Type | Full Installation |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Material | Stainless Steel |
| Control Type | Push Button |
| Smart Home | No |
| Panel Ready | No |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Fingerprint Resistant | No |
| ADA | No |
| Collection | Asti |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 3 Year Limited Parts and Labor |
| Outdoor Approved | No |
| Title 24 | Yes |
| Certifications | AHAM, UL |
| Approved for Commercial Use | No |
| Title 20 Compliant | Yes |
| Energy Star | No |
| Voltage | 120 |
| Wattage | 289 |
| Watts Per Bulb | 2.1 |
| Speeds | 3 |
| Amperage | 2.3 |
| Frequency | 60 Hertz |
| Sones | 5.9 |
| Color | Stainless Steel |
