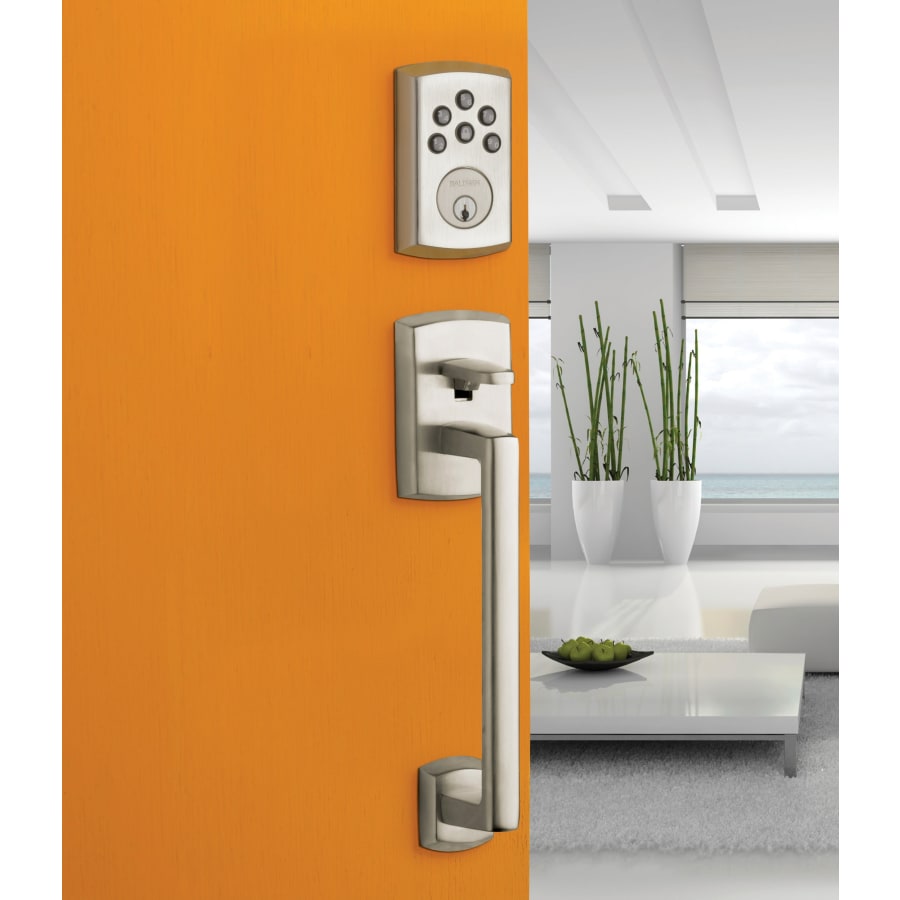

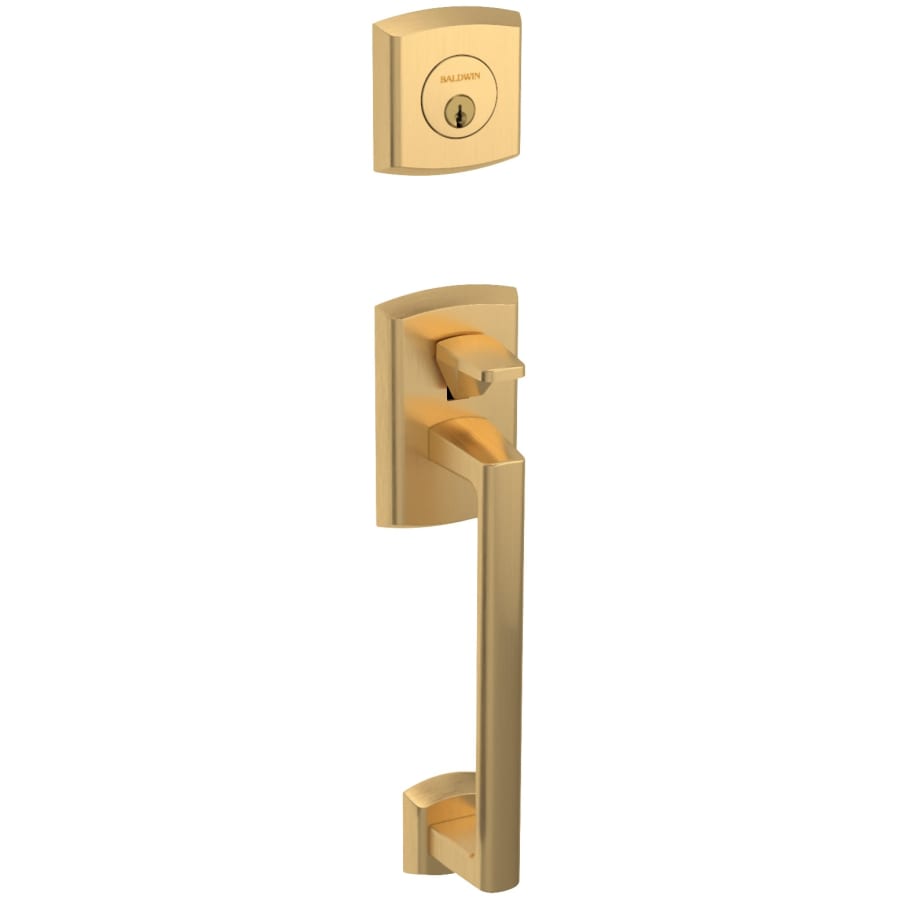

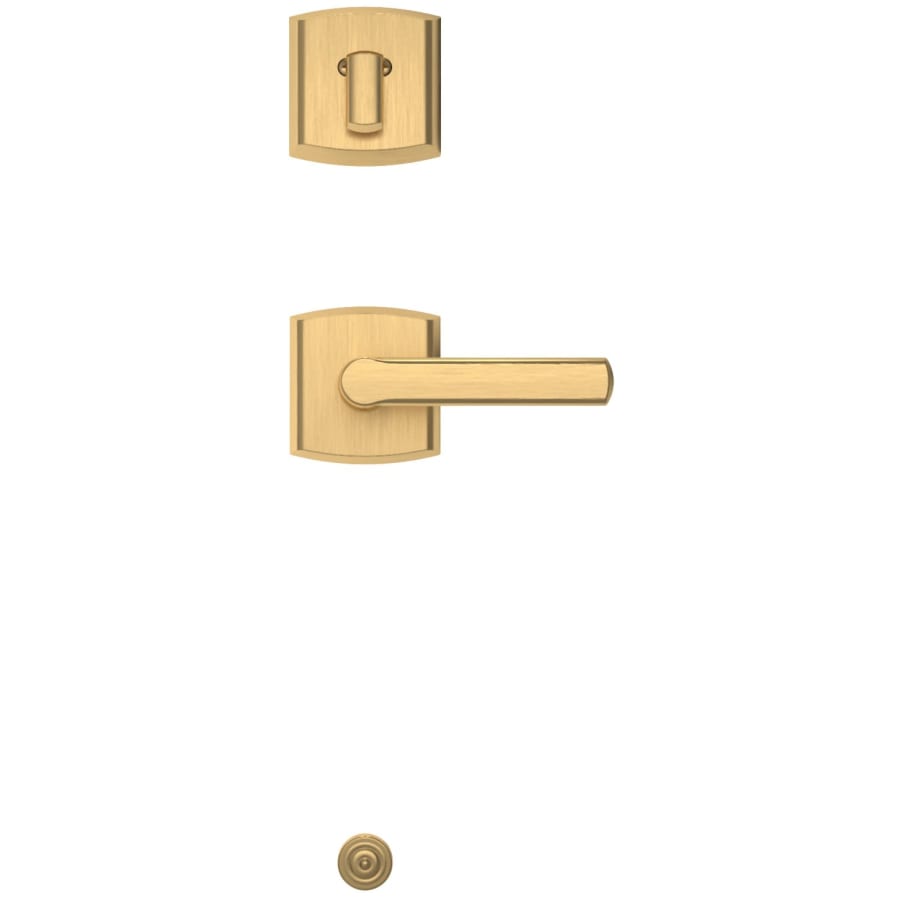

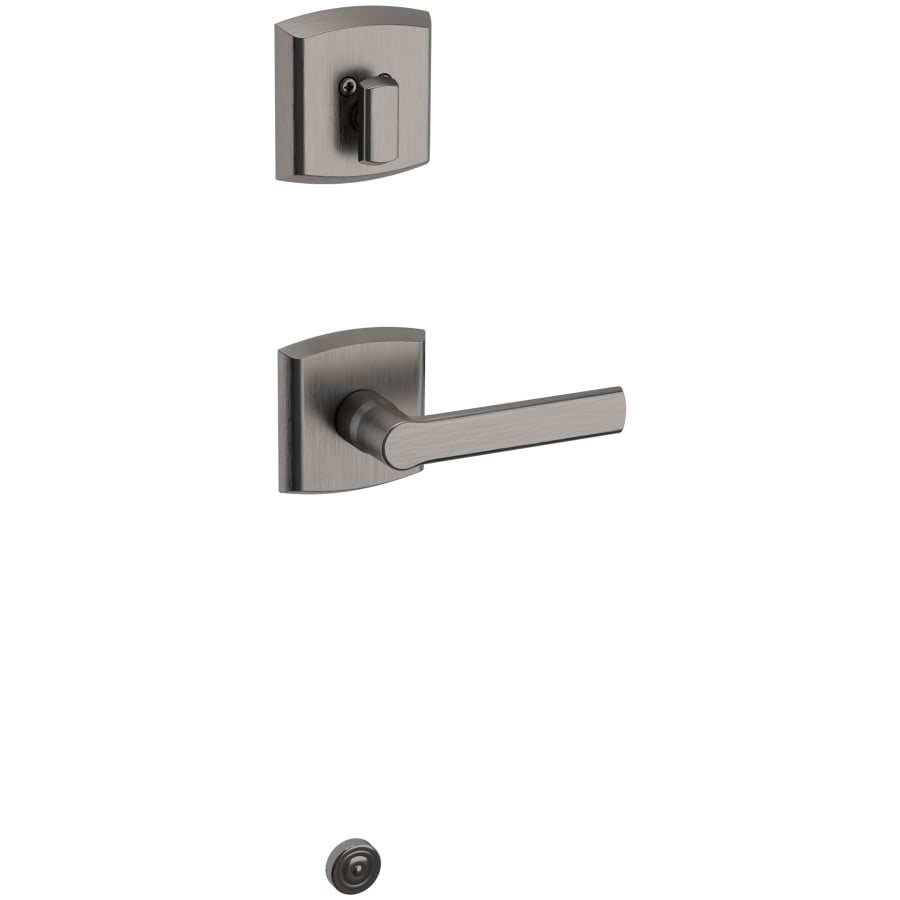

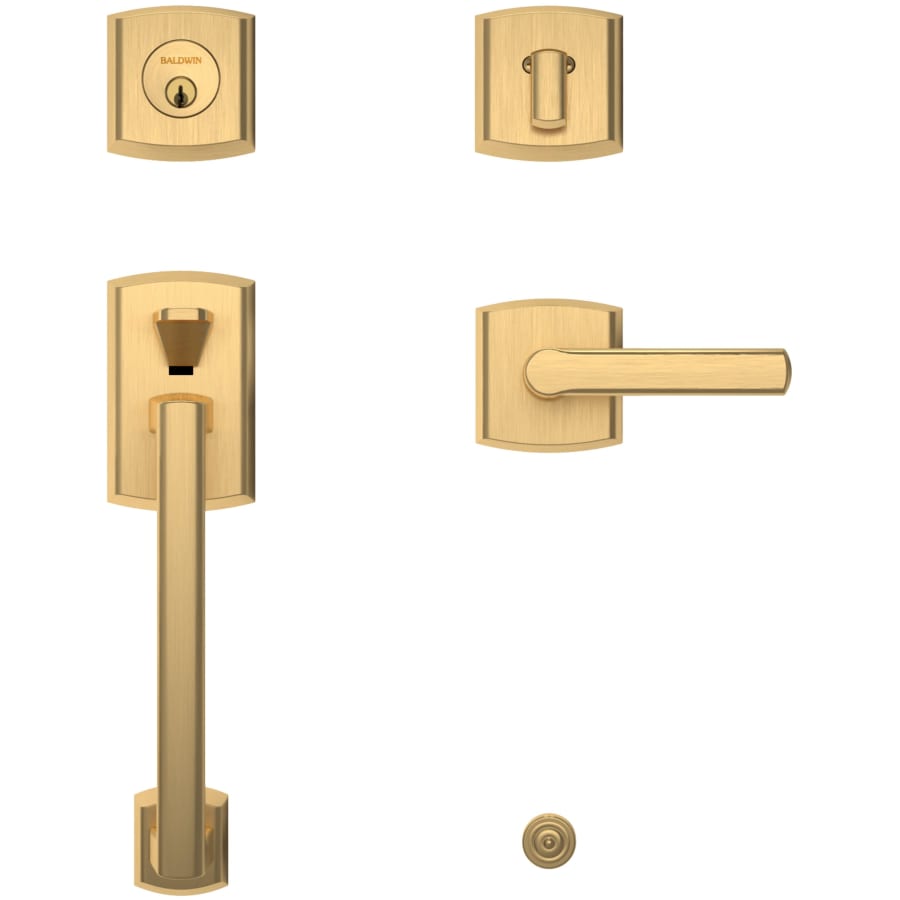

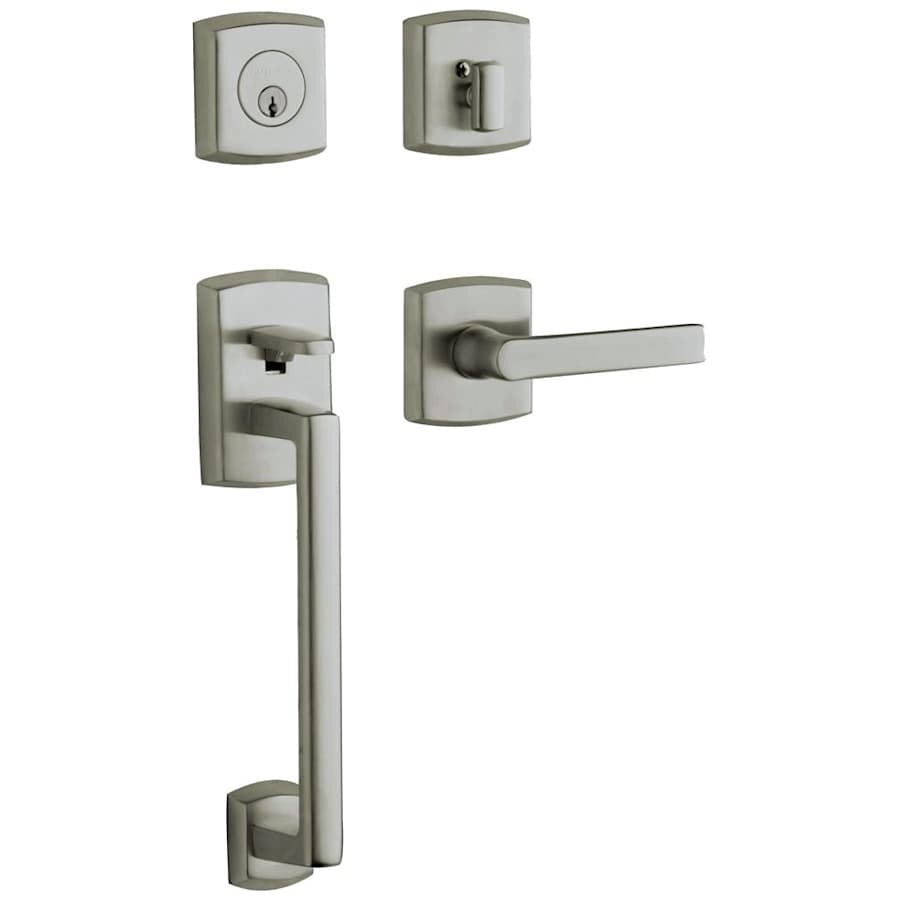

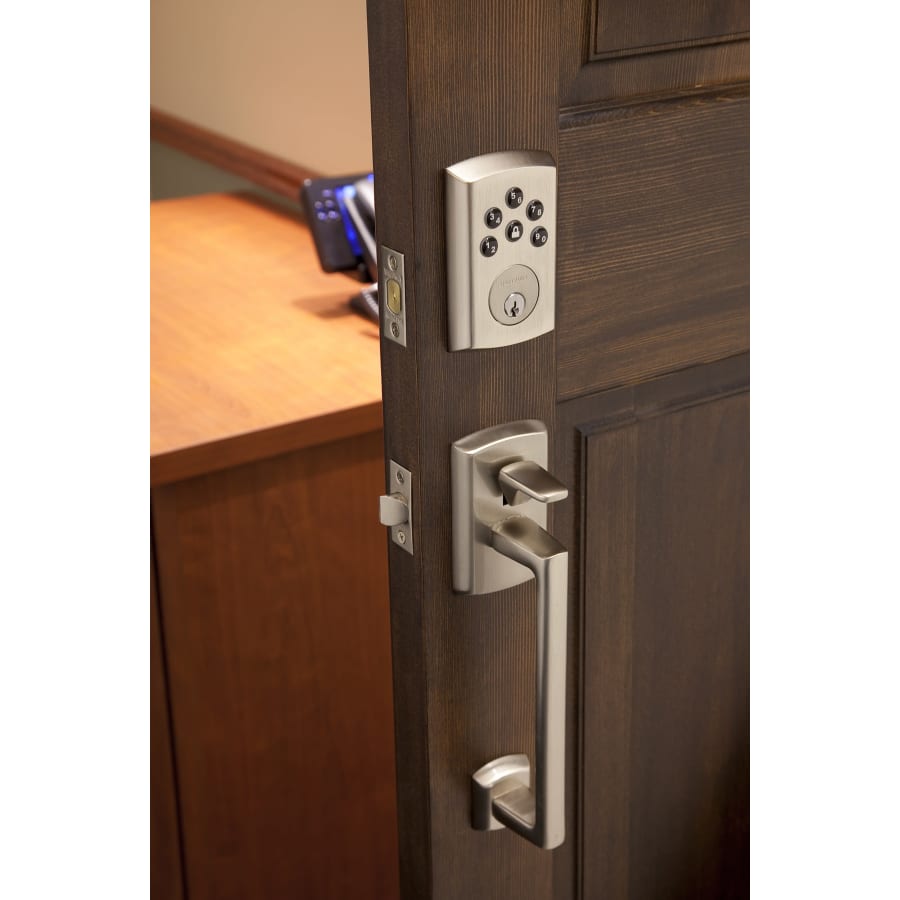

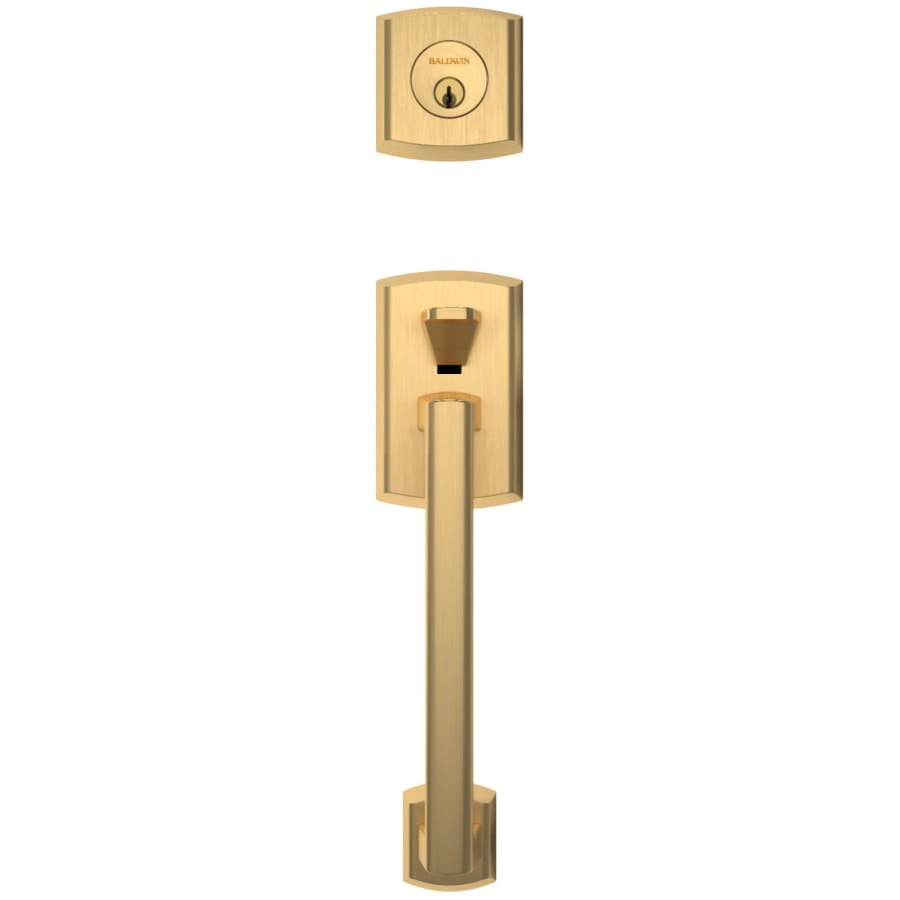

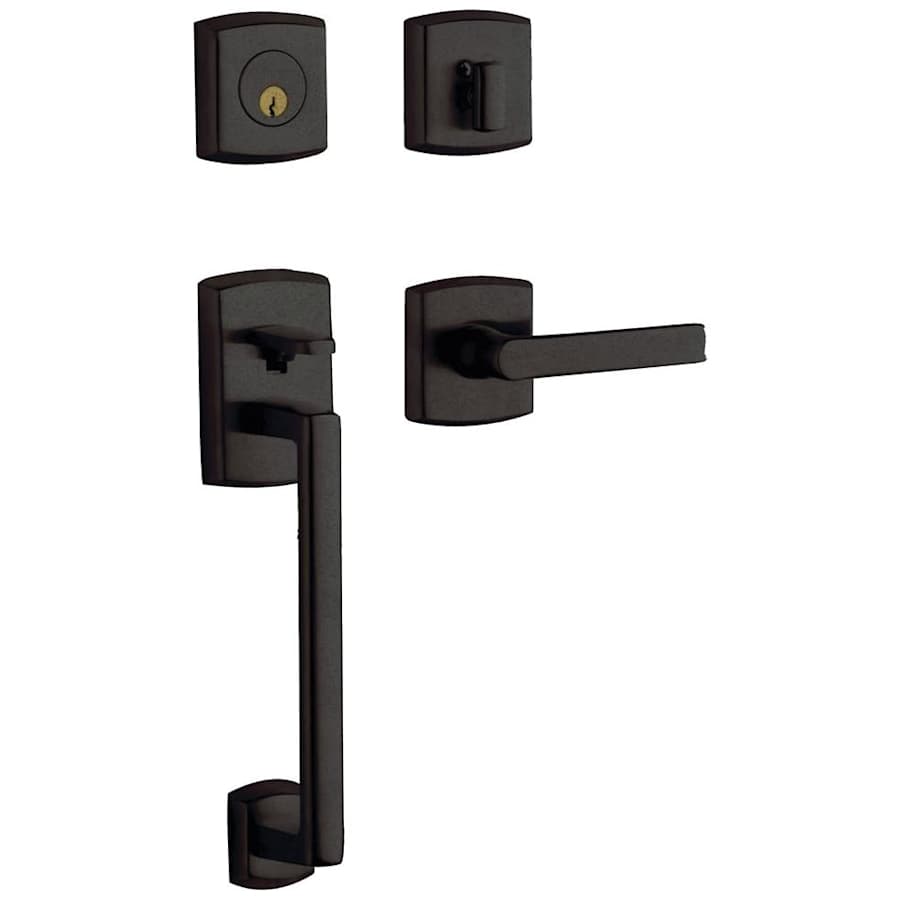

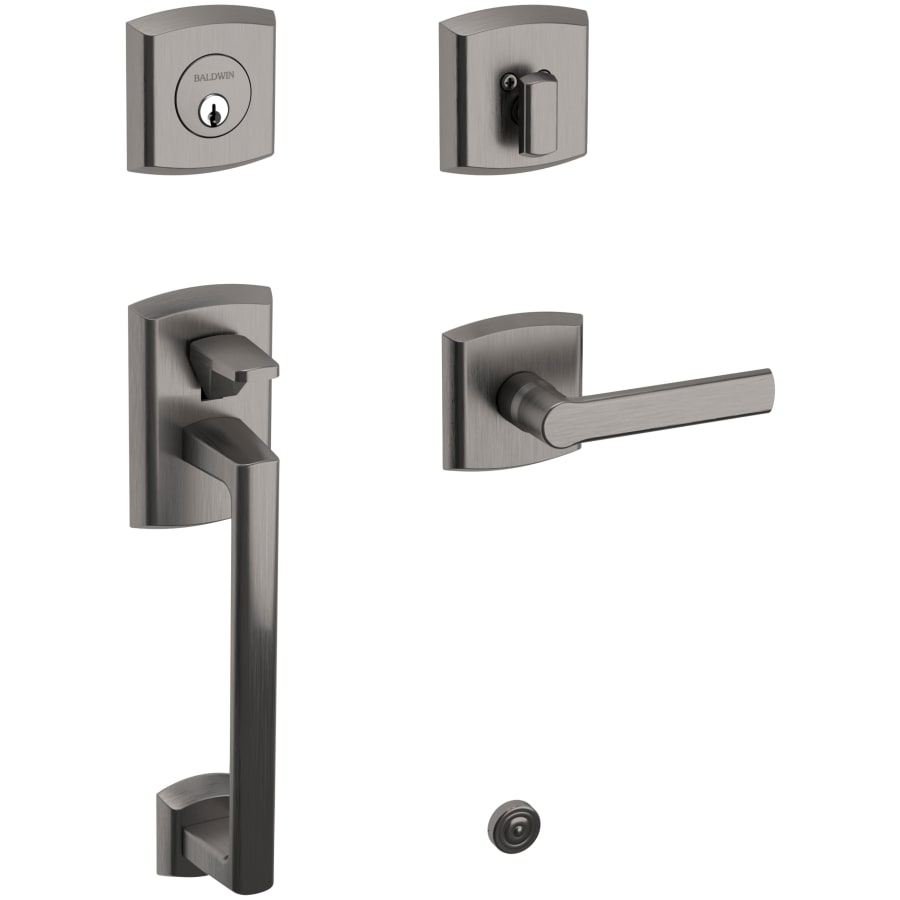

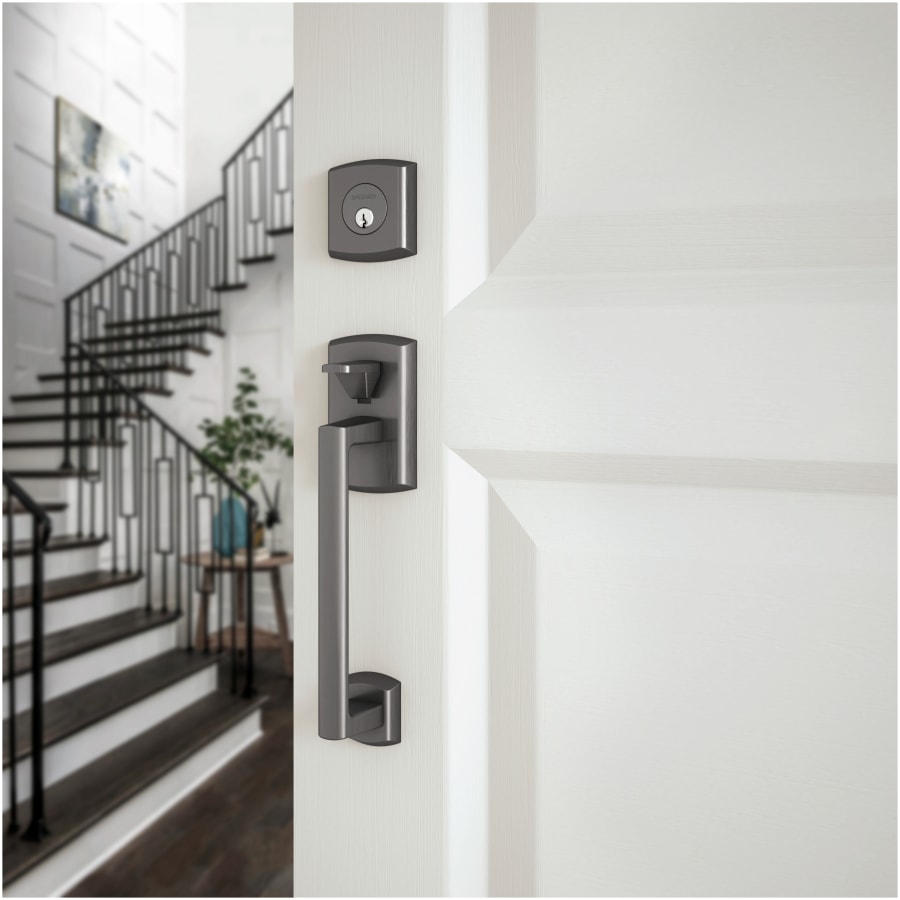

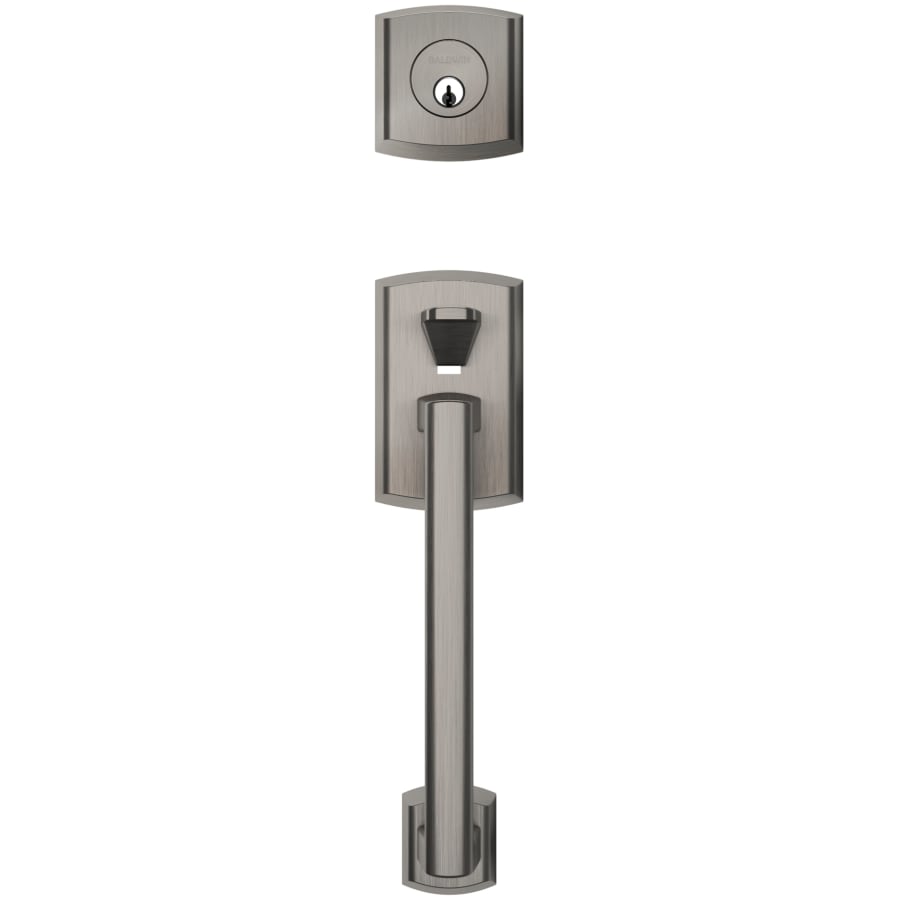

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Baldwin’s limited lifetime manufacturer warranty
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Lifetime Finishes™: Baldwin’s multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″
Handing: Right
Latch Faceplate: Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-1/2″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Soho Collection
Specifications
| Thermostat | Modern |
| Material | Brass |
| Solid Construction | Solid Brass |
| Handle Material | Metal |
| Handle Style | Grip |
| Handshower | Right |
| Latch Faceplate | Square Corner |
| Style | Contemporary/Modern |
| Concealed Screws | No |
| Function | Keyed Entry |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Lock Style | Single Point |
| Mounting | Sectional |
| Keyway | C |
| Interconnected | No |
| Panic Proof | No |
| Handle Design | Soho |
| Interior Handle Style | Lever |
| Trim Design | 5058 |
| Adjustable Throughbolt | No |
| Center to Center | 5.5 in. |
| Product Weight | 6.5 lbs. |
| Handle Height | 11.78 in. |
| Edge Bore | 1" |
| Overflow Height | 15.41 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Handle Projection | 2.53 in. |
| Trim Height | 11.78 in. |
| Trim Width | 2.81 in. |
| Grip Center to Center | 8.5 in. |
| Interior Handle Length | 4.75 in. |
| Interior Handle Projection | 2.094 in. |
| Interior Trim Height | 2.9375 in. |
| Interior Trim Width | 2.8125 in. |
| Approved for Commercial Use | No |
| Collection | Estate, Estate Pre-Configured |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Series | Soho |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 1 |
| Cylinder Included | Yes |
| Interior Included | Yes |
| 28 Degree Latch | Yes |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Satin Black, Satin Brass and Black, Satin Chrome, Venetian Bronze, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
