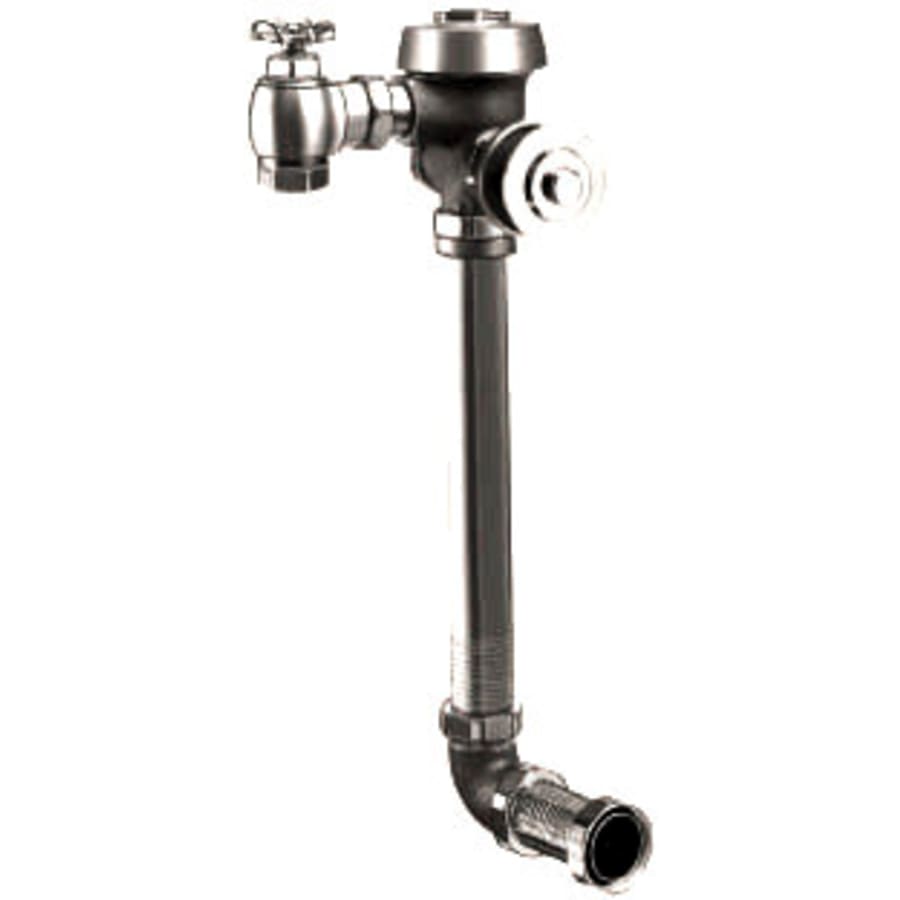

Low Consumption (1.6 gpf) Concealed Water Closet Flushometer, for 1-1/2″ wall hung back spud bowls.
Features:
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Metal Direct Acting, Non-Hold-Open Push Button with Triple Seal Handle Packing
1″ I.P.S. Wheel Handle Bak-Chek? Angle Stop
Adjustable Tailpiece
Sweat Solder Adapter
Elbow Flush Connection for 1½? Concealed Back Spud
Exposed parts Chrome Plated
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Push Button, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID? Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance
with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Insulation Type | Toilet |
| Configuration | Concealed |
| Control Type | Manual |
| Spud Placement | Rear |
| Gallons Per Flush | 1.6 |
| Spud Size | 1.5 in. |
| Color | 10-3/4 LDIM, 10-3/4 LDIM L3, 10-3/4 LDIM WB, 11-3/4 LDIM, 11-3/4 LDIM L3 WB, 12-3/4 LDIM, 2-3/4 LDIM, 3-3/4 LDIM, 3-3/4 LDIM L3, 3-3/4 LDIM L3 WB, 3-3/4 LDIM WB, 4-3/4 LDIM, 4-3/4 LDIM L3, 4-3/4 LDIM L3 WB, 4-3/4 LDIM WB, 5-3/4 LDIM, 6-3/4 LDIM, 6-3/4 LDIM WB, 7-3/4 LDIM, 7-3/4 LDIM L3, 7-3/4 LDIM WB, 8-3/4 LDIM, 8-3/4 LDIM L3, 8-3/4 LDIM L3 WB, 8-3/4 LDIM WB, 9-3/4 LDIM, 9-3/4 LDIM L3, 9-3/4 LDIM L3 WB |
| Color Tone | Multi-Colored |
