Product Features:

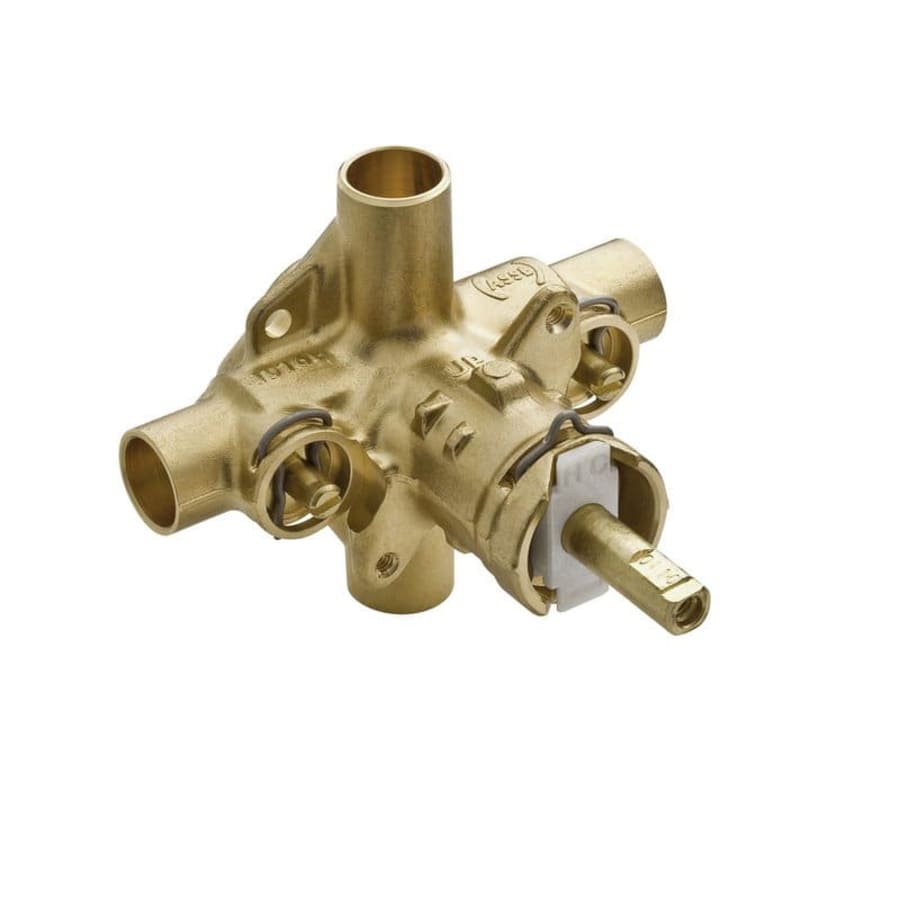

Valve is constructed of brass ensuring durability and dependability
Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Features Moen’s M-PACT® common valve system
Posi-Temp® pressure balancing valve maintains water pressure and controls temperature
Designed for sweat (CC) inlet / outlet connections
Integrated service stops allow you to turn water off at the valve
Back-to-back installation capabilities

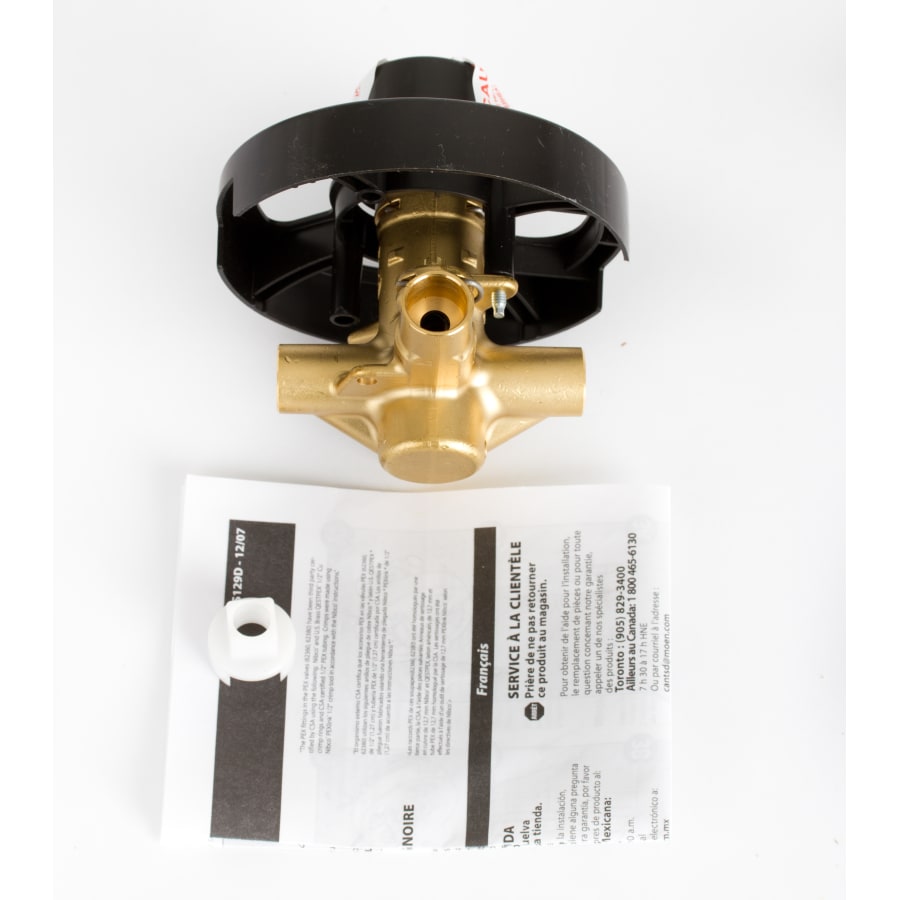

Sturdy mounting bracket included with valve
Note: This is the rough-in valve only – valve trim is required to complete product
Product Technologies / Benefits:
M-PACT® Common Valve System: Designed with the future in mind, M-PACT® allows you to install one valve that will make future renovations painless. Upgrade your trim at any point in the decorating or construction process – or even years down the road – without replacing any faucet plumbing.
Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 3° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.
Product Specifications:
Connection Size: 1/2″
Connection Type: Sweat (also known as “CC”)
Cartridge Included: 1222
Number of Ports: 4
Variations:
2570: This model
2510: IPS connections, no stops
2520: Sweat (CC) connections, no stops
2580: PEX connections, no stops
2590: IPS connections, with stops
Different Types of Valve Inlet / Outlet Connections:
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen M-Pact Collection
Specifications
| Water Connection | 1/2" |
| Max Deck Thickness | 2.875 in. |
| Inside Diameter | .5 in. |
| Outside Diameter | .5 in. |
| Installation Hardware Included | Yes |
| Integrated Diverter | No |
| Volume Control | No |
| Cartridge Included | Yes |
| Service Stops Included | Yes |
| Trim Included | No |
| Material | Brass |
| Thermostat | Modern |
| Configuration | Shower Valve |
| Valve Type | Pressure Balanced |
| Scald Guard | Yes |
| Water Connection Type | Sweat |
| Valve Function | Pressure Balance |
| Digital | No |
| Number Of Ports | 4 |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| Certifications | CSA, ASME |
| ASSE Code | A112.18.1M |
| CSA Code | B125 |
