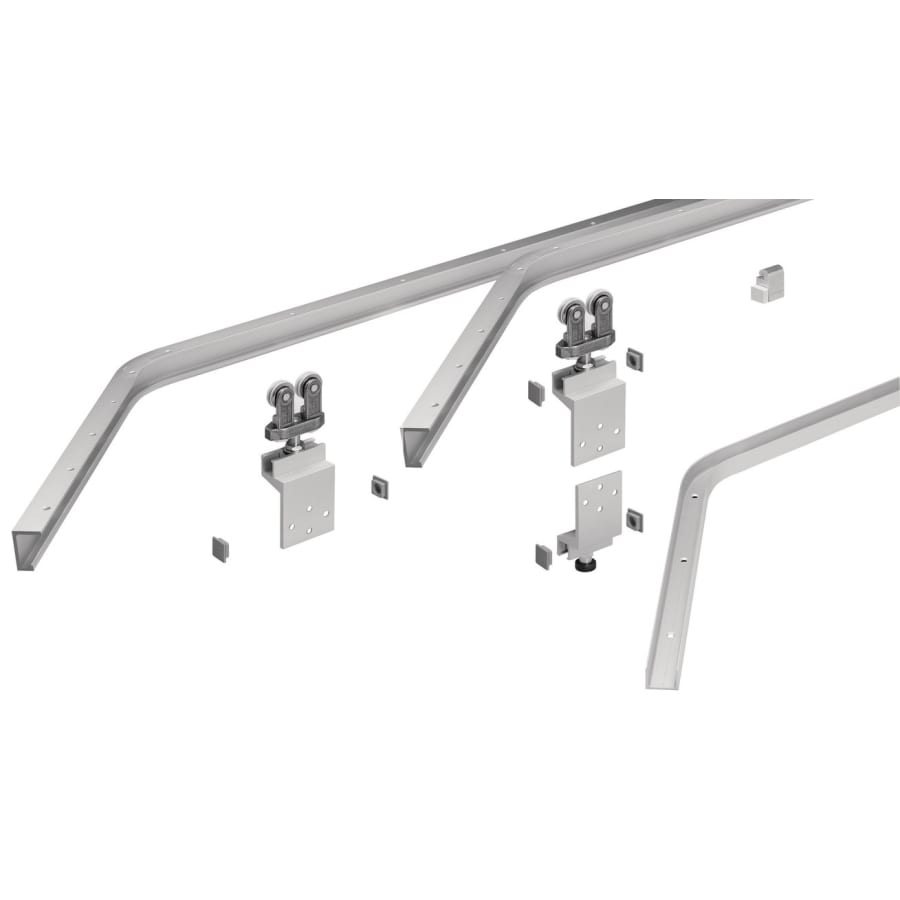

Kit Includes:
2 curved single top running tracks
1 curved single bottom guide track
8 single fixing plates
1 double fixing plate
6 connecting bolts
2 door stopper sets (1 top/1 bottom)
1 center door stopper
1 adjustment wrench
1 hex key
Features:
Smooth quiet operation

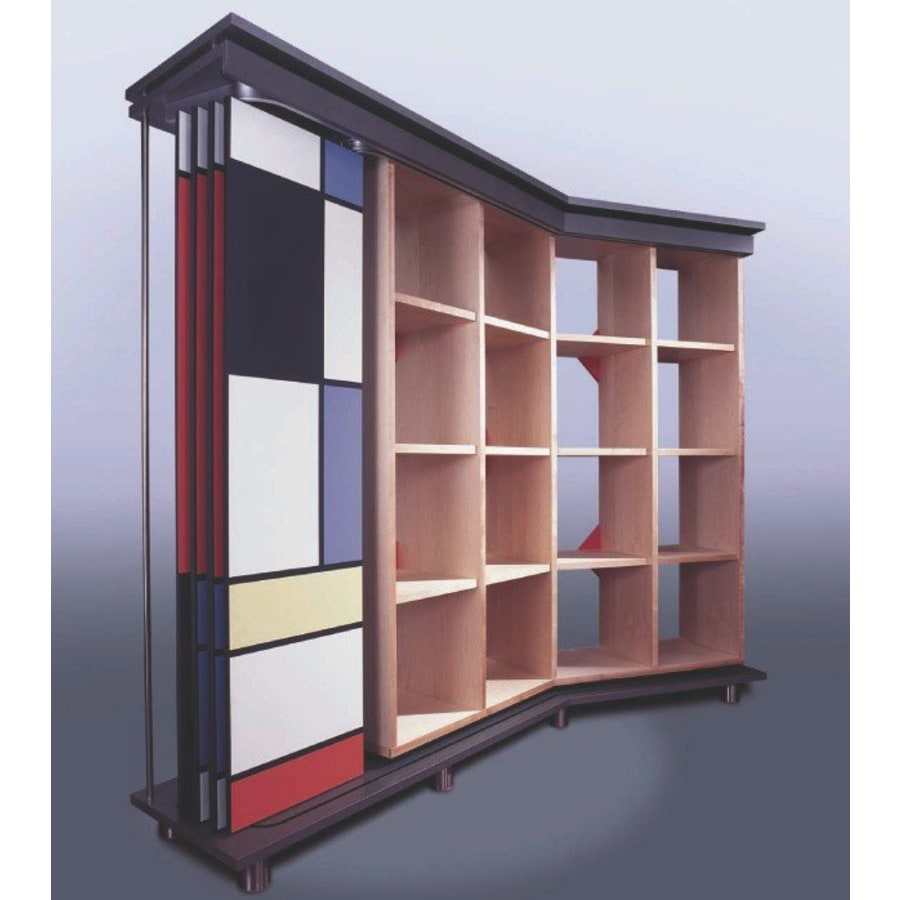

Up to 7 panels can be stored in a parking area on one side of the cabinet
Cabinet front is flush when closed
Use for left or right handed application
Specifications:
Maximum door weight 88 lbs. (40 kg)
Door up to 102.375″ (2600 mm) height x 15.75″ – 35.5″ (400 – 900 mm) width
Height adjustable +/- 1/16″ (2 mm)
Depth adjustment up to 1″ (25 mm)
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele HAWA Aperto Collection
Specifications
Warranty and Product Information
| Collection | HAWA Aperto |
| Approved for Commercial Use | No |
Dimensions and Measurements
| Max Door Weight | 88 lbs. |
| Max Door Width | 35.5 in. |
