Features:
Includes two hinges in each order (Not sold individually)
Metal construction adds durability for a long lifespan
Reliable, self-closing power of dual compression springs
All mounting hardware included
Product Technologies:
Partial Overlay: A partialoverlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with partial concealment of the hardware itself when the cabinet door is closed.
Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.

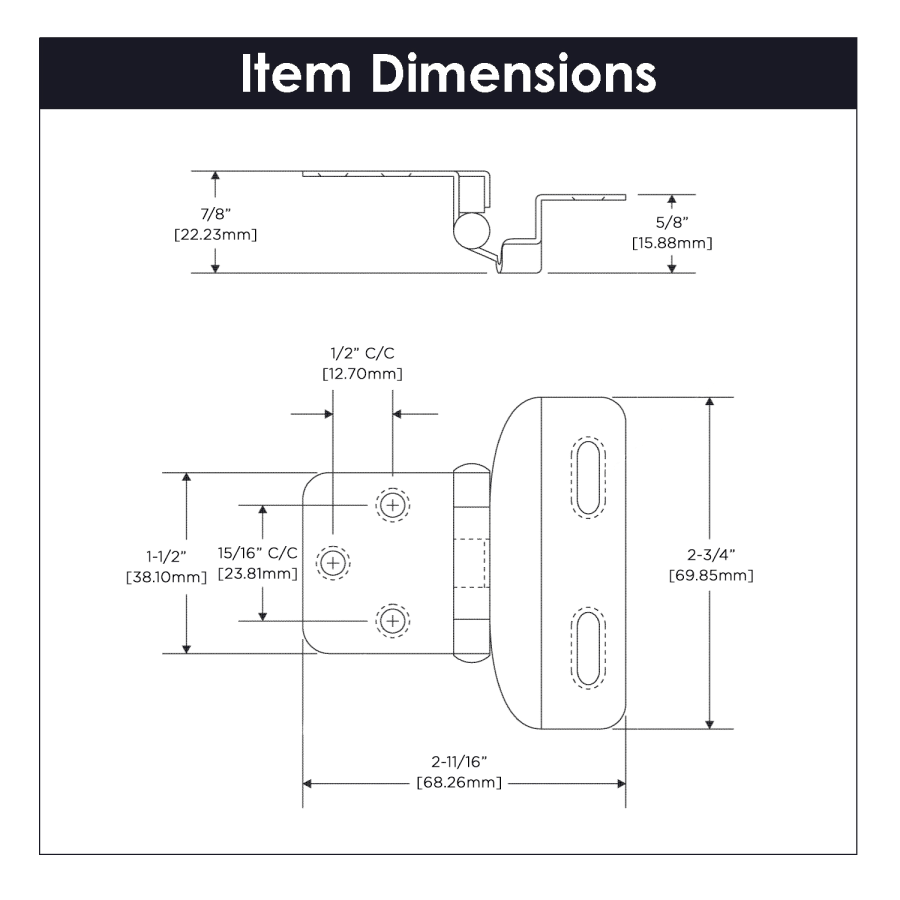

Specifications:
Width: 2-3/4″
Length: 2-11/16″
Hinge Mount: Partial Overlay
Depth Adjustment: No
Vertical Adjustment: Yes
Side to Side Adjustment: No
Material: Metal
Quantity: 2
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Length | 2.68 in. |
| Width | 2.75 in. |
| Quantity | 2 |
| Overlay | 1/4 Inch |
| Material | Metal |
| Insulation Type | Screw |
| Hinge Type | Wrap |
| Number Of Hooks | 5 |
| Number of Knuckles | 3 |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Height | Yes |
| Adjustable Side to Side | No |
| Self Closing | Yes |
| Soft Close | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Approved for Commercial Use | No |
| Installation Hardware Included | Yes |
| Color | Antique Brass, Polished Brass, Venetian Bronze, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones |
