Product Features:
Kohler tubs are fully covered under warranty for up to a year after installation

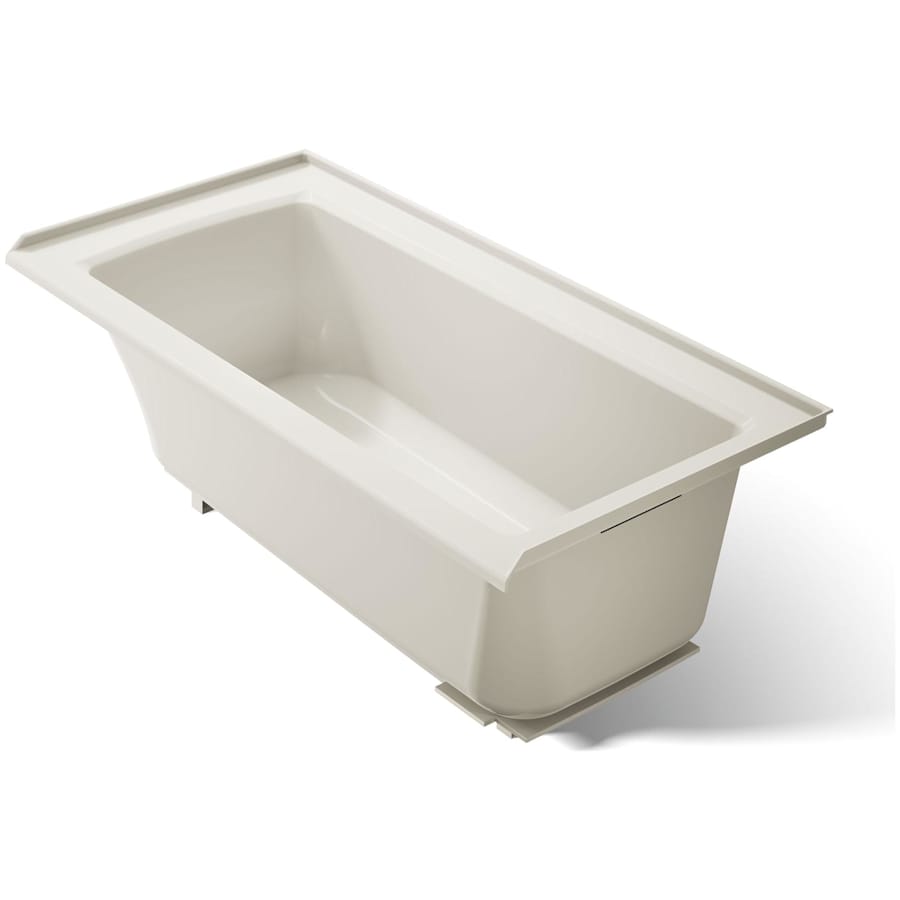

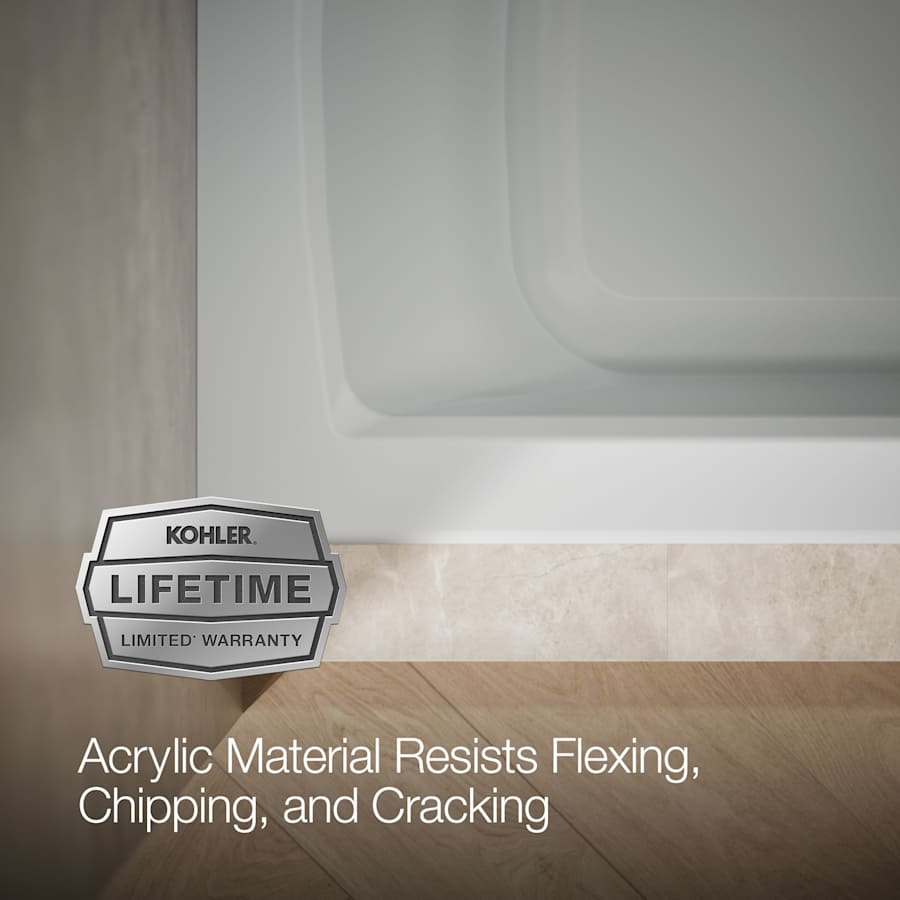

Tub constructed of acrylic
Soaking tub – provides the user with a soothing and relaxing bathing experience
Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs

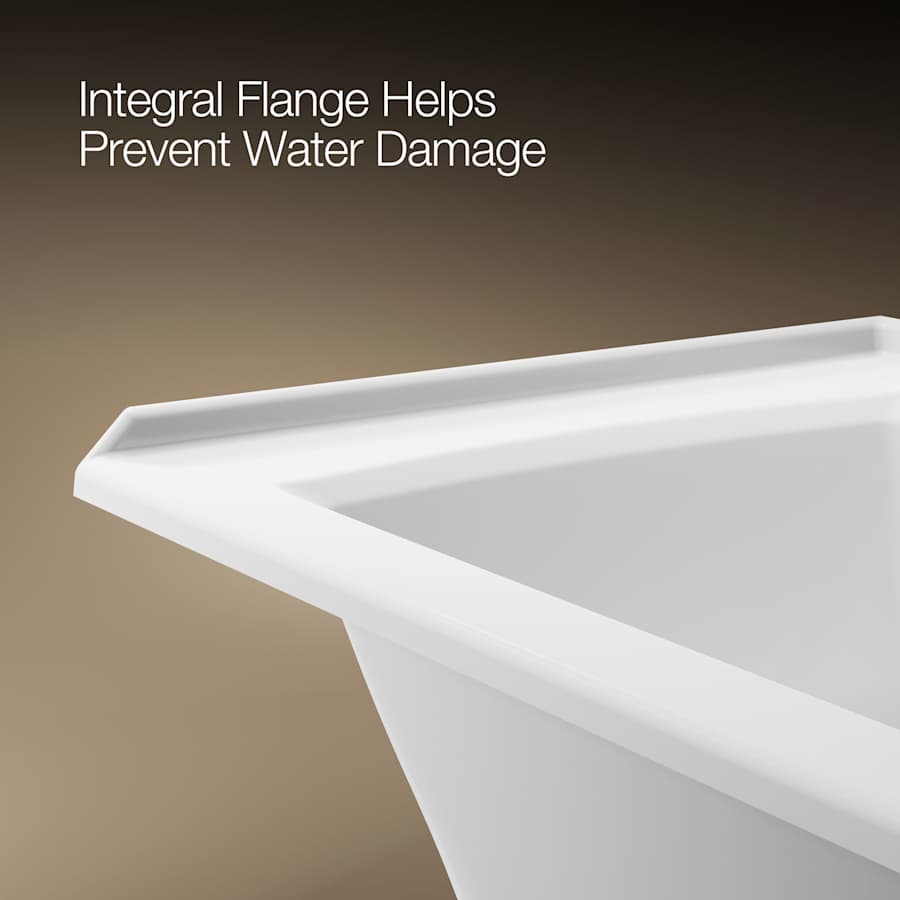

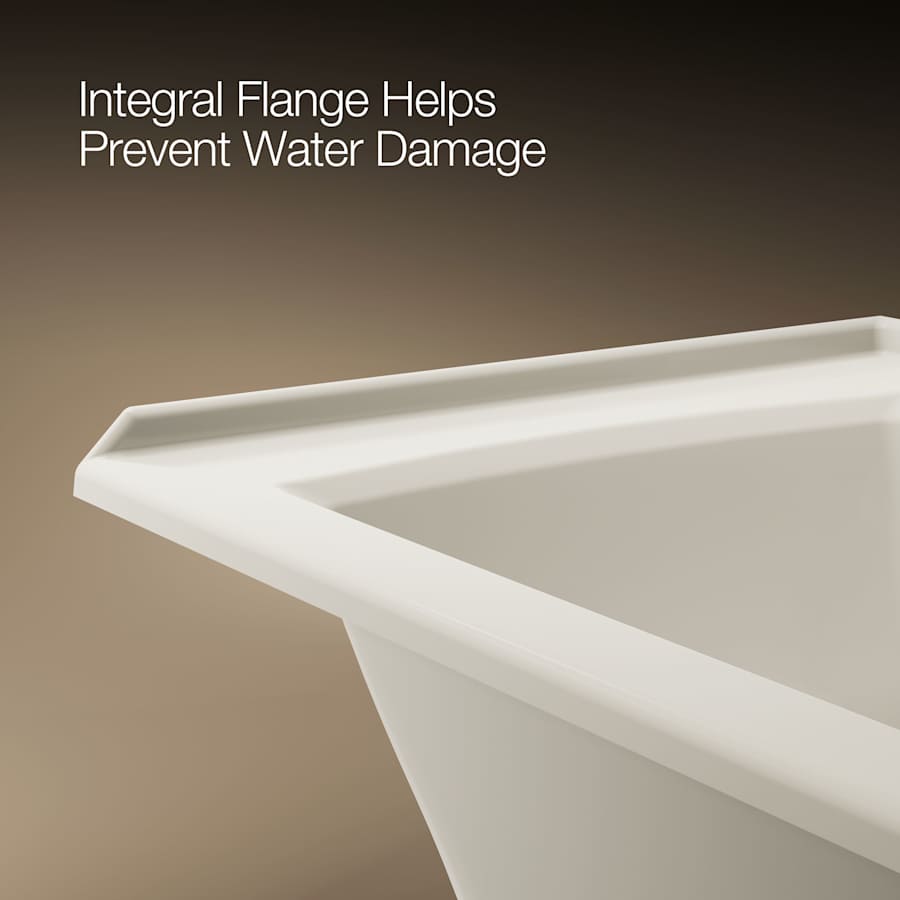

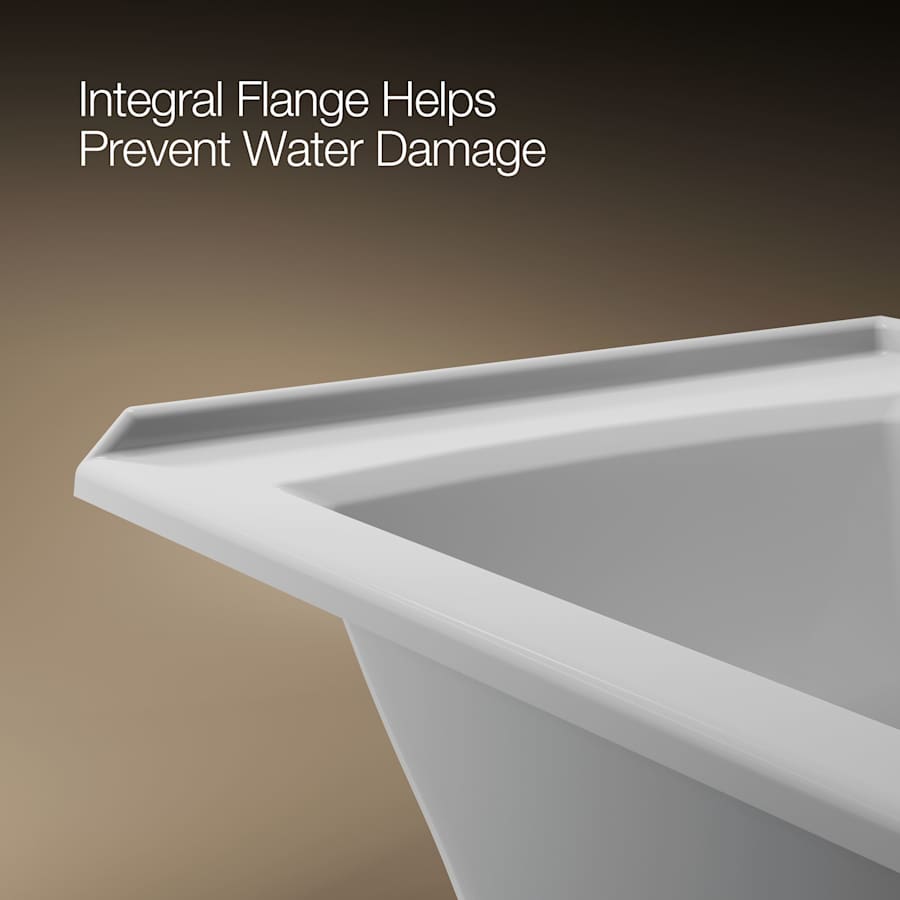

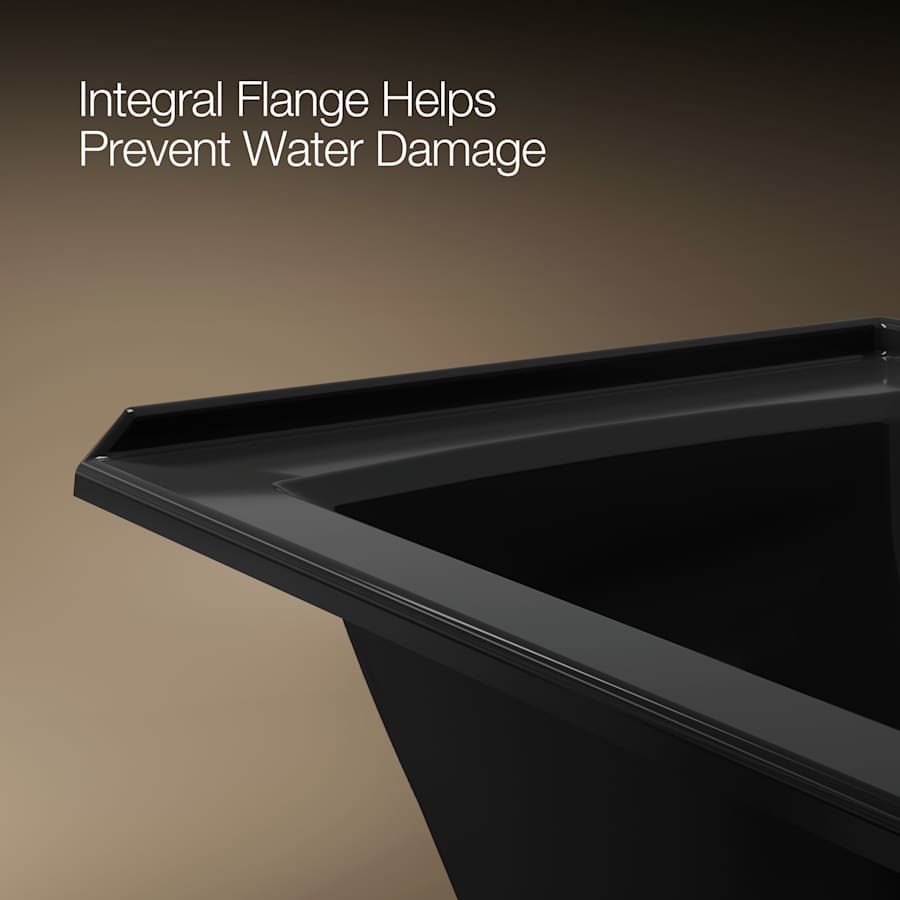

Integral flange helps prevent water from seeping behind wall and simplifies alcove installation.

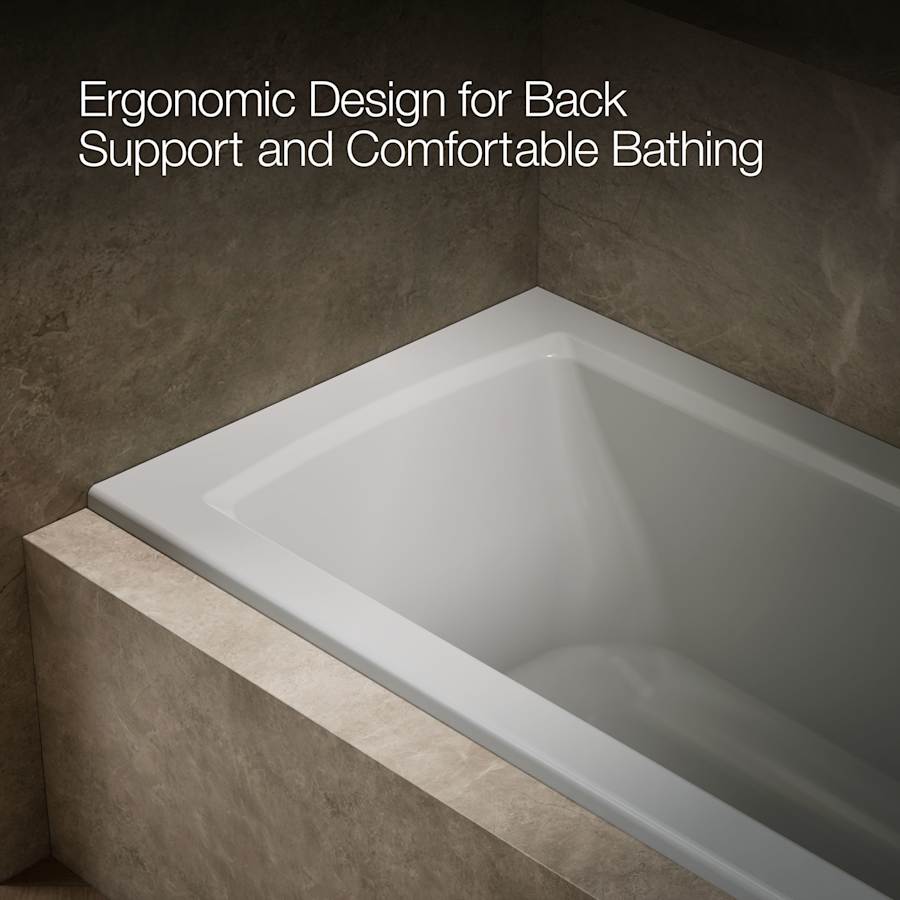

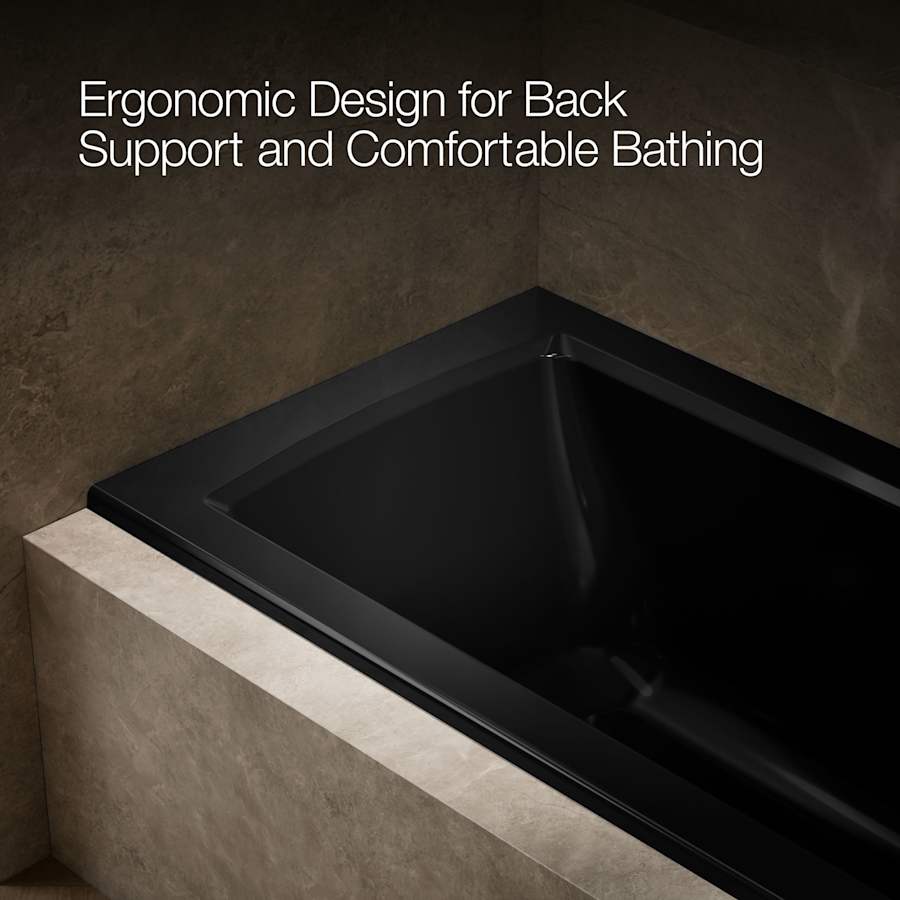

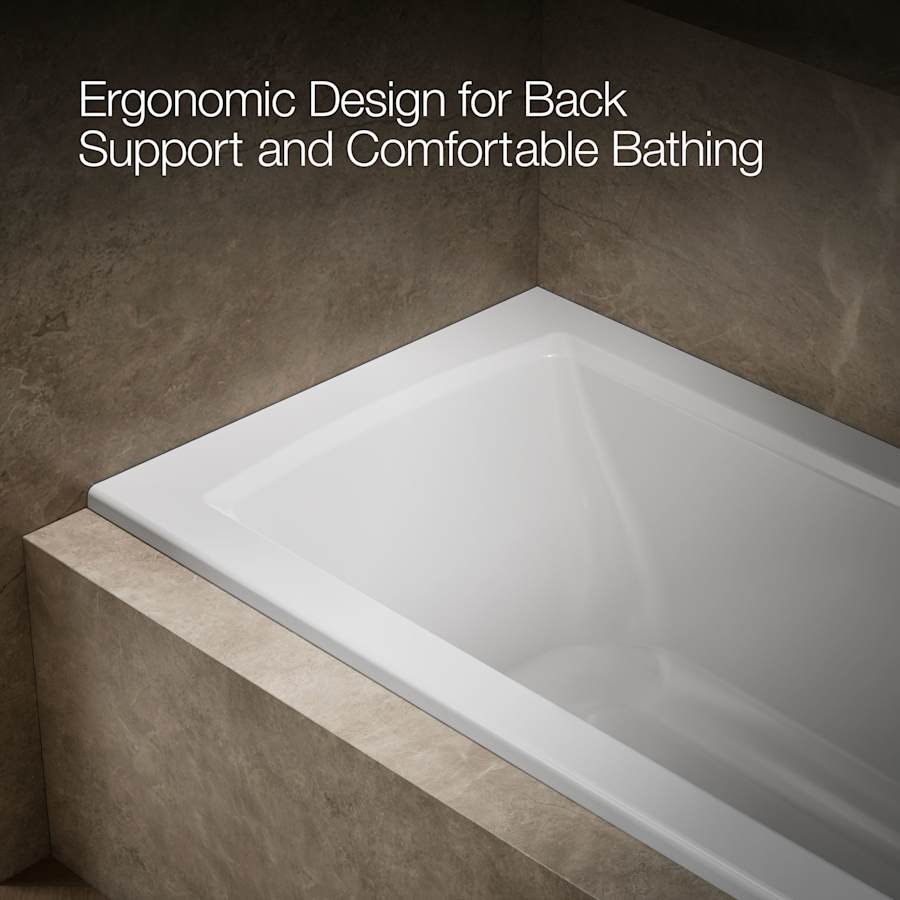

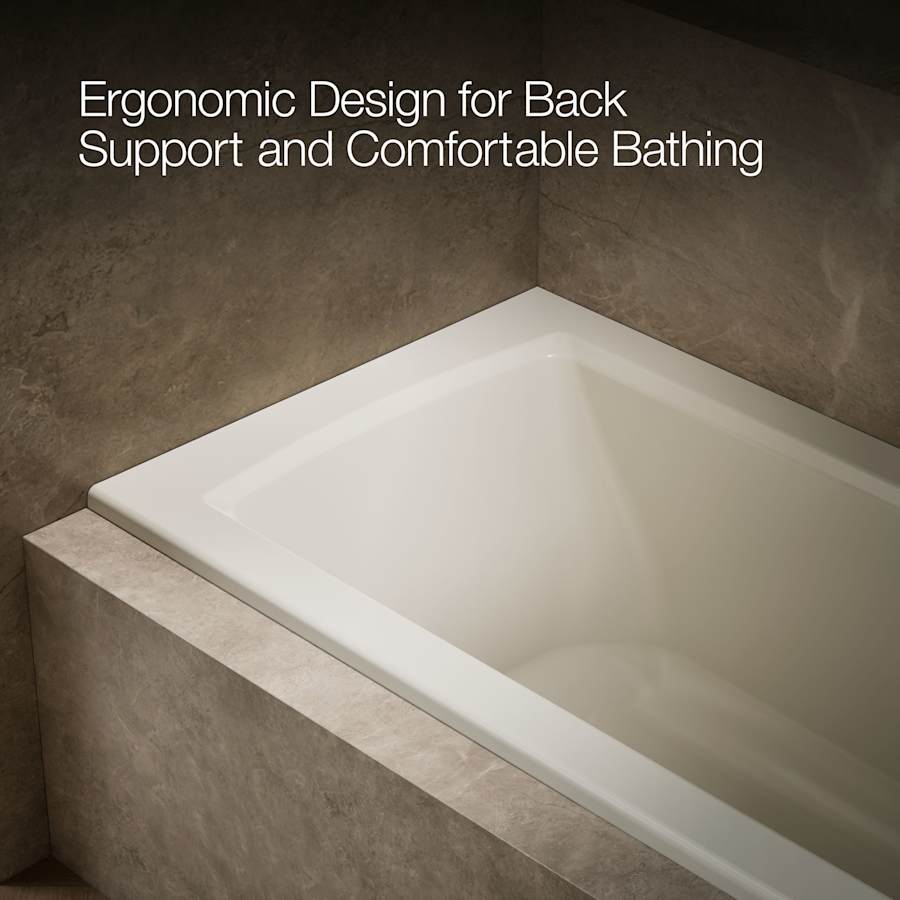

Tub comes standard with molded lumbar support and armrests, furthering the users comfort

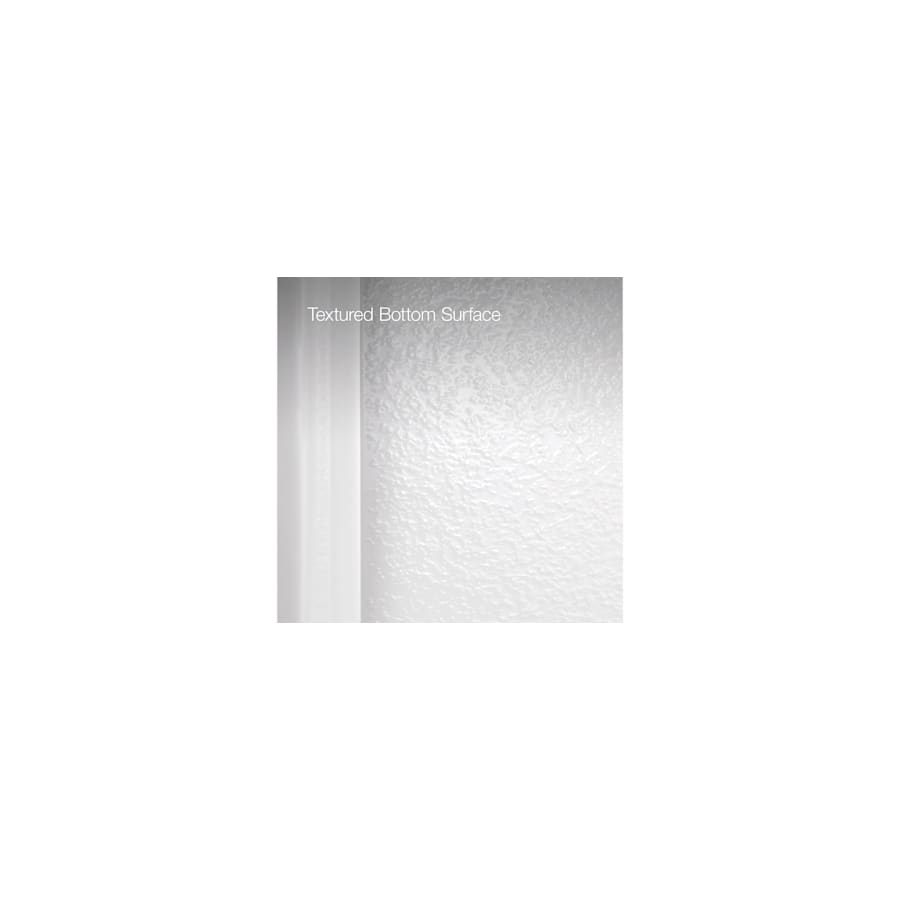

A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub

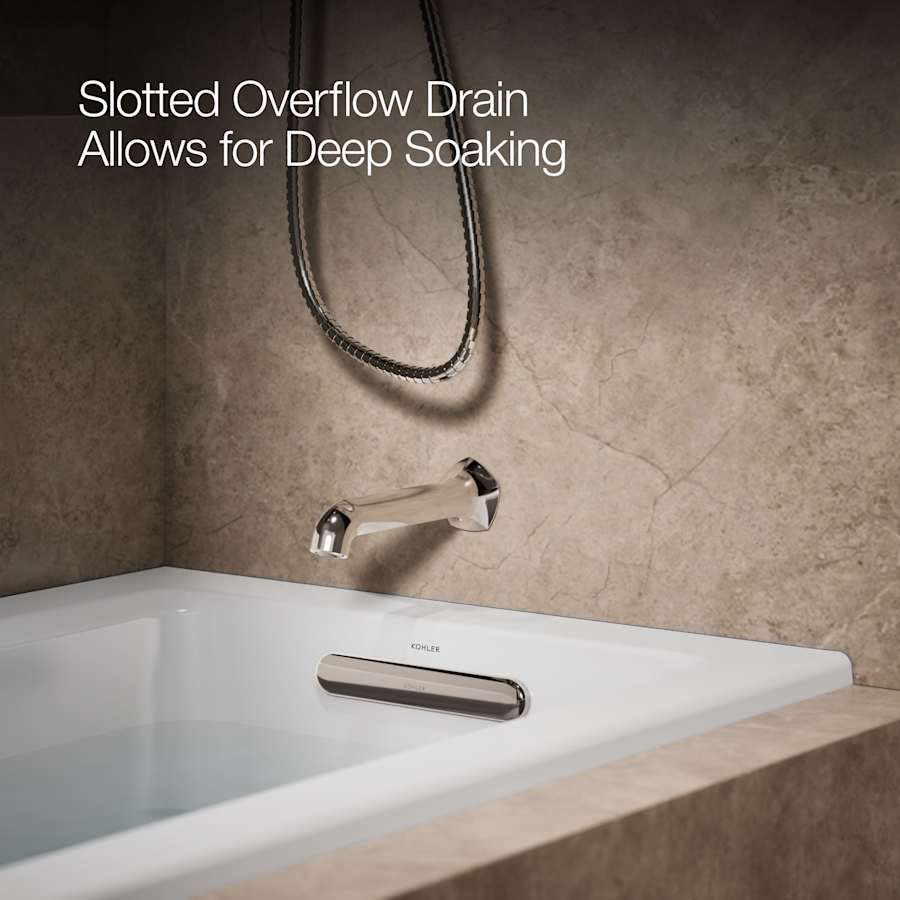

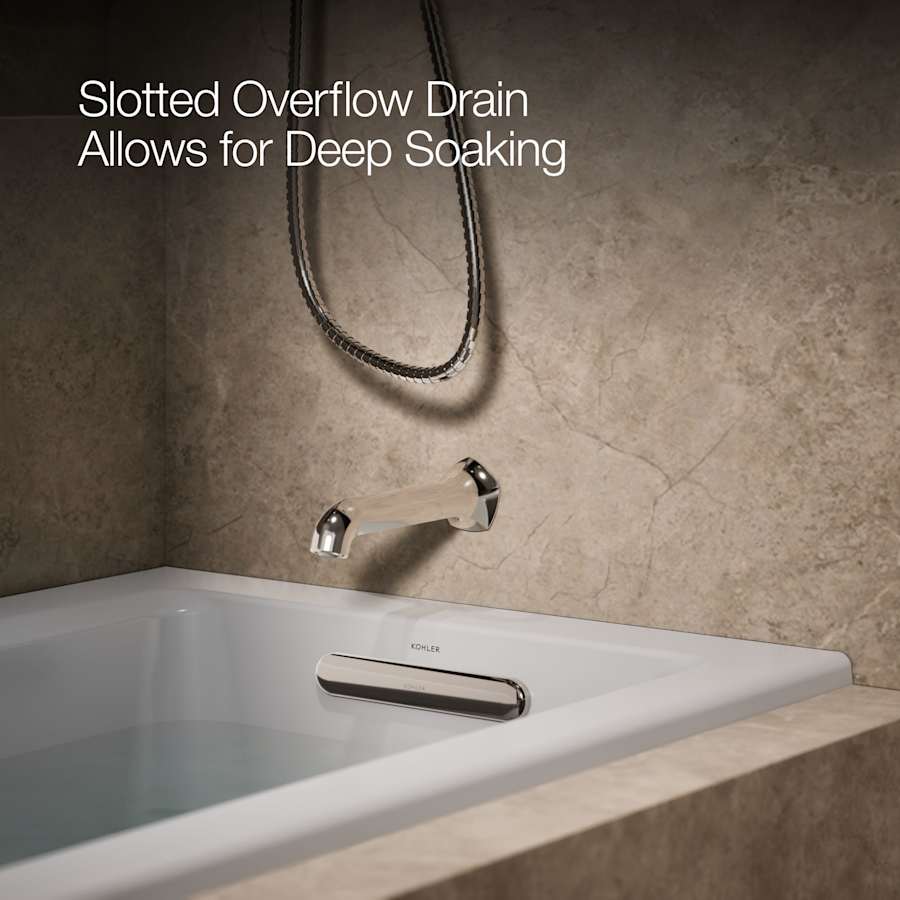

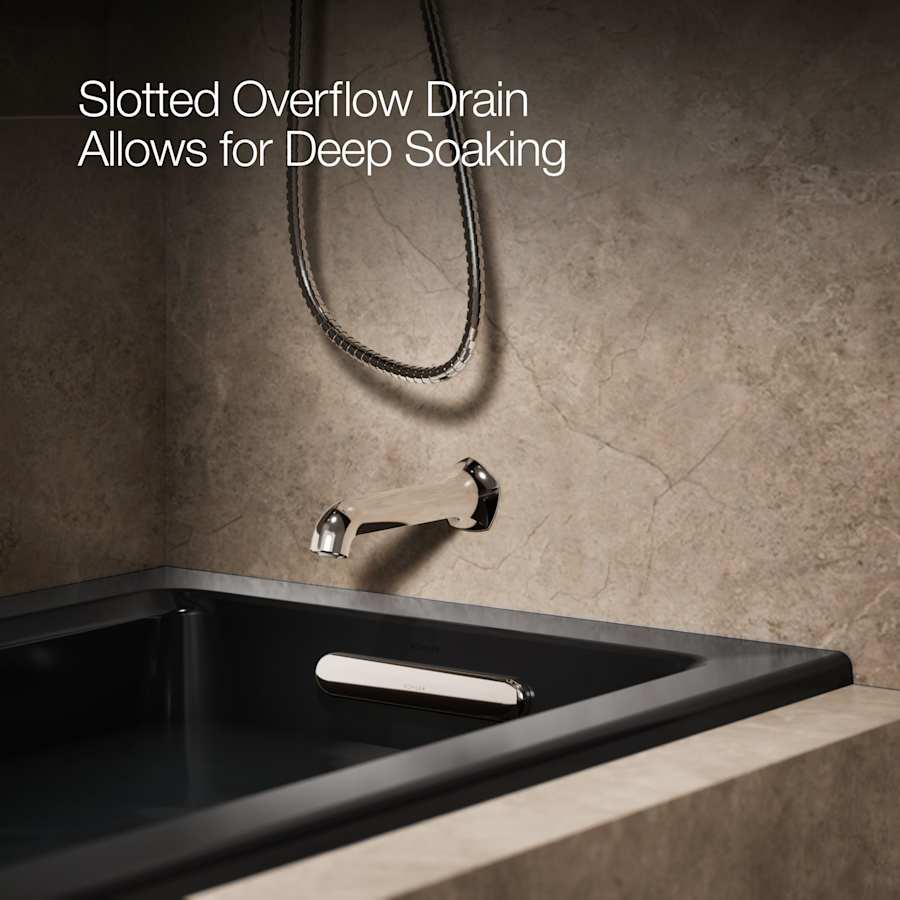

Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant – complies with the standards set forth by the American’s with Disabilities Act
Product Meet or Exceeds the Following Codes/Standards: ADA, ICC/ANSI A117.1 and CSA B45.5/IAPMO Z124
Product Technologies and Benefits:

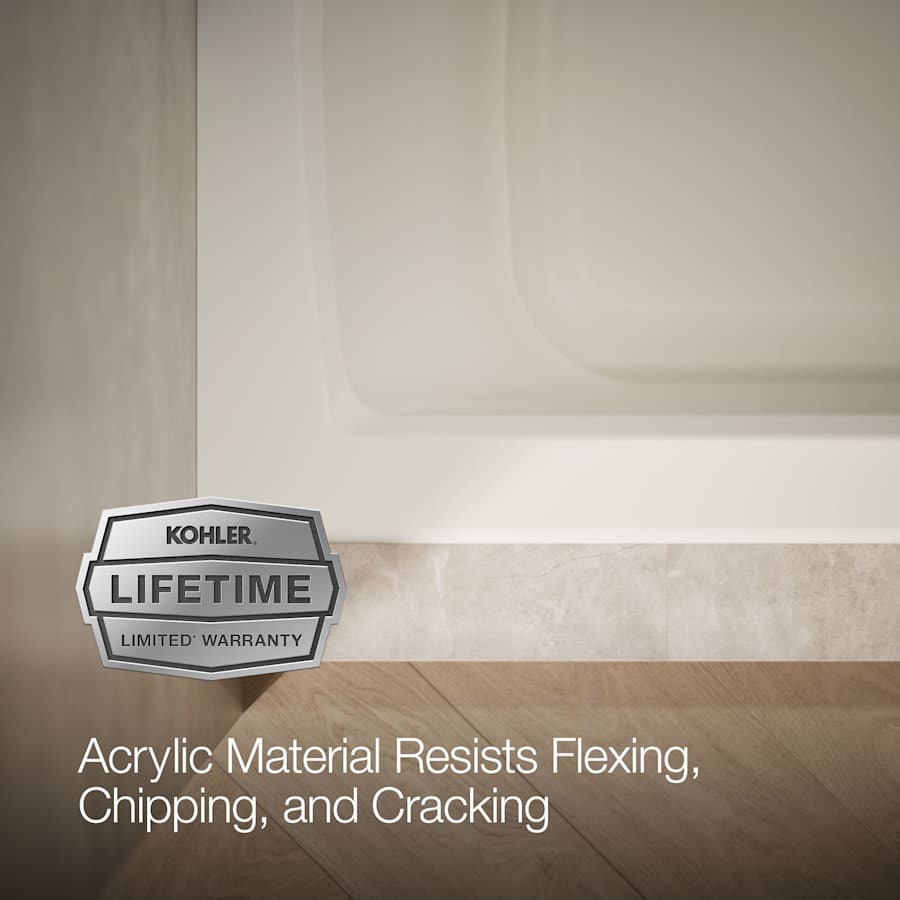

Material – ExoCrylic – Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.
Product Specifications:

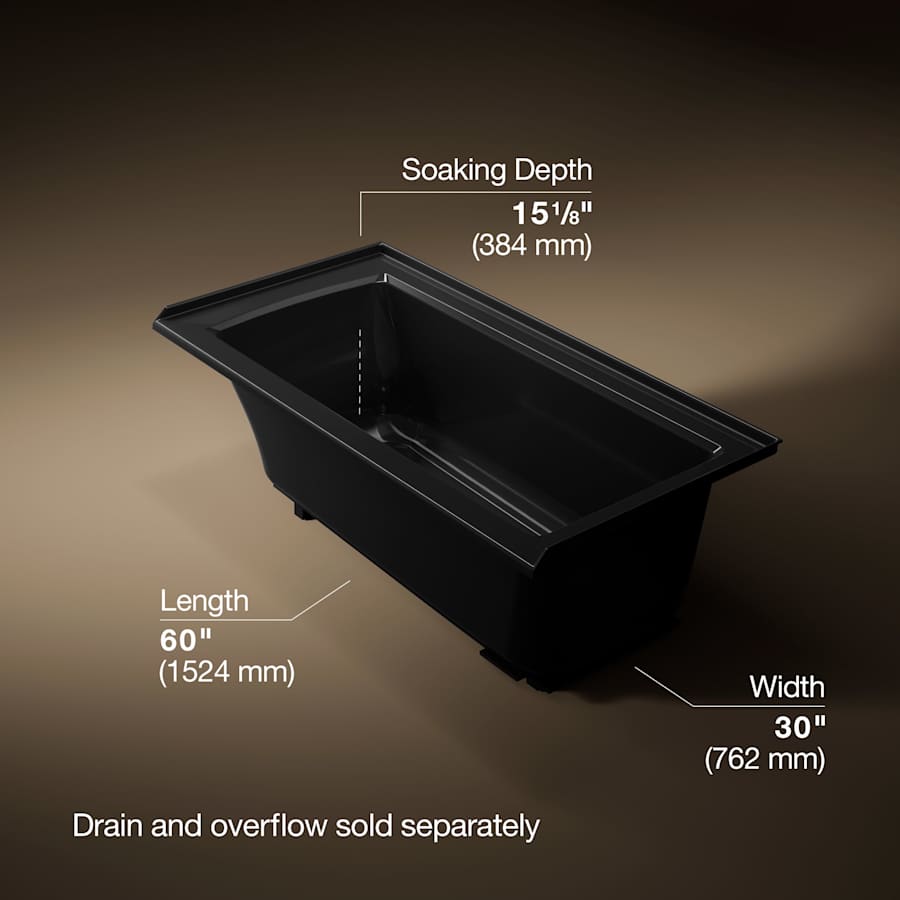

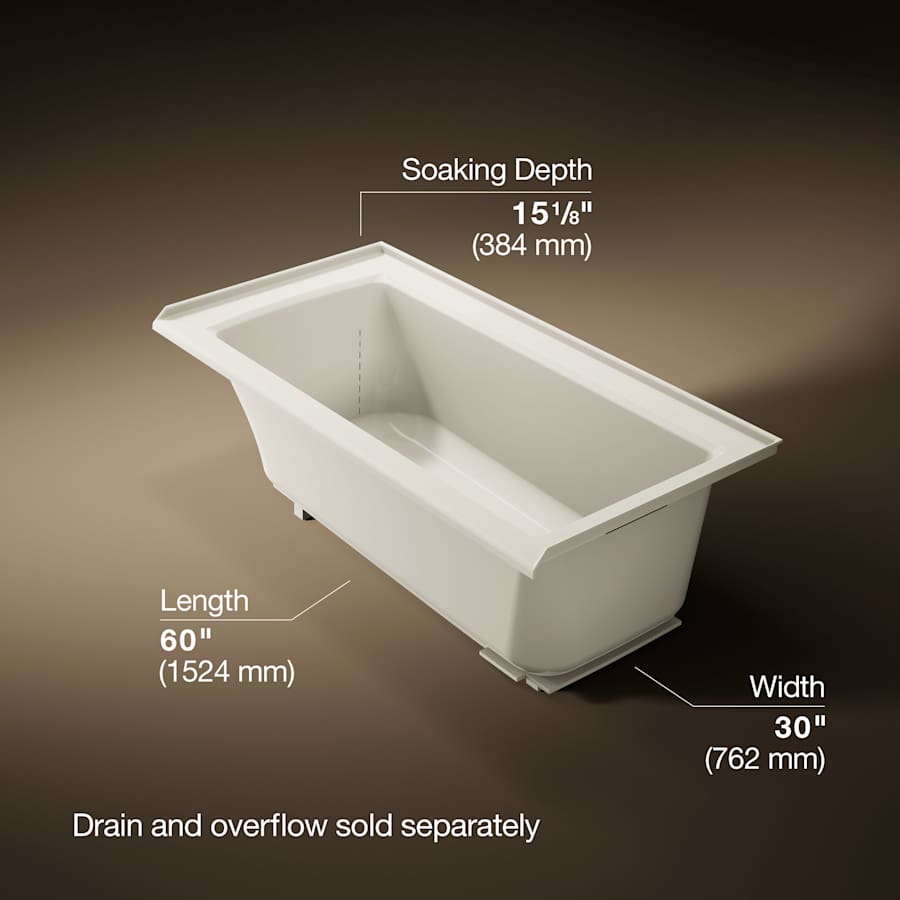

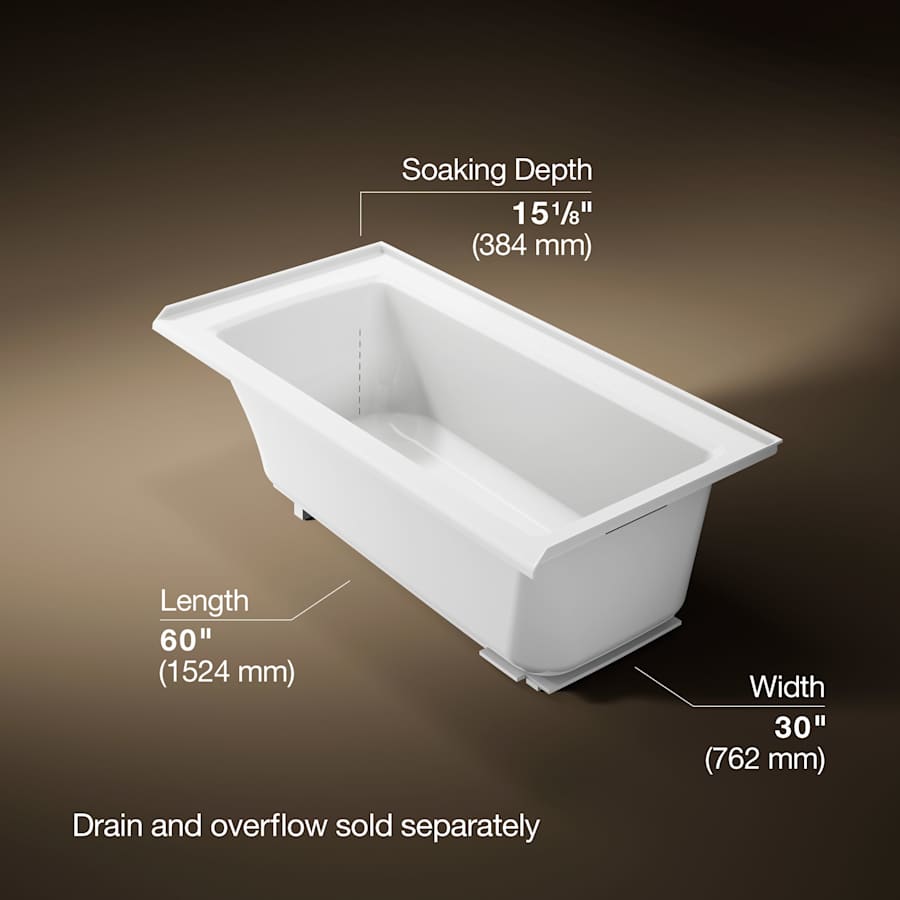

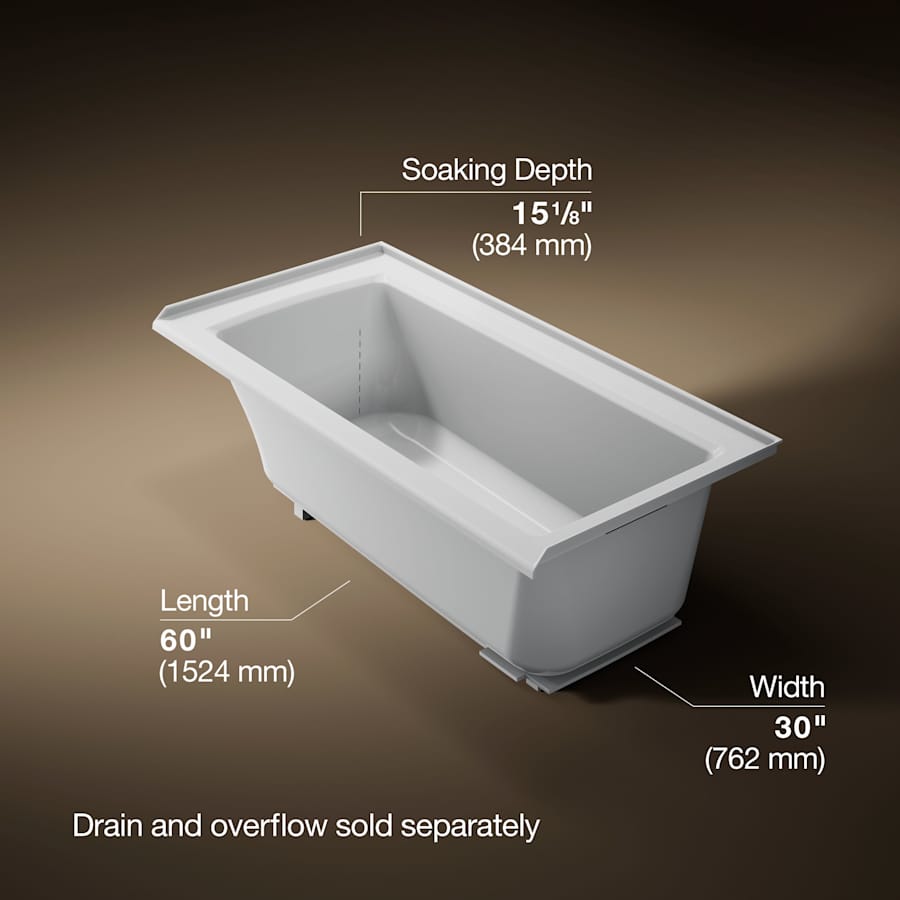

Overall Height: 20-1/4″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 30″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 22-1/16″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52-1/8″ (right to left measurement of the top of basin walls)
Water Depth: 15-1/8″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 57 – gallons
Drain Location: Right
Variations of K-1946-R:
K-1946-RW: soaking bath and bask heated surface version of this tub
K-1947-GRF: bubblemassage air bath version of this tub
K-1947-GRW: bubblemassage air bath and bask heated surface version of this tub
K-1947-VBR: vibracoustic version of this tub
K-1947-VBRW: vibracoustic and bask heated surface version of this tub
K-1947-R: whirlpool version of this tub
K-1947-RH: whirlpool and heater version of this tub
K-1947-RW: whirlpool and bask heated surface version of this tub
K-1947-XHGR: whirlpool and bubblemassage air bath version of this tub
Â
With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.
From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Width | 30 in. |
| Depth | 19 in. |
| Length | 60 in. |
| Product Weight | 57.8 lbs. |
| Bar Length | 52.125 in. |
| Base Width | 22.063 in. |
| Nominal Length | 60 in. |
| Nominal Width | 30 in. |
| Capacity (Gallons) | 57 |
| Overflow Height | 15.125 in. |
| Tub Size | 60 Inches |
| Insulation Type | Three Wall Alcove |
| Material | Acrylic |
| Thermostat | Contemporary |
| Drain Placement | Right |
| Overflow | Yes |
| Number Of Bathers | 1 |
| Tub Shape | Rectangular |
| Apron Front | No |
| ADA | Yes |
| Collection | Archer |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Color | Almond, Biscuit, Black Black, Cashmere, Dune, Ice Grey, Innocent Blush, Mexican Sand, Sandbar, Thunder Grey, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
