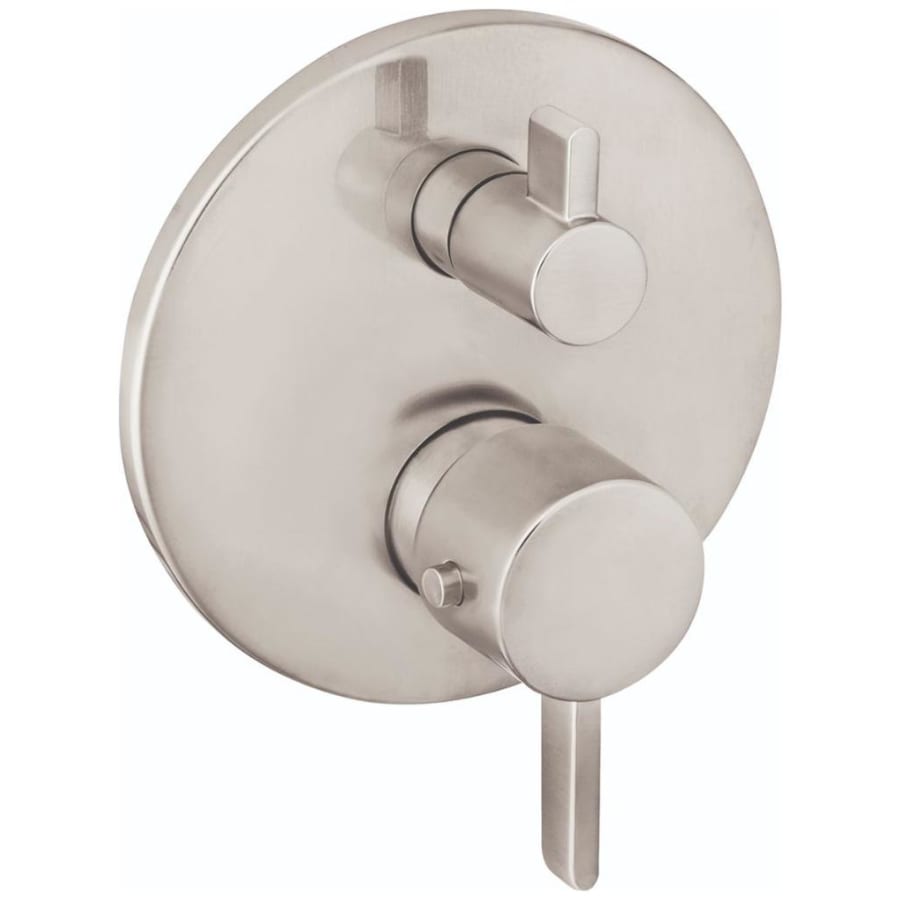

With Ecostat shower trims, Hansgrohe offers you sophisticated technology for concealed Installation. Ecostat concealed shower trims are ideal for new buildings or if an iBox universal plus rough is already installed in your wall. The advantage of the concealed version is that the technology disappears invisibly into the wall, saving space. Ecostat trims impress with their Elegant design, safety, sophisticated functionality, high value and proven Hansgrohe quality. The choice in style is yours: Hansgrohe Ecostat is available in three design variants : Ecostat E with rounded corners, Ecostat S in a round shape and Ecostat in a square design. The flat concealed thermostats are simply mounted on the iBox universal plus rough . Concealed Installation is interesting for anyone planning or building a new bathroom. And for purists who like their bathroom to be clear and tidy.
Hansgrohe 04231 Features:

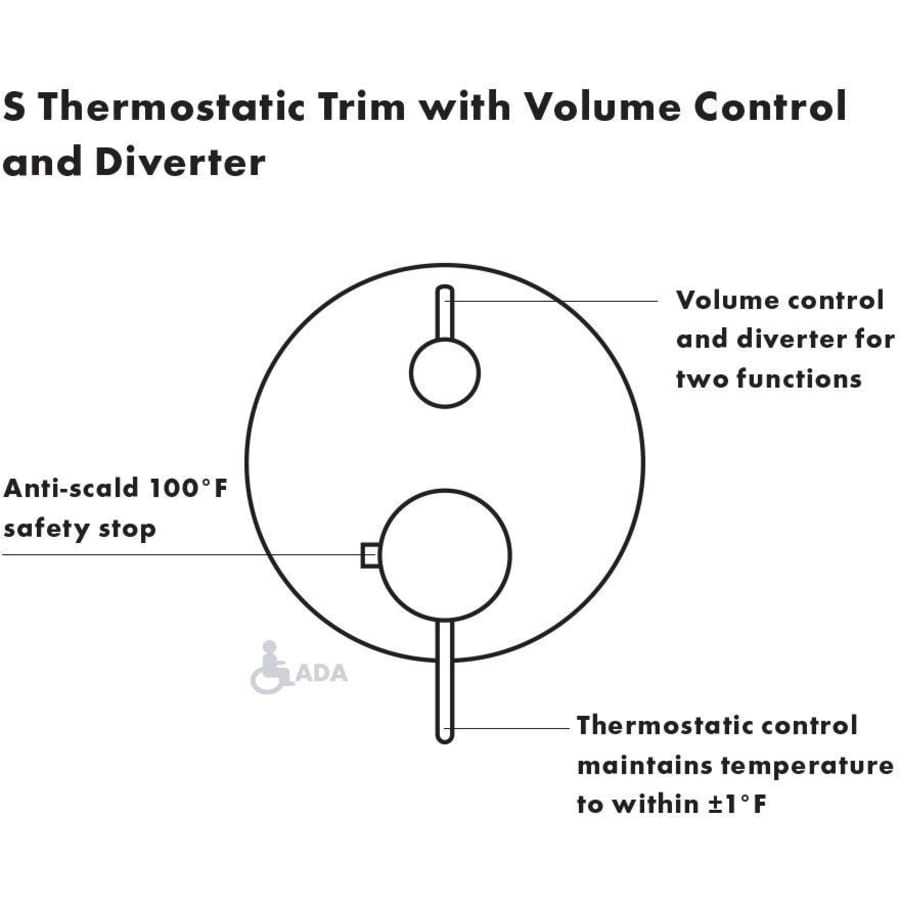

Comfort thermostat concealed for 2 outlets: such as handheld shower and shower head
High-quality thermostat cartridge which controls the temperature evenly and precisely
More safety: a button on the handle only releases hot water when required and prevents the temperature from becoming too high (SafetyStop)
The second handle allows you to conveniently switch between handheld shower and shower head and to control the water volume
Built to last: Brass internal components compliment a polymer trim plate for a surface that is resistant to dents, chemical corrosion, and mineral accumulation
Includes handles, sleeve, function block, escutcheon and shut-off/diverter valve
Shiny appearance: The brilliant, Easy-to-clean chrome surface impresses with its lasting shine

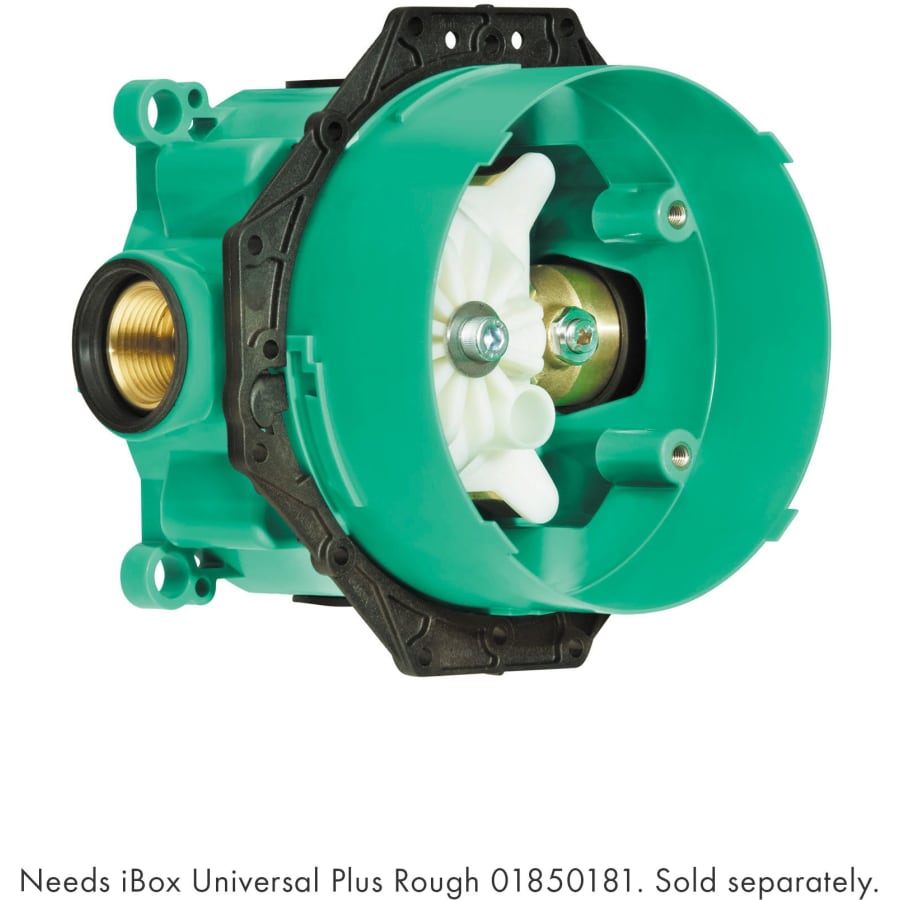

Required parts: This product requires the iBox Universal Plus Rough (Part No. 01850181) for Installation
Installation notes: Hansgrohe recommends a licensed plumber install this product
Limited lifetime consumer warranty: Consumer purchases of Hansgrohe products from authorized sellers are covered by a limited lifetime manufacturer warranty applicable to the original purchaser
Additional Hansgrohe Links
View the Manufacturer Warranty
Browse all Hansgrohe Products
Hansgrohe Ecostat Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Valve Type | Thermostatic |
| Insulation Type | Wall Mounted |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Diverter Location | Valve Trim |
| Handle Material | Metal |
| Scald Guard | Yes |
| Approved for Commercial Use | Yes |
| Collection | Ecostat |
| ADA | Yes |
| Commercial Warranty | 1 Year Limited |
| Manufacturer Warranty | Limited Lifetime Residential |
| Certifications | CSA |
| CSA Code | B125.1 |
| Installation Hardware Included | Yes |
| Handshower Included | Yes |
| Valve Included | No |
| Diverter Included | Yes |
| Drop Ell Included | No |
| Integrated Diverter | Yes |
| Integrated Volume Control | Yes |
| Twin Ell Included | No |
| Volume Control | Yes |
| Flow Rate (GPM) | 7 |
| Water Connection | 3/4" |

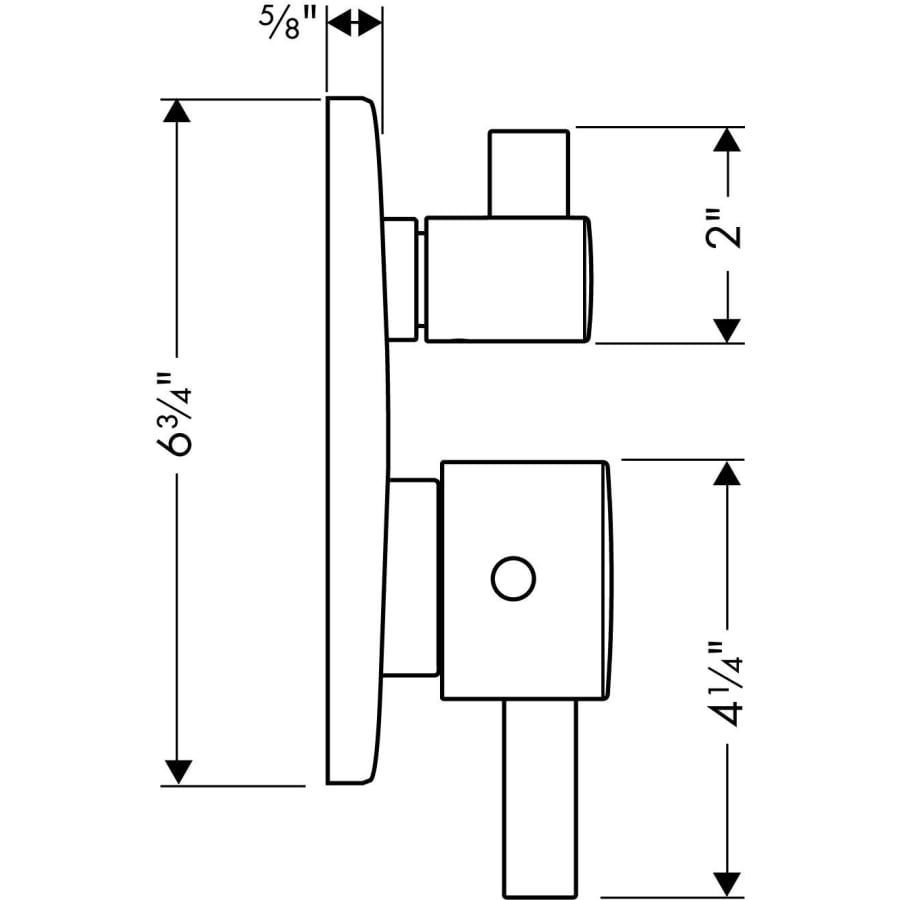

| Base Diameter | 6.75 in. |
| Escutcheon Height | 6.75 in. |
| Escutcheon Width | 6.75 in. |
| Color | Brushed Nickel, Chrome, Polished Nickel |
| Color Tone | Nickel Tones, Silver Tones |
