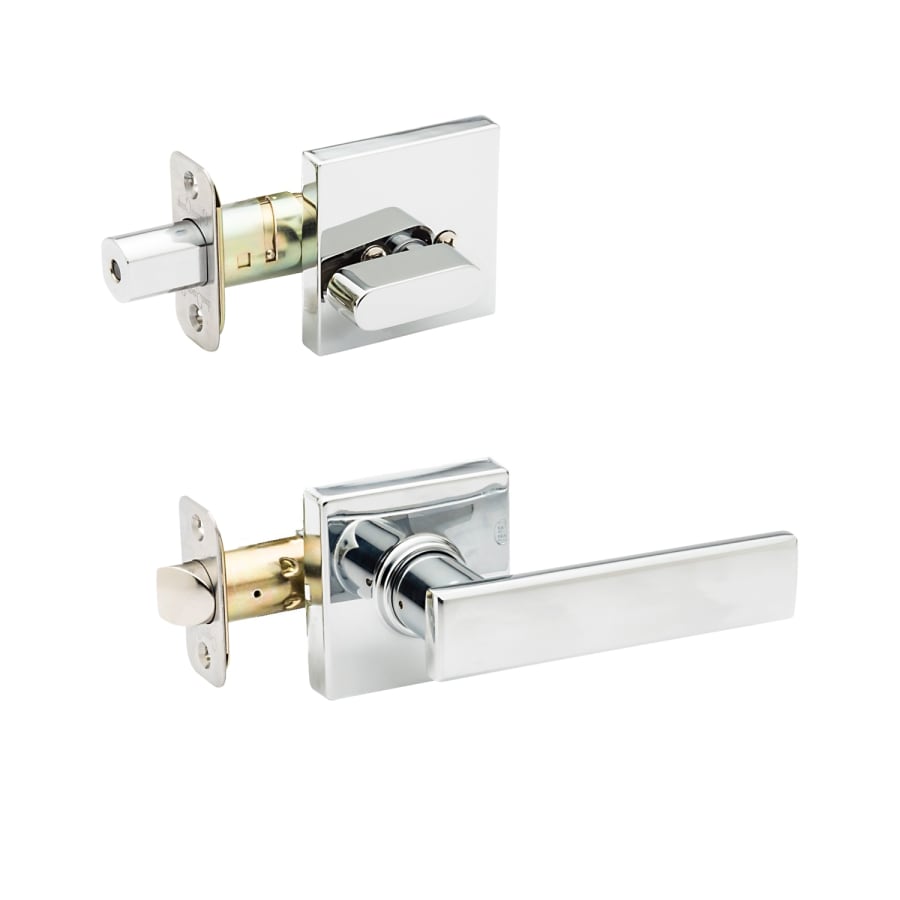

Interior Pack (Single Cylinder) Function: Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation. Includes a thumbturn for the interior side of the deadbolt and a knob or lever for the inside of the door.
Â
Features:
Exceeds criteria for BHMA grade 3 certification
Constructed from all metal materials for long lasting durability
Designed for both left and right hand door configurations
Includes a round corner latch faceplate
Covered under a manufacturer limited lifetime mechanical and 5 year finish warranty
Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Height: 2-5/8″
Width: 2-5/8″
Mounting Center to Center: 5-1/2″
Projection: 2-1/8″
Product Weight: 1.5 lbs.
Latch Faceplate: Round Corner, Square Corner, or Drive-In
Material: Zinc
Additional Copper Creek Links
View the Manufacturer Warranty
Browse all Copper Creek Products
Copper Creek Remi Collection
Specifications
| Center to Center | 5.5 in. |
| Product Weight | 1.5 lbs. |
| Backset | Adjustable 2-3/8" or 2-3/4", 2-3/8", 2-3/4" |
| Door Thickness | 1-3/8", 1-1/2", 1-5/8", 1-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.125 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Length | 4.875 in. |
| Material | Zinc |
| Thermostat | Modern |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Right, Reversible |
| Handle Material | Zinc |
| Handle Style | Lever |
| Mounting | Sectional |
| Latch Faceplate | Drive-In, Square Corner, Round Corner |
| Panic Proof | No |
| Concealed Screws | No |
| Handle Design | Remi |
| Interconnected | No |
| Rosette Shape | Square |
| Lock Style | Single Point |
| Removable Core | No |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Series | Remi |
| ADA | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 3 |
| Certifications | ANSI |
| 28 Degree Latch | No |
| Color | Polished Stainless, Satin Stainless, Tuscan Bronze |
| Color Tone | Bronze Tones, Stainless Steel |
