Elegant designs set the Del Mar Collection apart from the rest. Manufactured to meet the most demanding applications by incorporating the latest water conservation and safety features, this product will give years of exceptional service.

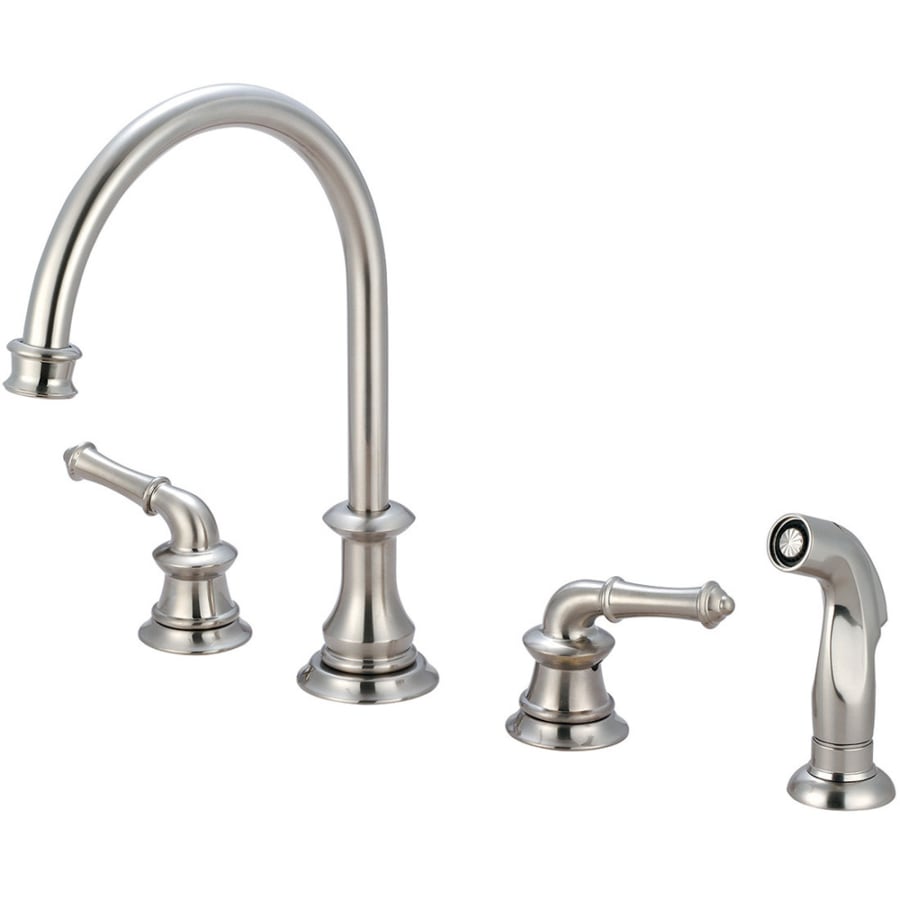

Pioneer Faucets 2DM201 Features:
Covered under Pioneer Faucets’ limited lifetime warranty
Faucet body constructed of brass
Coordinates with products from the Del Mar line seamlessly
Widespread installation – 3 hole faucet with 6″ – 16″ centers
Swivel spout rotates 360 degrees which allows for greater access to all areas of the sink
Double lever handles control the flow and temperature of water
Includes ceramic disc cartridge
Side spray included (plastic material)Â – diverts water to spray to aid with a variety of kitchen tasks
ADA compliant
Low lead compliant
Pioneer Faucets 2DM201 Specifications:
Height: 11-9/16″ (deck to top of faucet)
Spout Height: 6-11/16″ (deck to spout outlet)
Spout Reach: 8-1/16″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Holes: 3 (holes needed to install faucet)
Faucet Centers: 6″ – 16″ (distance between center of outside faucet holes)
Faucet Hole Size: 1-3/8″
Max Deck Thickness 1-1/2″ (from deck bottom to top of deck)
Side Spray Height: 5-5/16″
Additional Pioneer Faucets Links
Browse all Pioneer Faucets Products
Pioneer Faucets Del Mar Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Bridge Faucet | No |
| Electronic | No |
| Faucet Holes | 3 |
| Faucet Type | Kitchen Faucet |
| Handle Style | Lever |
| Insulation Type | Deck Mounted |
| Mounting Type | Widespread |
| Number Of Handles | 2 |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Connection Type | NPS |
| Handle Material | Metal |
| Water Efficient | Yes |
| Pre Rinse | No |
| Pullout Spray | No |
| Collection | Del Mar |
| Country Of Origin | Taiwan |
| ADA | Yes |
| Certifications | ANSI, ASME, NSF |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.18.1 |
| Low Lead Compliant | Yes |
| ANSI Certification | A117.1 |
| Height | 11.5625 in. |
| Faucet Centers | 7, 10, 13, 15, 12, 8, 16, 11, 14, 9, 6 in. |
| Flow Rate (GPM) | 1.5 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.6875 in. |
| Spout Reach | 8.0625 in. |
| Water Connection | 1/2" |
| Faucet Hole Size | 1.375 in. |
| Sink Height | 5.3125 in. |
| Spout Swivel | 360 Degrees |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Soap Dispenser Included | No |
| Filtering | No |
| Sidespray | Yes |
| Color | Brushed Nickel, Oil Rubbed Bronze, Polished Chrome |
| Color Tone | Bronze Tones, Nickel Tones, Silver Tones |
