American Standard 775B.203 Features:
Power kit must be purchased separately
Touchless operation limits the spread of germs
Above deck mixing with removable handle
Dual inlets for hot and cold water
Clean, integrated design with no control box below deck
Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
Auto Purge: Periodically purges stagnant water
Safety timer automatically turns water off after 55 seconds
Vandal resistant 0.35 gpm pressure compensating multi laminar spray

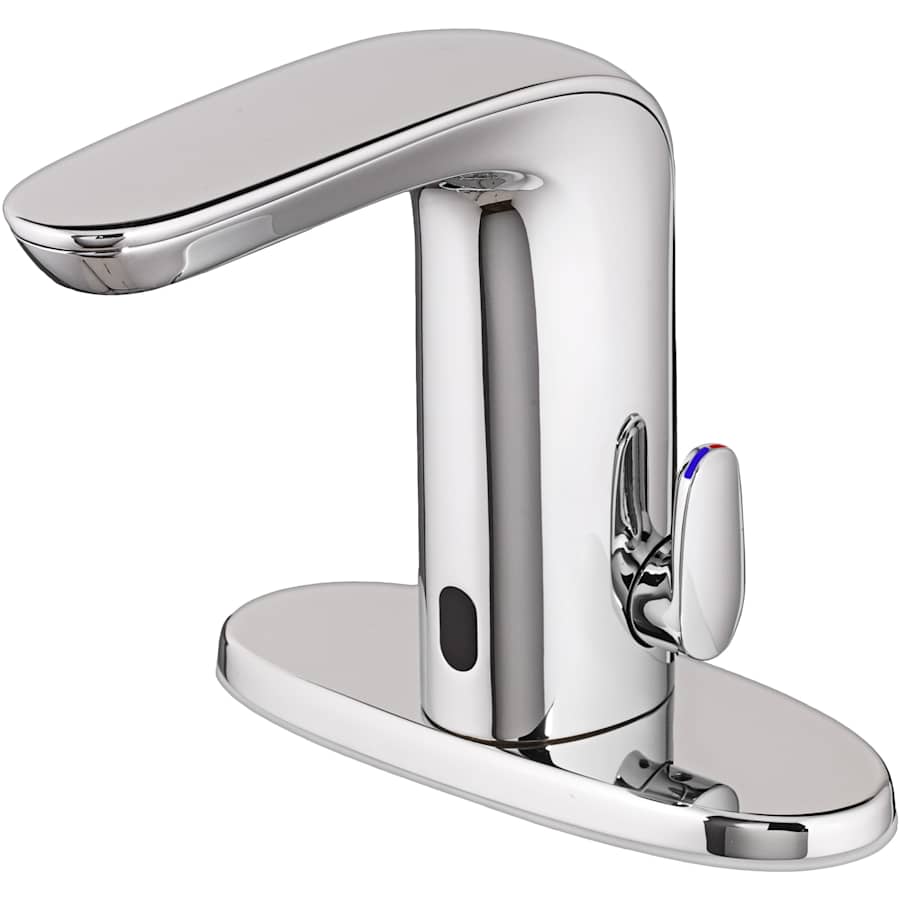

Optional deck plate for 4″ or 8″ centers available
American Standard 775B.203 Technologies and Benefits:
Red Dot Award: International symbol for design innovation. Awarded to products that have separated themselves in quality, durability, functionality, and emotional connection to the customer may receive this award as a mark of their achievement.
American Standard 775B.203 Specifications:
Height: 5-3/4″ (deck to top of faucet)
Spout Height: 5-3/4″ (deck to spout outlet)
Spout Reach: 4-15/16″ (center of faucet body to center of spout outlet horizontally)
Flow Rate: 0.35 gallons-per-minute
Faucet Holes: Single Hole
Max Deck Thickness: 1-1/2″ (from deck bottom to top of deck)
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard NextGen Selectronic Collection
Specifications
| Height | 5.75 in. |
| Faucet Centers | 0 in. |
| Spout Reach | 4.9375, 4.938 in. |
| Water Connection | 3/8" |
| Flow Rate (GPM) | .35 |
| Handle Height | 2.4375 in. |
| Faucet Hole Size | 1.125 in. |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 5, 5.75 in. |
| Spout Swivel | 0 Degrees |
| Thermostat | Contemporary, Modern |
| Material | Metal |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Handle Material | Metal |
| Handle Style | Lever |
| Mounting Type | Single Hole |
| Number Of Handles | 0, 1 |
| Spout Type | Fixed |
| Valve Type | Solenoid |
| Faucet Type | Bathroom Sink Faucet |
| Electronic | Yes |
| Touchless Faucet | Yes |
| Power Source | Hardwired, Battery |
| Collection | NextGen Selectronic |
| Certifications | ANSI, ASME, CSA, NSF |
| ADA | Yes |
| ASSE Code | A112.18.1 |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Low Lead Compliant | Yes |
| WaterSense Certified | No |
| ANSI Certification | A117.1 |
| Energy Star | No |
| CSA Code | B125 |
| Eco Friendly | Yes |
| Commercial Faucet | Yes |
| Soap Dispenser Included | No |
| Drain Assembly Included | No |
| Handshower Included | Yes |
| Valve Included | No |
| Escutcheon Included | No |
| Pop-Up Included | No |
| Color | Brushed Nickel, Polished Chrome |
| Color Tone | Nickel Tones, Silver Tones |
