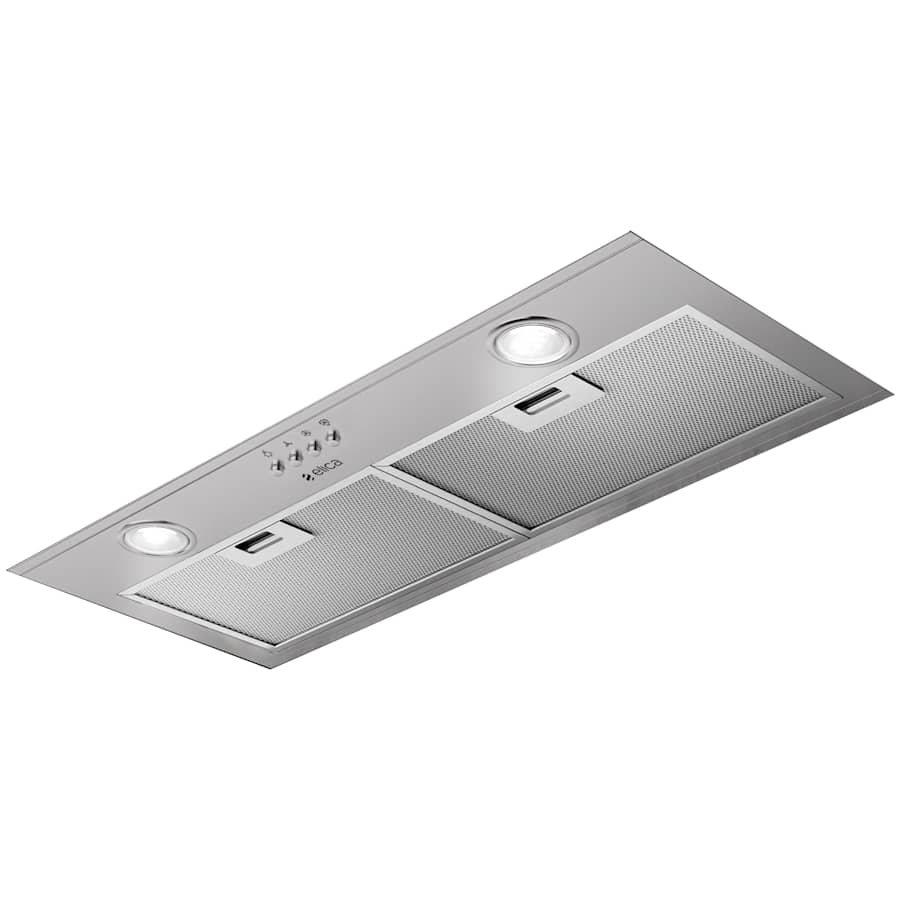

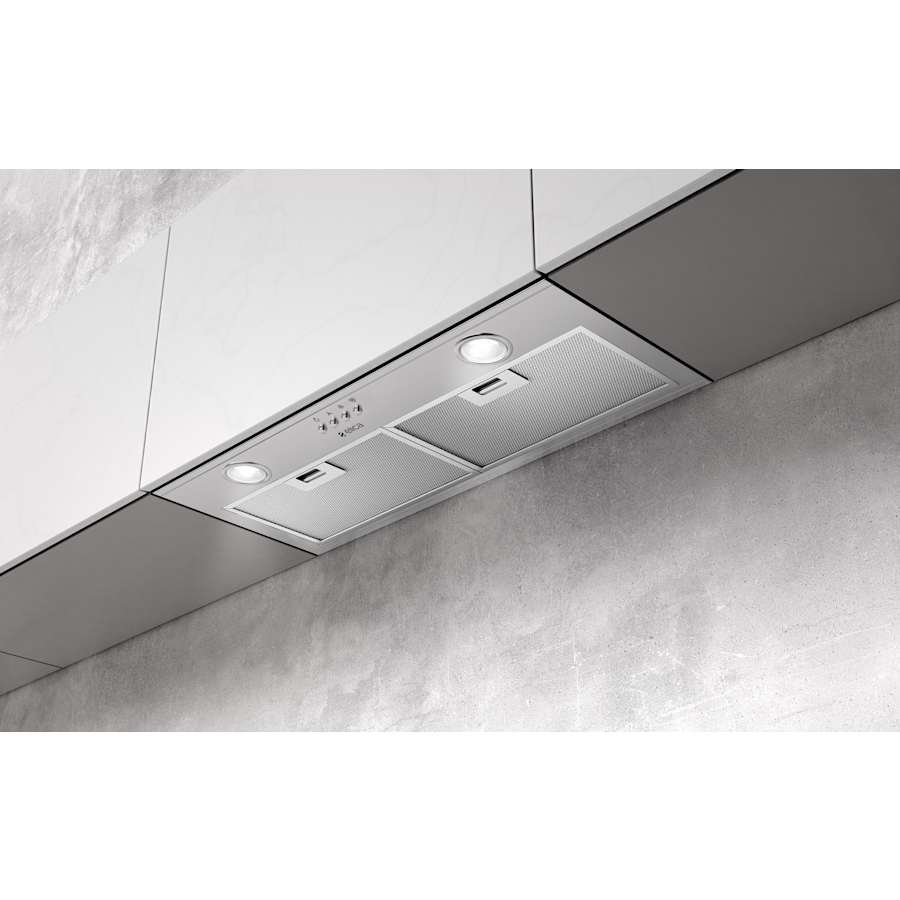

ASTI is designed for discreet mounting inside cabinetry, fits perfectly into 12″ deep cabinetry, and is ideal for kitchens where space is limited, or where the range hood needs to be out of sight. Available in 28″ size.
Features:
Blower outputs up to 300 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
2 LED lights illuminate the cooking area (Bulbs included)
Complements items from the ASTI collection
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Covered under a 2 year parts and labor manufacturer warranty
Specifications:
CFM: 300
Sones: 4
Nominal Width: 29″
Width: 28-1/4″
Height: 9-1/2″
Depth: 10-3/4″
Duct Size: 6″ Round
Height Above Cooktop: 30
Amperage: 2.3A
Voltage: 120V
Wattage: 260W
Additional Elica Links
Browse all Elica Products
Elica Asti Collection
Specifications
| Height | 9.5 in. |
| Width | 28.25 in. |
| Nominal Width | 28 in. |
| Depth | 10.75 in. |
| Product Weight | 20.283 lbs. |
| Duct Size | 6" Round |
| CFM | 300 |
| Height Above Cooktop | 30" |
| Height Above Cooktop (Min) | 30 in. |
| Height Above Cooktop (Max) | 36 in. |
| Thermostat | Modern |
| Number of Bulbs | 2 |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Smart Home | No |
| Bubbler Type | LED |
| Control Type | Push Button |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Panel Ready | No |
| Fingerprint Resistant | No |
| Certifications | AHAM, UL |
| Collection | Asti |
| Approved for Commercial Use | No |
| ADA | No |
| Country Of Origin | Mexico |
| Energy Star | No |
| Manufacturer Warranty | 3 Year Limited Parts and Labor |
| Outdoor Approved | No |
| Title 20 Compliant | Yes |
| Title 24 | Yes |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Wattage | 260 |
| Watts Per Bulb | 6.5 |
| Amperage | 2.3 |
| Voltage | 120 |
| Speeds | 3 |
| Frequency | 60 Hertz |
| Sones | 4 |
| Color | Stainless Steel |
