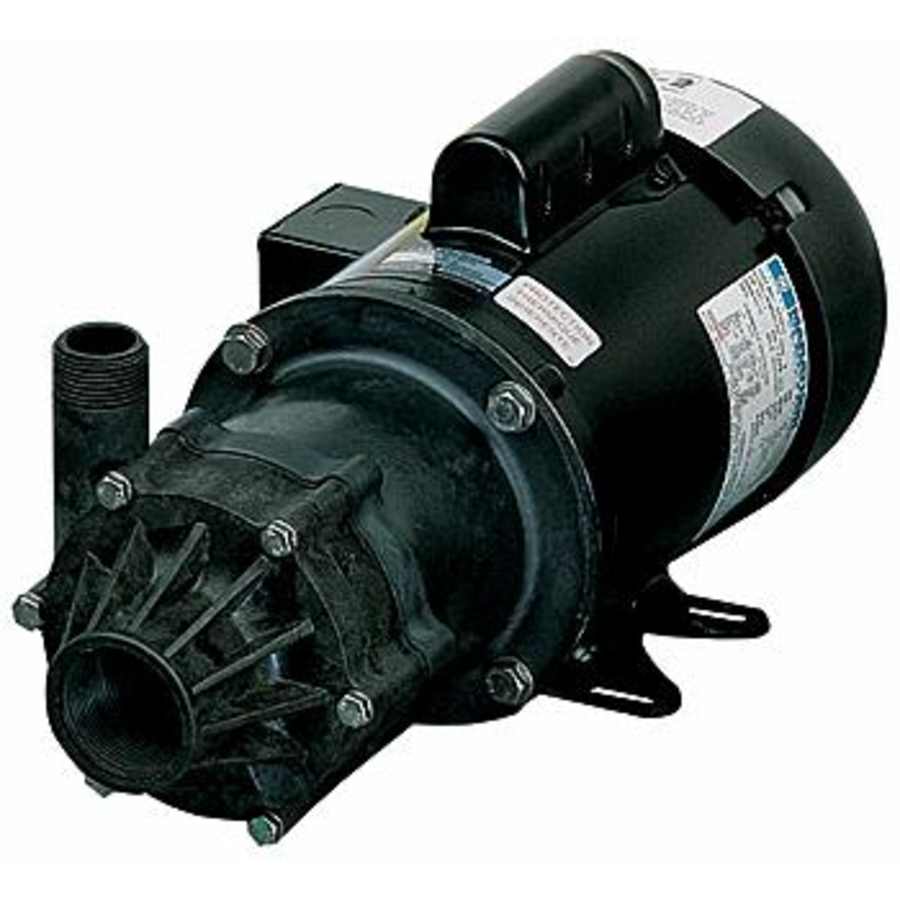

3/4 HP 3180 GPH 230/460V Magnetic Drive Pump, Field Wired with Carbon-filled Kynar Impeller
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-CK series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyvinylidene fluoride (e.g. Kynar(R)), Teflon, carbon, ceramic and Viton(R) parts. Thermally protected totally enclosed fan-cooled permanent split capacitor motor with ball bearings. Conduit box (must be wired in field). Cord not included.
Specific Gravity – up to 1.1.
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 200F.
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 8.3 in. |
| Product Weight | 33 lbs. |
| Depth | 17.3 in. |
| Width | 8 in. |
| Discharge Diameter | 1 in. |
| Flow Rate by Feet of Head | 53 gal / 1 ft, 30.8 gal / 40 ft, 40 gal / 25 ft, 46.7 gal / 10 ft, 21.6 gal / 50 ft |
| Shut Off Height | 58.9 in. |
| Shut Off Pressure | 25.5 |
Characteristics and Features
| Material | Plastic, Vitreous China |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
Warranty and Product Information
| Certifications | CSA |
Electrical and Operational Information
| Voltage | 230, 460 |
| Wattage | 1080, 1230 |
| Frequency | 50, 60 Hertz |
| Amperage | 2.4, 2.9 |
| Horsepower | .75 |
| Color | Black |
| Color Tone | Blacks |
