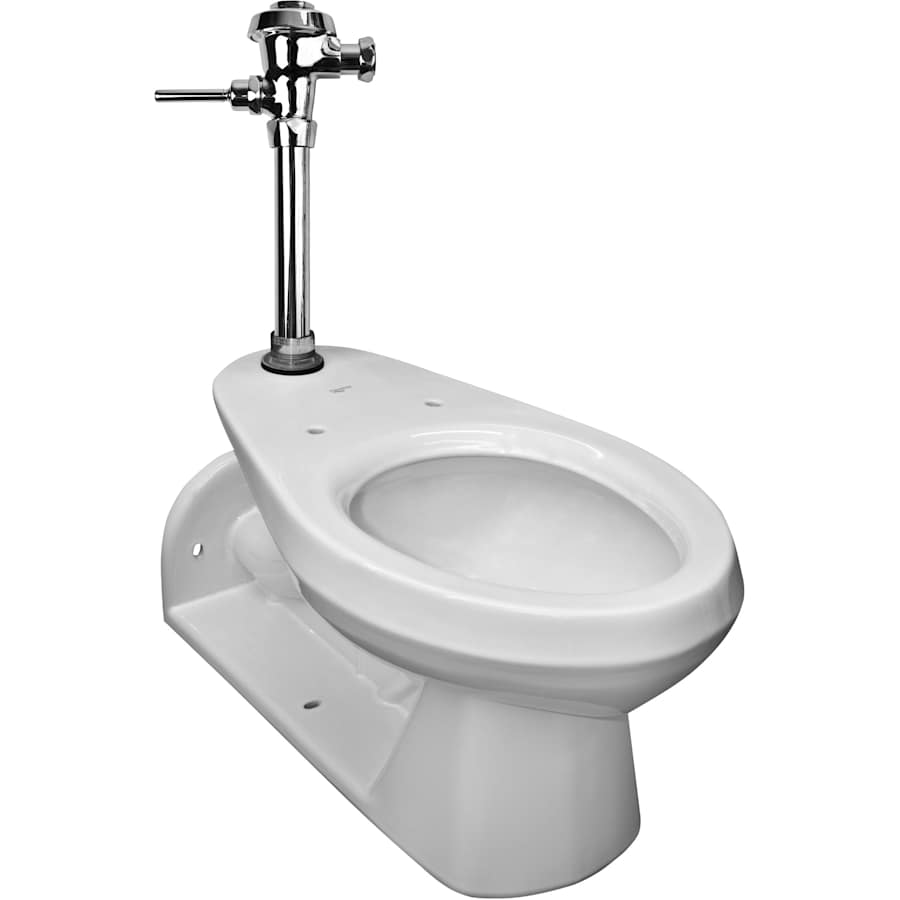

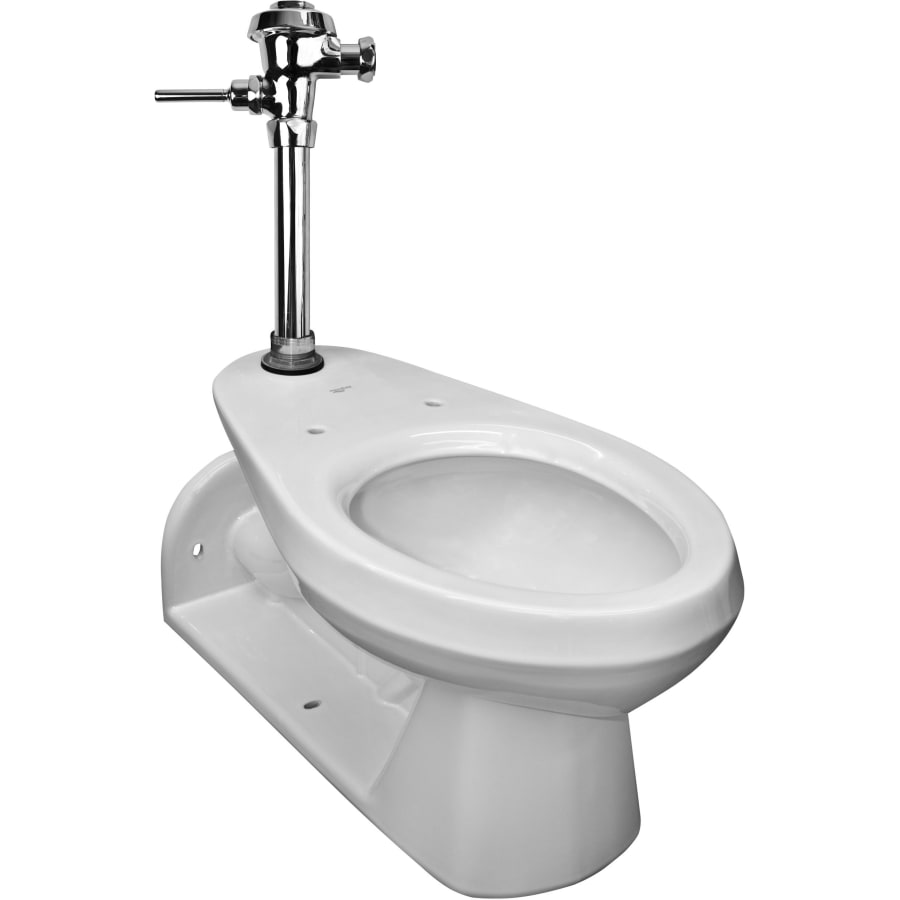

Mansfield 1312 Features:
Bowl only configuration – giving you the opportunity to select your matching tank
Covered under a limited lifetime warranty
Constructed of vitreous china, ensuring durability and dependability
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
Designed specifically for commercial applications
Toilet seat not included
Mansfield 1312 Specifications:
Overall Height: 14-1/2″ (bottom of the base to the highest point on the toilet)
Overall Depth: 31″ (back of the bowl to the front of the rim)
Overall Width: 14-1/2″ (furthest point on the left to the furthest on the right)
Bowl Height: 14-1/2″ (bottom of the base to the rim)
Water Area: 10-1/4″ x 12-1/4″ (inner rim dimensions length x width)
Trapway (Discharge Passageway) Size: 1-3/4″
Rough-In: 12″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Additional Mansfield Links
Browse all Mansfield Products
Specifications
| Height | 14.5 in. |
| Width | 14.5 in. |
| Depth | 31 in. |
| Product Weight | 61 lbs. |
| Bowl Height | 14.5 in. |
| Rough In | 12 in. |
| Trapway | 1.75 in. |
| Water Area | 10.25 x 12.25 |
| Spud Size | 1.5 in. |
| Hinge Center to Center | 5.5 in. |
| Material | Vitreous China |
| Insulation Type | Floor Mounted |
| Configuration | Bowl Only |
| Bowl Shape | Elongated |
| Design Features | Glazed Trapway |
| Spud Placement | Top |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Certifications | UPC, ANSI, ASME, CSA |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| Made in America | Yes |
| ANSI Certification | A117.1 |
| Seat Included | No |
| Color | White |
| Color Tone | Whites |
