Schlage Works for You
Features:
Adjusts to fit all standard door preparations
Easy installation makes for a one-person project
Interior screws are exposed
ANSI/BHMA A156.2, 2011, Grade 2
Non handed and field reversible which means this knob set can be installed on right and left handed doors.
Faceplates (Part 16-080): Supplied with 1/4″ Round Corner and Drive-In Faceplates
Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4″ x 1-5/8″
Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
Product Technologies:
Privacy Function: Schlage’s privacy door knob sets are locked from the interior using a push button lock on the interior handle with a small pin hole to unlock the handle from the outside. Privacy knobs are ideal for bathrooms, bedrooms, or anywhere a locking door is desired but a keyed cylinder isn’t necessary.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/8″ or 1-3/4″
Handing: Left, Right, Reversible
Knob Diameter: 2-1/4″
Projection: 2-5/16″
Product Weight: 1.55 lbs
Additional Functions:
F10-AND-ADD: Passage Knobset

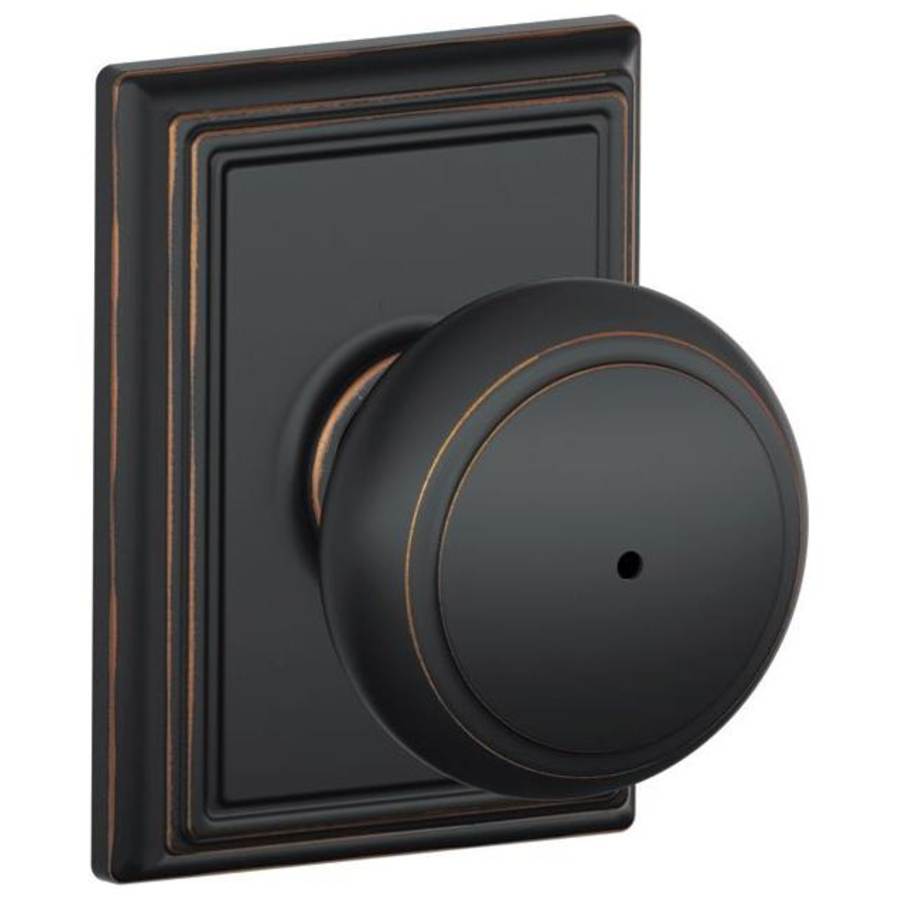

F40-AND-ADD (This Model): Privacy Knobset
F51-AND-ADD: Keyed Entry Knobset
F170-AND-ADD: Single Dummy Knob
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Specifications
| Thermostat | Transitional |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Style | Modern |
| Concealed Screws | No |
| Function | Privacy |
| Rosette Shape | Rectangle |
| Knob Shape | Round |
| Locking Mechanism | Push Button |
| Trim Design | Addison |
| Handle Design | Andover |
| ADA | No |
| Collection | Addison, Andover, Decorative Collection |
| Approved for Commercial Use | No |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 7/8" |
| Cross Bore | 2-1/8" |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Bright Brass, Polished Brass, Matte Black, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
