Features:

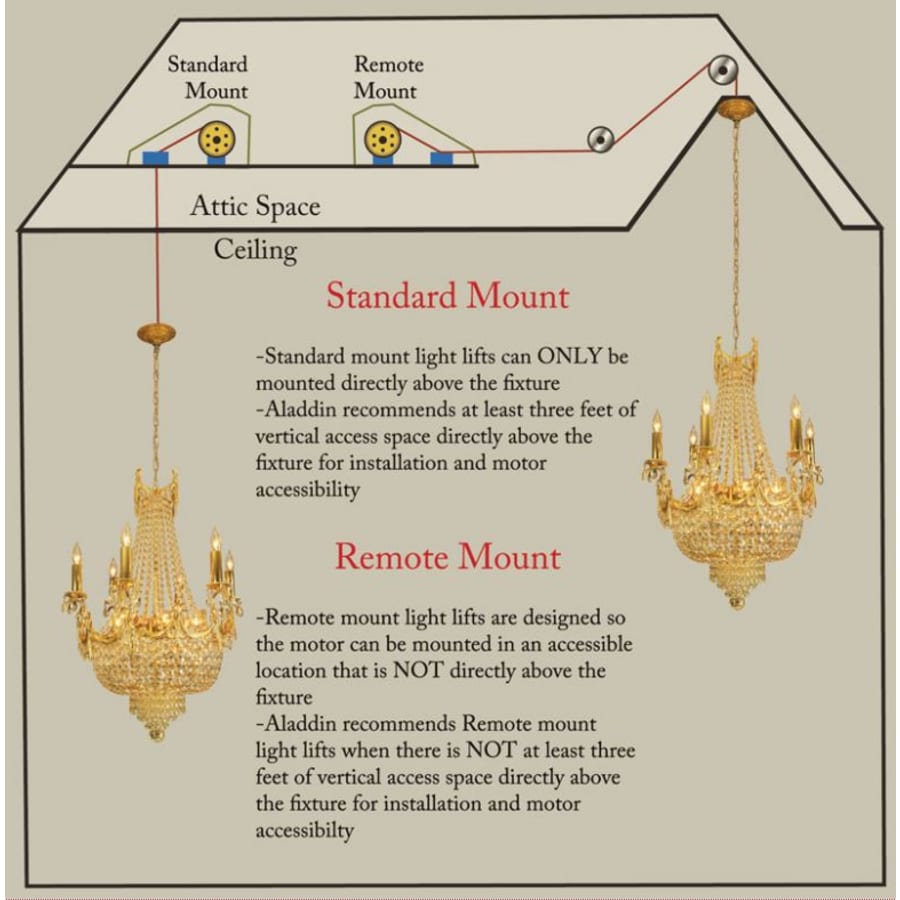

Mounts directly above fixture (at least 3 feet vertical access space recommended)
1650 watt light wattage capacity
Metal Clad cable
300lbs maximum capacity
Keyswitch controller
Metal dust cover
35 foot winch cable and 50 foot controller wire
Zinc plated 4/1 gear ratio winch
Dimensions:
Height: 9″
Width: 14″
Depth: 19″
Cable Length: 420″
Wire Length: 600″
Electrical Specifications:
Voltage: 110
Amperage: 1.3
UL Listed: Yes
Motor HP: 0.06
Mount Type: Standard
Motor Frequency: 50, 60
Weight Capacity: 300 lbs
Electrical: Circuit boards rated min V-0, conformal coated; all components and board are UL listed and regulated
Wiring: lead free, RoHS compliant; all wiring and harnesses are UL listed and regulated
Must be installed by licensed electricians
Additional Aladdin Light Lift Links
Browse all Aladdin Light Lift Products
Specifications
| Depth | 19 in. |
| Height | 9 in. |
| Width | 14 in. |
| Wire Length | 600 in. |
| Max Capacity (Pounds) | 300 lbs. |
| Cable Diameter | 0.125 in. |
| Cable Length | 420 in. |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year |
| Certifications | UL, CSA |
| CSA Code | C22.2 |
| UL Listing Number | UL 1340 |
| Power Source | Hardwired |
| Voltage | 110 |
| Voltage Type | Line Voltage (110-120V) |
| Amperage | 1.3 |
| Horsepower | 0.06 |
| Motor Frequency | 50, 60 |
| Control Type | Key |
| Mounting Type | Standard |
