Features:

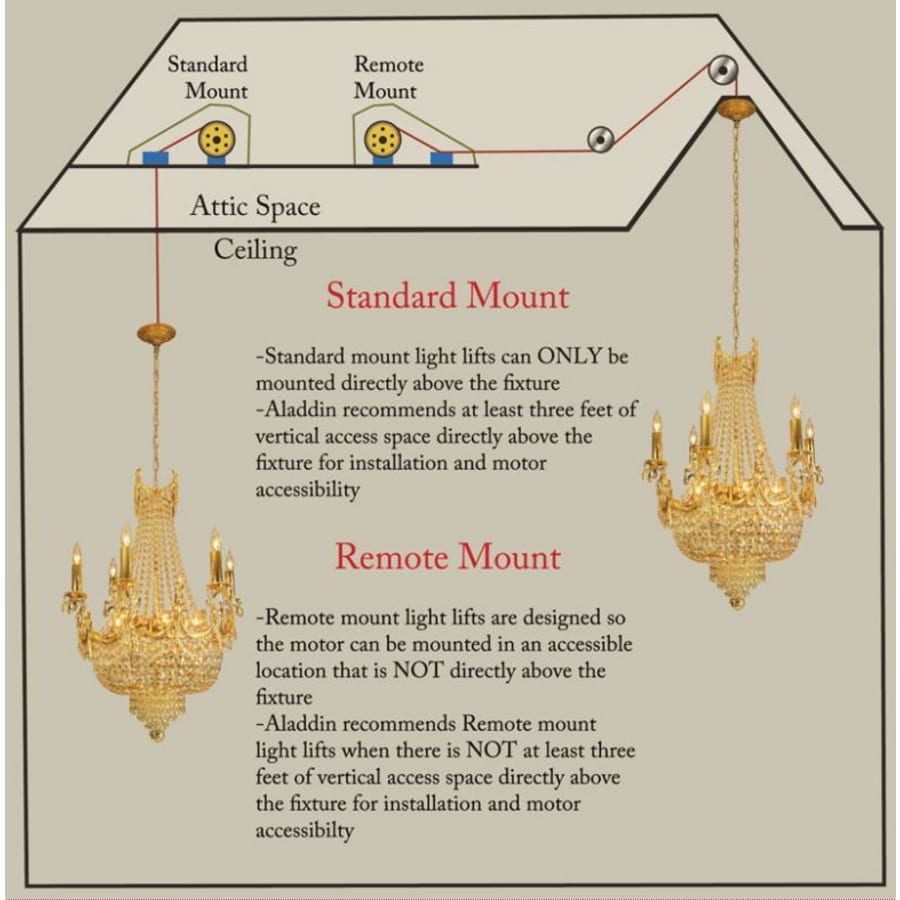

Mounts directly above fixture (at least 3 feet vertical access space recommended)
2200 watt light wattage capacity
Metal Clad cable
700lbs maximum capacity
Smart Lift controller (programmable keyswitch)
Metal dust cover
35 foot winch cable and 50 foot controller wire
Zinc plated 15.4/1 gear ratio winch
Dimensions:
Height: 10″
Width: 18″
Depth: 29.5″
Cable Length: 420″
Wire Length: 600″
Electrical Specifications:
Voltage: 110
UL Listed: Yes
Motor HP: 0.11
Mount Type: Standard
Motor Frequency: 60
Weight Capacity: 700 lbs
Electrical: Circuit boards rated min V-0, conformal coated; all components and board are UL listed and regulated
Wiring: lead free, RoHS compliant; all wiring and harnesses are UL listed and regulated
Must be installed by licensed electricians
Additional Aladdin Light Lift Links
Browse all Aladdin Light Lift Products
Specifications
| Height | 10 in. |
| Width | 18 in. |
| Depth | 29.5 in. |
| Wire Length | 600 in. |
| Max Capacity (Pounds) | 700 lbs. |
| Cable Length | 420 in. |
| Cable Diameter | 0.21875 in. |
| Power Source | Hardwired |
| Voltage | 110 |
| Voltage Type | Line Voltage (110-120V) |
| Horsepower | 0.11 |
| Motor Frequency | 60 |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Manufacturer Warranty | 1 Year |
| CSA Code | C22.2 |
| UL Listing Number | UL 1340 |
| Control Type | Key |
| Mounting Type | Standard |
