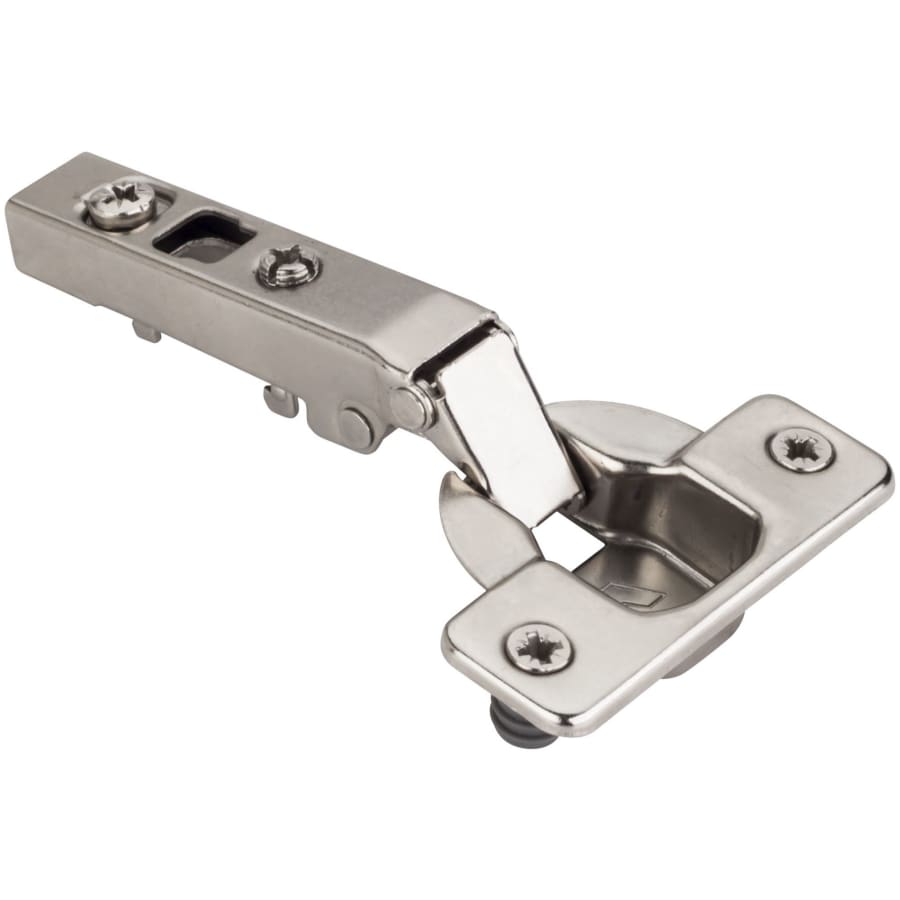

Features:
Includes single hinge in each order
Constructed from cold rolled steel for quality, reliability, durability, and strength
Can be opened to a maximum angle of 110 degrees
Horizontal, depth, and vertical 6-way adjustability via the hinge and plate
Compatible with 400 series plates
Specifications:
Cup Depth: 7/16″
Cup Diameter: 1-3/8″
Mount Centers: 1-3/4″
Opening Angle: 110 Degrees
Hinge Mount: Full Overlay
Adjustable Depth: Yes
Adjustable Height: Yes
Adjustable Side to Side: Yes
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 500 Collection
Specifications
Characteristics and Features
| Material | Steel |
| Insulation Type | Press-In |
| Hinge Type | Concealed Euro |
| Bulk Pack | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Adjustable Height | Yes |
| Arm Type | Straight Arm |
| Soft Close | No |
| Self Closing | No |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
Warranty and Product Information
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Collection | 500 Series |
| Series | 500 Series |
Dimensions and Measurements
| Product Weight | 0.25 lbs. |
| Quantity | 1 |
| Cup Depth | 0.441 in. |
| Cup Depth mm | 11.2 mm |
| Cup Diameter | 1.378 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.772 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 110 |
Included Components
| Installation Hardware Included | No |
| Color | Polished Nickel |
