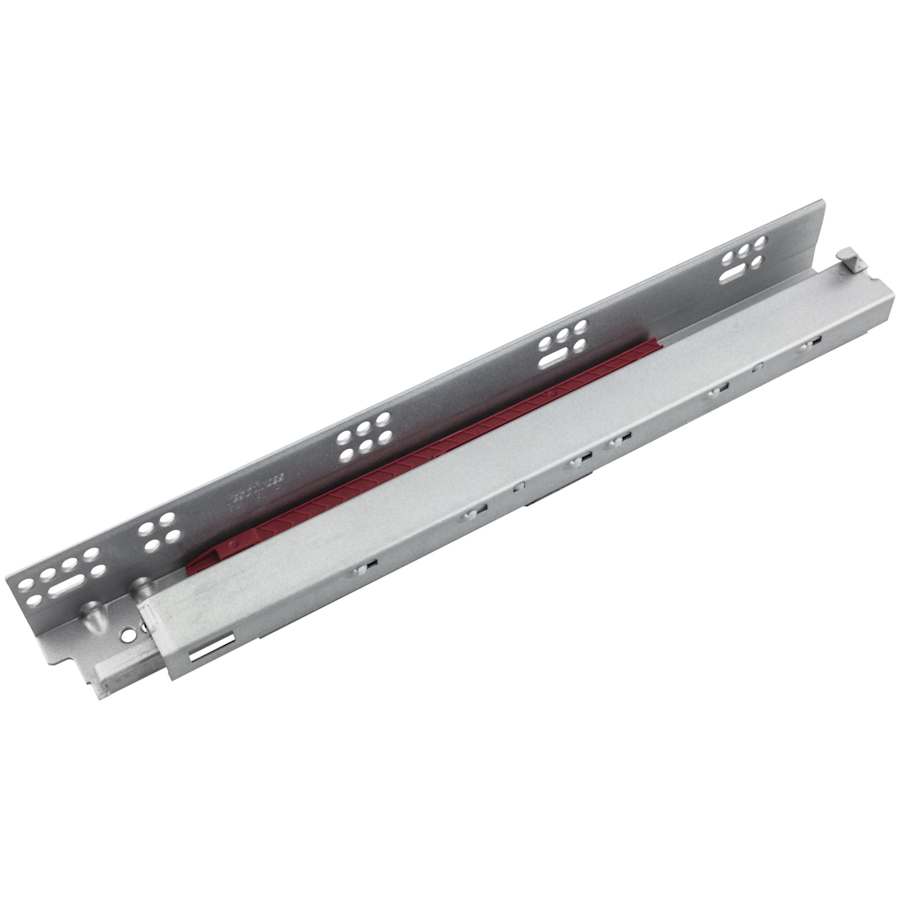

Features:
Designed to support up to 100 pounds of weight
Concealed undermount construction adds stability and support
Provides easy access to the drawer with full extension slides
Whether large or small, heavy or light, the Soft-Close feature keeps doors and drawers from slamming closed
Installation Brackets and attachment clips are sold separately
Includes limited lifetime manufacturer warranty
Grade 1 ANSI/BHMA certified to 50,000 cycles
Specifications:
Length: 21″
Weight Capacity: 100 lbs.
Quantity: 2
Extension Type: Full Extension
Material: Steel
Slide Type: Concealed
BHMA Certification: Grade 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Specifications
Dimensions and Measurements
| Length | 21 in. |
| Nominal Length | 21 in. |
| Product Weight | 6 lbs. |
| Extension | 21 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 21 in. |
Characteristics and Features
| Material | Steel |
| Insulation Type | Undermount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Detent | No |
| Disconnect Style | Lever |
| Self Closing | No |
| Slide Type | Concealed |
| Push to Open | No |
Warranty and Product Information
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Collection | USE58-500 Series |
| Series | USE58-500 Series |
| BHMA Certification | Grade 1 |
| Color | Zinc |
