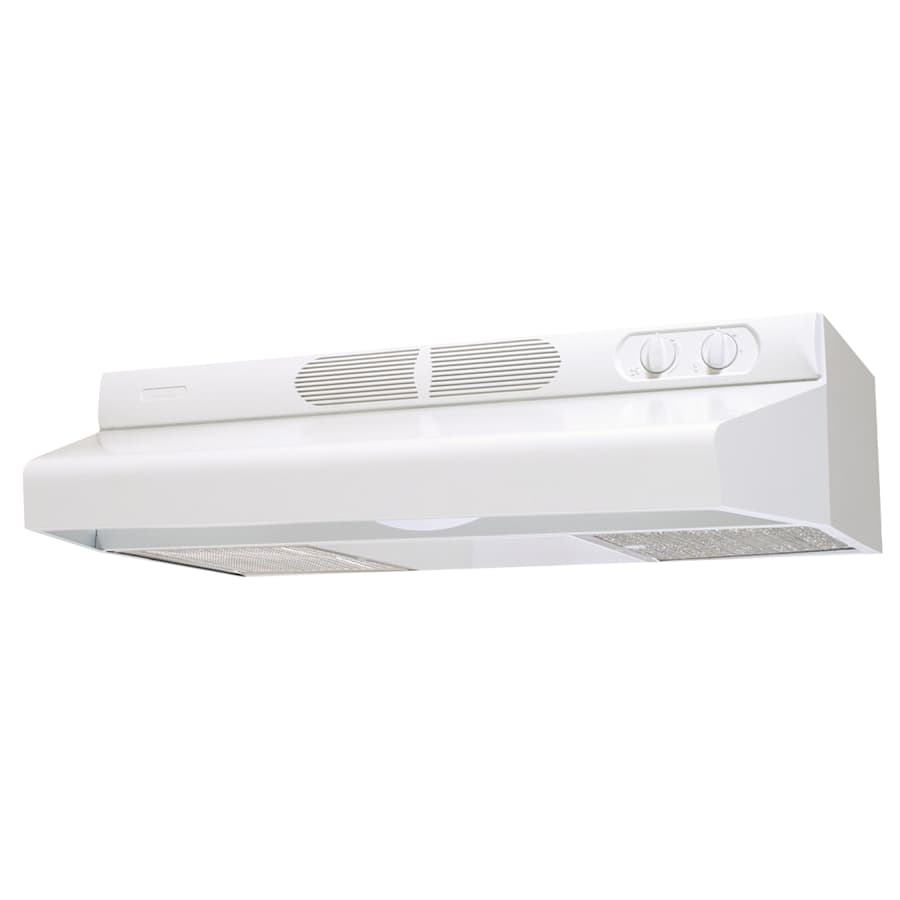

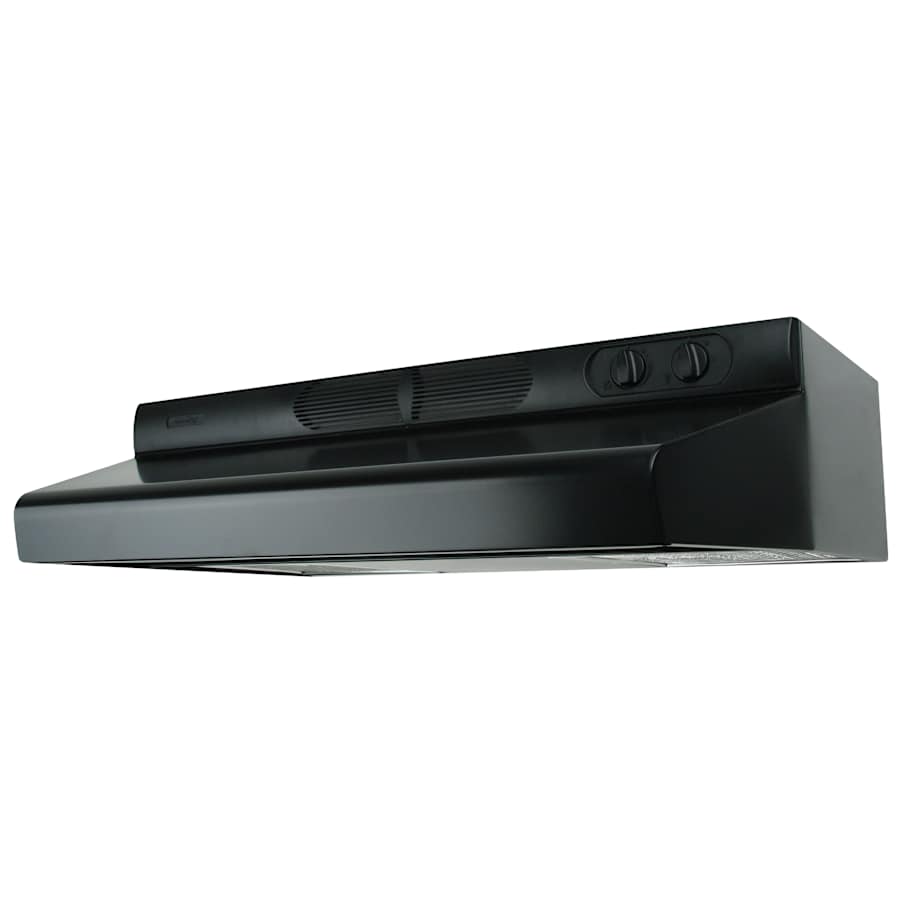

Air King’s ECV series is a perfect hood for under cabinet ranges, combining a solid feature set, beautiful painted or brushed stainless steel construction and Energy Star qualifications, it’s a great, power efficient choice for your home.
Features:
Powerful 270 CFM fan quickly clears your kitchen of even the heaviest amount of smoke and contaminants
Energy Star qualification gives increased savings in energy costs
Dual 18 Watt fluorescent lights gives plenty of light for any cooking situation (bulbs included)
4 Watt night light gives lighting options for after dark hours (bulb not included)
Aluminum mesh filters are easy to remove and dishwasher safe for simple cleaning
Beautiful painted or brushed stainless steel construction makes the hood a stylish centerpiece for your kitchen
Specifications:
Blower Type: Built-In
CFM: 270
CFM Range: 70 to 270
Depth: 18-1/2″
Duct Size: 3-1/4″ x 10″
Height: 7-1/2″
Height Above Cooktop: 20″ to 30″
Sones: 4
Title 24: Yes
Voltage: 120v
Watts: 73
Width: 24″
Product Variations:
ECQ24 (This Model): 270 CFM 24 Inch Wide Under Cabinet Range Hood with Two Lights and Mesh Filters
ECQ36: 270 CFM 36 Inch Wide Under Cabinet Range Hood with Two Lights and Mesh Filters
Additional Air King Links
View the Manufacturer Warranty
Browse all Air King Products
Air King ECQ Collection
Specifications
| Thermostat | Modern, Industrial, Contemporary |
| Insulation Type | Full Installation |
| Material | Steel |
| Bulb Base | GU24 |
| Number of Bulbs | 2 |
| Bubbler Type | Fluorescent |
| Control Type | Rocker |
| Filter Type | Mesh Filters |
| Night Light | Yes |
| Blower Type | Built-In |
| Duct Discharge | Horizontal, Vertical |
| Number Of Lights | 2 |
| Approved for Commercial Use | No |
| ADA | No |
| Country Of Origin | USA |
| Certifications | ASHRAE, HVI |
| Series | ECQ |
| Outdoor Approved | No |
| Made in America | Yes |
| Eco Friendly | Yes |
| Title 24 | Yes |
| Energy Star | Yes |
| Height | 7.5 in. |
| Width | 24 in. |
| Nominal Width | 24 in. |
| Product Weight | 20 lbs. |
| Depth | 18.5 in. |
| Duct Size | 3-1/4" x 10" |
| CFM | 270 |
| CFM (High) | 270 |
| Height Above Cooktop | 24" to 36" |
| Bulb Included | Yes |
| Light Included | Yes |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Voltage | 120 |
| Wattage | 73 |
| Watts Per Bulb | 18 |
| Amperage | 1.5 |
| Frequency | 60 Hertz |
| Fan Speeds | 4 |
| Sones | 4 |
| Speeds | 2 |
| Maximum Sones | 4 |
| Color | Black, Stainless Steel, White |
| Color Tone | Blacks, Stainless Steel, Whites |
