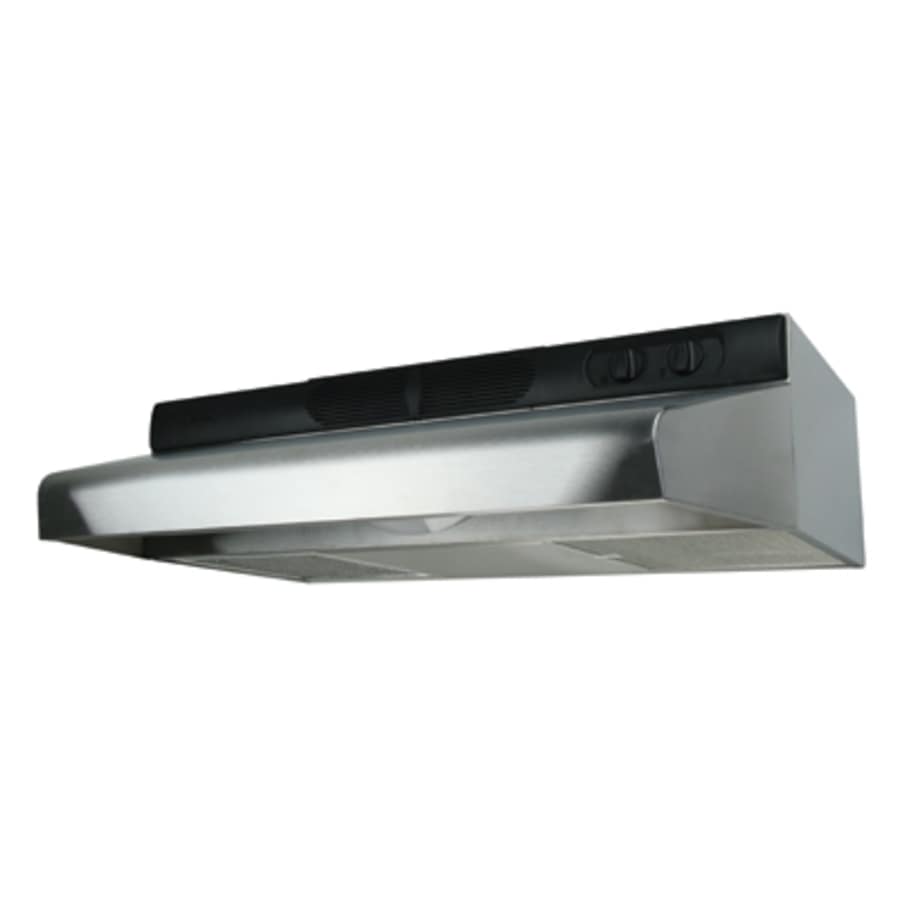

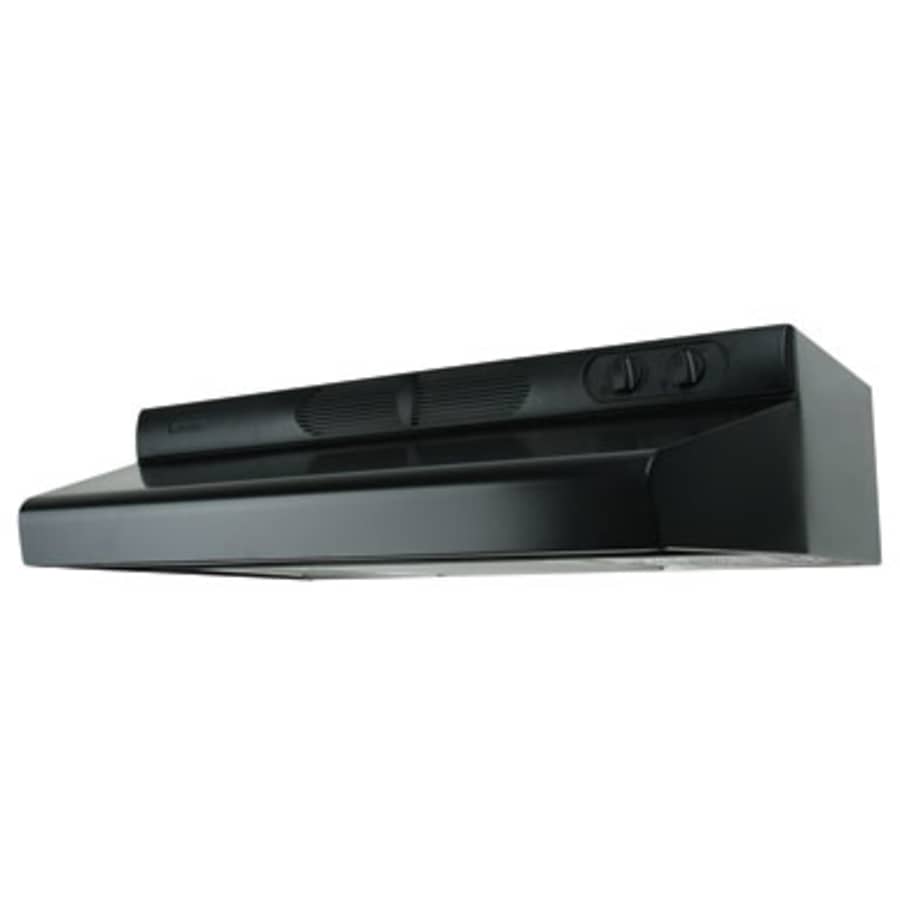

ENERGY STAR® Qualified 24″ Energy Star 270 CFM Under Cabinet Range Hood with 3 Speed Blower and 4.0 Sones
ENERGY STAR® Under Cabinet Range Hood Series The ESDQ Series fills a much needed energy efficient solution in the marketplace for under cabinet kitchen ventilation, placing Air King at the forefront of ENERGY STAR® ventilation.
The ESDQ Series features an electronically balanced twin centrifugal blower with a three speed control switch. At an operating speed of 150 CFM, the range hood’s sound level is only slightly more than a quiet running refrigerator but still delivers enough ventilation for typical cooking. For times when additional ventilation is required the high speed of 270 CFM can handle the task.
Features:
Quiet, dual inlet blower provides powerful ventilation while being one of the quietest hoods in it’s category with a normal operating sound level just slightly more than a quiet running refrigerator.
8-watt GU24 LED illuminates the cooking surface, with socket provided for 4-watt night light bulb (not included)
Compliant with Title 24 of the California Residential Lighting Standards.
Can be ducted either horizontally or vertically with the included duct collar and back draft damper (ducting available separately).
Convertible to ductless operation with the addition of model CF-01 charcoal odor filters (available separately).
ASHRAE 62.2 Local Exhaust Solution
Additional Air King Links
View the Manufacturer Warranty
Browse all Air King Products
Specifications
| Height | 7.5 in. |
| Width | 24 in. |
| Depth | 19.5 in. |
| Nominal Width | 24 in. |
| CFM | 150, 200, 270 |
| CFM (High) | 270 |
| Duct Size | 3-1/4" x 10" |
| Height Above Cooktop | 20" to 30" |
| Thermostat | Industrial, Contemporary, Modern, Traditional |
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Bubbler Type | LED |
| Control Type | Knob |
| Duct Discharge | Horizontal, Vertical |
| Blower Type | Built-In |
| Filter Type | Mesh Filters |
| Number Of Lights | 1 |
| Country Of Origin | USA |
| Approved for Commercial Use | No |
| Made in America | Yes |
| Certifications | ASHRAE, HVI, ETL, UL |
| Title 24 | Yes |
| Energy Star | Yes |
| Quick Ship | Yes |
| Watts Per Bulb | 8 |
| Voltage | 120 |
| Frequency | 60 Hertz |
| Amperage | 1 |
| Speeds | 3 |
| Fan Speeds | 3 |
| Light Included | Yes |
| Available Without Blower | No |
| Ductless | No |
| Convertible to Ductless / Recirculating | Yes |
| Color | Black, Stainless Steel, White |
| Color Tone | Blacks, Stainless Steel, Whites |
