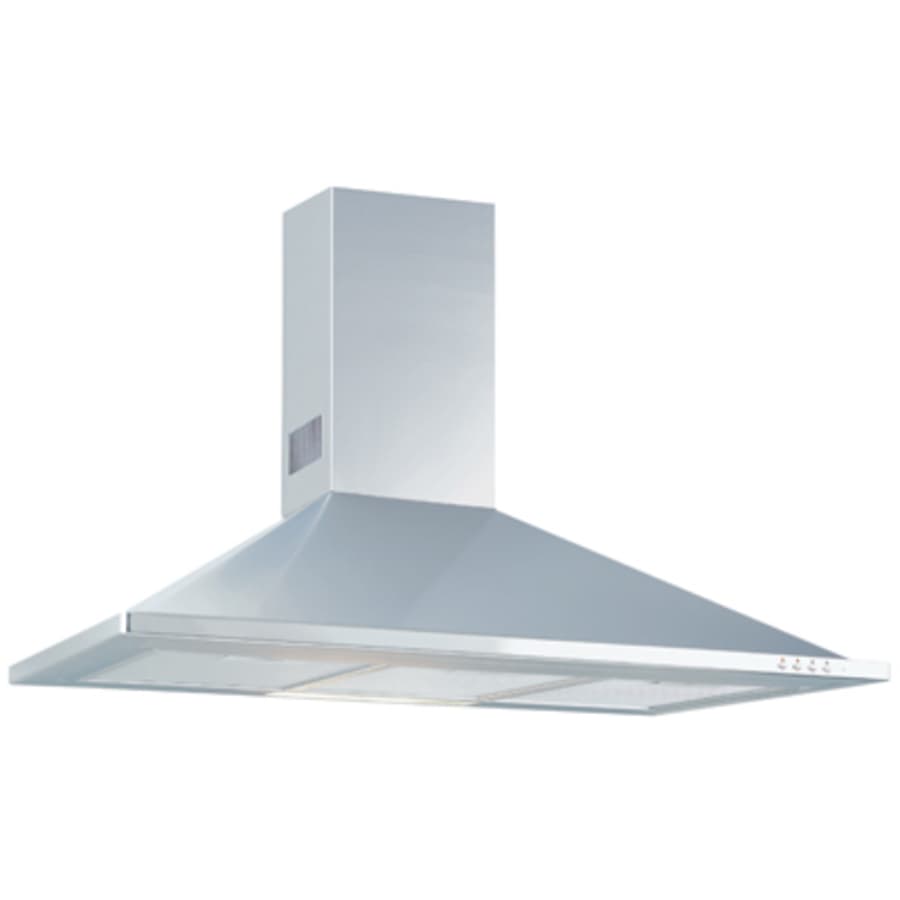

48″ Wall Mounted Hood with Aluminum Mesh Filters
The Granada Series Range Hoods feature a powerful 3 speed motor that provides up to 600 CFM of ventilation. The stylish electronic control panel is located at the front of the hood for ease of use. The GRAN Series also includes the following features:
Electronic blower delay timer automatically shuts the unit off after 15 minutes, when selected.
600 CFM @ 14.0 sones vertical
Two – Hi spot ES 16, 50 watt maximum halogen lights with On/Off control and positioned for excellent cooktop surface coverage.
Modular aluminum grease filters treated to prevent deterioration from grease or detergent, making them dishwasher safe.
6″ round vertical operation (collar and damper included). Convertible to ductless operation with additional equipment (not included)
Unit includes telescoping chimney sections for a typical installation for 8 foot ceilings
Chimney extension available for higher ceilings (up to 10′) sold separately
Minimum Ceiling Height: 87″
Additional Air King Links
View the Manufacturer Warranty
Browse all Air King Products
Air King Granada Collection
Specifications
| Height | 11.125 in. |
| Depth | 19.6875 in. |
| Width | 48 in. |
| Product Weight | 45 lbs. |
| Nominal Width | 48 in. |
| Duct Size | 6" Round |
| CFM | 600 |
| Ceiling Height (Max) | 120 in. |
| Ceiling Height (Min) | 87 in. |
| Height Above Cooktop | 20" to 30" |
| Thermostat | Modern, Traditional, Industrial, Contemporary |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Bubbler Type | Halogen |
| Number of Bulbs | 2 |
| Control Type | Push Button |
| Blower Type | Built-In |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Collection | Granada |
| Country Of Origin | Spain |
| Certifications | HVI, UL |
| Series | Barcelona |
| Frequency | 60 Hertz |
| Watts Per Bulb | 50 |
| Voltage | 120 |
| Amperage | 2.8 |
| Fan Speeds | 3 |
| Sones | 14 |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
