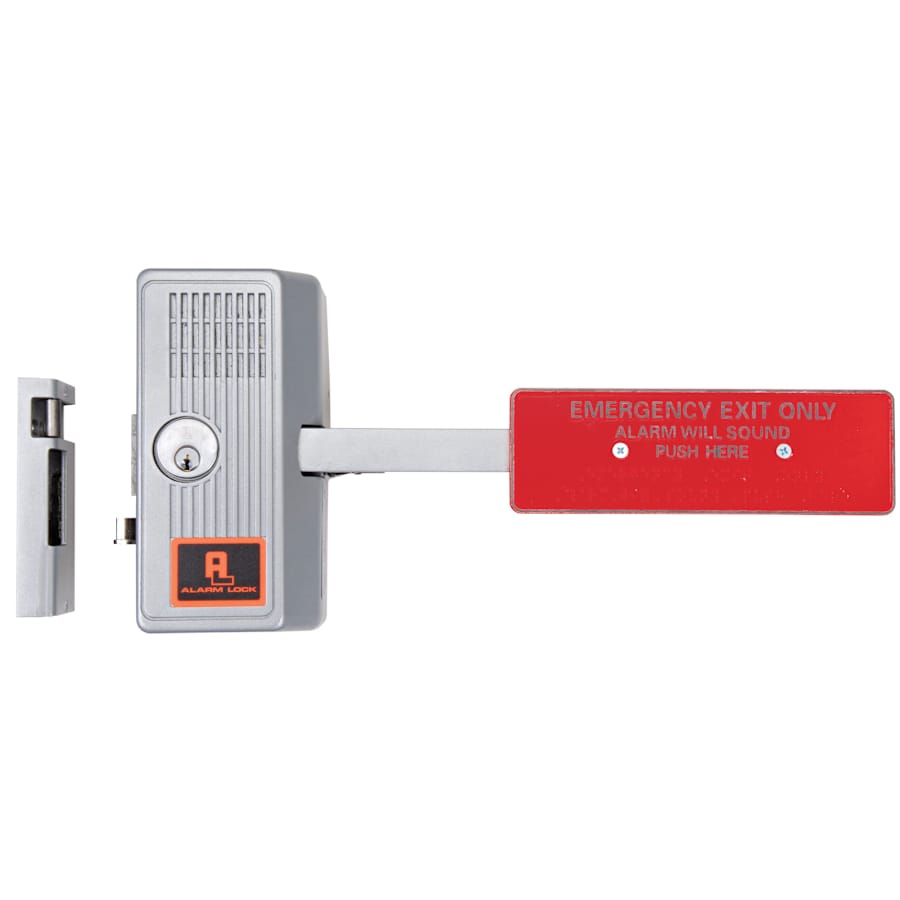

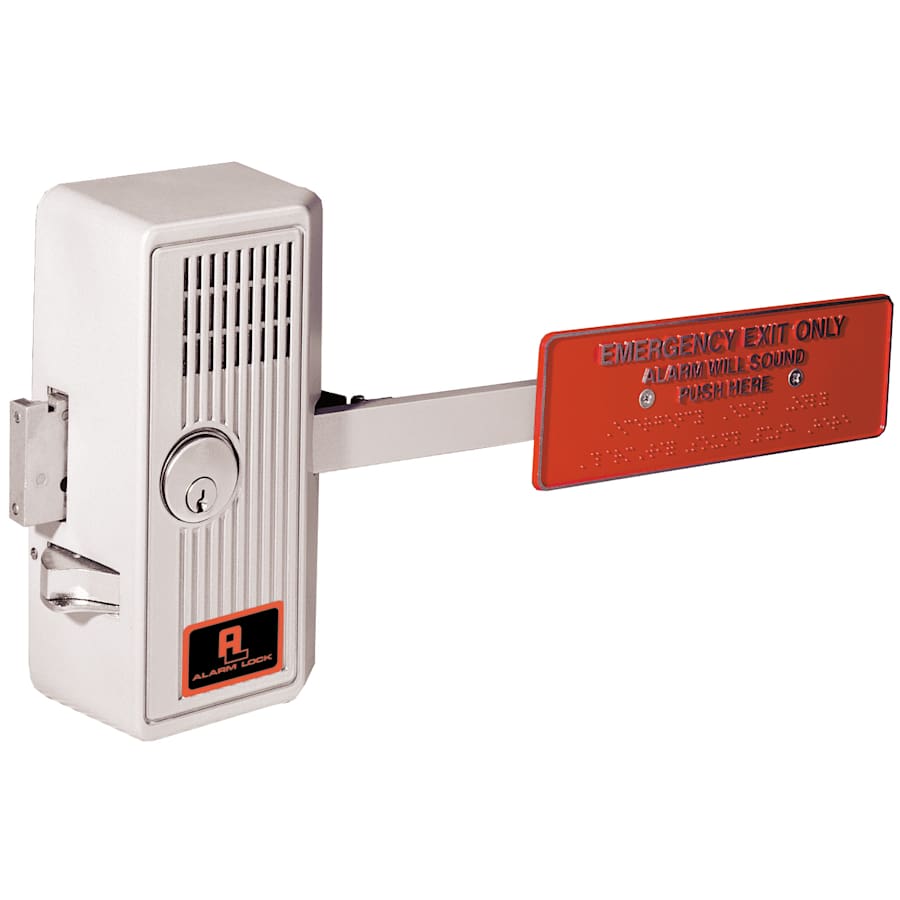

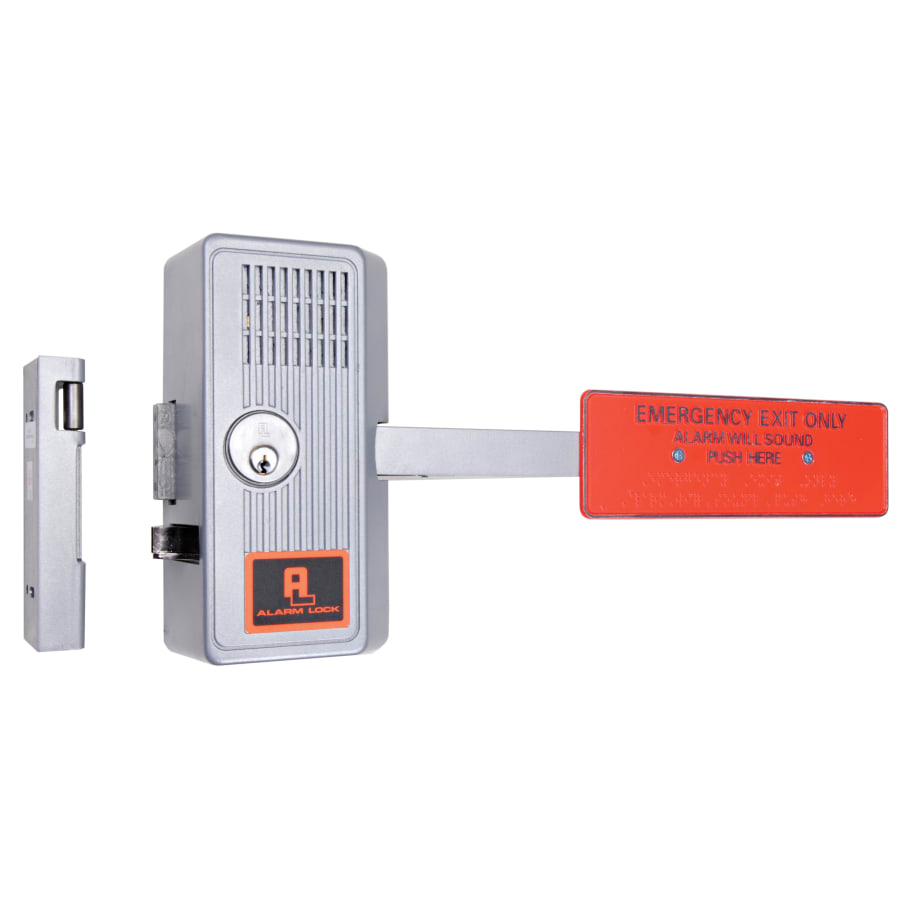

Sirenlock 18″ Wide Grade 1 Paddle Rim Exit Device
Add both security and convenience to your workplace, school or other facility with this exit device. Exit devices are a critical part of a security system and will provide safe and reliable service when properly applied and maintained. This model is an exit lock designed to control unauthorized use of emergency doors with a deadbolt and deadlatch for extra security. It provides trouble free service and deters theft from within and outside. Unauthorized use sounds alarm which can only be reset or bypassed with key.
Alarm Lock is committed to supplying advanced access and egress solutions for office, health care, education, transportation, and government applications. From property management or campuses to courts and military applications, Alarm Lock offers high quality security and a variety of access options.
Features:
Deadbolt and deadlatch meet relatching requirements
Blaring 95db dual piezo tone siren
Selectable 2-minute alarm or constant alarm
Audible low battery warning
Meets or exceeds UL, CFM, ADA, NYC housing requirements
Changeable 2 minute alarm cutoff or manual reset
Non-handed surface installations on single or double doors
Center of unit should be approximately 38” from floor
Low 5 – 10 lb. activation pressure
Includes door warning sign
BHMA Grade 1 Commercial
Deadbolt can be operated by outside key
Deadlatch for easy access from inside without alarm
Disarming beep when bolt is retracted with key
1” throw die cast zinc alloy deadbolt with reinforced steel inserts
Accepts most standard size cylinders but no cylinder included
Specifications:
Dimensions: 18″ Width x 8.5″ Height x 3.25″ Depth (24″ W when using extended paddle)
Weight: 9 lbs
Operating Temperature: 20 to 135°F (-7 to 57°C)
Power: 9VDC Alkaline Battery (use optional AC9 or PP100 for AC power with battery backup). Current (Standby) – 7 Micro Amps typical.
Battery Life: 1 year standby typ., 200 alarm sequences typ., constant alarm for 7 hours typ.
Sound Pressure Level: 95dB measured at 10 ft.
Additional Alarm Lock Links
View the Manufacturer Warranty
Browse all Alarm Lock Products
Alarm Lock Sirenlock Collection
Specifications
| Height | 8.5 in. |
| Width | 18 in. |
| Product Weight | 9 lbs. |
| Projection | 3.25 in. |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 2 Year |
| Certifications | UL |
| BHMA Certification | Grade 1 |
| Panic Proof | Yes |
| Exit Device Type | Rim Device |
| Color | Aluminum |
| Color Tone | Neutrals |
