Alarm Lock Sirenlock 33″ Wide Grade 1 Delayed Egress Rim Exit Device

Sirenlock 33″ Wide Grade 1 Delayed Egress Rim Exit Device

Add both security and convenience to your workplace, school or other facility with this exit device. Exit devices are a critical part of a security system and will provide safe and reliable service when properly applied and maintained. This model is an exit lock designed to control unauthorized use of emergency doors. It provides trouble free service and deters theft from within and outside. Unauthorized use delays exit and sounds alarm which can only be reset or bypassed with key.  In case of an actual emergency, exit is allowed immediately.

Alarm Lock is committed to supplying advanced access and egress solutions for office, health care, education, transportation, and government applications. From property management or campuses to courts and military applications, Alarm Lock offers high quality security and a variety of access options.

Features:

Remote interface and alarm indicator relay
15-second delayed egress
Instant alarmed exit in case of actual emergency (meets NFPA101 life safety code)
Local smoke-detector input (easy key reset)
Selectable alarm: continuous or two-minute shutdown
Exterior key control (requires additional rim cylinder)
Audible low-battery indication
Visual armed indicator LED (on Control Box)
Piercing electronic siren (95dB at 10 feet)
Full 1” throw deadbolt with rotating steel inserts
Easy-to-install, surface mount unit in a standard panic bar deadbolt/deadlatch design
Monitoring output for simultaneous use of CCTV camera, secondary siren, remote monitoring console, etc.
Smoke detector input can be used to power existing system or standalone smoke detector(s) (Includes armored door cord and cables for wiring)

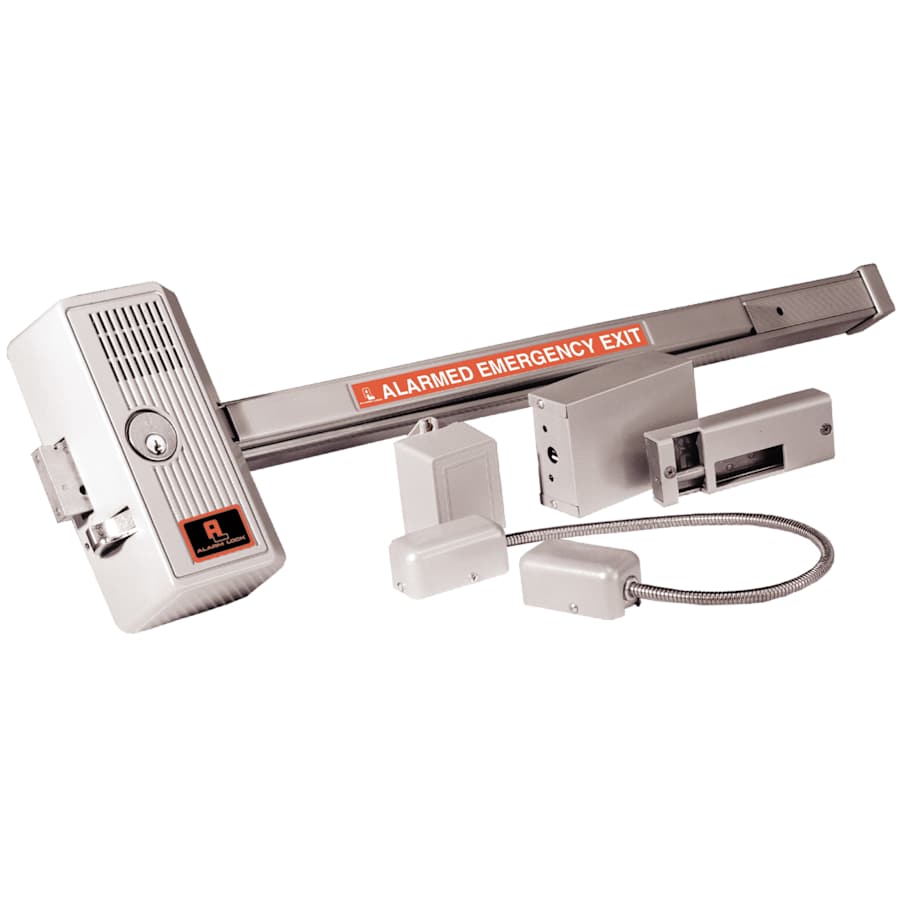

Includes:
Lock Assembly, with 9V alkaline backup battery
Single-Door Keeper Assembly
Push Bar Assembly
Control Box Assembly
Model 271 Flexible Conduit, with covers (2)
Power Transformer
5-Conductor Cable (10 feet)
2 Self-Adhesive Warning Labels required to comply with NFPA 101 Hardware

Specifications:

Power: 12Vac, 20VA Transformer; 9Vdc Alkaline Battery (Alarm Standby)
Current: 775mA max.; Alarm Circuit, Battery Only (Ac Failure): Standby, 20VA typ.; Alarm, 75mA typ.
BHMA Grade 1 Commercial
Battery Life: 1 year standby typ., 200 alarm sequences typ., constant alarm for 7 hours typ.
Latch Release Time: 13-15 seconds
Auto Alarm Shutdown: 2 minutes typ.
Sound Pressure Level: 95dB measured at 10 ft.
Operating Temperature: 20 to 135°F (-7 to 57°C)
Dimensions (HxWxD): Lock: 8.5″ x 33″ x 3.25″, Control Box: 5″ x 3.5″ x 2″
