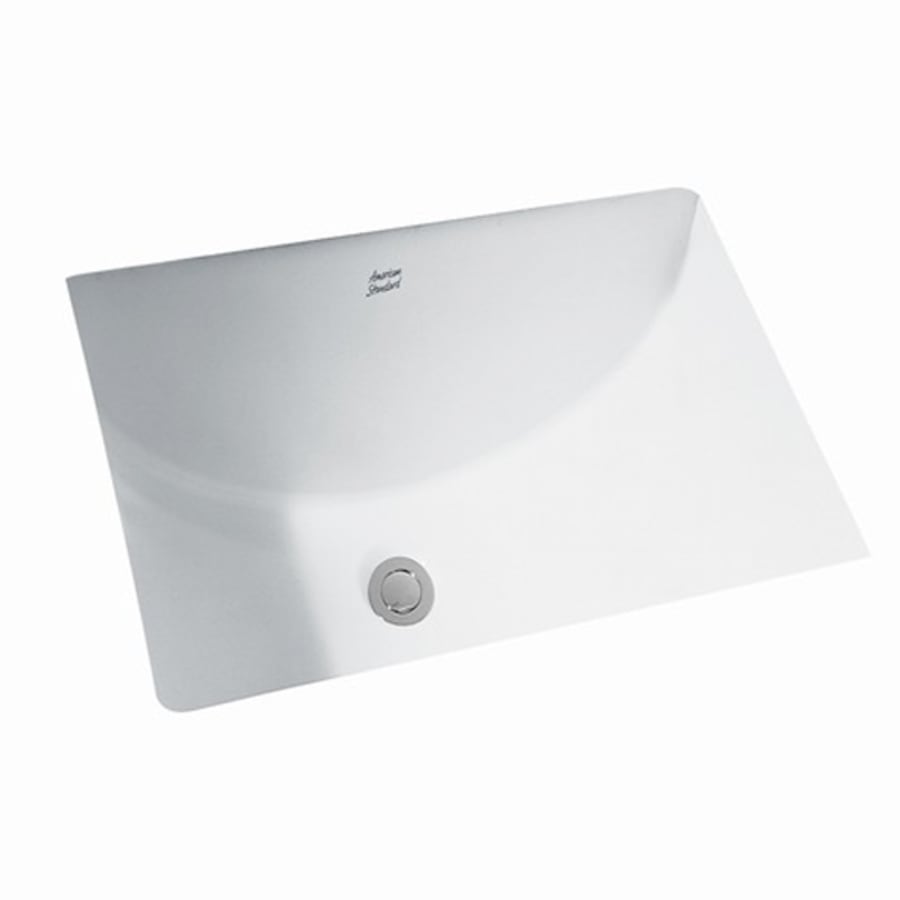

American Standard Studio 0618.000 Key Data:
23-5/8″L x 16-5/8″W x 8-1/4″H
Undermount
Front overflow
American Standard Studio 0618.000 Features:
Installs in an undermount configuration
Rear drain – less drain assembly
Equipped with front overflow
Includes installation hardware
Includes cut out template
Mounting clips included
Made of vitreous china
Covered under American Standard’s limited 1 year warranty
American Standard Studio 0618.000 Specifications:
Overall Length: 23-5/8″ (left to the right of sink)
Overall Width: 16-5/8″ (front to back of sink)
Overall Height: 8-1/4″ (top to bottom of sink)
Basin Length: 21-1/8″ (left to the right of basin)
Basin Width: 14″ (front to back of basin)
Basin Depth: 6″ (top to bottom of sink basin)
Number of Faucet Holes: 0
Variations:
0618.000: This model
0614.000: 22″ version of this model
About American Standard:
An American brand with over 140 years of innovations, American Standard is defined by experience, intelligence, and indelible influence. As the patriarch for nearly every key product category for the kitchen and bath, their offering shows a level of thoughtfulness and sophistication that could only be attributed to a company with a legacy as rich as that of American Standard. Today, professional plumbers and contemporary DIY home owners continue to turn to American Standard because they appreciate this legacy and know they can trust the innovations behind each product. It is for this reason that American Standard is so widely used within residential and commercial projects in both the United States and abroad – their products truly deliver, just as they have for generations.
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Studio Collection
Specifications
| Height | 8.25 in. |
| Width | 16.62 in. |
| Length | 23.625 in. |
| Backplate Depth | 6 in. |
| Basin Depth (Center) | 6 in. |
| Bar Length | 21.125 in. |
| Basin Length (Center) | 21.125 in. |
| Base Width | 14 in. |
| Basin Width (Center) | 14 in. |
| Nominal Length | 24 in. |
| Drain Connection | 1.25 in. |
| Nominal Width | 17 in. |
| Insulation Type | Undermount |
| Material | Vitreous China |
| Thermostat | Traditional |
| Drain Placement | Rear |
| Overflow | Yes |
| Sink Shape | Rectangular |
| ADA | Yes |
| Collection | Studio |
| Drain Assembly Included | No |
| Faucet Included | No |
| Shroud Included | No |

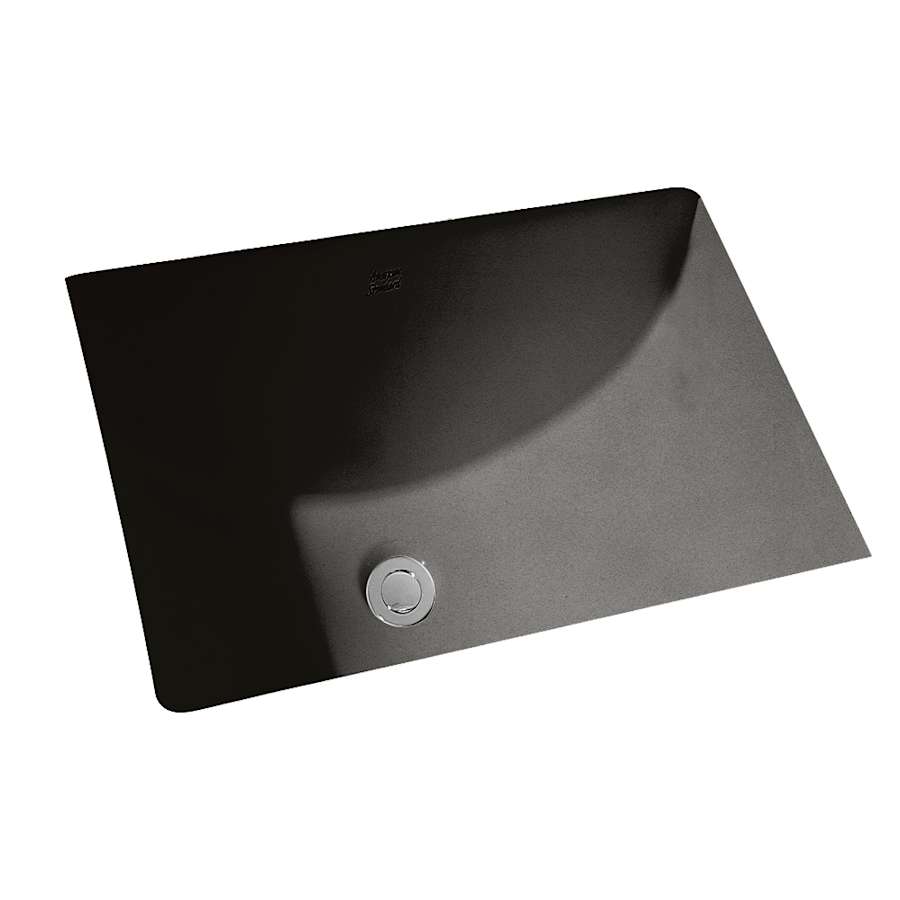

| Color | Black, Bone, Fawn Beige, Linen, Silver, White |
| Color Tone | Blacks, Neutrals, Silver Tones, Whites |
