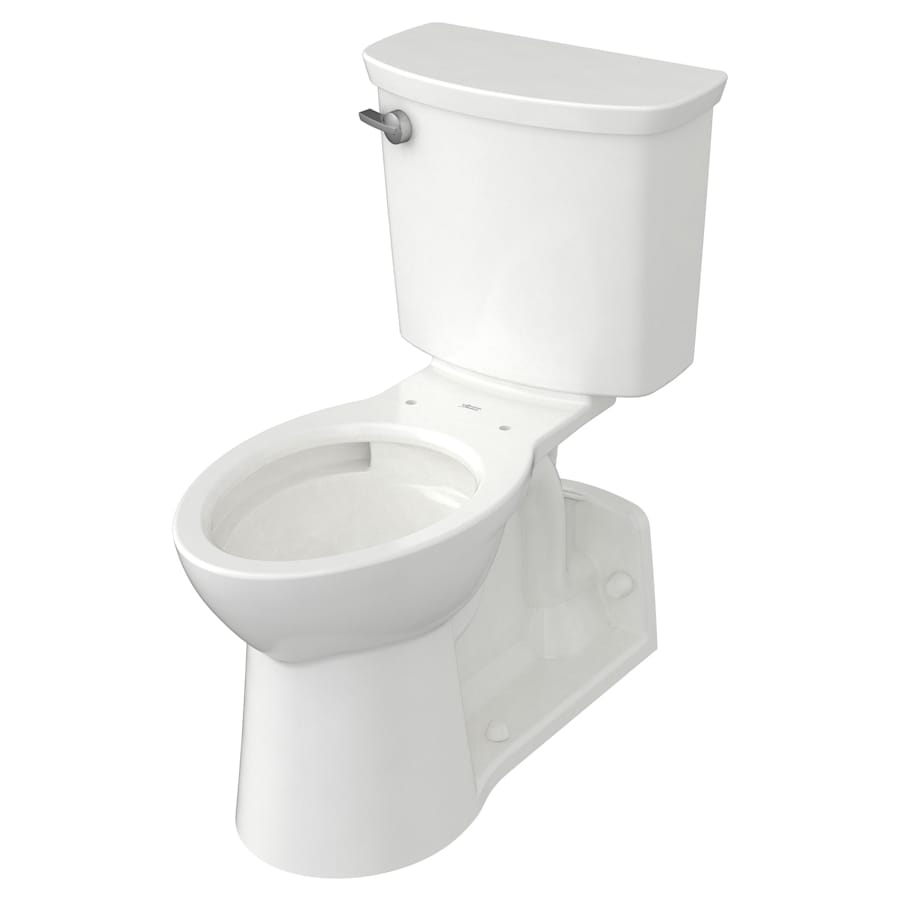

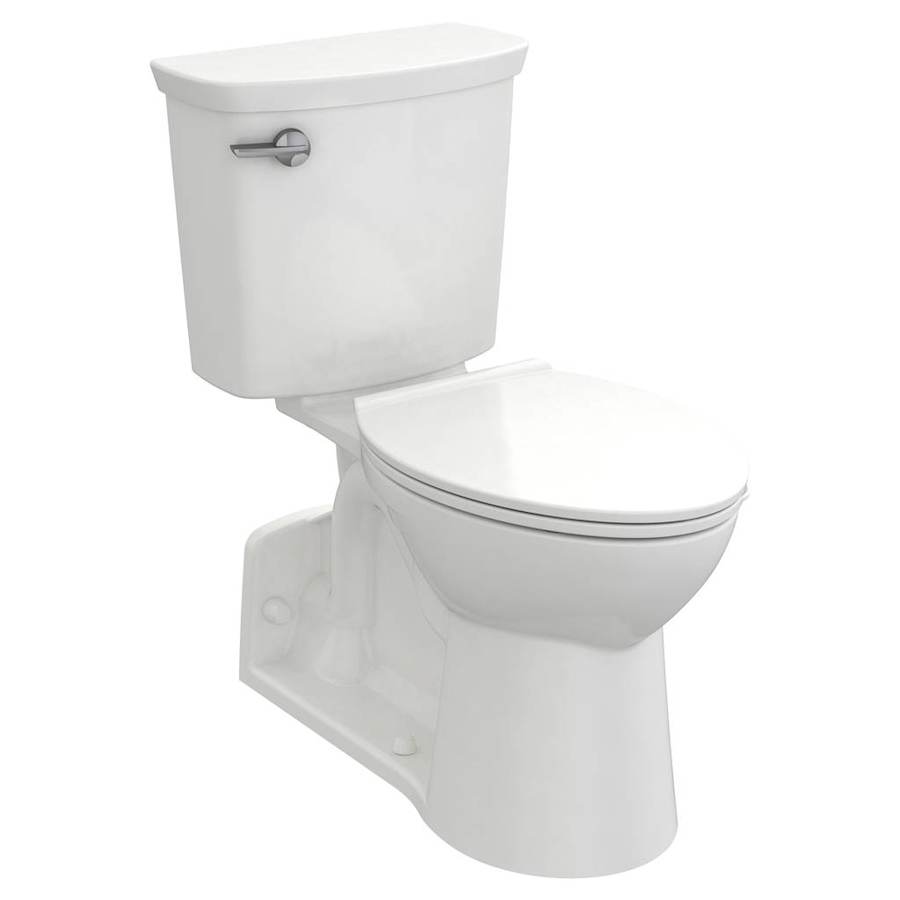

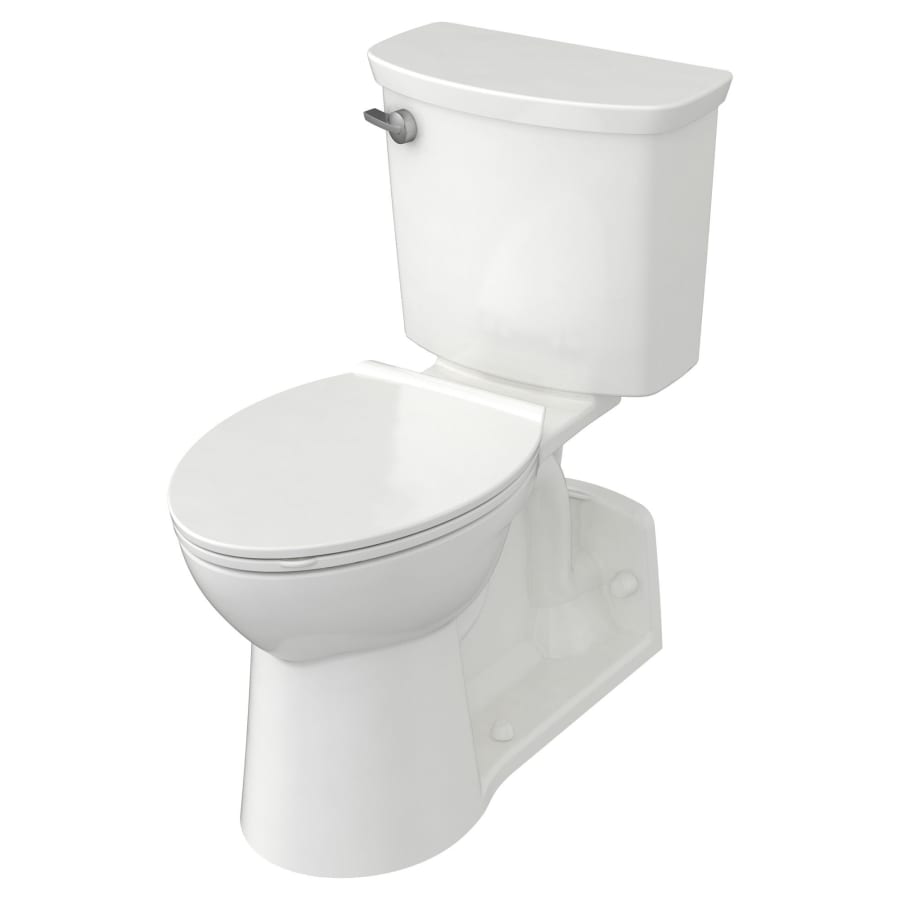

The Yorkville VorMax floor-mount back-outlet toilet from American Standard features the powerful VorMax flushing technology. The VorMax unparalleled scrubbing action circulates water around the bowl from top to bottom, leaving it twice as clean as a conventional toilet while using a water-conserving 1.28 gallons of water. The Yorkville VorMax floor-mount back-outlet toilet has a 50% quieter flush than pressure-assist configurations and ensures the complete removal of paper seat covers. Features CleanCurve Rim and EverClean antimicrobial surface.
American Standard 209AA.137 Features:
Floor mount, back outlet gravity flush toilet configuration
VorMax flushing technology cleans two times better than conventional toilets
Combination bowl and tank, seat not included
Right height elongated siphon action bowl
High efficiency toilet (HET) 1.28 gpf/4.8 Lpf
Meets EPA WaterSense® criteria
American Standard 209AA.137 Specifications:
Overall Height: 32-13/16″ (bottom of the base to the highest point on the toilet)
Overall Depth: 30-3/16″ (furthest point back to front of toilet)
Overall Width: 18″ (furthest point left to furthest point on the right)
Bowl Height: 17″ (floor to the top of the bowl)
Flow Rate: 1.28 gallons-per-flush
Trapway (Discharge Passage) Size: 2-1/16″
Rough In: 12″
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Yorkville Collection
Specifications
| Depth | 30.1875 in. |
| Height | 32.8125 in. |
| Product Weight | 124.9 lbs. |
| Width | 18 in. |
| Gallons Per Flush | 1.28 |
| Bowl Height | 17 in. |
| Flush Valve Size | 3 in. |
| Rough In | 12 in. |
| Trapway | 2.0625 in. |
| Material | Vitreous China |
| Thermostat | Modern |
| Configuration | Two Piece |
| Insulation Type | Floor Mounted |
| Water Efficient | Yes |
| Electronic | No |
| Bowl Shape | Elongated |
| Design Features | Glazed Trapway, Chair Height |
| Flush Type | Siphon Jet, Gravity Flush |
| Trip Lever Placement | Left |
| Certifications | ASME, CSA |
| Collection | Yorkville |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 10 Year Limited |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| WaterSense Certified | Yes |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| Commercial Warranty | 1 Year |
| Seat Included | No |
| Color | White |
| Color Tone | Whites |
