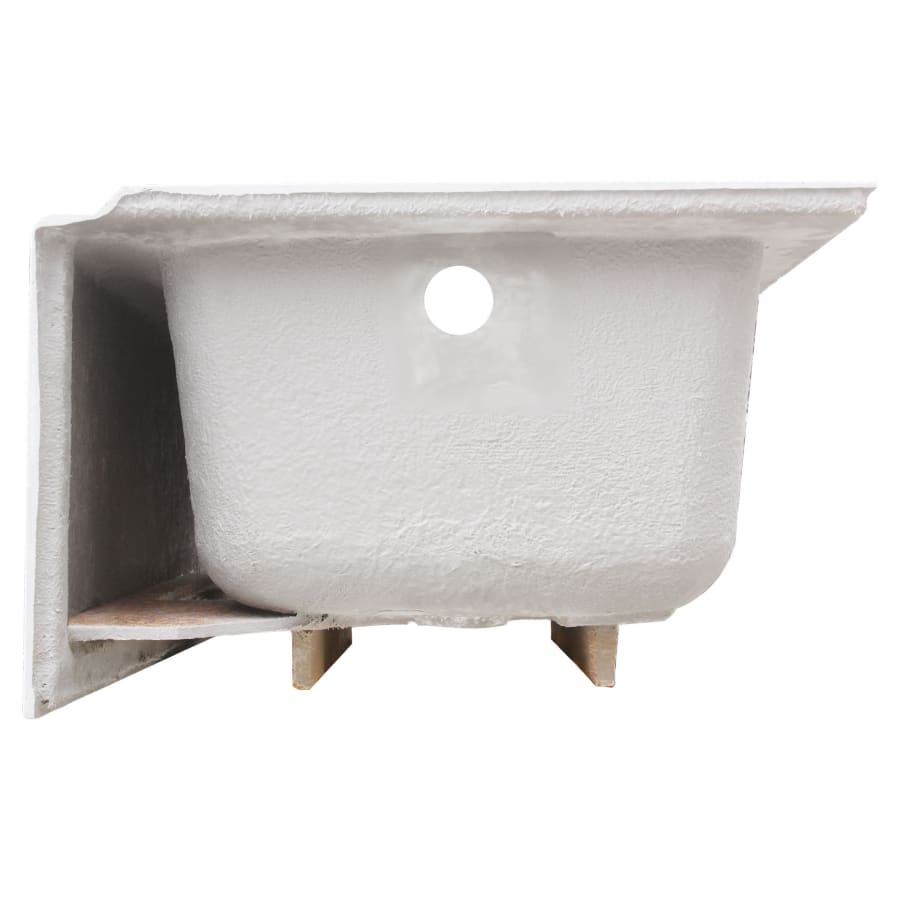

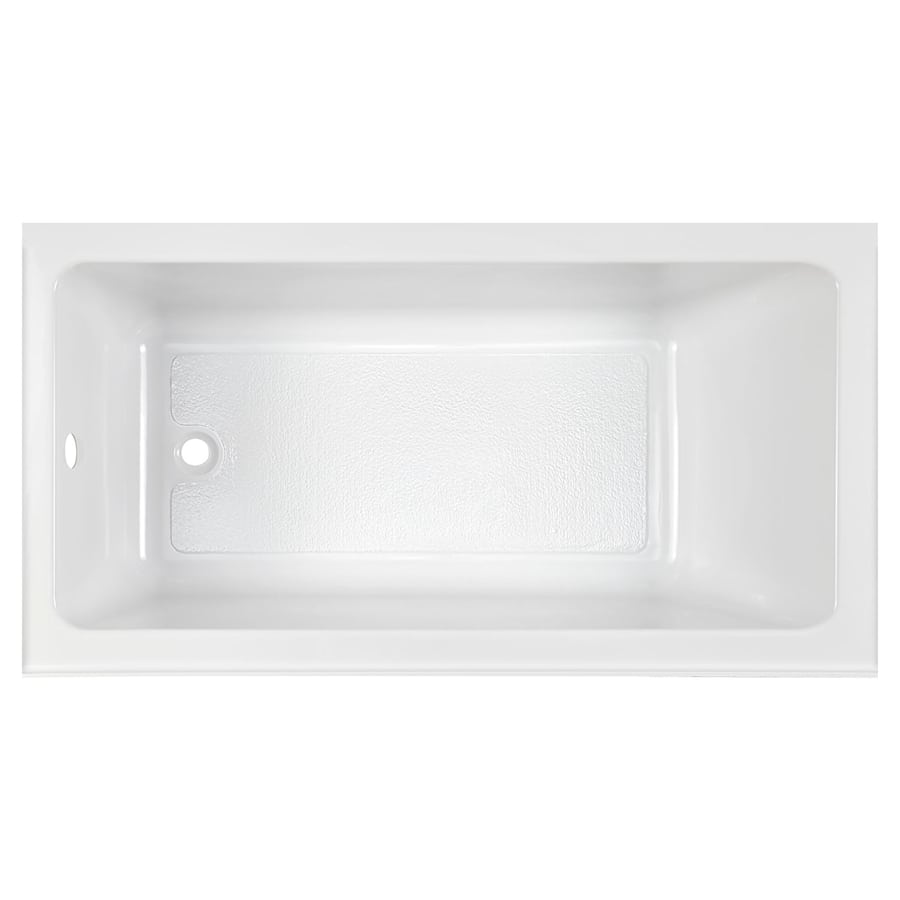

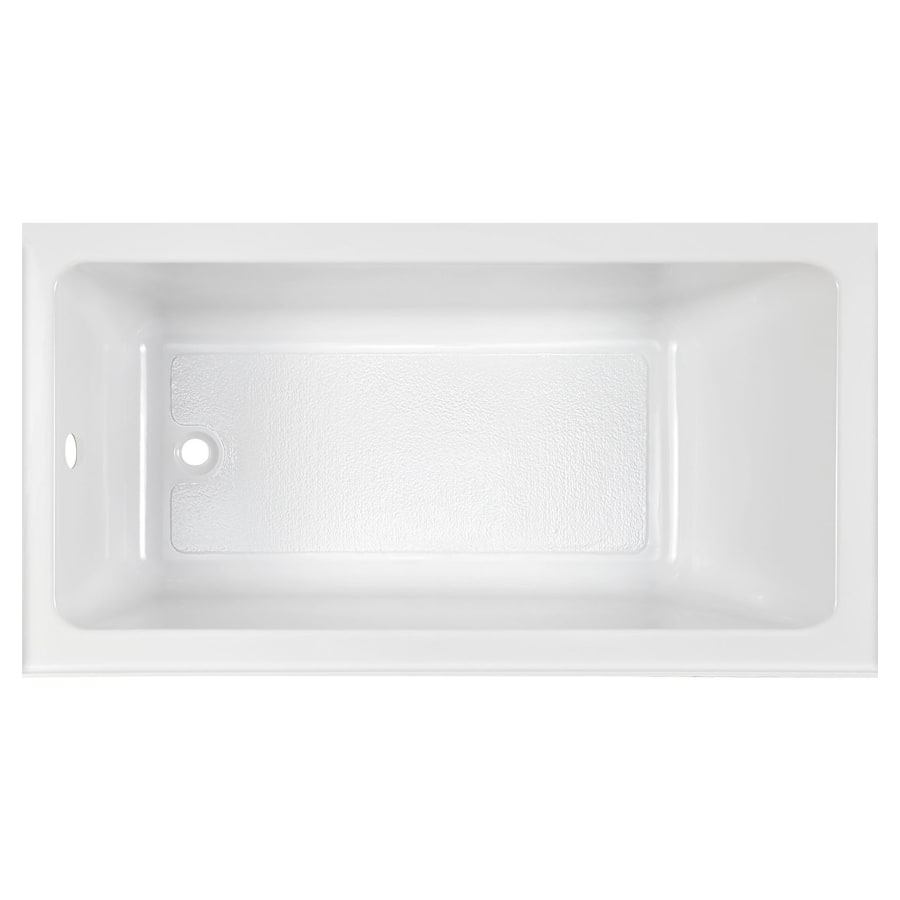

The Studio above floor rough-in bathtub from American Standard features a sleek, integral apron for compatibility with any bathroom design. Made of light weight high gloss acrylic with durable fiberglass reinforcement. The spacious Studio bathtub boasts a comfortable lumbar support and textured slip resistant surface for added safety. The Studio above floor rough-in bathtub is designed with enough space to pipe directly under the bathtub without having to relocate the existing drain.
American Standard 2573.202 Features:
Above floor rough installation
High gloss acrylic with fiberglass reinforcement
Integral apron with clean minimalist design
Integral three sided 1″ tiling/water retention flange helps prevent water seepage
For recessed three wall alcove installation
Pre leveled tub bottom for easier installation
Integral lumbar support provides extra comfort
Spaciously designed to provide maximum bathing space with a wide and deep bathing well
A textured floor helps to improve safety
Covered under American Standard’s limited lifetime warranty
American Standard 2573.202 Specifications:
Overall Height: 18″ (bottom to top of tub)
Overall Length: 60″ (left to right of tub)
Overall Width: 30″ (front to back of tub)
Basin Length: 44-1/2″ (left to right of bottom basin)
Basin Width: 20-1/2″ (front to back of bottom basin)
Basin Depth: 15-1/4″ (top to bottom of basin)
Maximum Water Capacity: 40 gallons
Water Depth: 10-13/16″
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Studio Collection
Specifications
| Depth | 15.25 in. |
| Height | 18 in. |
| Nominal Width | 30 in. |
| Product Weight | 56 lbs. |
| Width | 30 in. |
| Length | 60 in. |
| Nominal Length | 60 in. |
| Capacity (Gallons) | 40 |
| Water Depth | 10.8125 in. |
| Material | Acrylic |
| Thermostat | Modern |
| Drain Placement | Left |
| Insulation Type | Three Wall Alcove |
| Overflow | Yes |
| Apron Front | Yes |
| Number Of Bathers | 1 |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Accepts Deck Mount Faucet | No |
| ADA | Yes |
| Certifications | CSA |
| Collection | Studio |
| Country Of Origin | USA |
| Made in America | Yes |
| Manufacturer Warranty | Limited Lifetime |
| CSA Code | B45.5 |
| Drain Assembly Included | No |
| Faucet Included | No |
| Handshower Included | No |
| Light Included | No |
| Color | Arctic, White |
| Color Tone | Whites |
