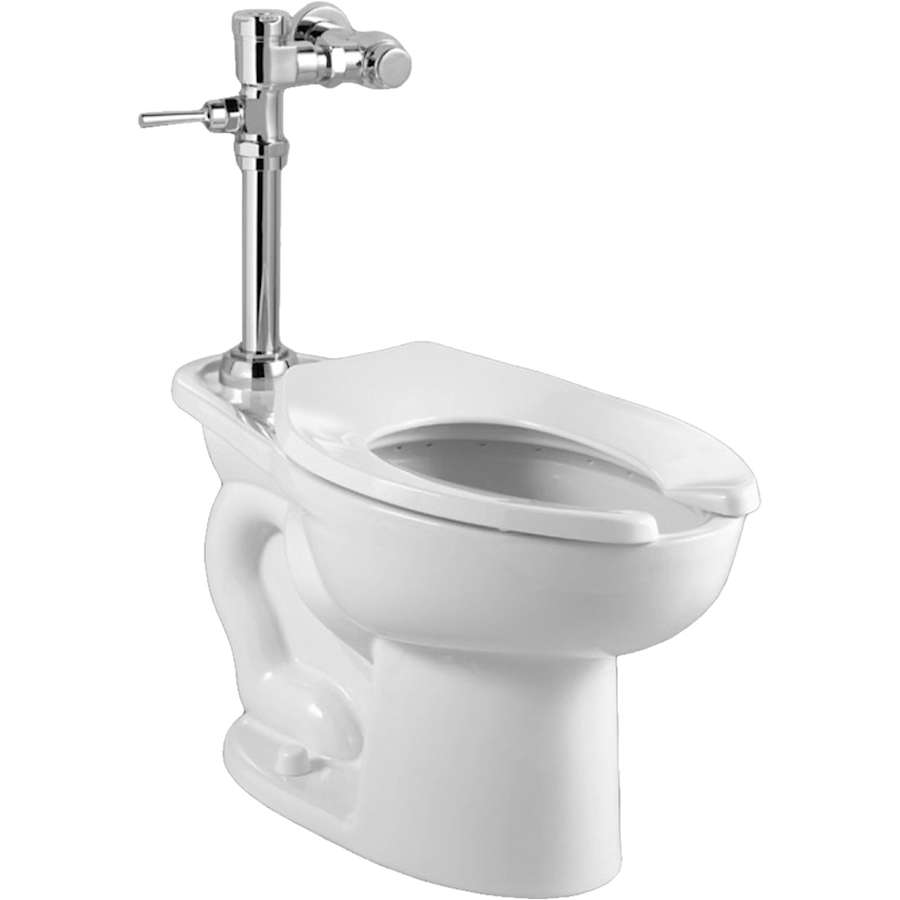

American Standard 2857.111 Features:
Toilet bowl constructed from vitreous china
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
1-1/2″ top spud
Toilet seat not included
Floor mounted installation
Powerful direct-fed siphon jet flush action
Manual flush valve with self-cleaning brass piston
Flush valve is constructed from durable chrome-plated brass making it ideal for commercial applications
Flush valve is designed for right or left hand installation
ADA compliant – complies with the standards for toilets set forth by the Americans with Disabilities Act
High-efficiency toilet system saves up to 31.3% more water than standard 1.6 GPF toilet systems
American Standard 2857.111 Specifications:
Overall Height: 30″ (bottom of the base to the highest point on the toilet)
Overall Depth: 28-1/4″ (back of the tank to the front of the rim)
Overall Width: 14″ (furthest point on the left to the furthest on the right)
Bowl Height: 16-1/2″ (bottom of the base to the rim)
Flow Rate: 1.1 gallons-per-flush
Water Area: 10″ x 12″ (inner rim dimensions length x width)
Trapway (Discharge Passageway) Size: 2-1/8″
Rough-In: 10″ or 12″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Why Buy American Standard From Us:
We are an American Standard Preferred Authorized Online Dealer
We Only Ship Showroom Quality products vs Builder Grade quality found at big box retailers
All metal parts, not plastic like some of our competitors
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office
Â
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Madera Collection
Specifications
| Height | 30 in. |
| Product Weight | 64.40 lbs. |
| Depth | 28.25 in. |
| Width | 14 in. |
| Rough In | 10, 12 in. |
| Spud Size | 1.5 in. |
| Trapway | 2.125 in. |
| Water Area | 10 x 12 |
| Gallons Per Flush | 1.1 |
| Bowl Height | 16.5 in. |
| Hinge Center to Center | 5.5 in. |
| Insulation Type | Floor Mounted |
| Material | Brass, Vitreous China |
| Thermostat | Contemporary |
| Trip Lever Placement | Left, Right |
| Bowl Shape | Elongated |
| Configuration | Two Piece |
| Flush Type | Siphon Jet |
| Spud Placement | Top |
| Design Features | Glazed Trapway |
| Approved for Commercial Use | Yes |
| Collection | Madera |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| CA Drought Compliant | Yes |
| Certifications | ANSI, ASME, CSA |
| TX Drought Compliant | Yes |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| ANSI Certification | A117.1 |
| Seat Included | No |
| Color | White |
| Color Tone | Whites |
