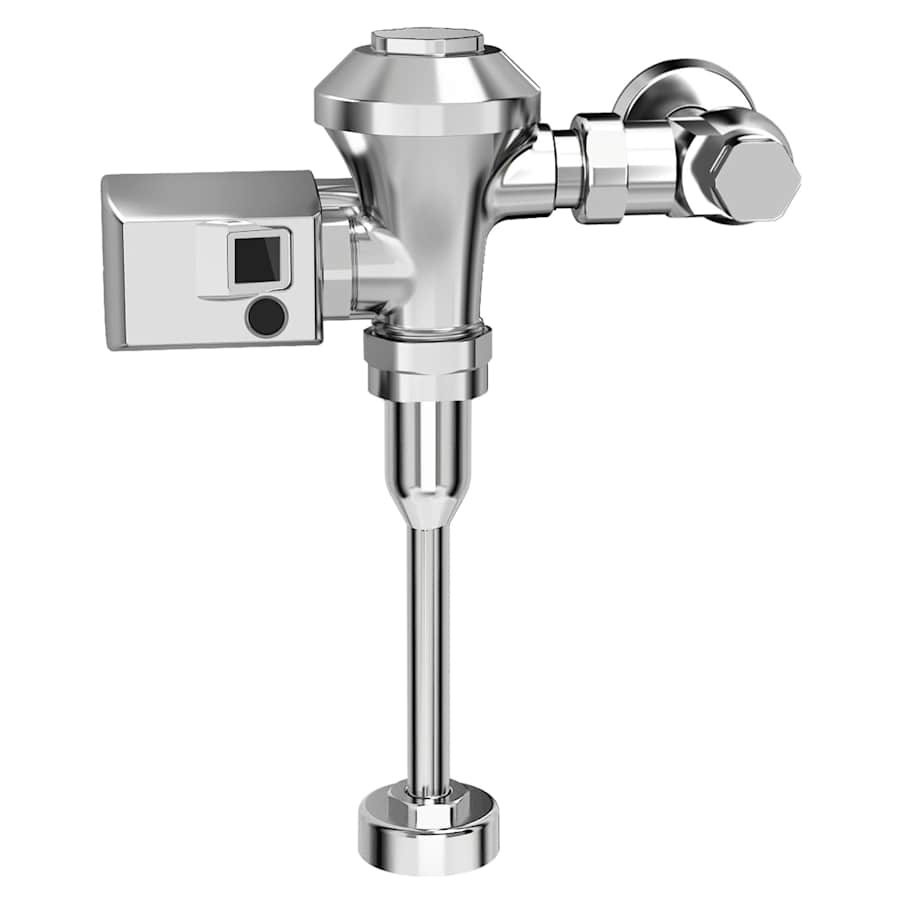

American Standard 6145SM.101 Features:
Hands-free infrared sensor-operated gear actuator with metal housing
DynaClean wiper spring technology significantly reduces maintenance and downtime
Premium, chlorine resistant EvoLast diaphragm material prevents premature deterioration and failure
Dezincification-resistant brass alloy
Electronic courtesy flush button
Optional sanitary flush for an automatic flush after 24 hours of non-use
Features a low battery indicator with a yellow LED light that flashes when batteries need to be replaced
Easy battery replacement: water does not need to be shut off to change batteries
American Standard 6145SM.101 Technologies and Benefits:

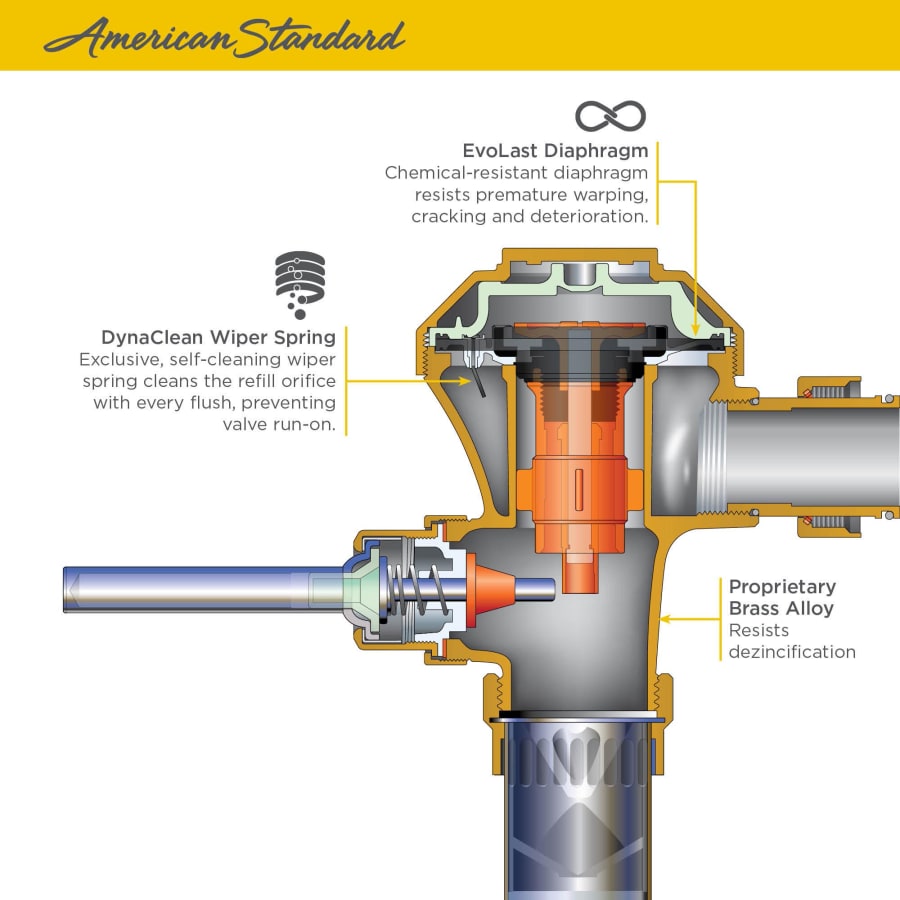

DynaClean: An exclusive wiper spring positioned at the refill orifice where clogs form. The wiper spring eliminates build-up by clearing the refill orifice with every flush, preventing valve run-on and water waste. The integral wiper spring keeps the orifice clear of debris and mineral build-up for improved performance and less maintenance.
EvoLast: A premium, chlorine-resistant diaphragm material that delivers consistent performance and resists premature deterioration and failure.
American Standard 6145SM.101 Specifications:
Height: 14-5/8″ (top to bottom)
Width: 4-1/4″ (left to right)
Depth: 2-1/4″ (front to back)
Flow Rate (GPF): 1 gallons-per-flush
Spud Connection Size: 3/4″
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Ultima Collection
Specifications
| Product Weight | 6.2 lbs. |
| Height | 14.625 in. |
| Width | 4.25 in. |
| Depth | 2.25 in. |
| Gallons Per Flush | 1 |
| Spud Size | 0.75 in. |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Ultima |
| Approved for Commercial Use | Yes |
| Country Of Origin | Mexico |
| ADA | Yes |
| Certifications | ASSE, ANSI, ASME |
| CA Drought Compliant | No |
| WaterSense Certified | No |
| ASSE Code | 1037 |
| TX Drought Compliant | No |
| Control Type | Electronic |
| Insulation Type | Wall Mounted |
| Material | Brass |
| Water Efficient | Yes |
| Electronic | Yes |
| Spud Placement | Top |
| Battery Quantity | 4 |
| Power Source | Battery |
| Battery Type | Alkaline |
| Handshower Included | No |
| Valve Included | Yes |
| Color | Polished Chrome |
| Color Tone | Silver Tones |
