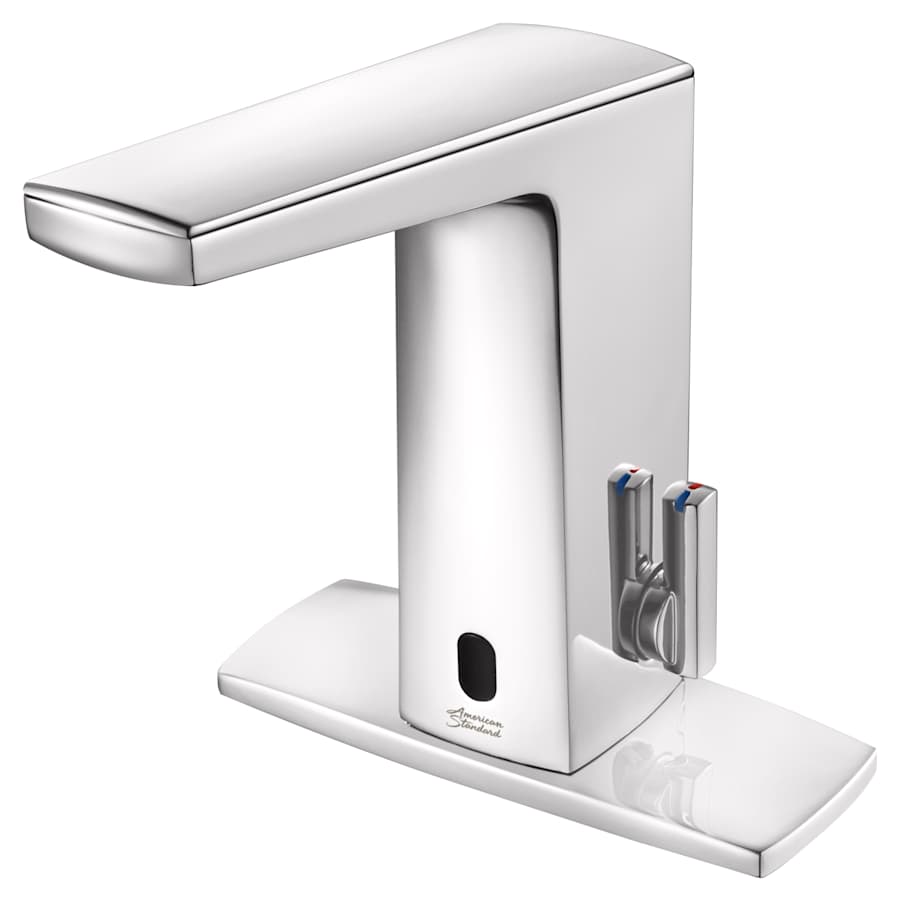

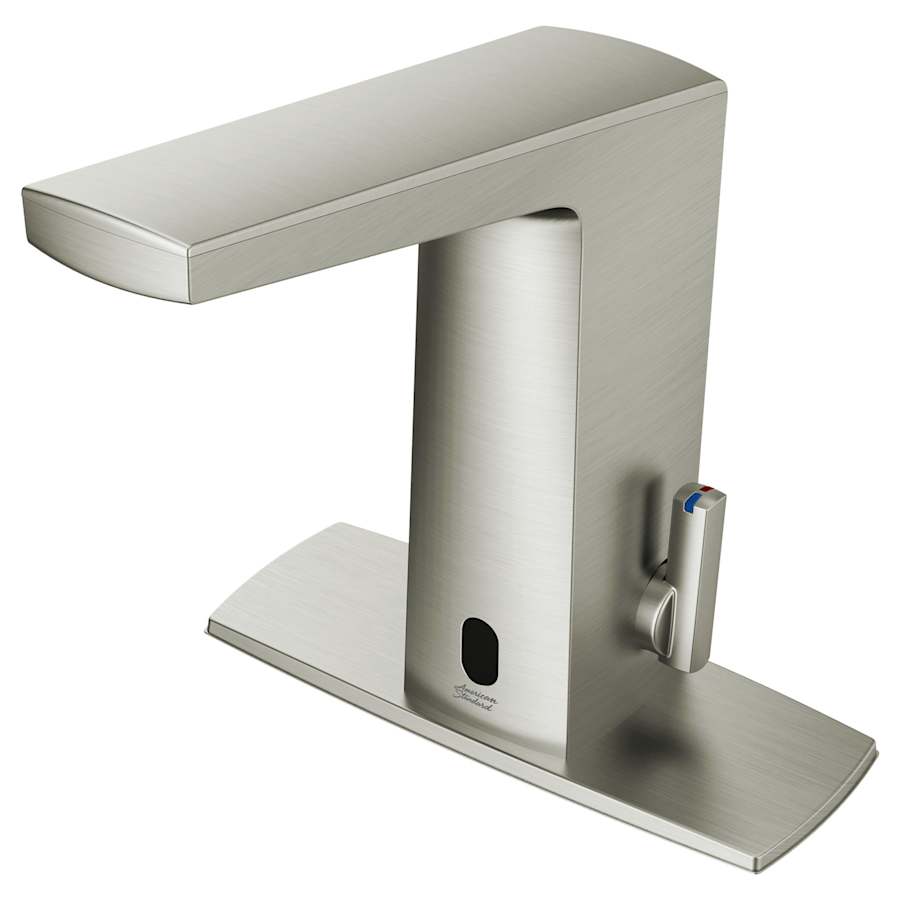

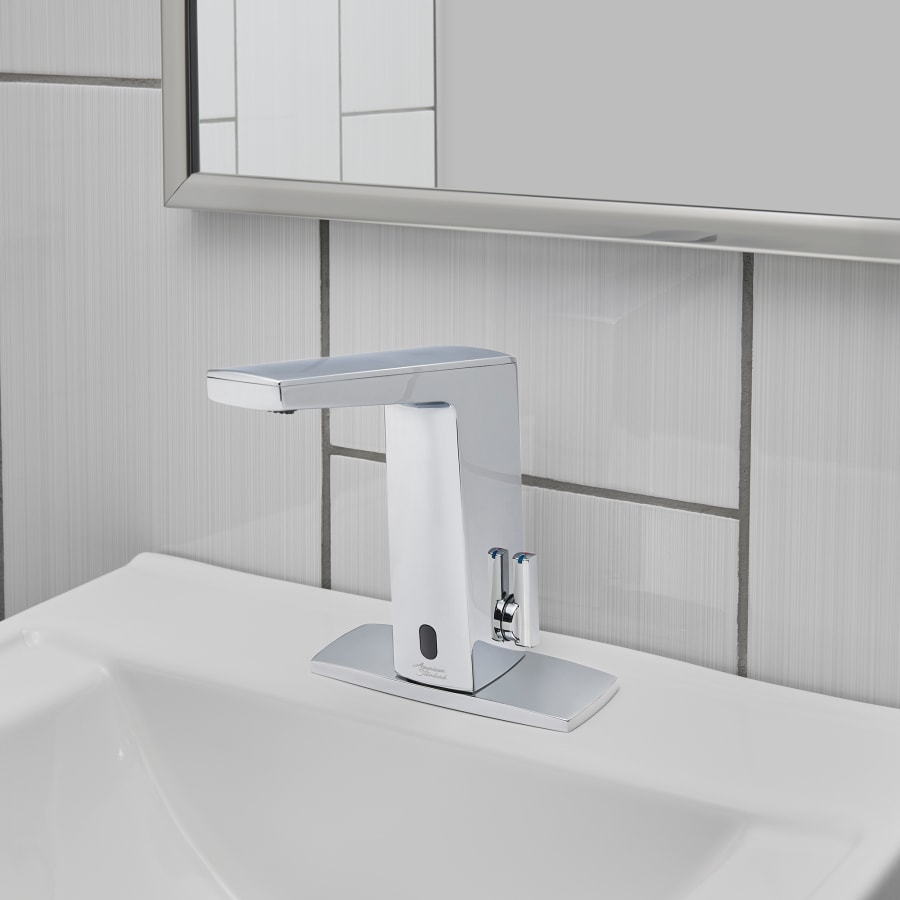

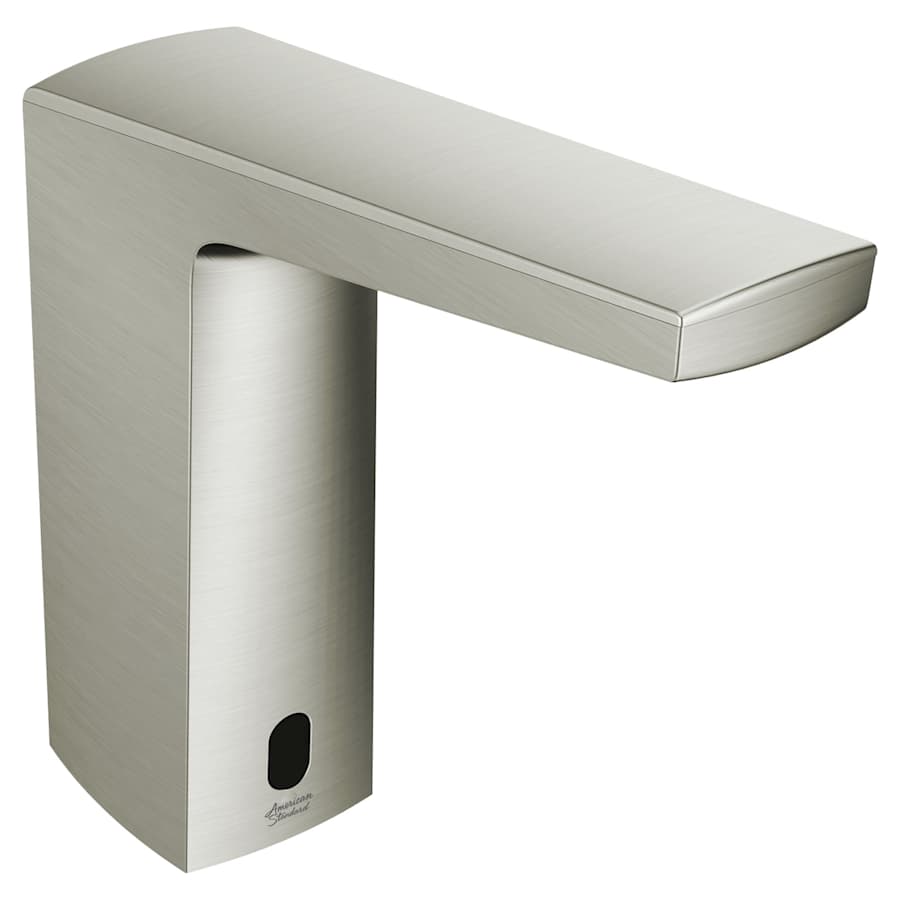

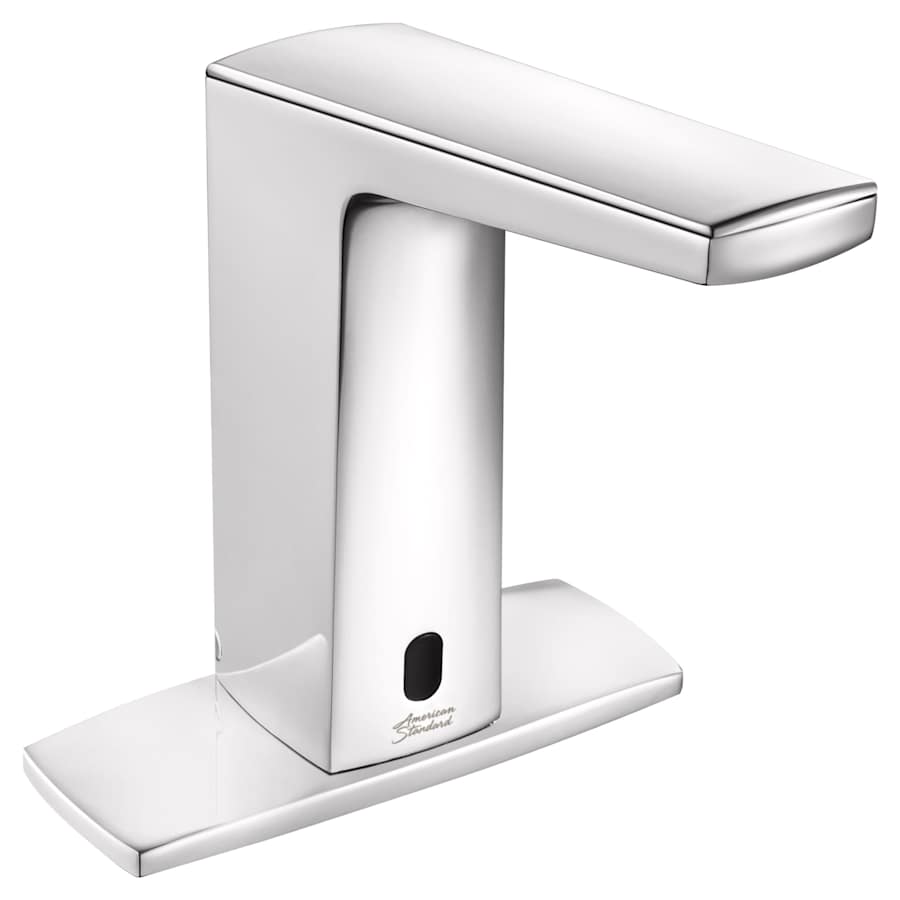

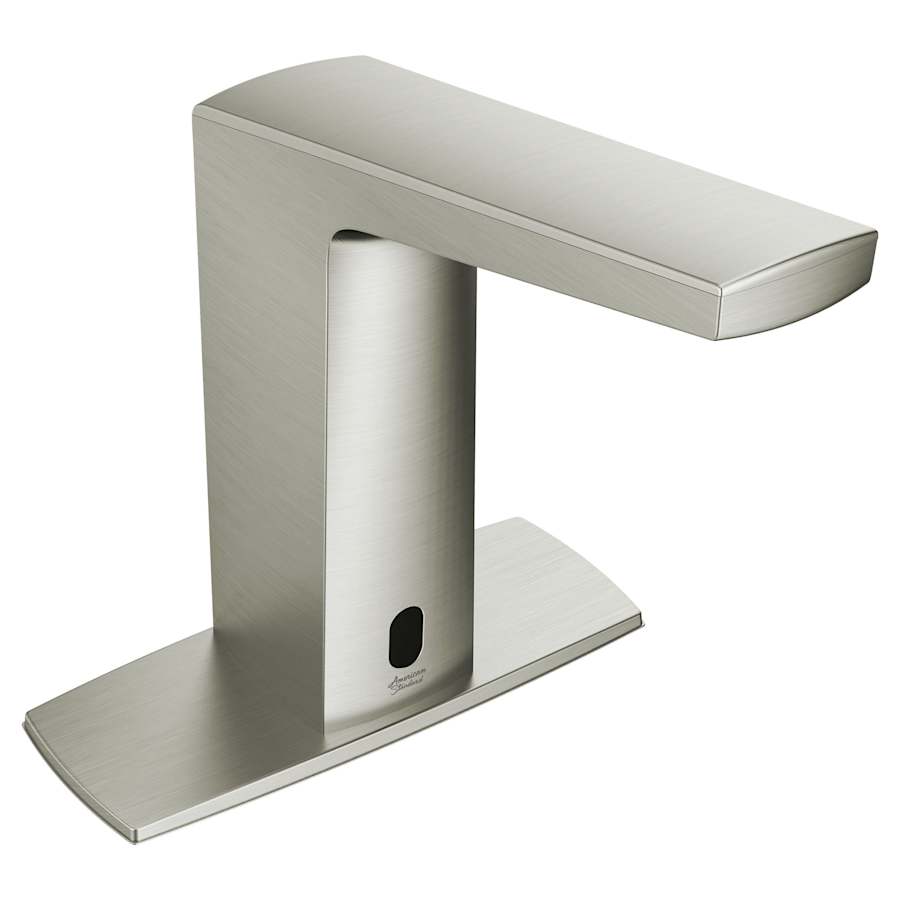

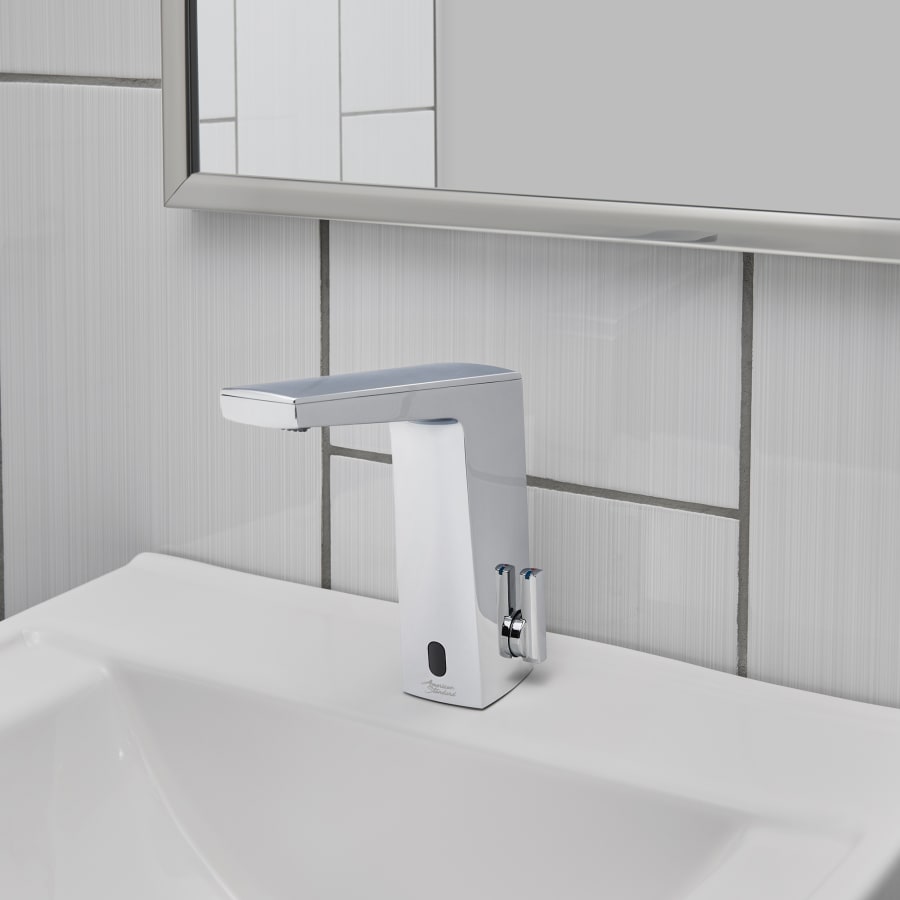

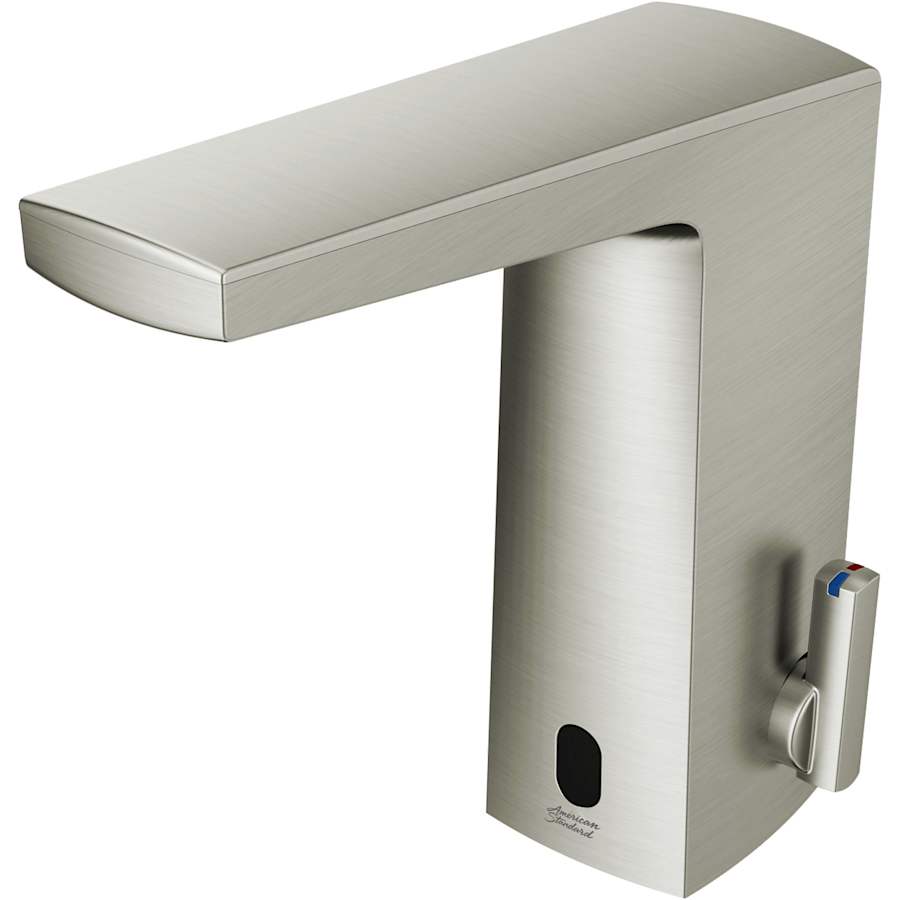

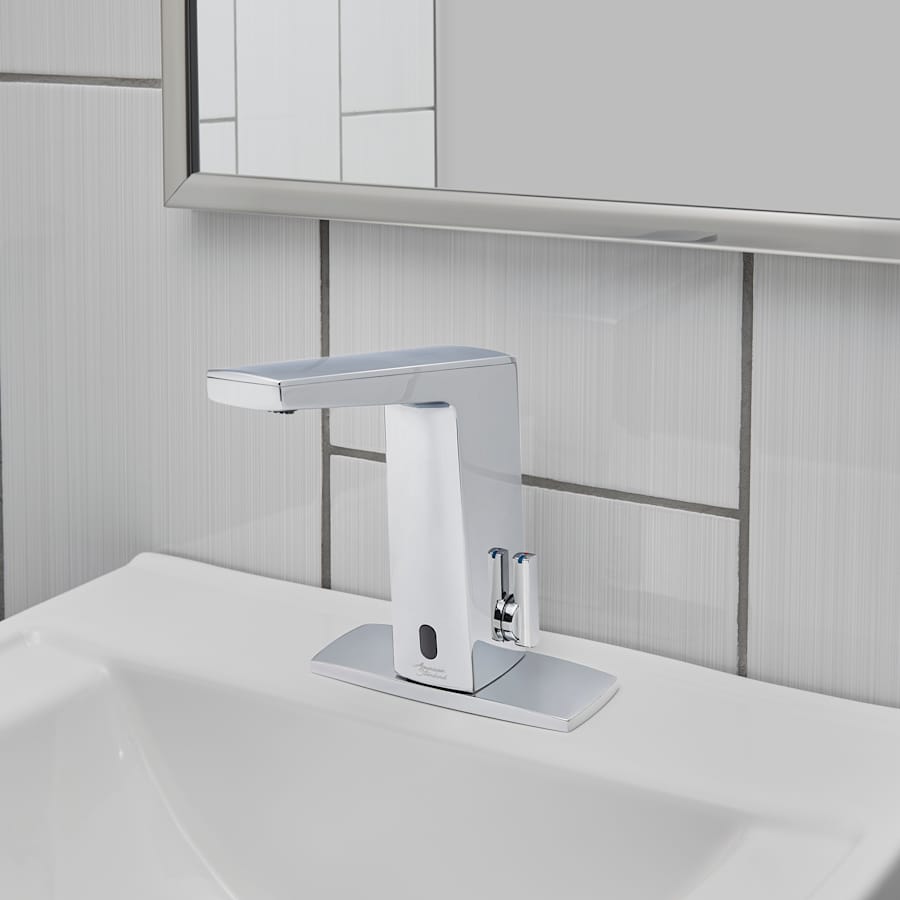

Sleek and streamlined, the Paradigm Selectronic® integrated faucet from American Standard takes a cue from modern design. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter free under deck space.
American Standard 7025.205 Features:
0.5 GPM pressure compensating, vandal resistant multi laminar spray
CR-P2 lithium battery preinstalled in the faucet
5 Year battery life with 4,000 uses per month
Above deck mixing allows user to manually adjust temperature and has an adjustable hot limit stop
Removable mixing handle and cover plug allows installer to set temperature and remove handle to prevent user adjustment
Dual inlets for hot and cold water with check valves to prevent cross flow and the filter assemblies protect the solenoid valve from debris
Hygienic touch free operation

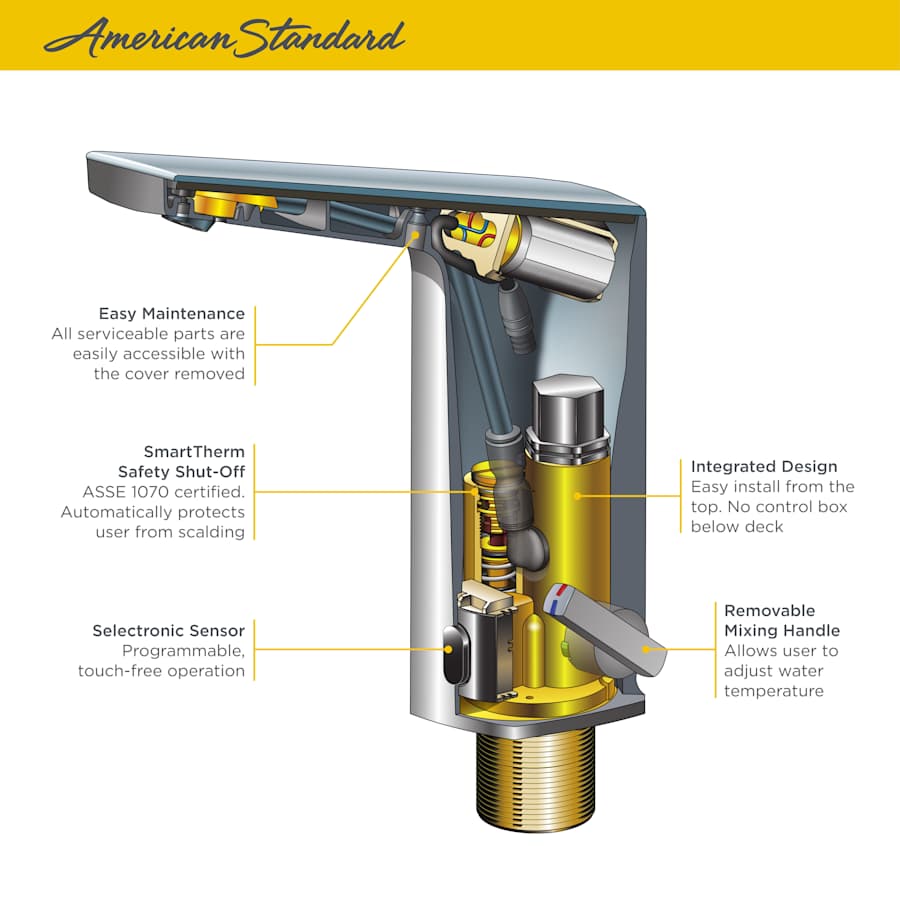

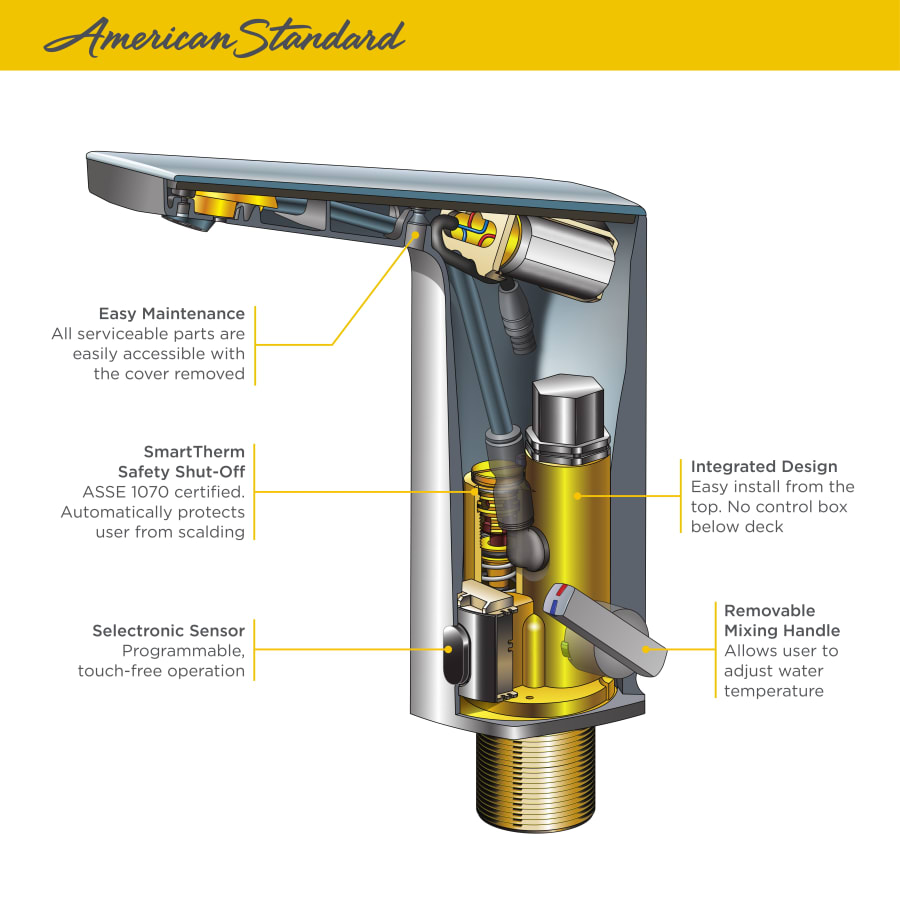

Clean integrated design with all electronics contained in faucet spout, no control box below deck
Fast and easy installation with top faucet installation and all serviceable parts are easily accessible for simple maintenance
Flexible Selectronic® platform with programmable sensor and interchangeable power supplies
Self cleaning solenoid valve has silicon seals and integral wiper spring to prevent clogging and run-on that helps reduce maintenance
American Standard 7025.205 Technologies and Benefits:
Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply
American Standard 7025.205 Specifications:
Height: 7-1/2″ (deck to top of faucet)
Spout Height: 6-5/8″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Flow Rate: 0.5 gallons-per-minute
Faucet Centers: 0″ (distance between centers of outside faucet holes)
Maximum Deck Thickness: 1-1/2″ (cannot mount on thicker decks)
Hole Size: 1-1/8″
Faucet Holes: 1 (minimum number of holes required for installation)
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Paradigm Collection
Specifications
| Approved for Commercial Use | Yes |
| Country Of Origin | Mexico |
| Certifications | ANSI, ASME, CSA |
| Collection | Paradigm |
| ADA | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| Commercial Warranty | 5 Year Limited |
| CSA Code | B125.1 |
| Low Lead Compliant | Yes |
| WaterSense Certified | Yes |
| Height | 7.5 in. |
| Flow Rate (GPM) | 0.5 |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.125 in. |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.625 in. |
| Spout Reach | 5.5 in. |
| Water Connection | 3/8" |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Thermostat | Modern |
| Electronic | Yes |
| Faucet Holes | 1 |
| Faucet Type | Bathroom Sink Faucet |
| Handle Style | Lever |
| Mounting Type | Single Hole |
| Number Of Handles | 1 |
| Spout Type | Fixed |
| Touchless Faucet | Yes |
| Valve Type | Solenoid |
| Water Connection Type | Compression |
| Waterfall Faucet | No |
| Power Source | Battery |
| Battery Type | Lithium |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
