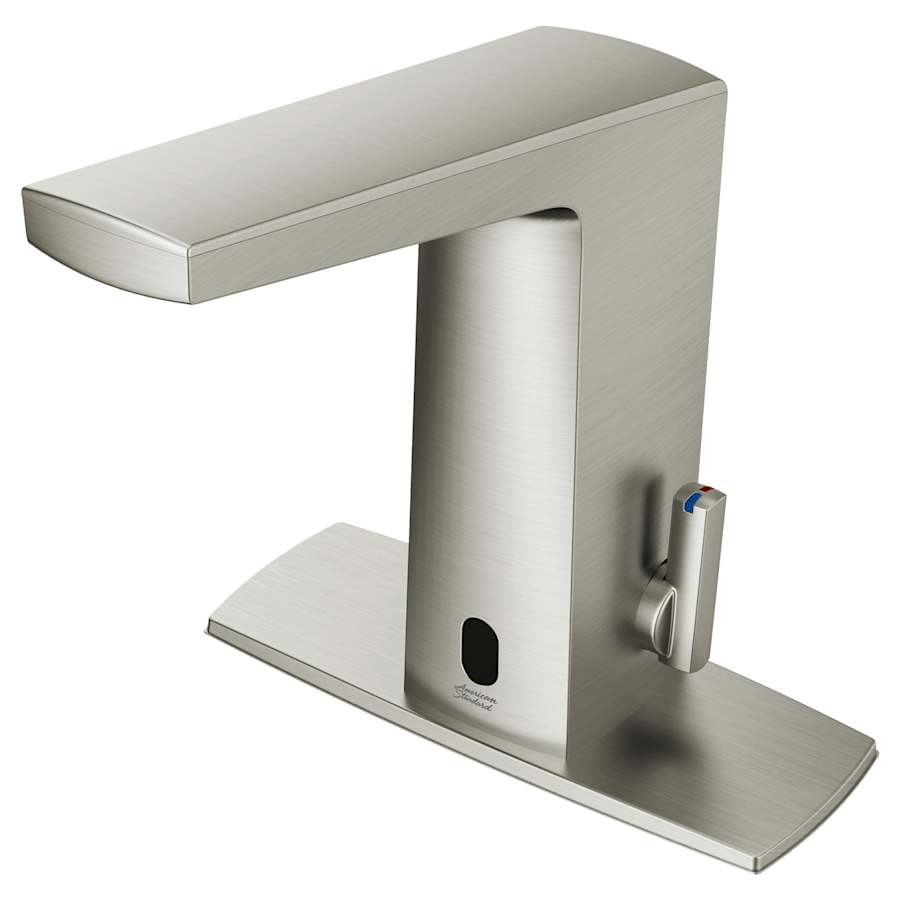

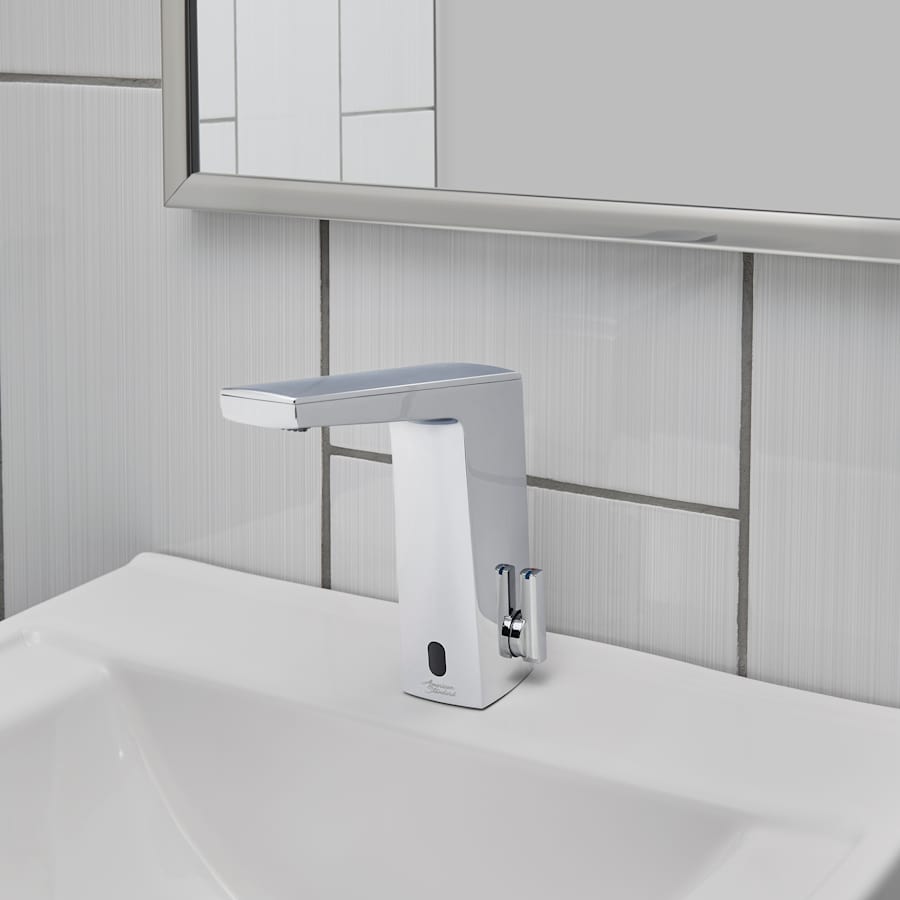

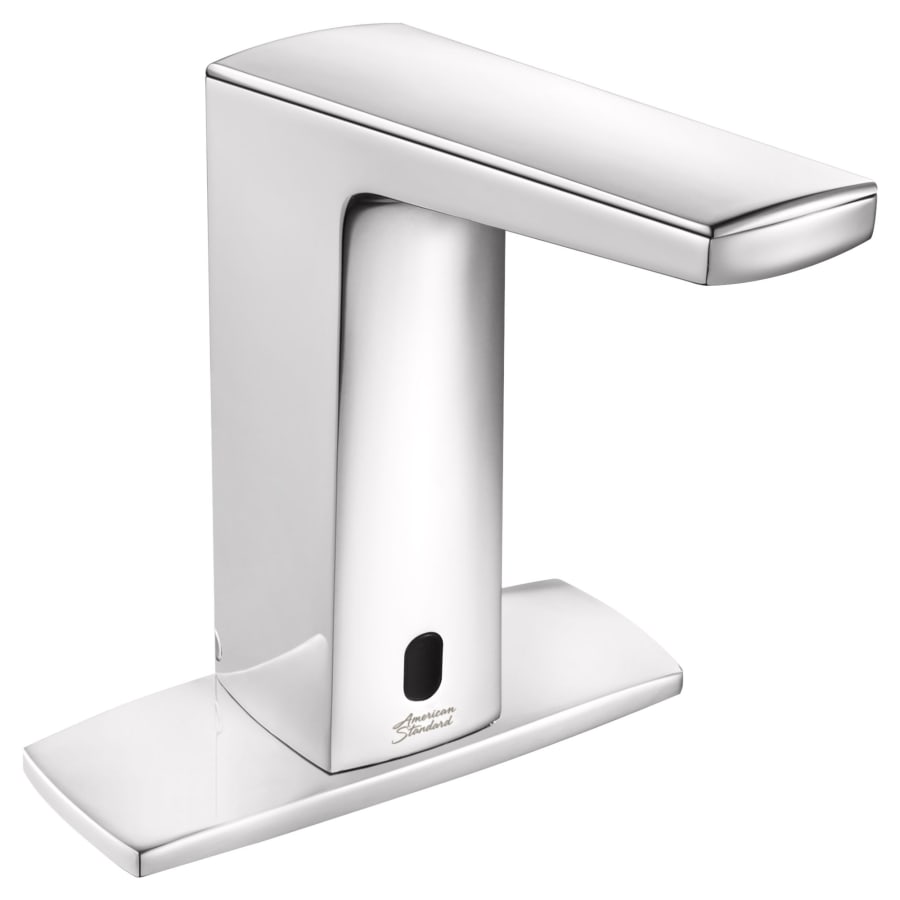

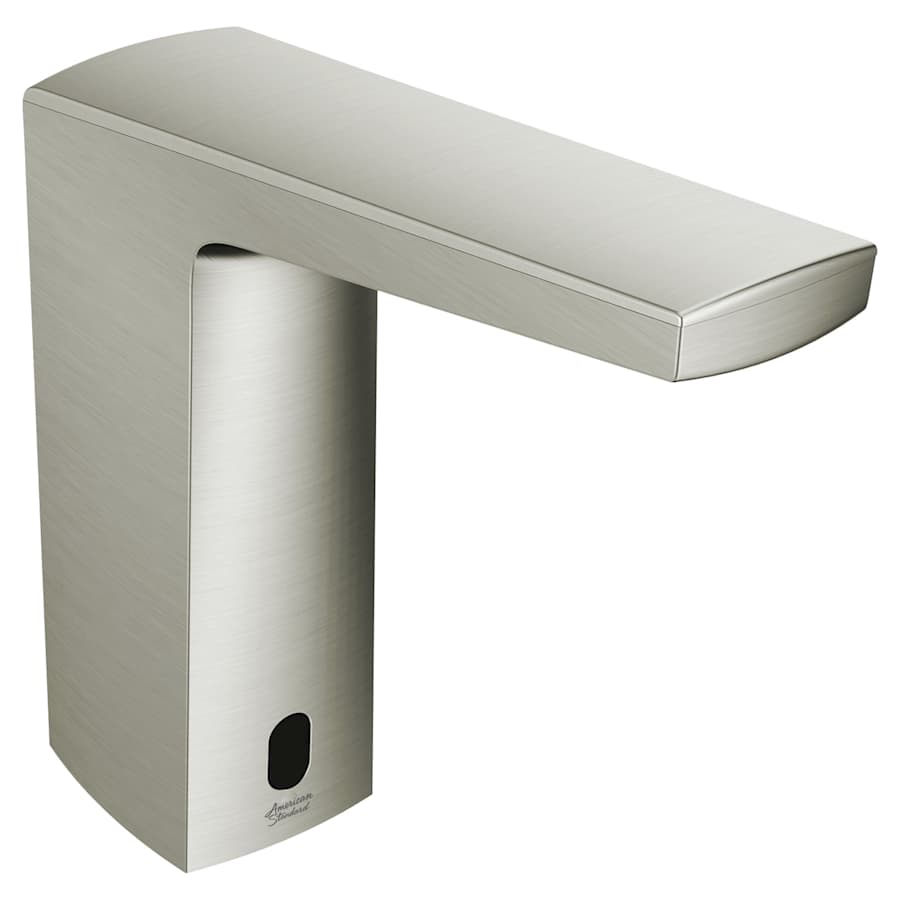

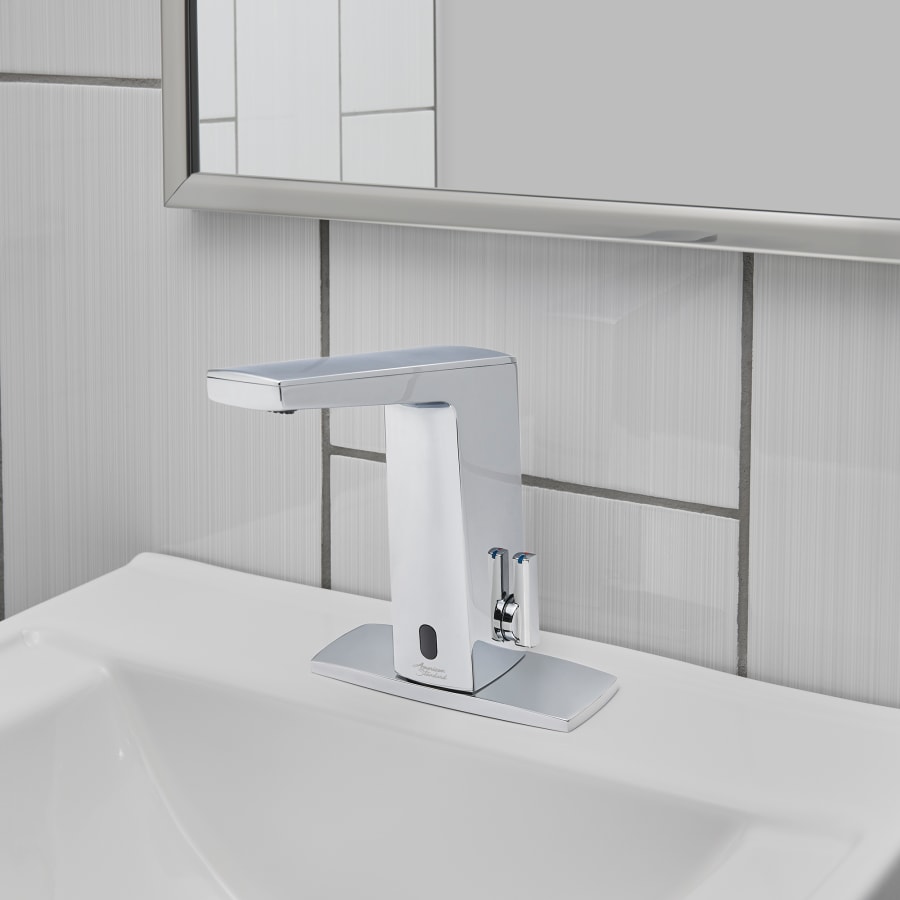

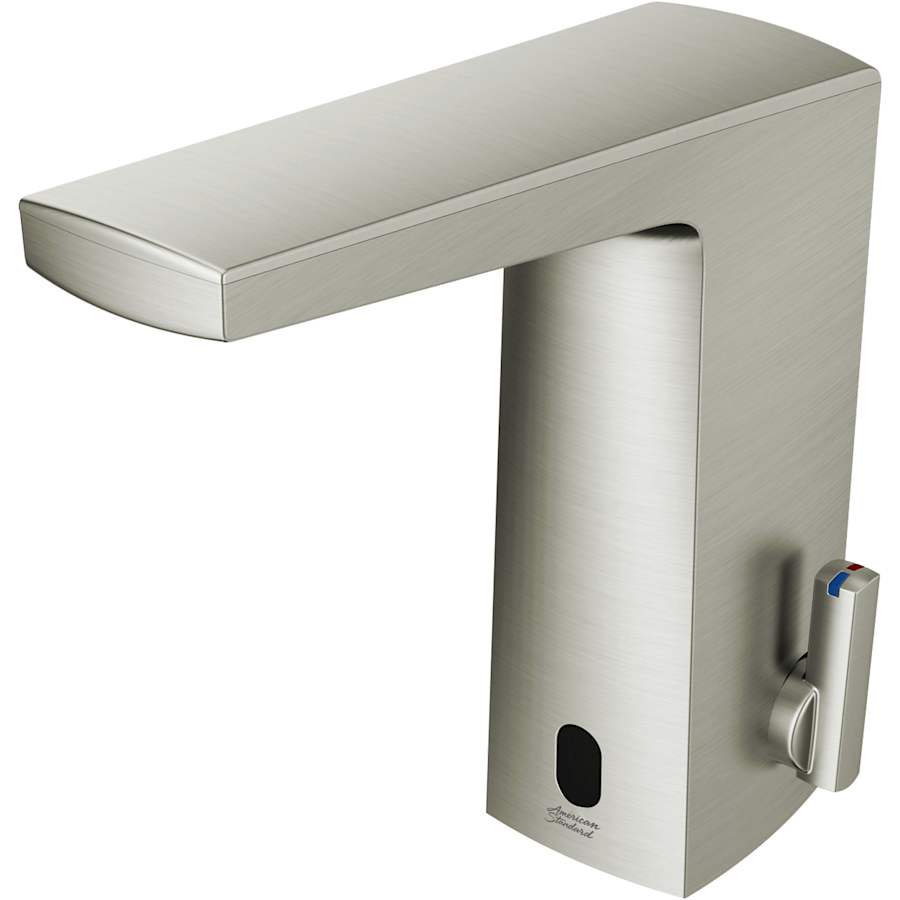

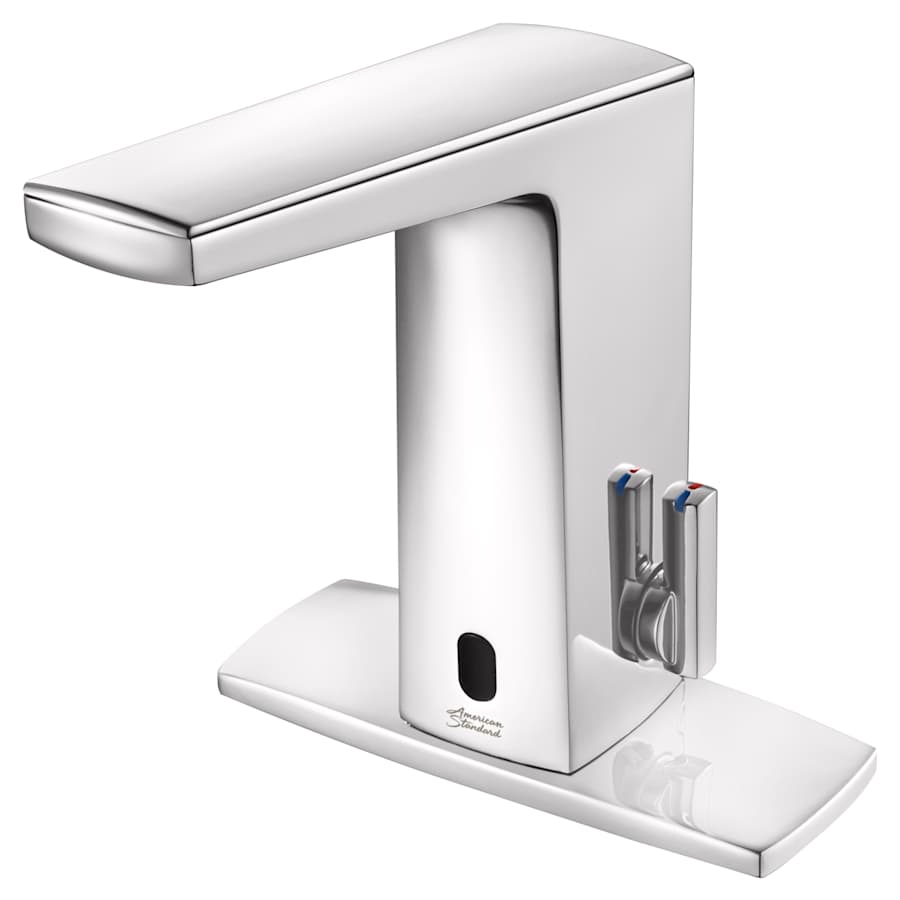

Sleek and streamlined, the Paradigm Selectronic® integrated faucet from American Standard takes a cue from modern design. It features the patented SmarTherm® safety shut off which is ASSE 1070 certified and automatically protects the user from scalding. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter free under deck space.
American Standard 7025.303 Features:
0.35 GPM pressure compensating, vandal resistant multi laminar spray
CR-P2 lithium battery preinstalled in the faucet
5 Year battery life with 4,000 uses per month

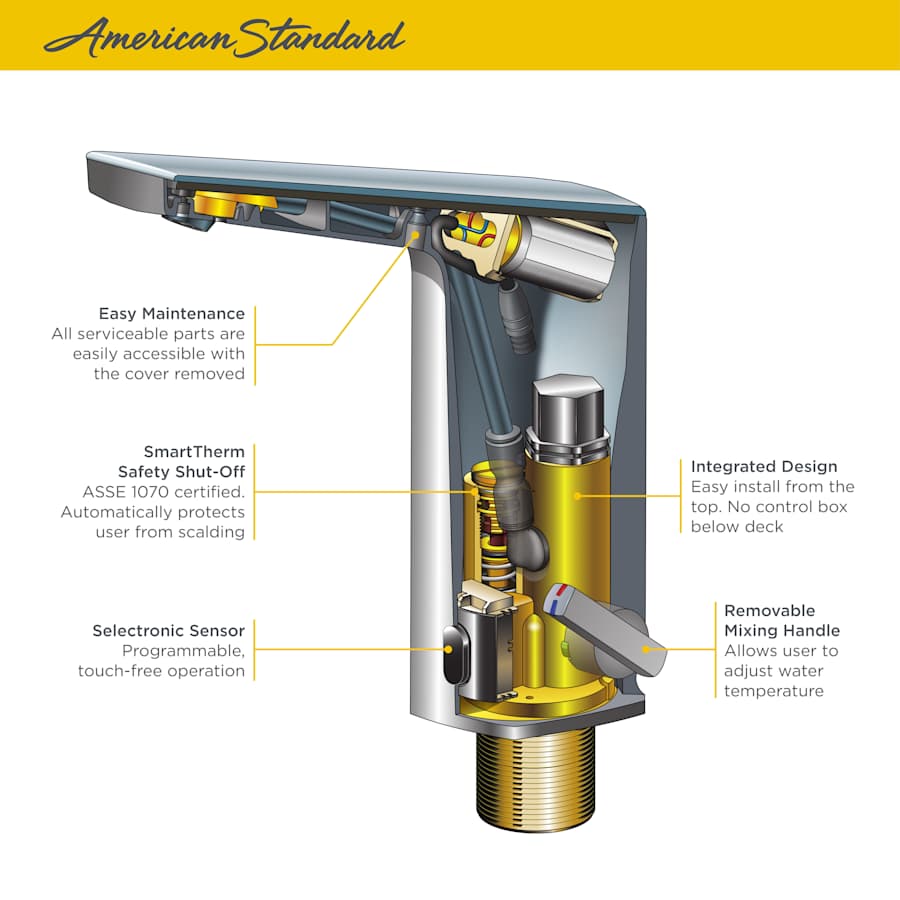

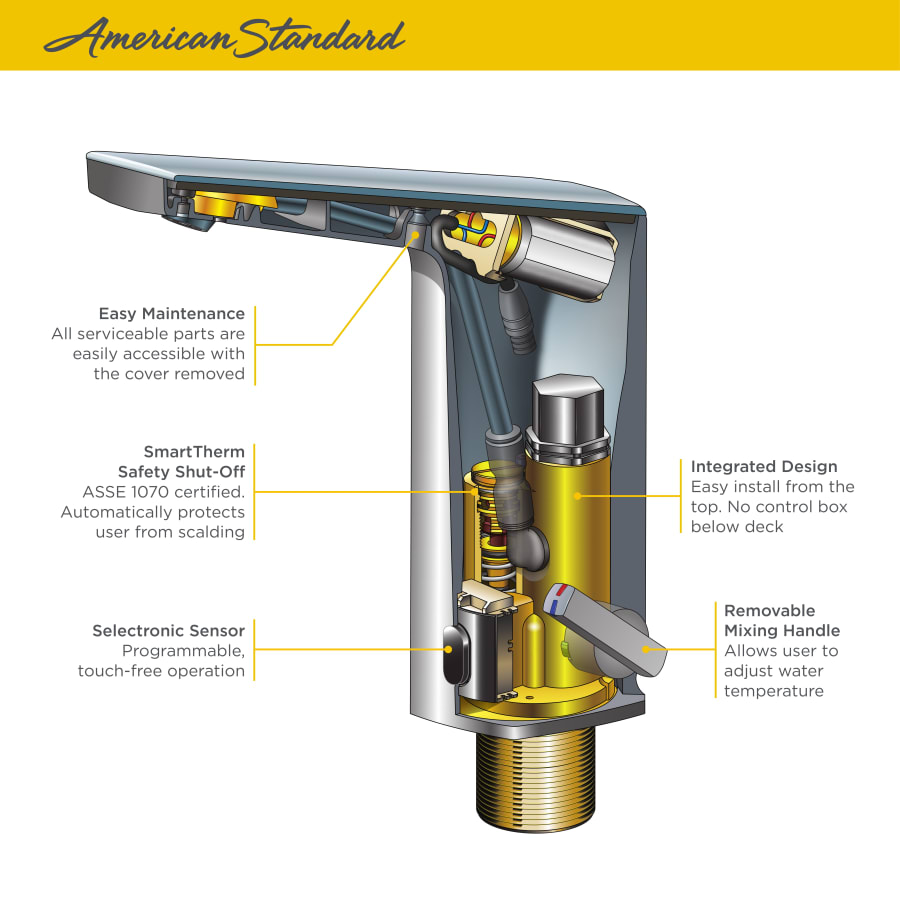

SmarTherm® safety shut off integral thermostatic hot water temperature limiter meets ASSE 1070 without a separate thermostatic mixing valve
Above deck mixing allows user to manually adjust temperature and has an adjustable hot limit stop
Removable mixing handle and cover plug allows installer to set temperature and remove handle to prevent user adjustment
Dual inlets for hot and cold water with check valves to prevent cross flow and the filter assemblies protect the solenoid valve from debris
Hygienic touch free operation
Clean integrated design with all electronics contained in faucet spout, no control box below deck
Fast and easy installation with top faucet installation and all serviceable parts are easily accessible for simple maintenance
Flexible Selectronic® platform with programmable sensor and interchangeable power supplies
American Standard 7025.303 Technologies and Benefits:
Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply
SmarTherm®: Safety shut-off that integrates a thermostatic hot water temperature limiter into the sensor faucet
American Standard 7025.303 Specifications:
Height: 7-1/2″ (deck to top of faucet)
Spout Height: 6-5/8″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Flow Rate: 0.35 gallons-per-minute
Faucet Centers: 0″ (distance between centers of outside faucet holes)
Maximum Deck Thickness: 1-1/2″ (cannot mount on thicker decks)
Hole Size: 1-1/8″
Faucet Holes: 1 (minimum number of holes required for installation)
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Paradigm Collection
Specifications
| Water Connection | 3/8" |
| Height | 7.5 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.125 in. |
| Flow Rate (GPM) | 0.35 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.625 in. |
| Spout Reach | 5.5 in. |
| Material | Brass |
| Thermostat | Modern |
| Water Connection Type | Compression |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Electronic | Yes |
| Faucet Type | Bathroom Sink Faucet |
| Handle Style | Lever |
| Mounting Type | Single Hole |
| Number Of Handles | 1 |
| Spout Type | Fixed |
| Valve Type | Solenoid |
| Waterfall Faucet | No |
| Touchless Faucet | Yes |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Collection | Paradigm |
| Commercial Warranty | 5 Year Limited |
| Country Of Origin | Mexico |
| Certifications | ANSI, ASME, CSA |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| Low Lead Compliant | Yes |
| ANSI Certification | A117.1 |
| Power Source | Battery |
| Battery Type | Lithium |

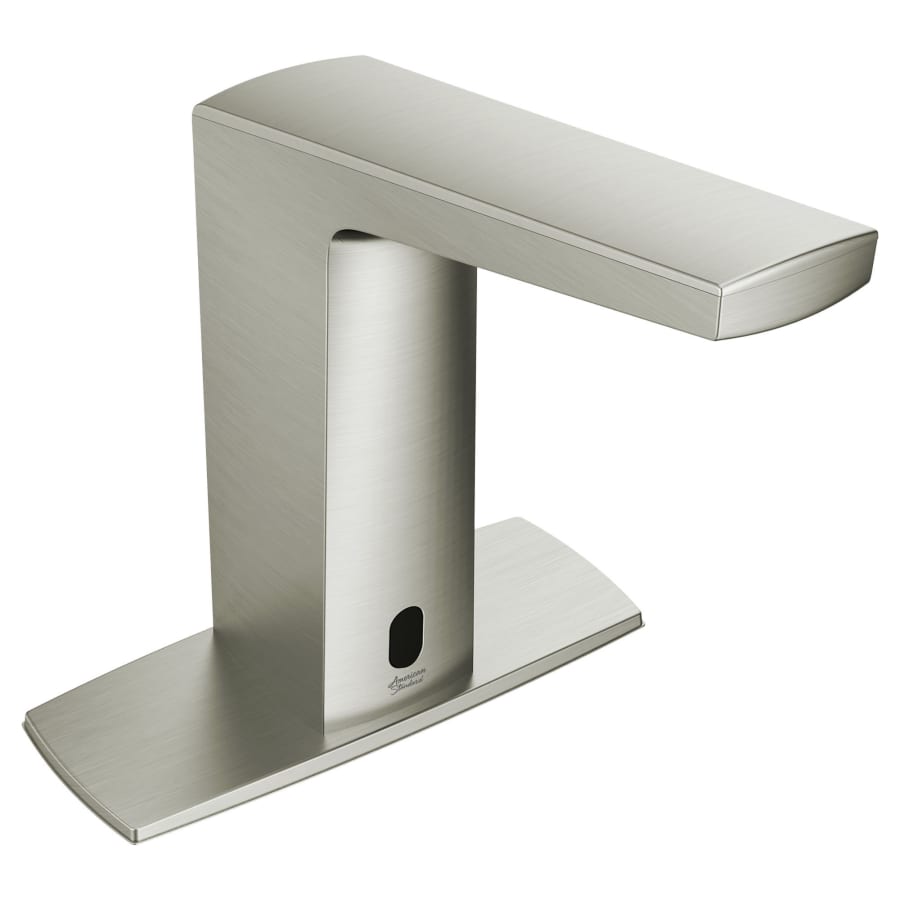

| Color | Brushed Nickel, Polished Chrome |
