American Standard 702B.103 Features:
Power kit must be purchased separately
Touchless operation limits the spread of germs
Single inlet for cold or tempered water

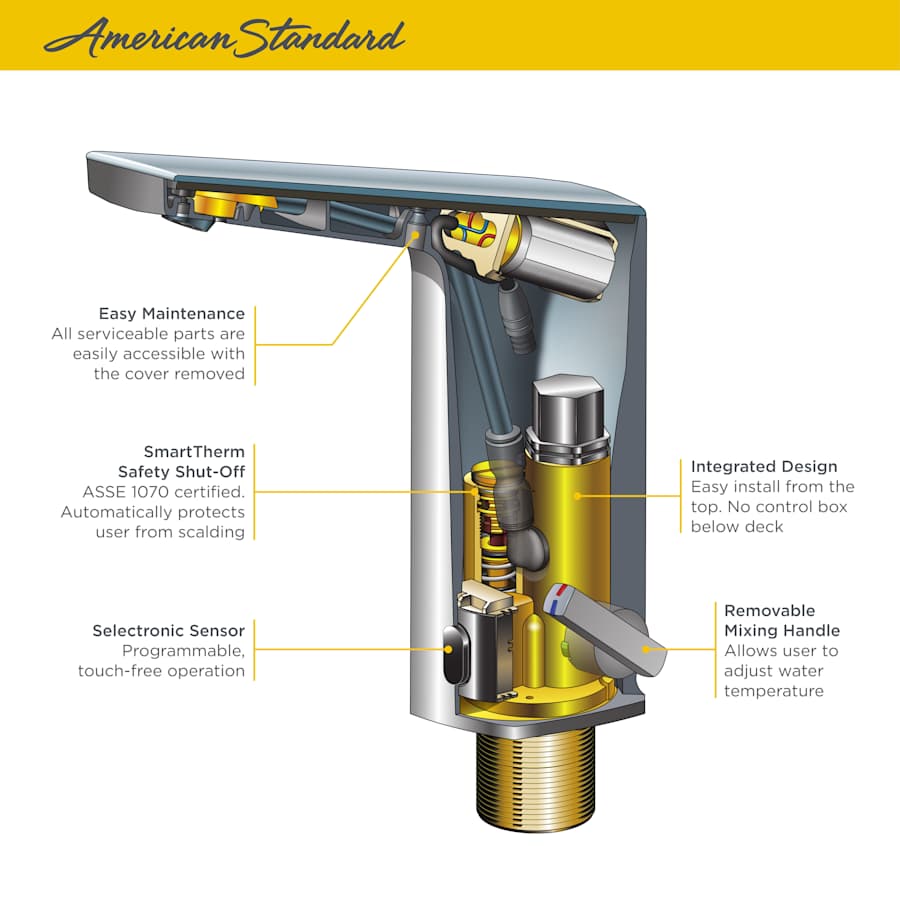

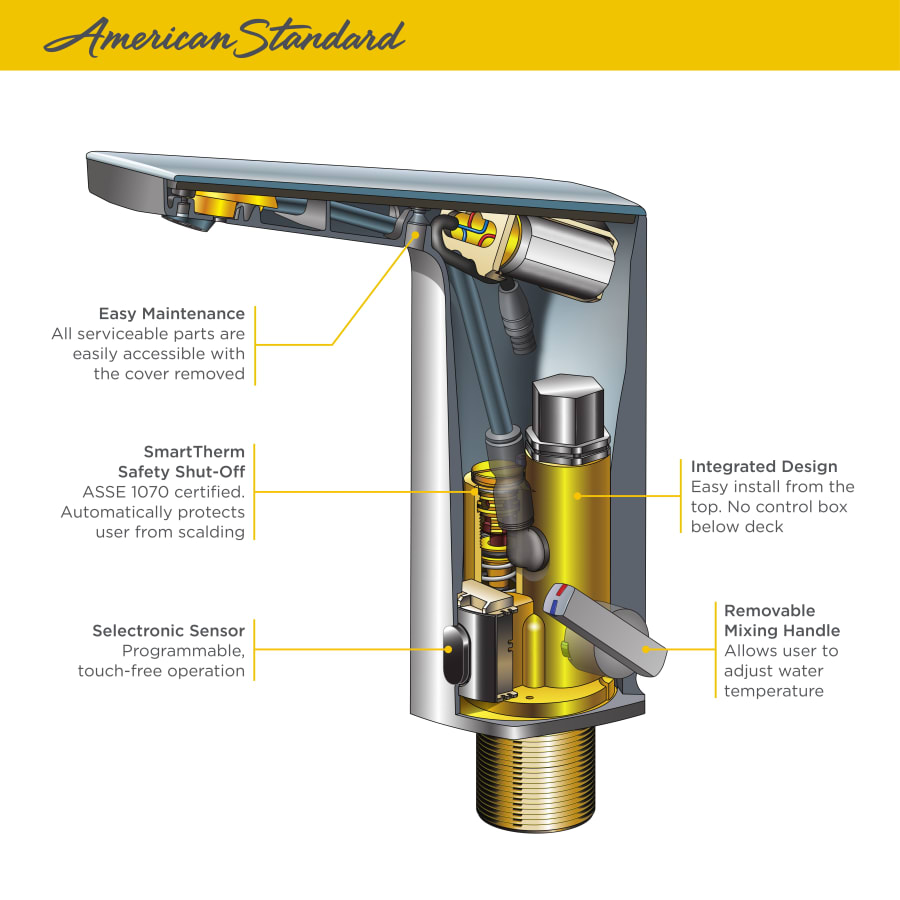

Clean, integrated design with no control box below deck
Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
Auto purge: Periodically purges stagnant water
Safety Timer: Automatically turns water off after 55 seconds
Vandal resistant 0.35 gpm pressure compensating multi laminar spray

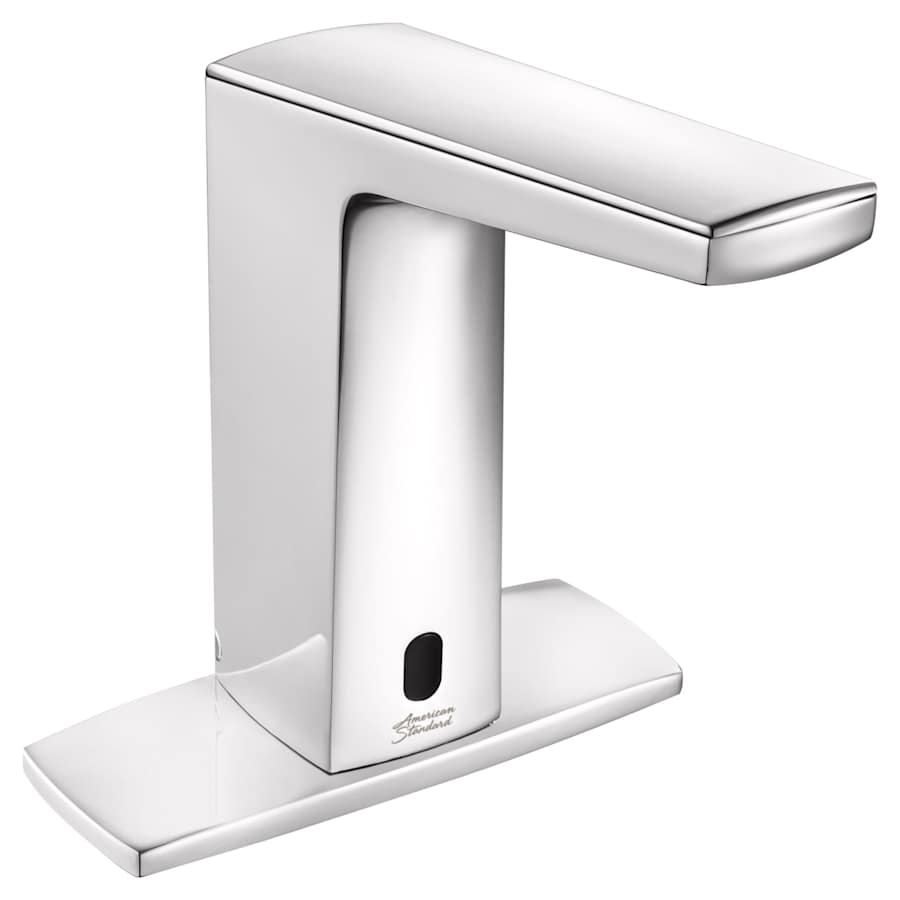

Optional deck plate for 4″ or 8″ centers available
Lead free: Faucet contains ≤ 0.25% total lead content by weighted average
American Standard 702B.103 Technologies and Benefits:
Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply
American Standard 702B.103 Specifications:
Height: 7-1/2″ (deck to top of faucet)
Spout Height: 6-5/8″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Flow Rate: 0.35 gallons-per-minute
Maximum Deck Thickness: 1-1/2″ (cannot mount on thicker decks)
Hole Size: 1-1/8″
Faucet Holes: Single Hole
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Paradigm Collection
Specifications
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 0.35 |
| Height | 7.5 in. |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.625 in. |
| Spout Reach | 5.5 in. |
| Water Connection | 3/8" |
| Faucet Hole Size | 1.125 in. |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | No |
| Valve Included | Yes |
| Faucet Holes | 1 |
| Material | Brass |
| Mounting Type | Single Hole |
| Spout Type | Fixed |
| Thermostat | Modern |
| Valve Type | Solenoid |
| Insulation Type | Deck Mounted |
| Faucet Type | Bathroom Sink Faucet |
| Electronic | Yes |
| Touchless Faucet | No |
| Water Connection Type | Compression |
| Waterfall Faucet | No |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Country Of Origin | Mexico |
| Low Lead Compliant | Yes |
| WaterSense Certified | Yes |
| Collection | Paradigm |
| Certifications | ANSI, ASME, CSA |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Commercial Warranty | 5 Year Limited |
| ANSI Certification | A117.1 |
| Power Source | Battery |
| Battery Type | Lithium |

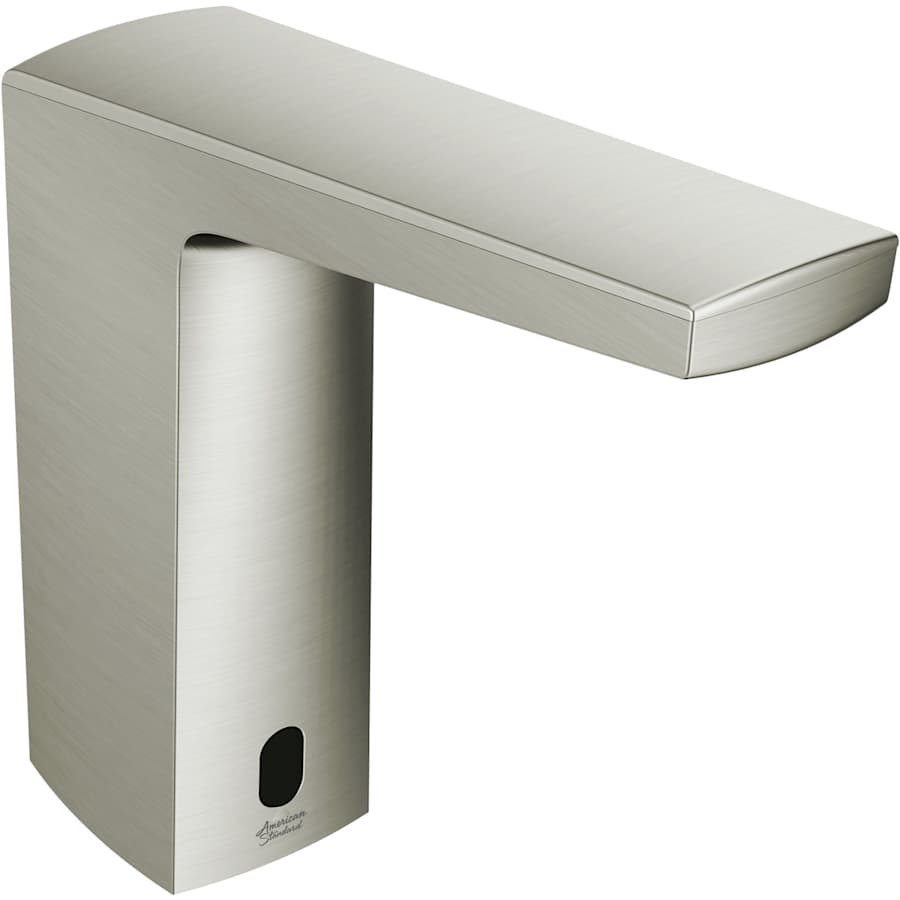

| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
