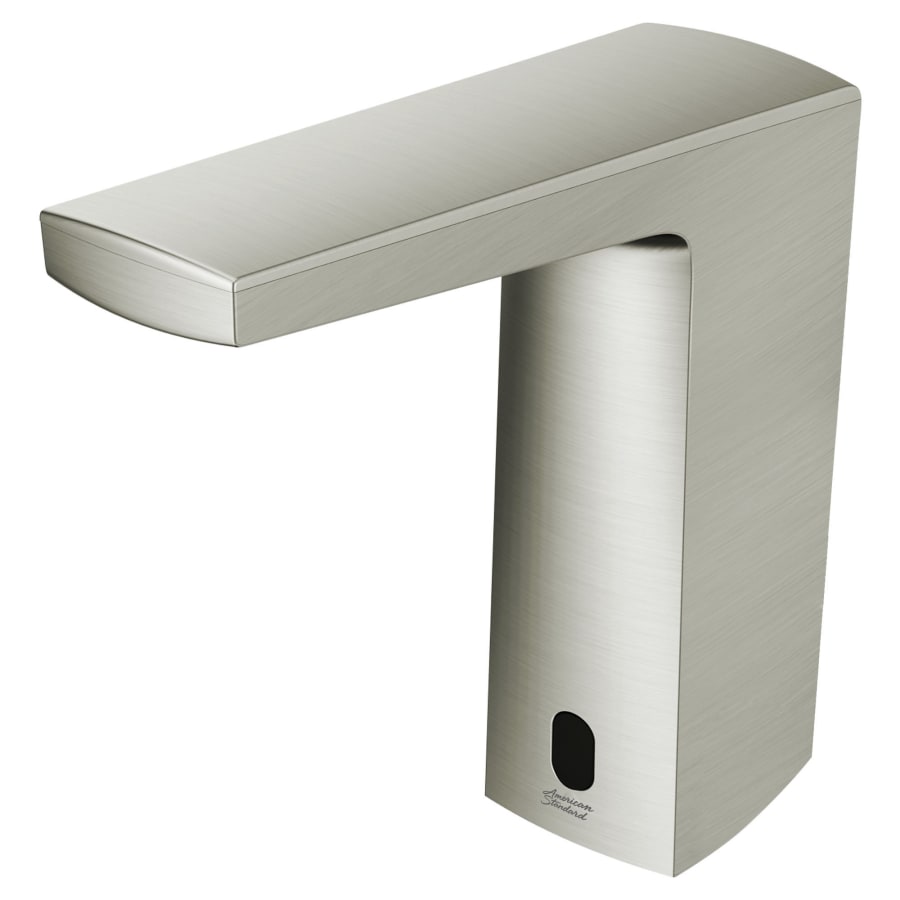

American Standard 702B.105 Features:
Power kit must be purchased separately
Touchless operation limits the spread of germs
Single inlet for cold or tempered water

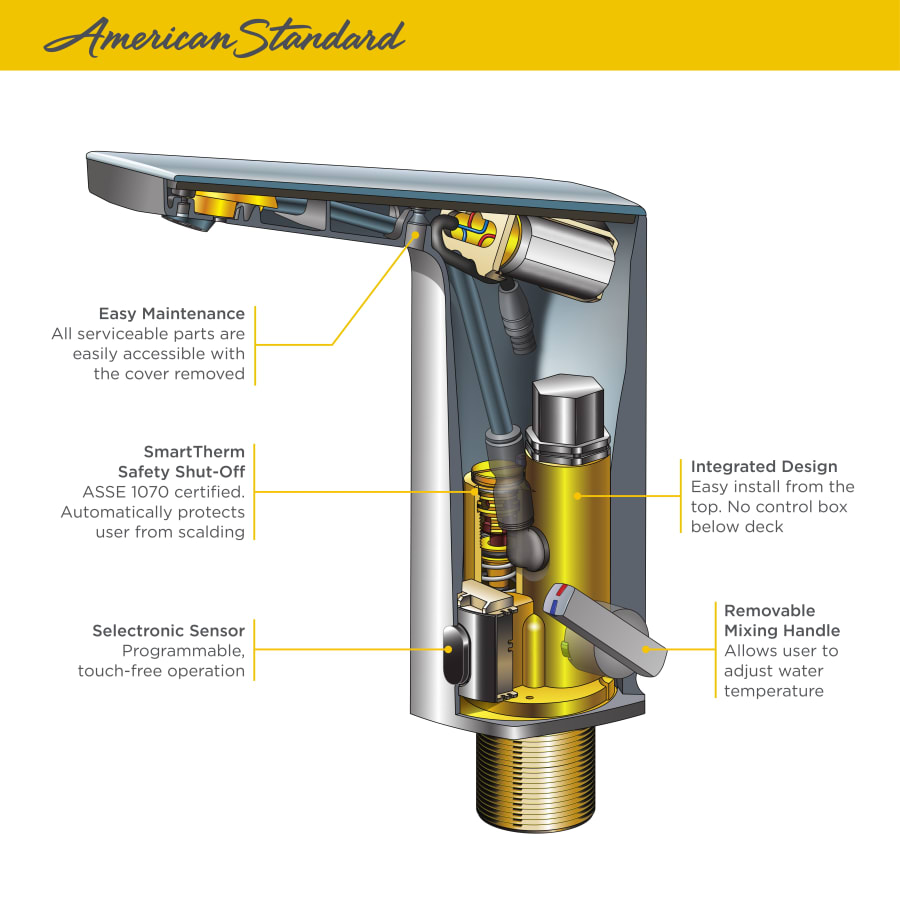

Clean, integrated design with no control box below deck
Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
Auto purge: Periodically purges stagnant water
Safety Timer: Automatically turns water off after 55 seconds
Vandal resistant 0.5 gpm pressure compensating multi laminar spray

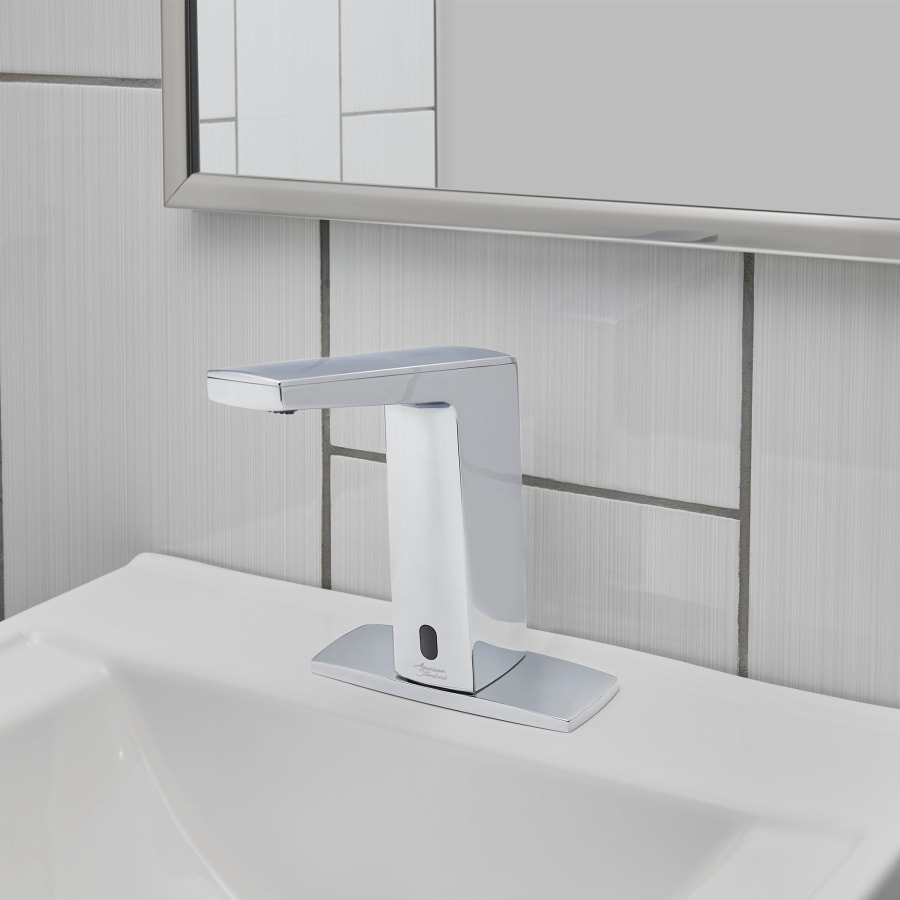

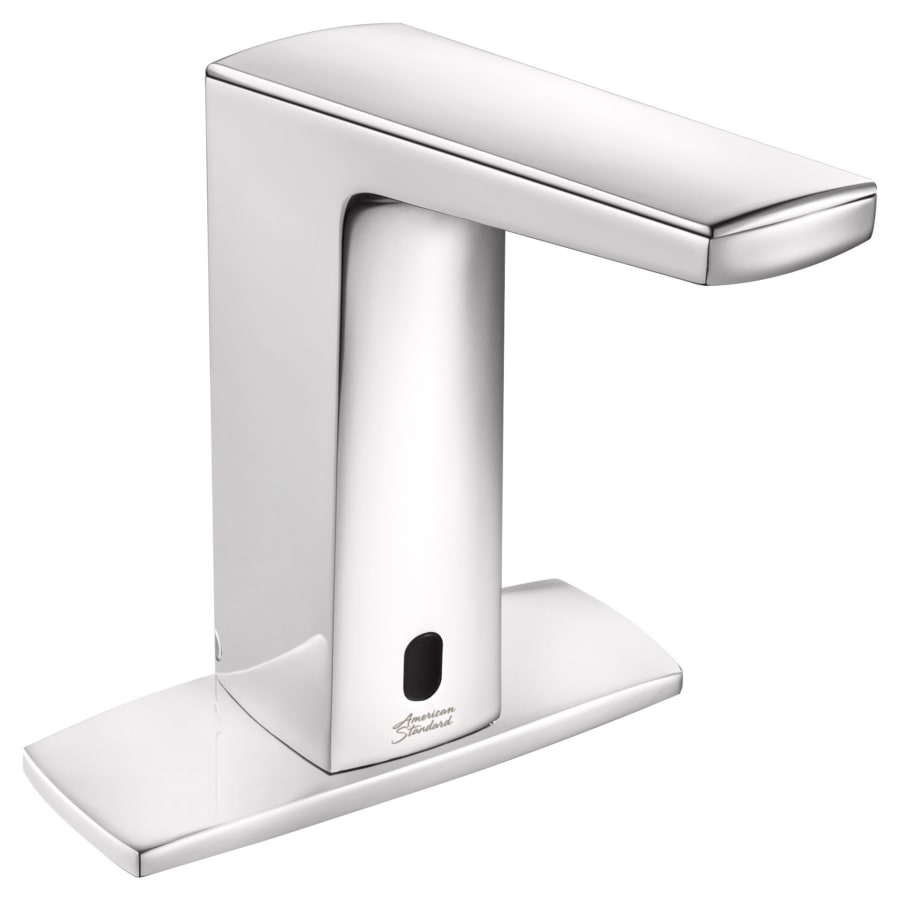

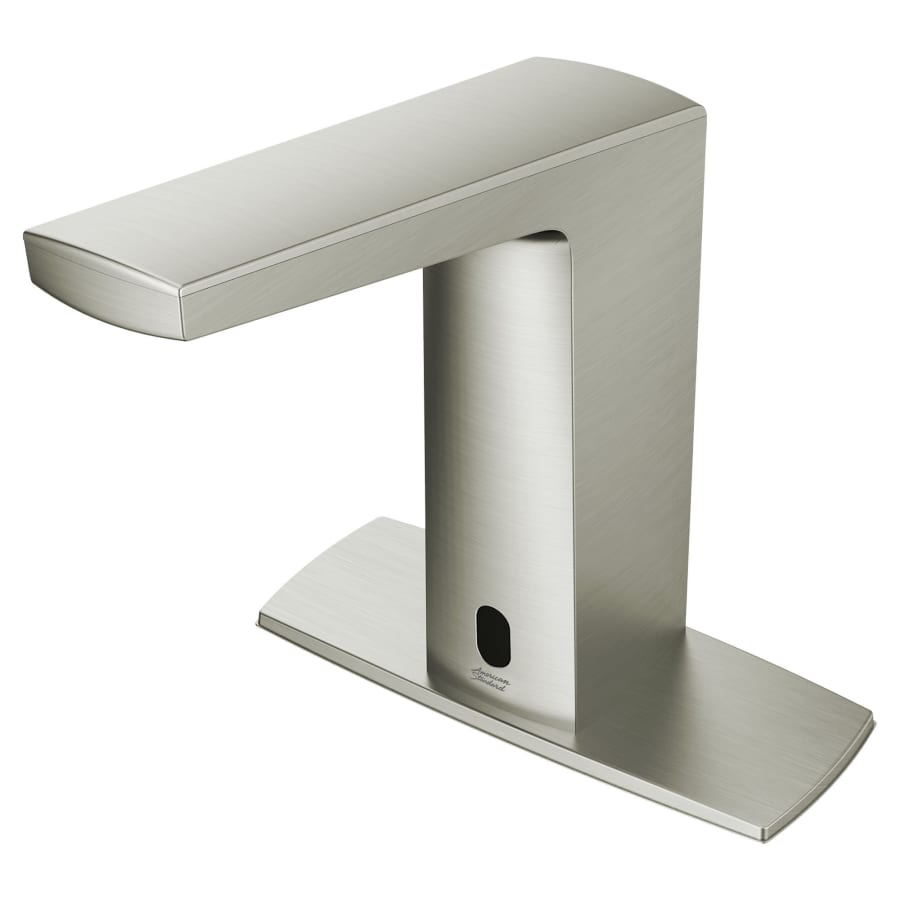

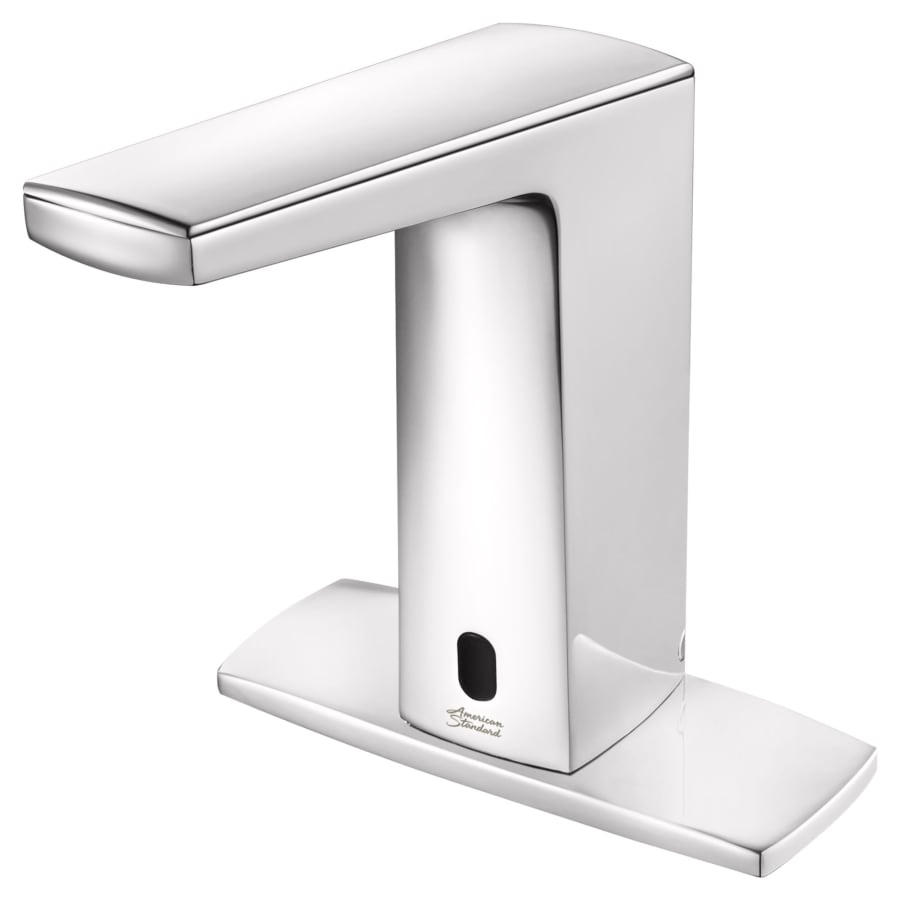

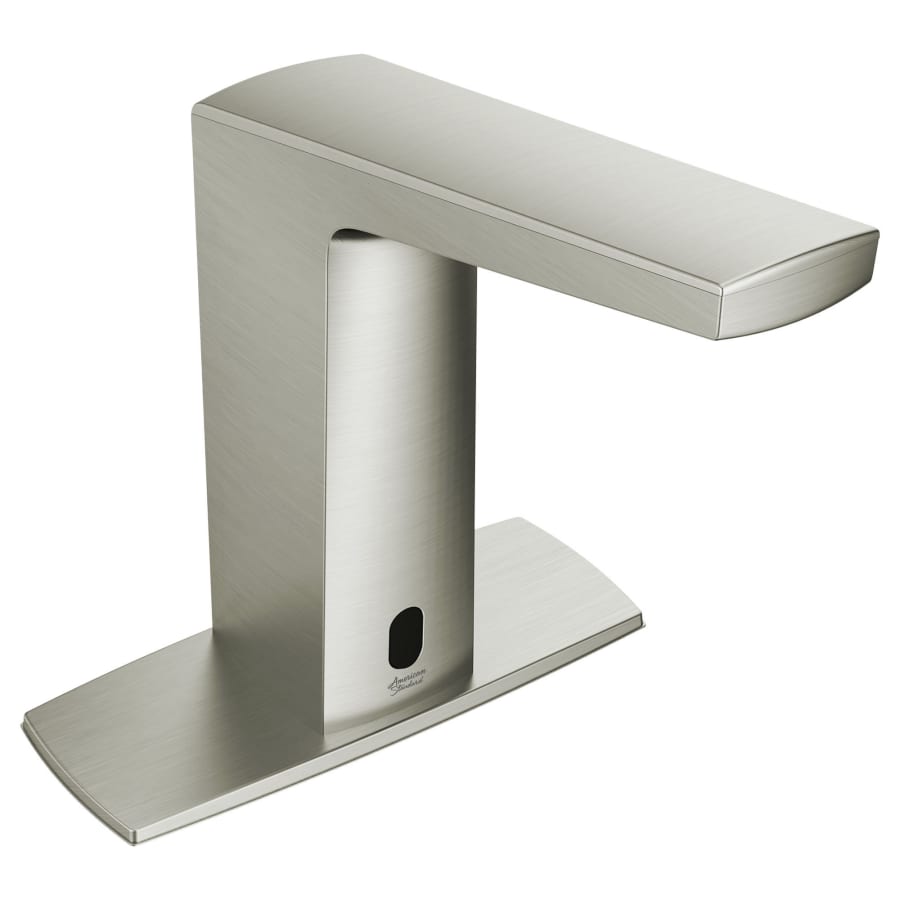

Optional deck plate for 4″ or 8″ centers available
Lead free: Faucet contains ≤ 0.25% total lead content by weighted average
American Standard 702B.105 Technologies and Benefits:
Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply
American Standard 702B.105 Specifications:
Height: 7-1/2″ (deck to top of faucet)
Spout Height: 6-5/8″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Flow Rate: 0.5 gallons-per-minute
Maximum Deck Thickness: 1-1/2″ (cannot mount on thicker decks)
Hole Size: 1-1/8″
Faucet Holes: Single Hole
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Paradigm Collection
Specifications
| Flow Rate (GPM) | 0.5 |
| Height | 7.5 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.125 in. |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.625 in. |
| Spout Reach | 5.5 in. |
| Water Connection | 3/8" |
| Valve Type | Solenoid |
| Material | Brass |
| Thermostat | Modern |
| Insulation Type | Deck Mounted |
| Faucet Holes | 1 |
| Faucet Type | Bathroom Sink Faucet |
| Mounting Type | Single Hole |
| Spout Type | Fixed |
| Waterfall Faucet | No |
| Electronic | Yes |
| Touchless Faucet | Yes |
| Water Connection Type | Compression |
| CA Drought Compliant | Yes |
| Approved for Commercial Use | Yes |
| Collection | Paradigm |
| ADA | Yes |
| Certifications | ANSI, ASME, CSA |
| ANSI Certification | A117.1 |
| Country Of Origin | Mexico |
| Commercial Warranty | 5 Year Limited |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Low Lead Compliant | Yes |
| WaterSense Certified | Yes |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | No |
| Valve Included | Yes |
| Power Source | Battery |
| Battery Type | Lithium |

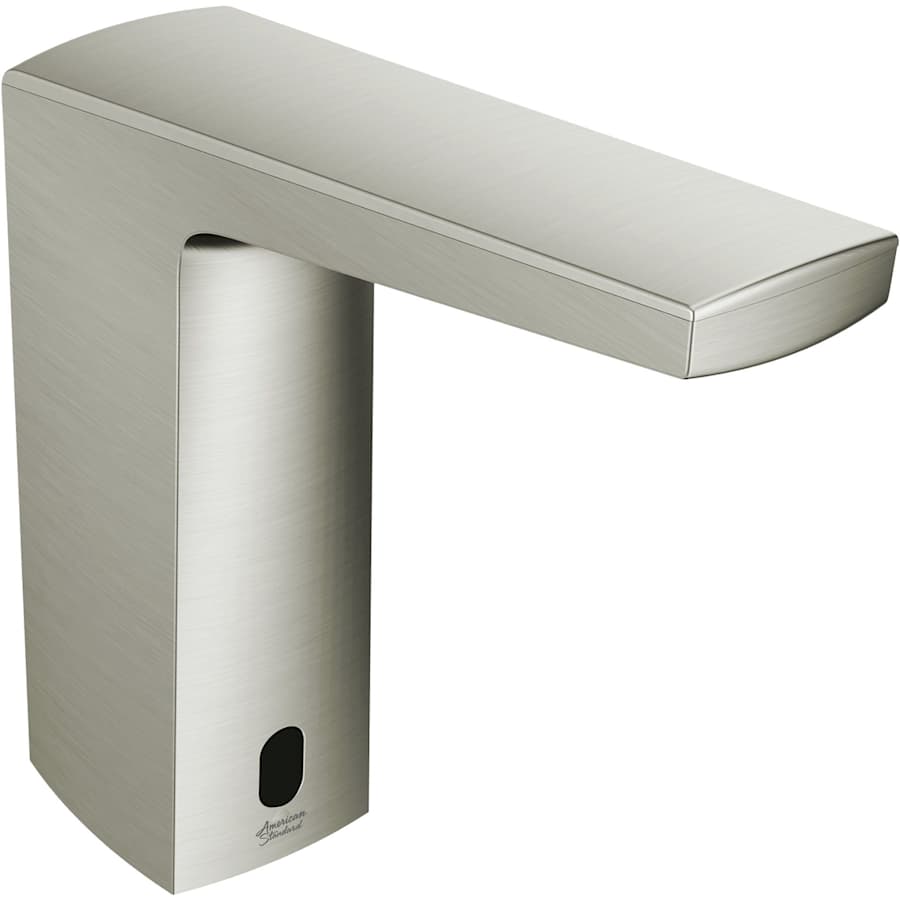

| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
