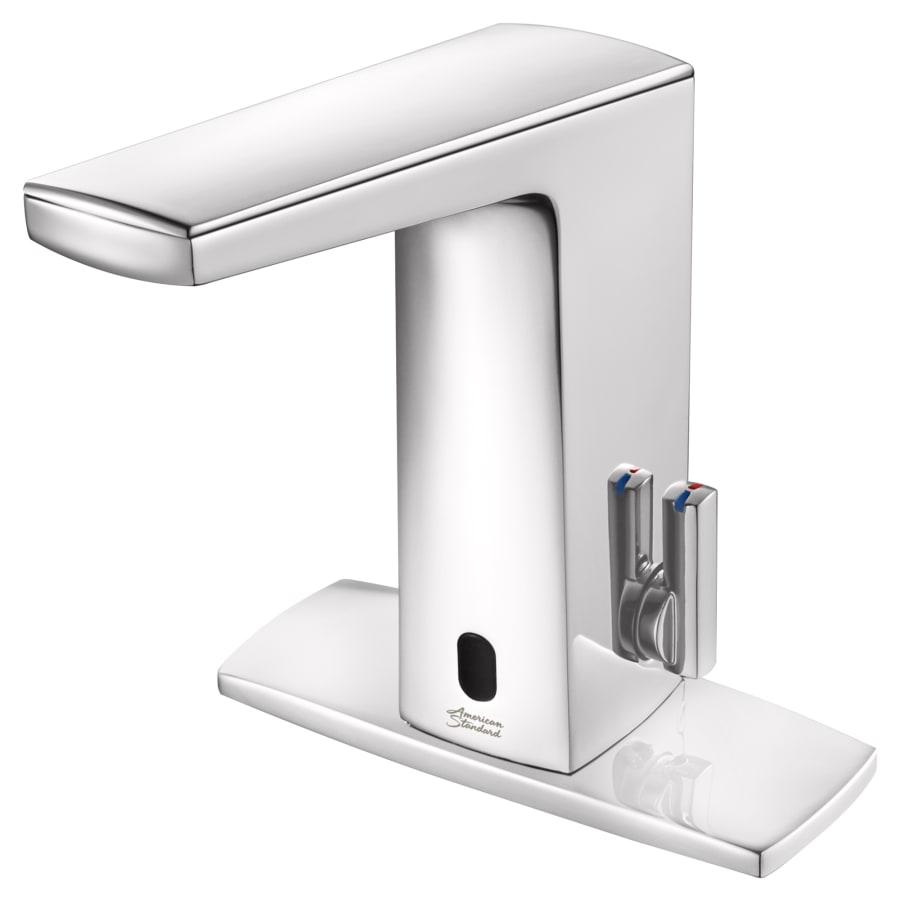

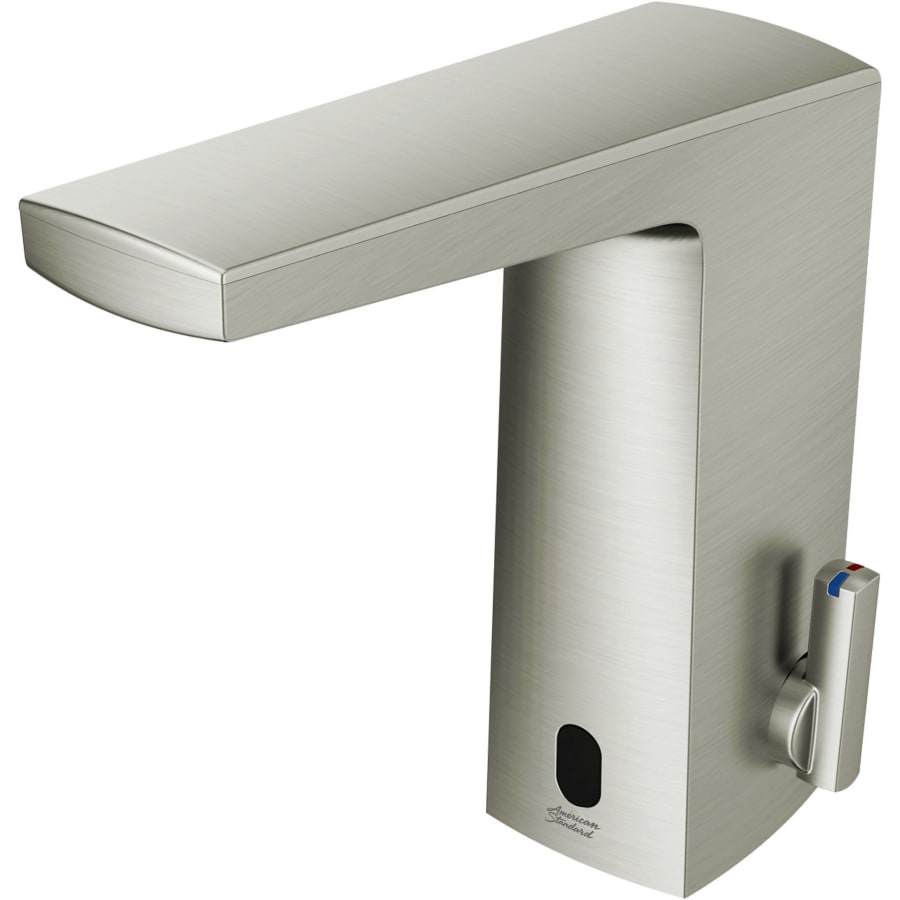

American Standard 702B.203 Features:
Power kit must be purchased separately
Touchless operation limits the spread of germs
Above deck mixing with removable handle
Dual inlets for hot and cold water

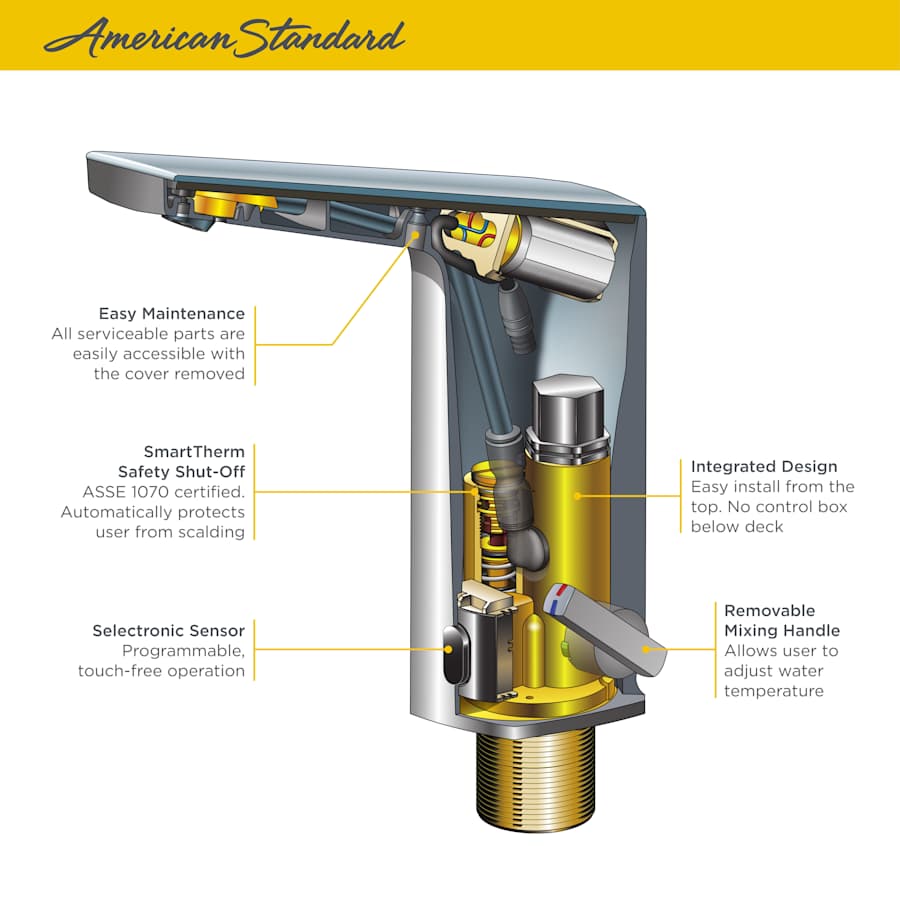

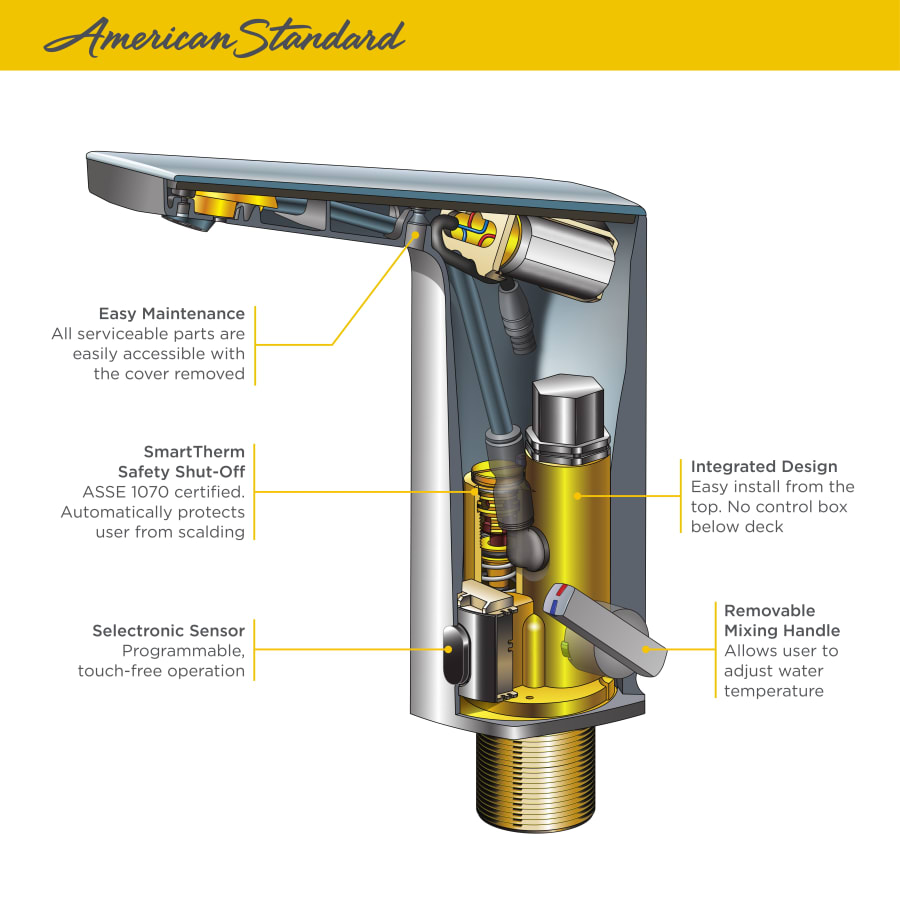

Clean, integrated design with no control box below deck
Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
Auto Purge: Periodically purges stagnant water
Safety timer automatically turns water off after 55 seconds
Vandal resistant 0.35 gpm pressure compensating multi laminar spray

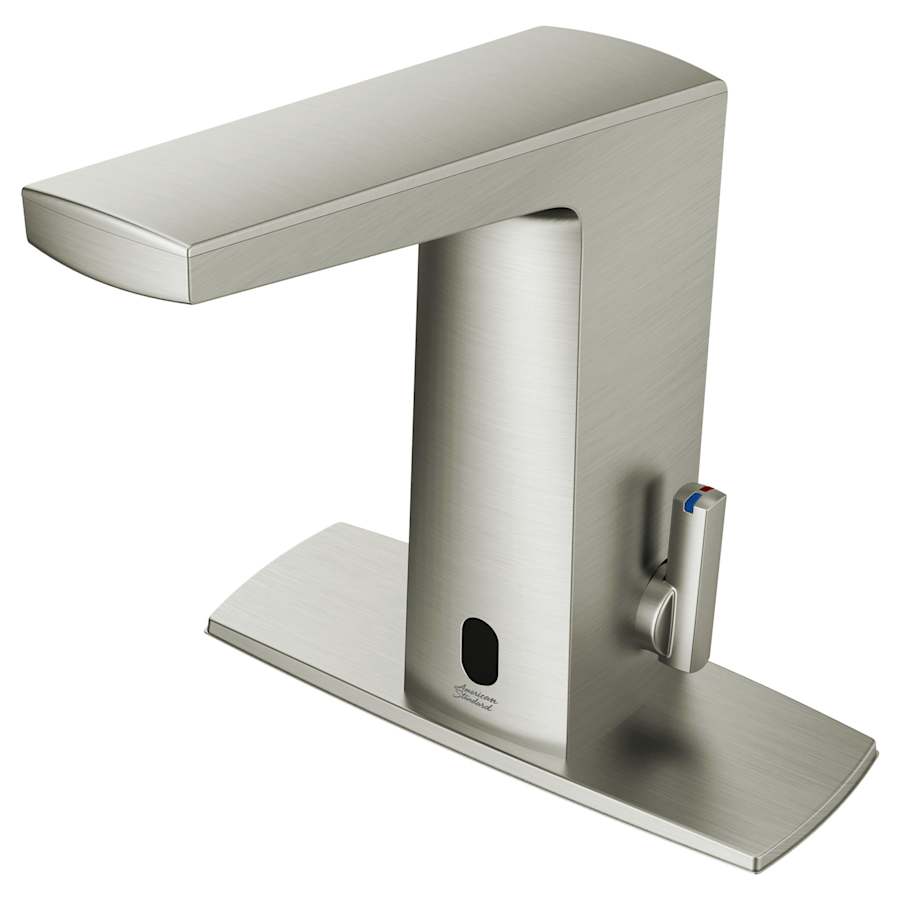

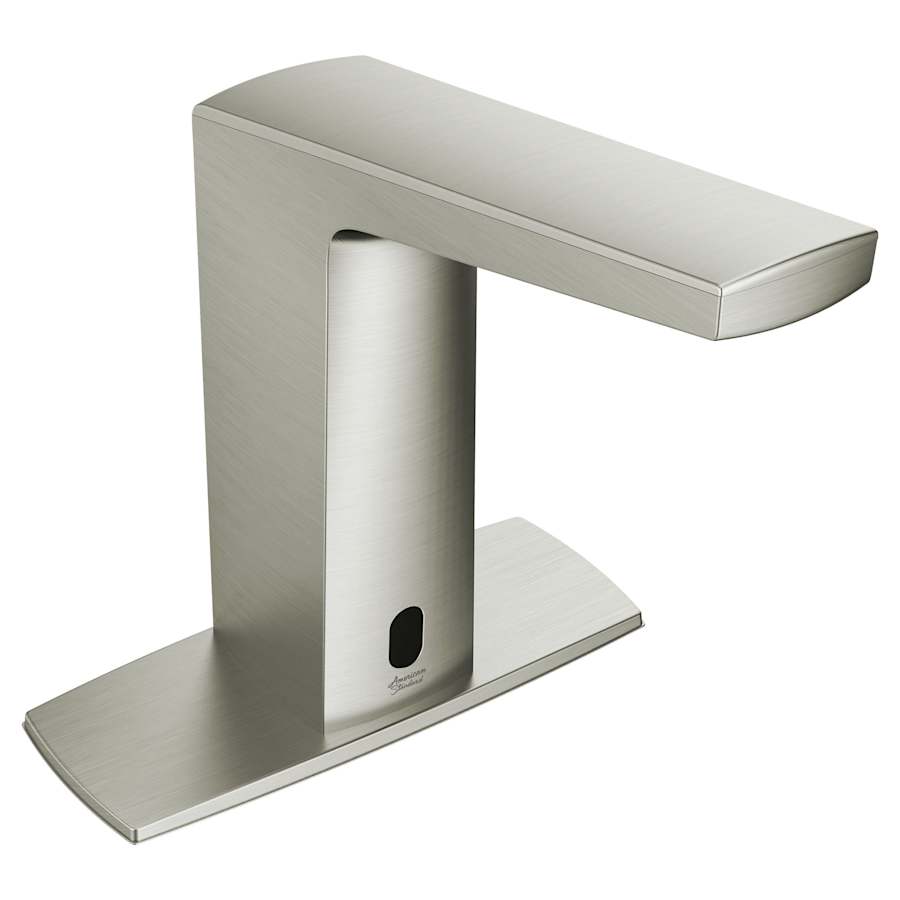

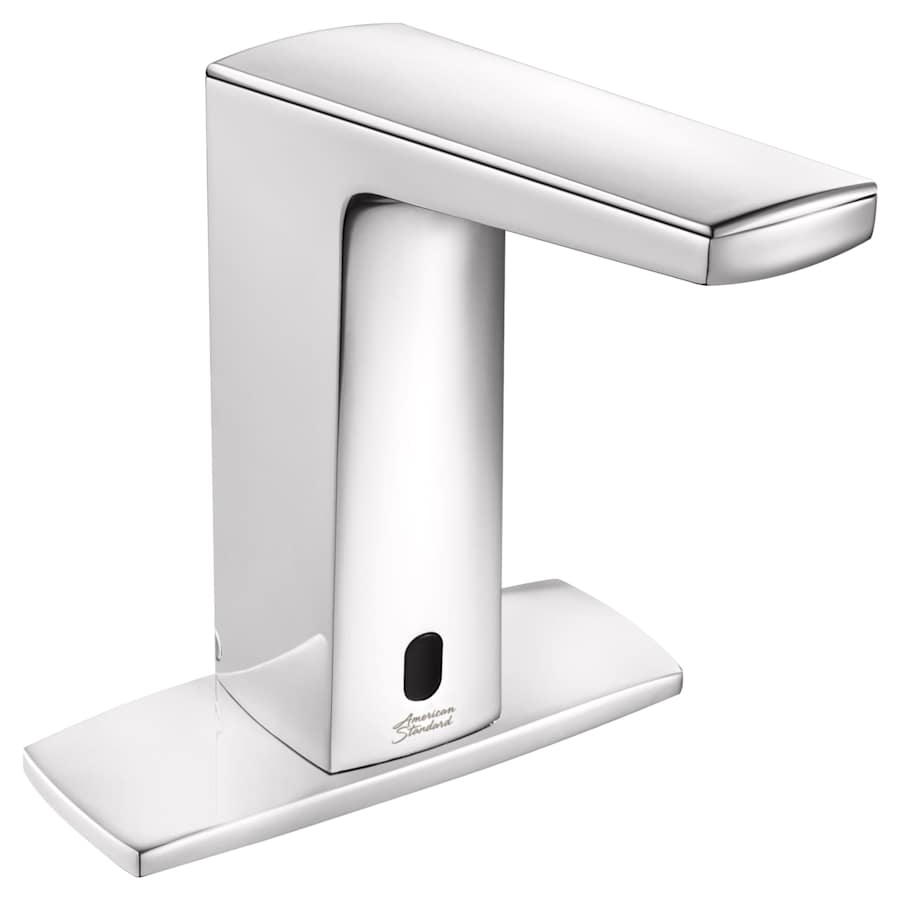

Optional deck plate for 4″ or 8″ centers available
American Standard 702B.203 Technologies and Benefits:
Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply
American Standard 702B.203 Specifications:
Height: 7-1/2″ (deck to top of faucet)
Spout Height: 6-5/8″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Flow Rate: 0.35 gallons-per-minute
Maximum Deck Thickness: 1-1/2″ (cannot mount on thicker decks)
Hole Size: 1-1/8″
Faucet Holes: Single Hole
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Paradigm Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Handle Style | Lever |
| Mounting Type | Single Hole |
| Electronic | Yes |
| Faucet Holes | 1 |
| Faucet Type | Bathroom Sink Faucet |
| Insulation Type | Deck Mounted |
| Number Of Handles | 1 |
| Spout Type | Fixed |
| Valve Type | Solenoid |
| Water Connection Type | Compression |
| Waterfall Faucet | No |
| Touchless Faucet | Yes |
| Approved for Commercial Use | Yes |
| Collection | Paradigm |
| Country Of Origin | Mexico |
| Certifications | ANSI, ASME, CSA |
| ADA | Yes |
| ANSI Certification | A117.1 |
| CA Drought Compliant | Yes |
| Commercial Warranty | 5 Year Limited |
| Low Lead Compliant | Yes |
| WaterSense Certified | Yes |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Power Source | Battery |
| Battery Type | Lithium |
| Height | 7.5 in. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 0.35 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.625 in. |
| Spout Reach | 5.5 in. |
| Water Connection | 3/8" |
| Faucet Hole Size | 1.125 in. |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Color | Brushed Nickel, Polished Chrome |
