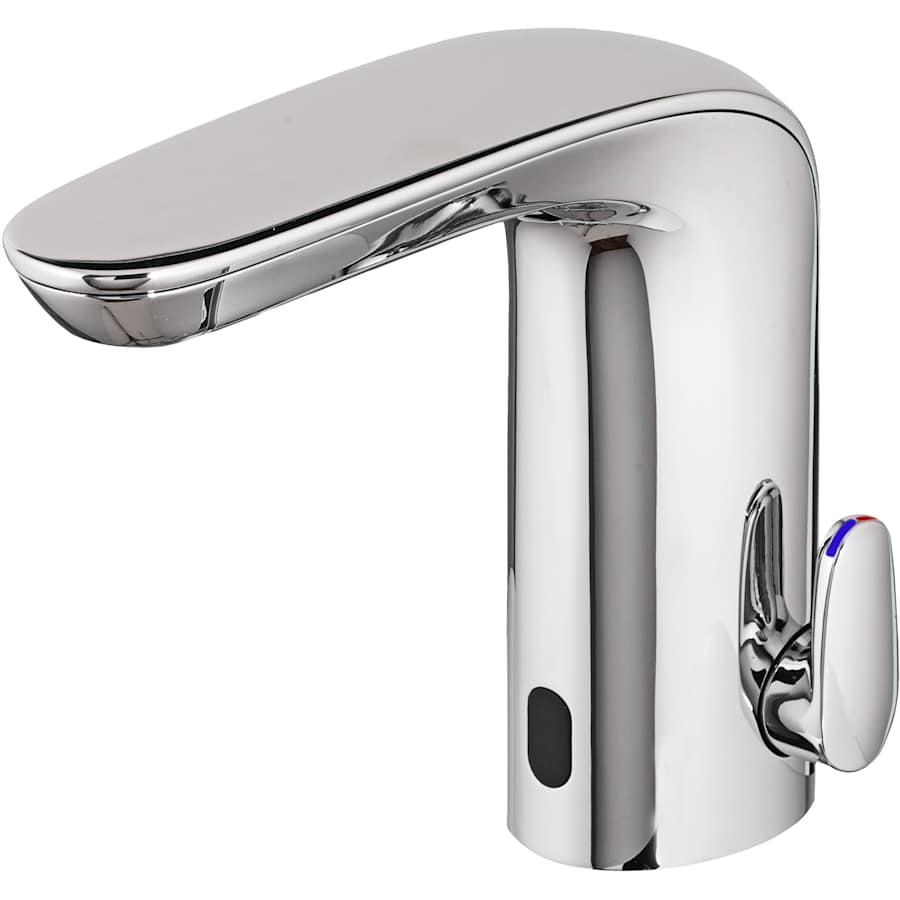

American Standard 775B.103 Features:
Power kit must be purchased separately
Touchless operation limits the spread of germs
Single inlet for cold or tempered water
Clean, integrated design with no control box below deck

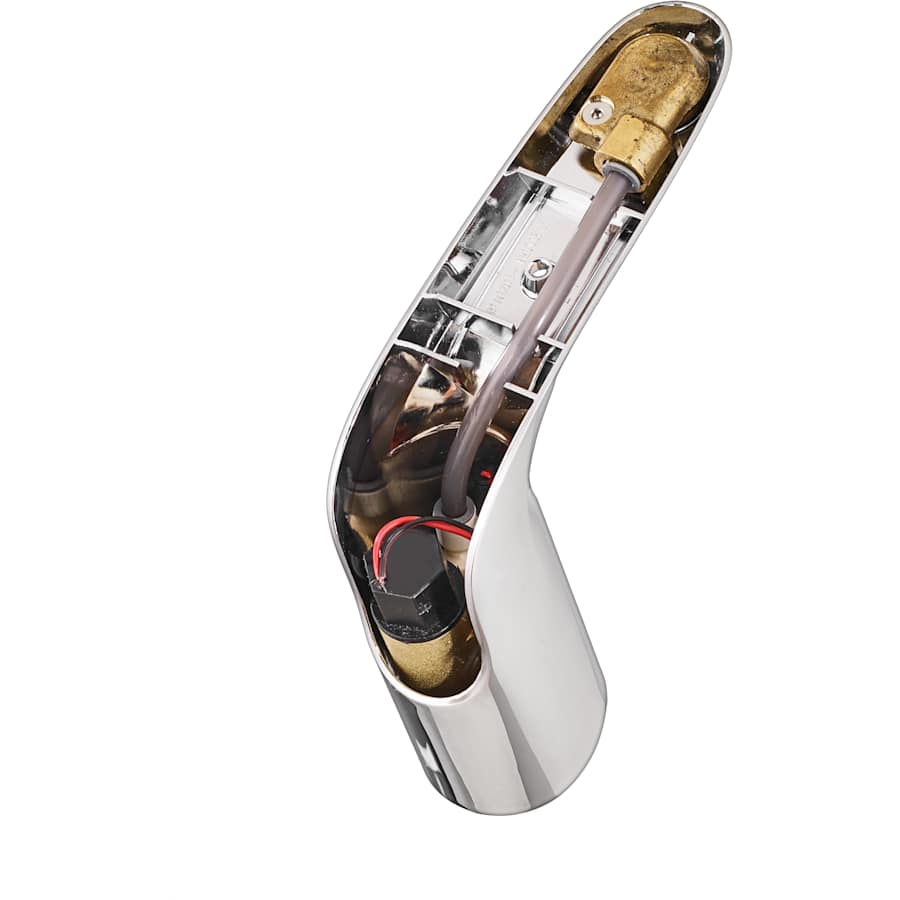

Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
Auto purge: Periodically purges stagnant water
Safety Timer: Automatically turns water off after 55 seconds
Vandal resistant 0.35 gpm pressure compensating multi laminar spray

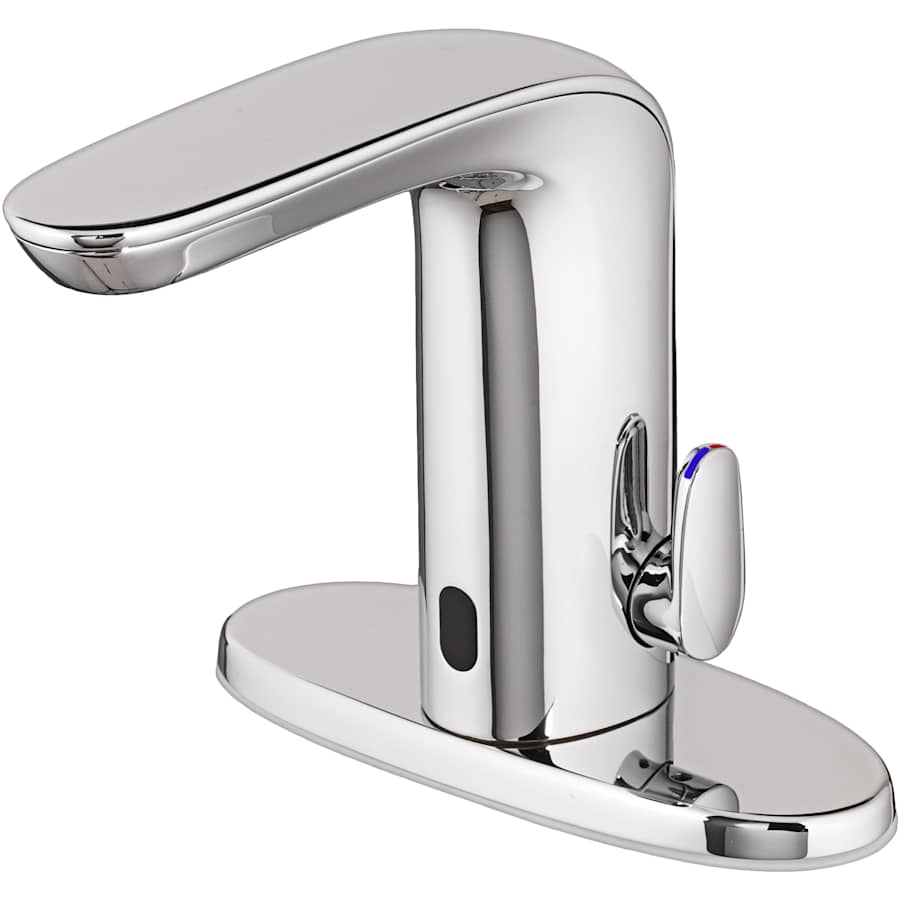

Optional deck plate for 4″ or 8″ centers available
American Standard 775B.103 Technologies and Benefits:
Red Dot Award: International symbol for design innovation. Awarded to products that have separated themselves in quality, durability, functionality, and emotional connection to the customer may receive this award as a mark of their achievement.
American Standard 775B.103 Specifications:
Height: 5-3/4″ (deck to top of faucet)
Spout Height: 5-3/4″ (deck to spout outlet)
Spout Reach: 4-15/16″ (center of faucet body to center of spout outlet horizontally)
Flow Rate: 0.35 gallons-per-minute
Faucet Holes: Single Hole
Max Deck Thickness: 1-1/2″ (from deck bottom to top of deck)
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard NextGen Selectronic Collection
Specifications
| Height | 5.75 in. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | .35 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 5, 5.75 in. |
| Spout Reach | 4.938, 4.9375 in. |
| Water Connection | 3/8" |
| Spout Swivel | 0 Degrees |
| Faucet Hole Size | 1.125 in. |
| Insulation Type | Deck Mounted |
| Material | Metal |
| Thermostat | Modern, Contemporary |
| Electronic | Yes |
| Faucet Holes | 1 |
| Mounting Type | Single Hole |
| Spout Type | Fixed |

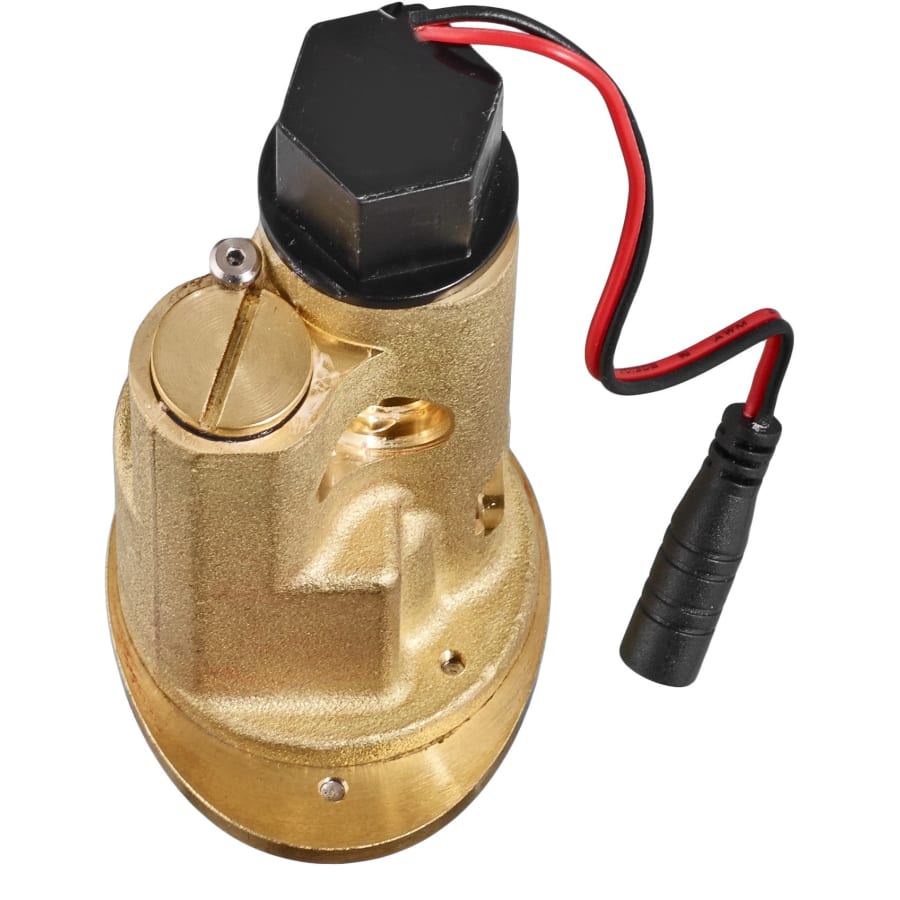

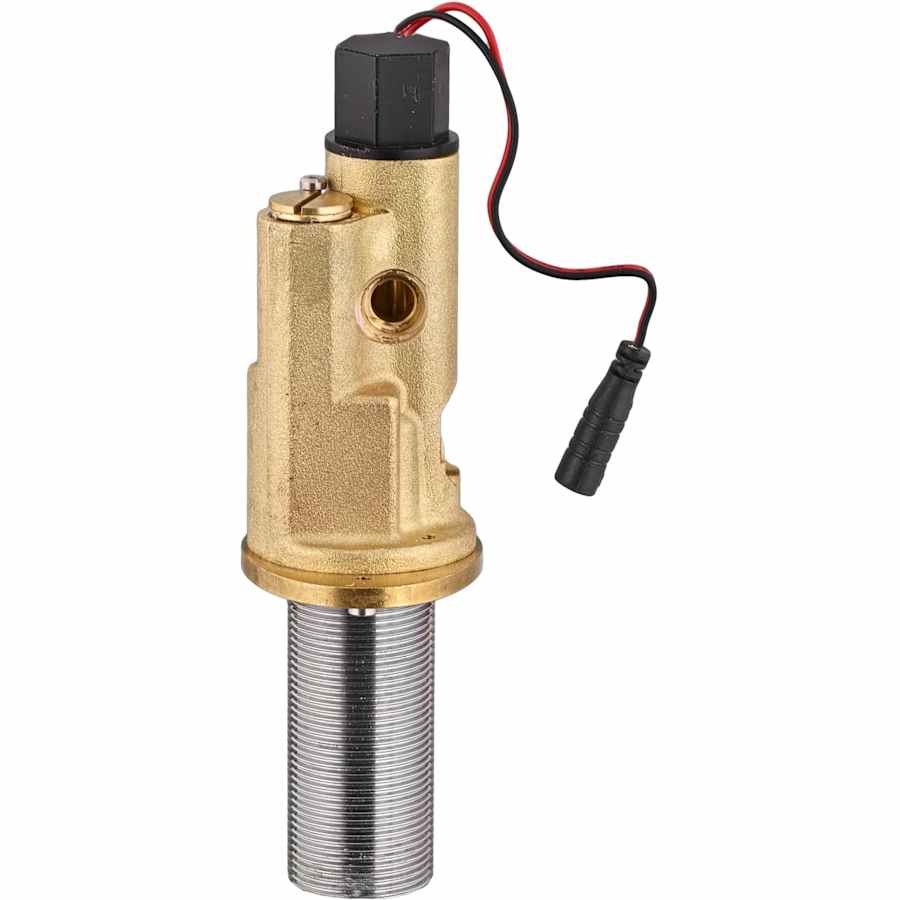

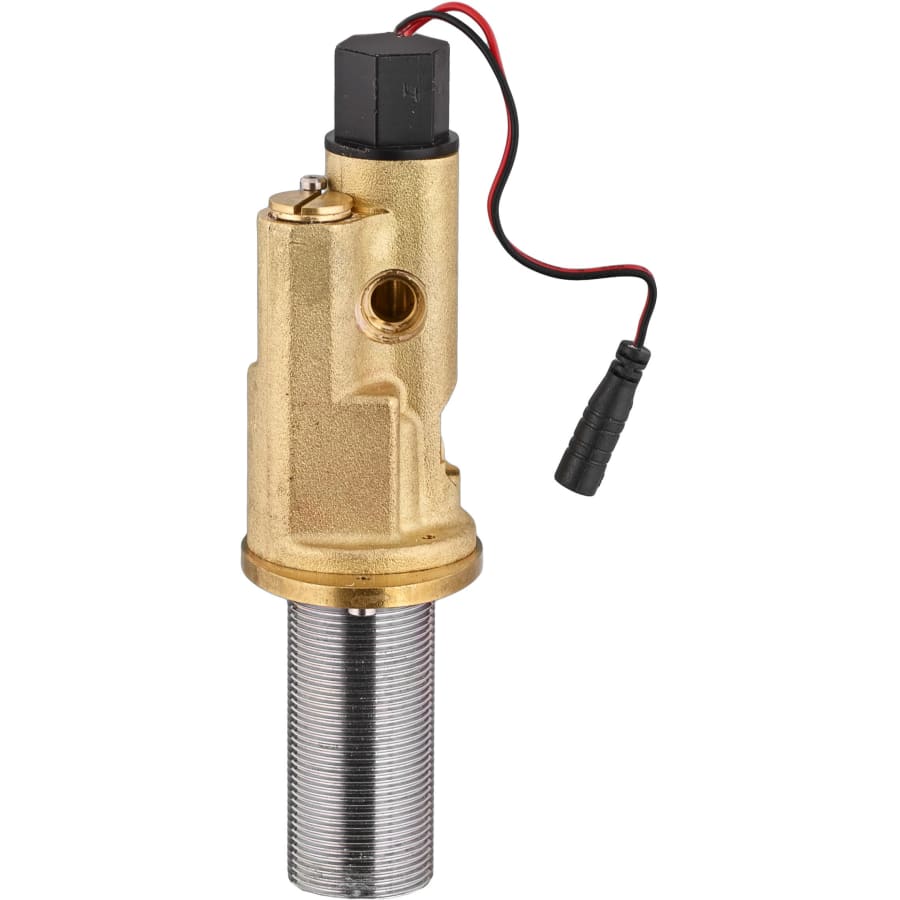

| Valve Type | Solenoid |
| Faucet Type | Bathroom Sink Faucet |
| Touchless Faucet | Yes |
| Approved for Commercial Use | Yes |
| Collection | NextGen Selectronic |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| Low Lead Compliant | Yes |
| ADA | Yes |
| CA Drought Compliant | Yes |
| Eco Friendly | Yes |
| WaterSense Certified | No |
| Certifications | ANSI, ASME, CSA, NSF |
| ASSE Code | A112.18.1 |
| CSA Code | B125 |
| ANSI Certification | A117.1 |
| Energy Star | No |
| Commercial Faucet | Yes |
| Power Source | Hardwired, Battery |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | No |
| Valve Included | Yes |
| Soap Dispenser Included | No |
| Pop-Up Included | No |
| Color | Brushed Nickel, Polished Chrome |
| Color Tone | Nickel Tones, Silver Tones |
