American Standard 775B.105 Features:
Power kit must be purchased separately
Touchless operation limits the spread of germs
Single inlet for cold or tempered water
Clean, integrated design with no control box below deck

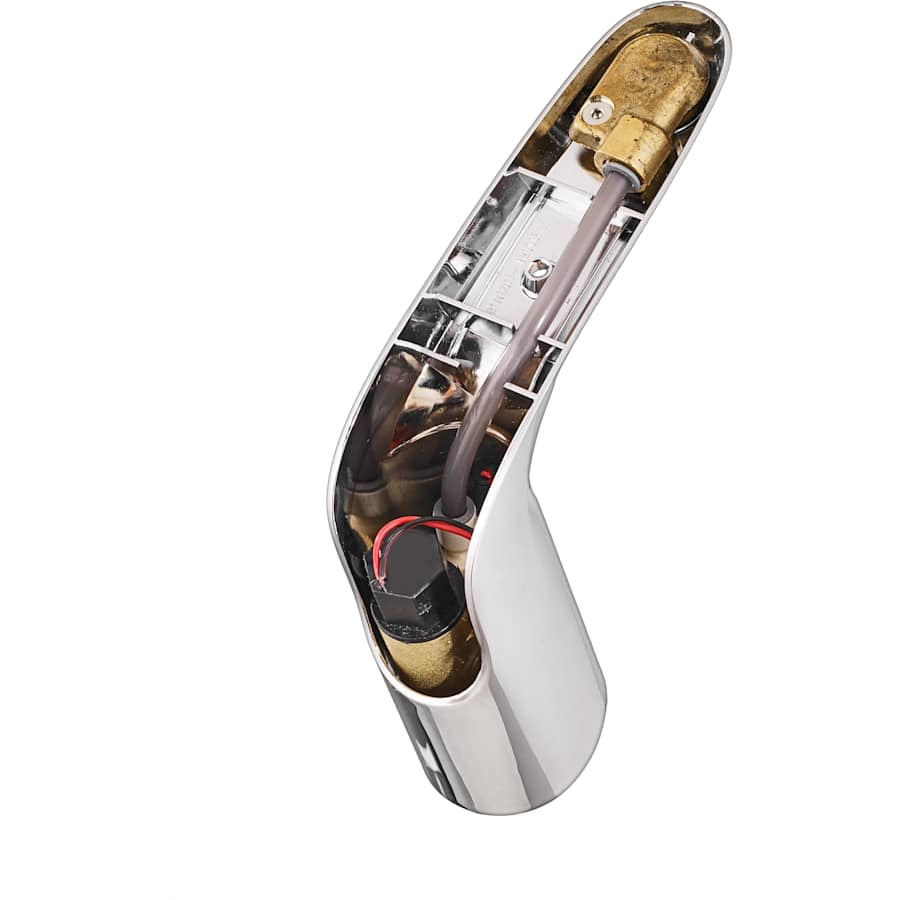

Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
Auto purge: Periodically purges stagnant water
Safety Timer: Automatically turns water off after 55 seconds
Vandal resistant 0.5 gpm pressure compensating multi laminar spray

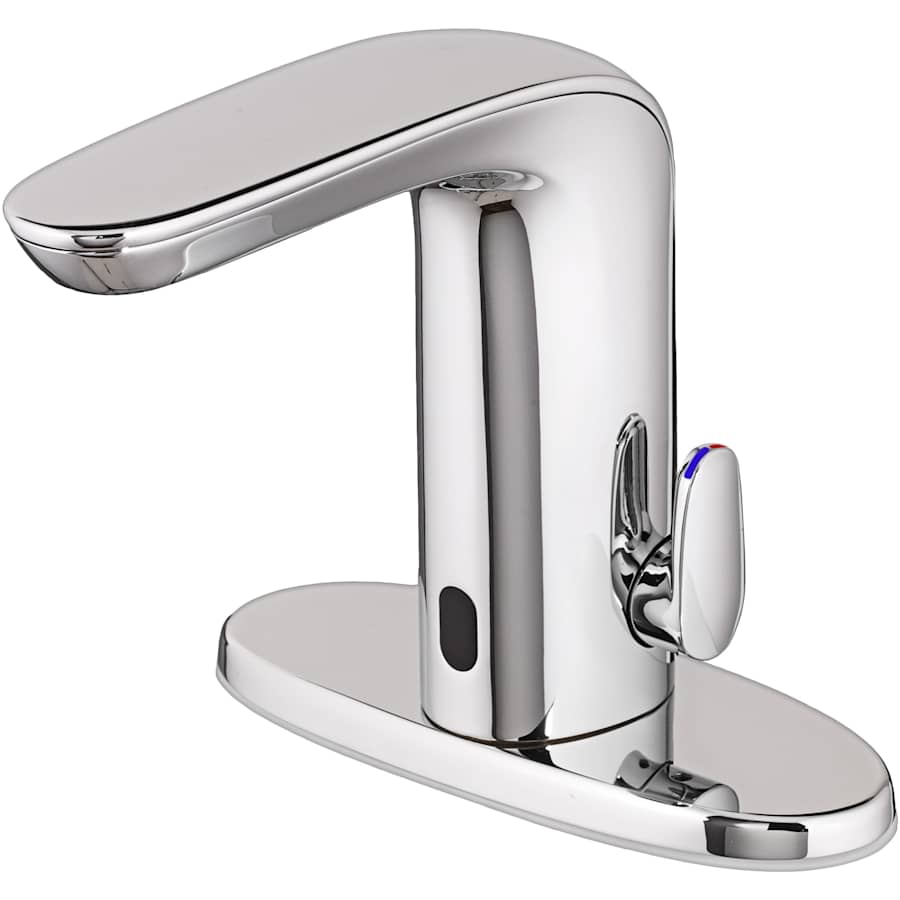

Optional deck plate for 4″ or 8″ centers available
American Standard 775B.105 Technologies and Benefits:
Red Dot Award: International symbol for design innovation. Awarded to products that have separated themselves in quality, durability, functionality, and emotional connection to the customer may receive this award as a mark of their achievement.
American Standard 775B.105 Specifications:
Height: 5-3/4″ (deck to top of faucet)
Spout Height: 5-3/4″ (deck to spout outlet)
Spout Reach: 4-15/16″ (center of faucet body to center of spout outlet horizontally)
Flow Rate: 0.5 gallons-per-minute
Faucet Holes: Single Hole
Max Deck Thickness: 1-1/2″ (from deck bottom to top of deck)
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard NextGen Selectronic Collection
Specifications
| Height | 5.75 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.125 in. |
| Flow Rate (GPM) | .5 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 5.75, 5 in. |
| Spout Reach | 4.938, 4.9375 in. |
| Water Connection | 3/8" |
| Spout Swivel | 0 Degrees |
| Insulation Type | Deck Mounted |
| Material | Metal |
| Electronic | Yes |
| Faucet Holes | 1 |
| Faucet Type | Bathroom Sink Faucet |
| Mounting Type | Single Hole |
| Spout Type | Fixed |
| Thermostat | Modern, Contemporary |
| Touchless Faucet | Yes |

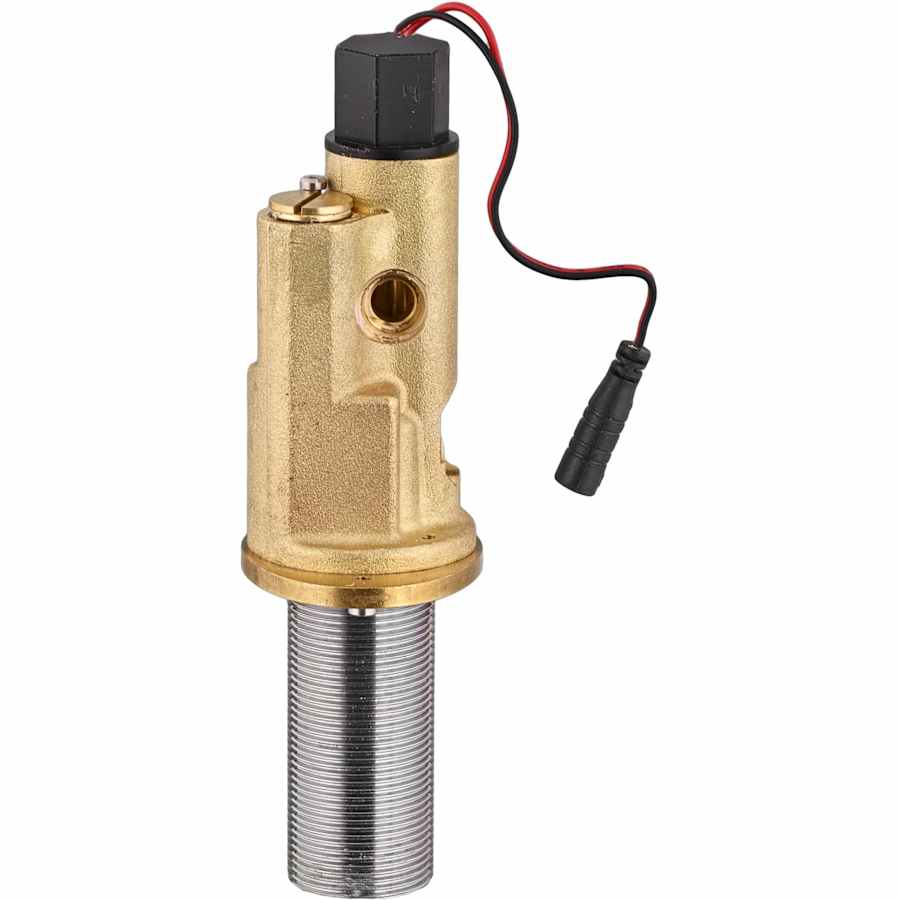

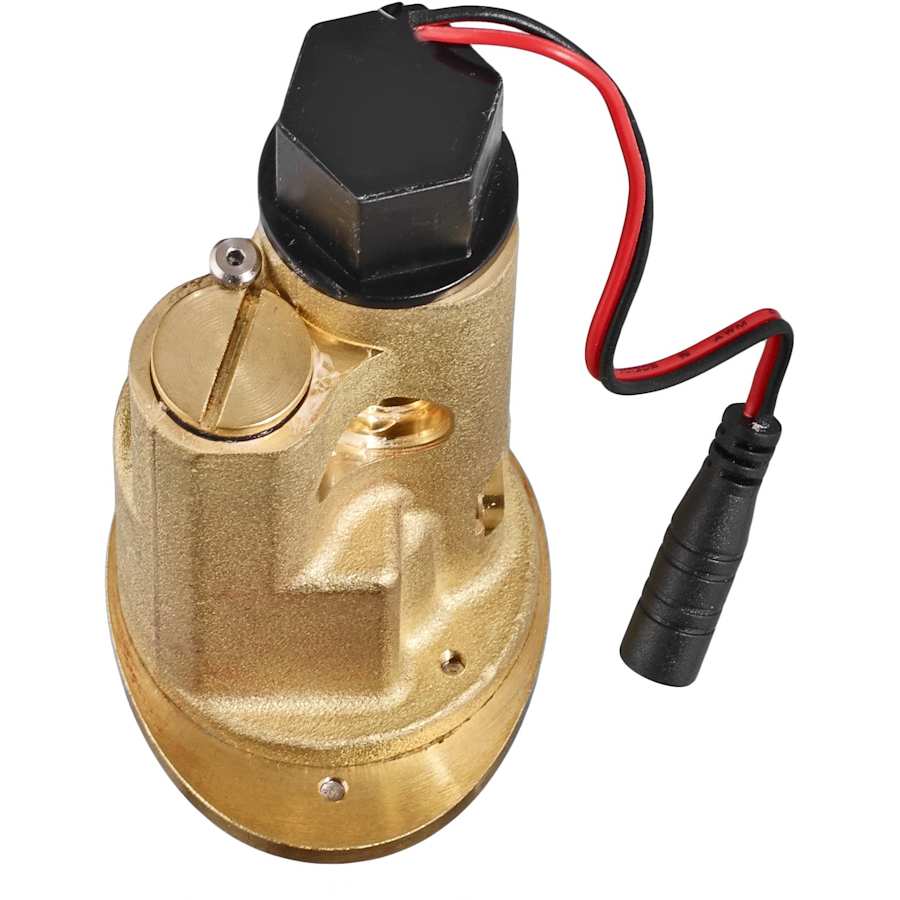

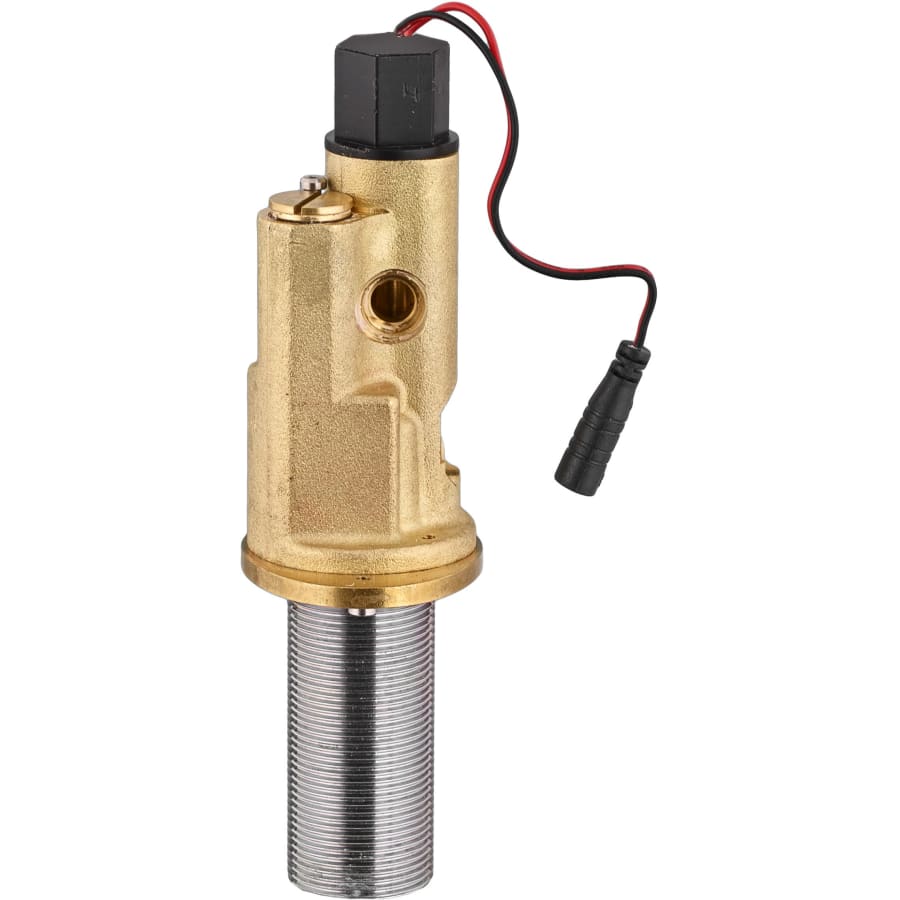

| Valve Type | Solenoid |
| Approved for Commercial Use | Yes |
| Collection | NextGen Selectronic |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| ADA | Yes |
| CA Drought Compliant | Yes |
| Certifications | ANSI, ASME, CSA, NSF |
| Low Lead Compliant | Yes |
| WaterSense Certified | No |
| Eco Friendly | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.18.1 |
| CSA Code | B125 |
| Energy Star | No |
| Commercial Faucet | Yes |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | No |
| Pop-Up Included | No |
| Valve Included | Yes |
| Soap Dispenser Included | No |
| Power Source | Hardwired, Battery |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
