All products in this package are covered under American Standard’s limited lifetime warranty

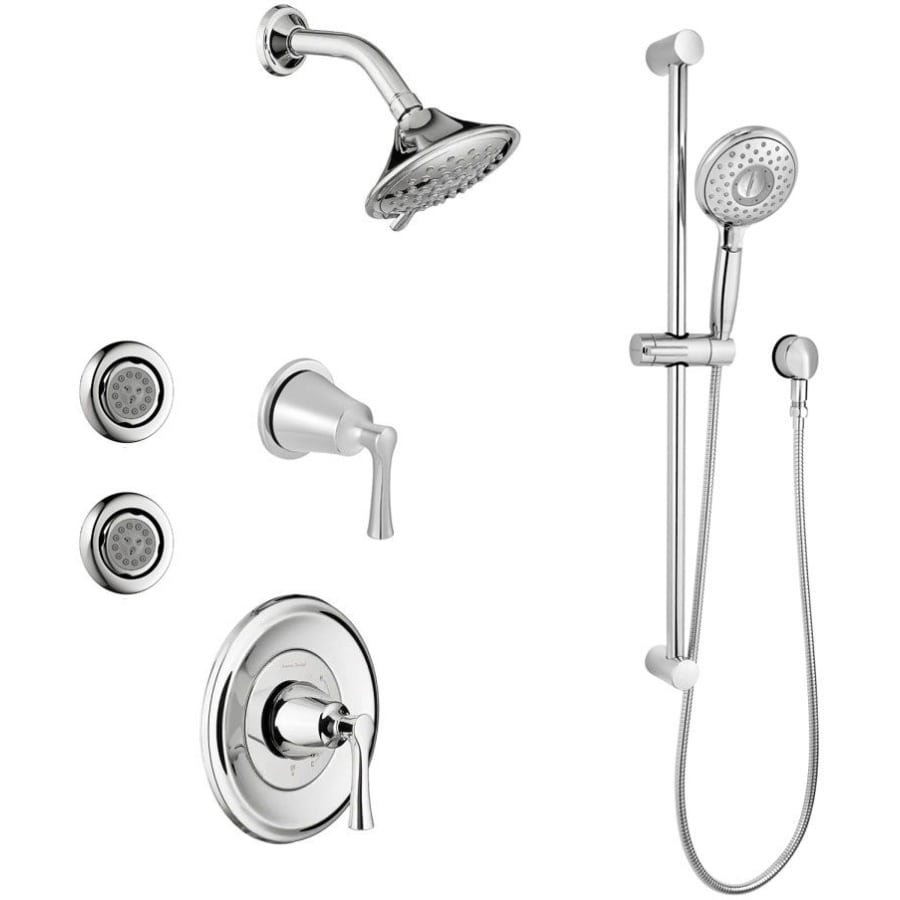

What’s Included:
TU722.507 shower only
RU101SS shower valve
1660.774 hand shower
T722.430 diverter trim
R433 shower valve
1660.130 body sprays Qty 2
American Standard TU722.507 Features:

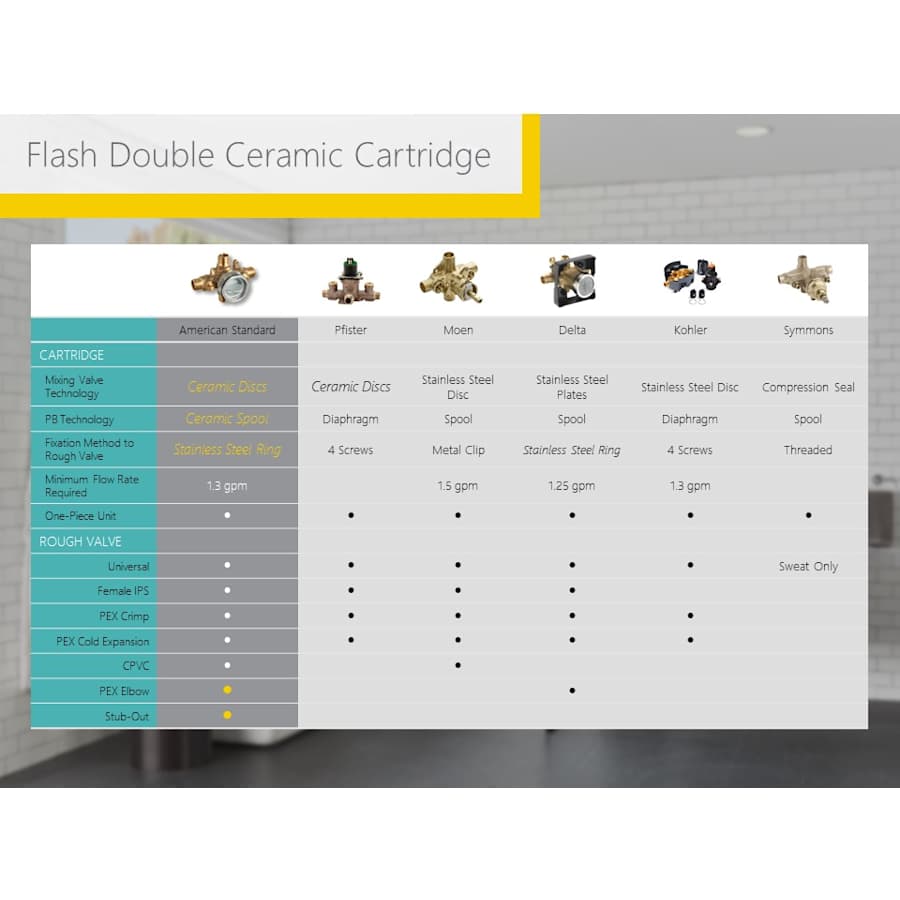

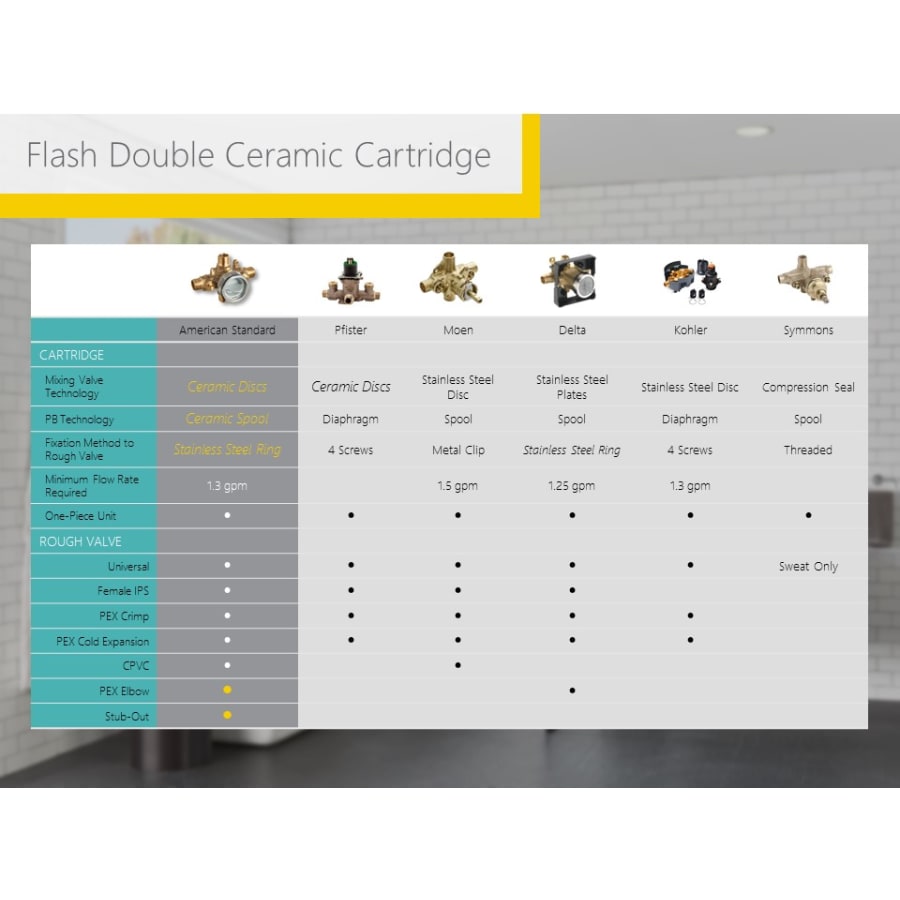

Double ceramic pressure balance cartridge: Combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
Ceramic disc mixing valve: Assures a lifetime of drip-free performance and smooth handle operation
Integrated check valves: Engineered to eliminate cross flow
Adjustable hot limit safety stop: Limits the amount of hot water allowed to mix with cold – reduces the risk of accidental scalding

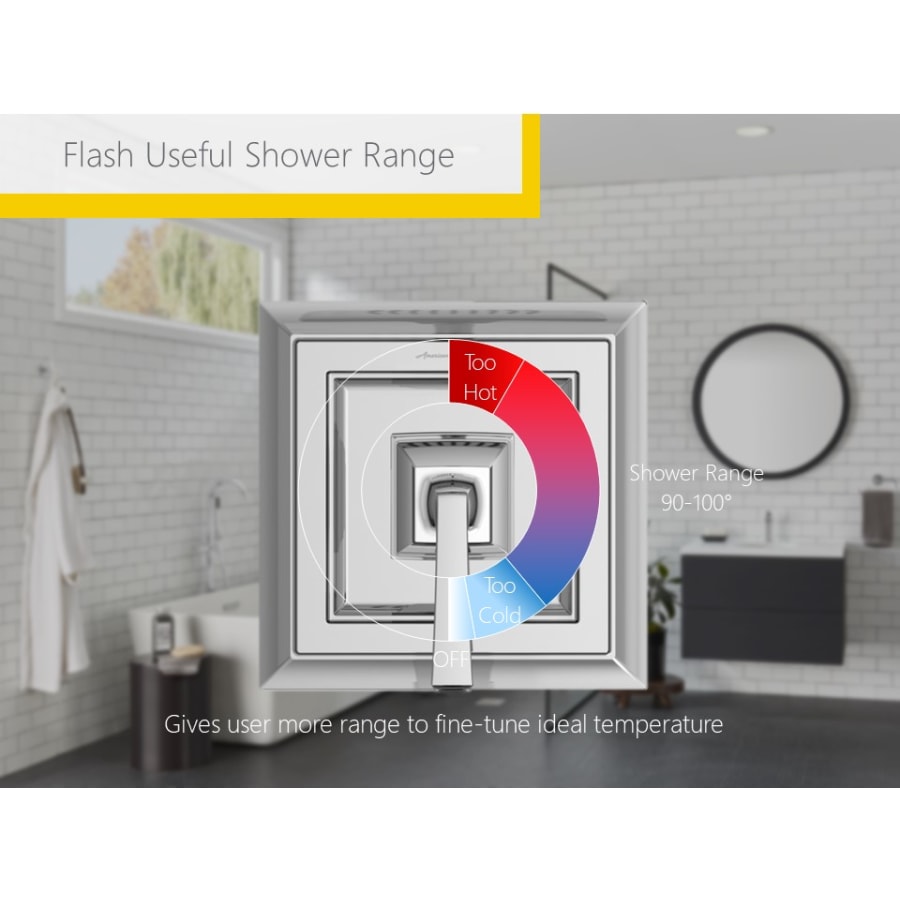

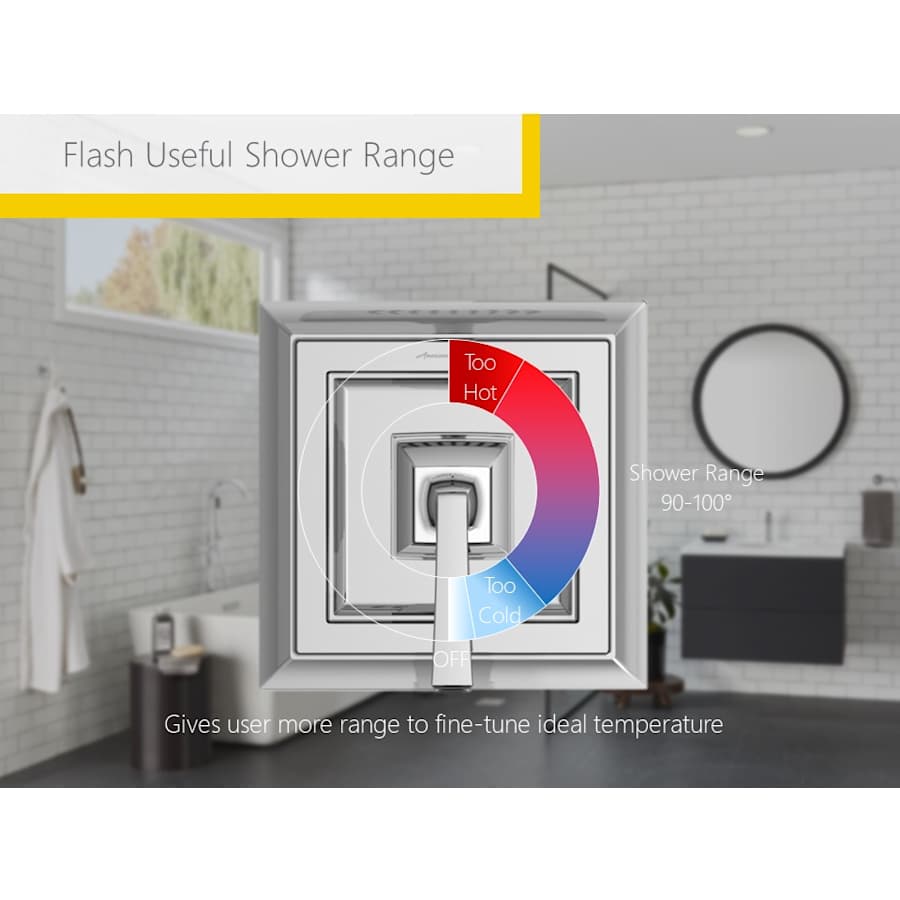

Swinging temperature dial allows for pin-point water control
Valve Trim Dimensions: 7-13/16″ H x 7-13/16″ W
Includes pre-set safety stop with override capability
Multi function shower head with 3 spray patterns
Shower Head Flow Rate (GPM): 1.75 gallons-per-minute
Shower Head Width: 5″
Shower Arm Reach: 5-1/2″

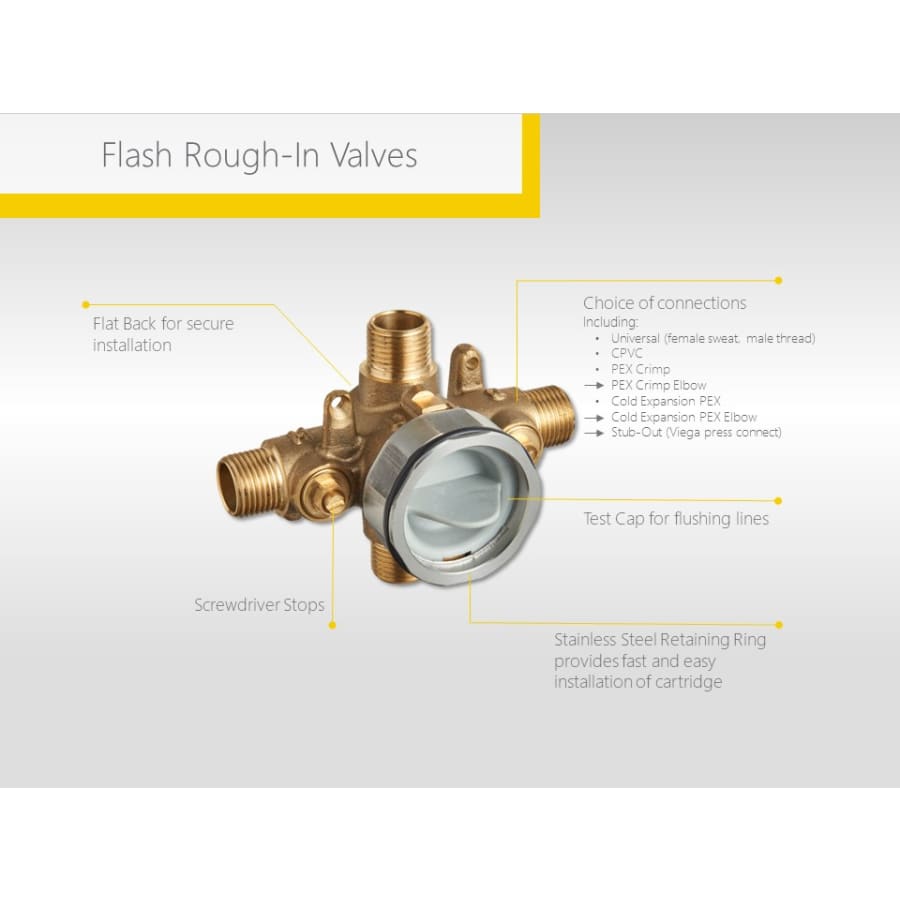

American Standard RU101SS Features:

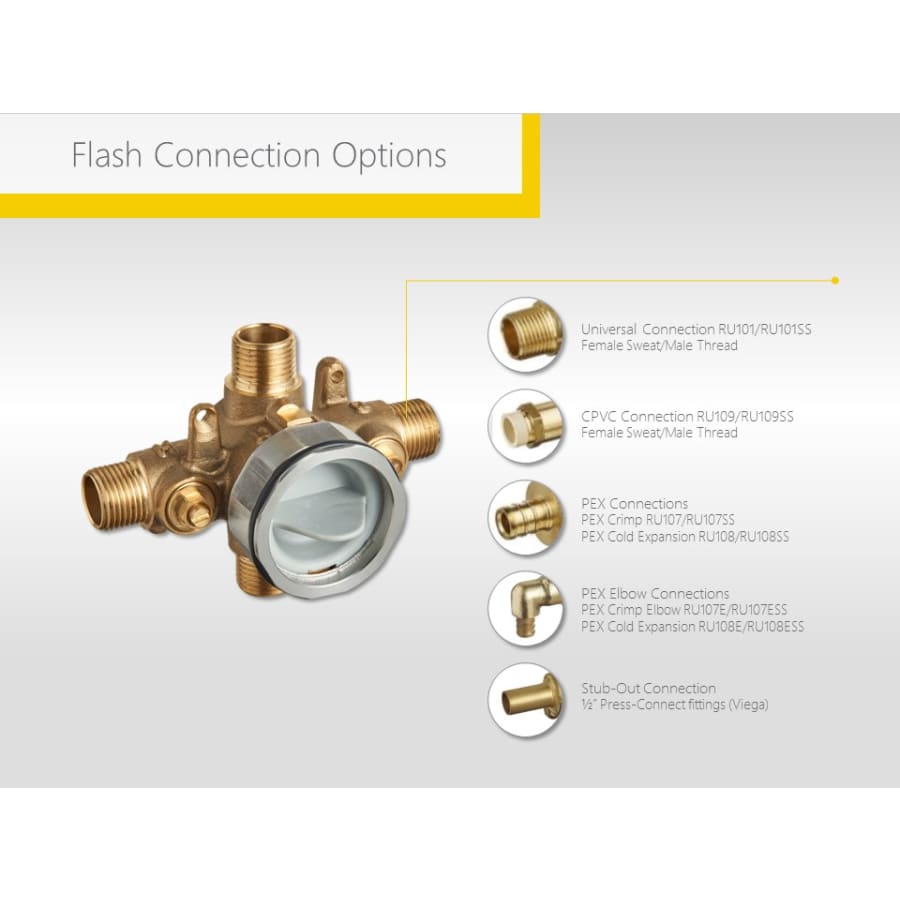

Choice of connections: Fast and easy installation without adaptors reducing leak points
Durable cast brass valve body: Ideal material for prolonged contact with water

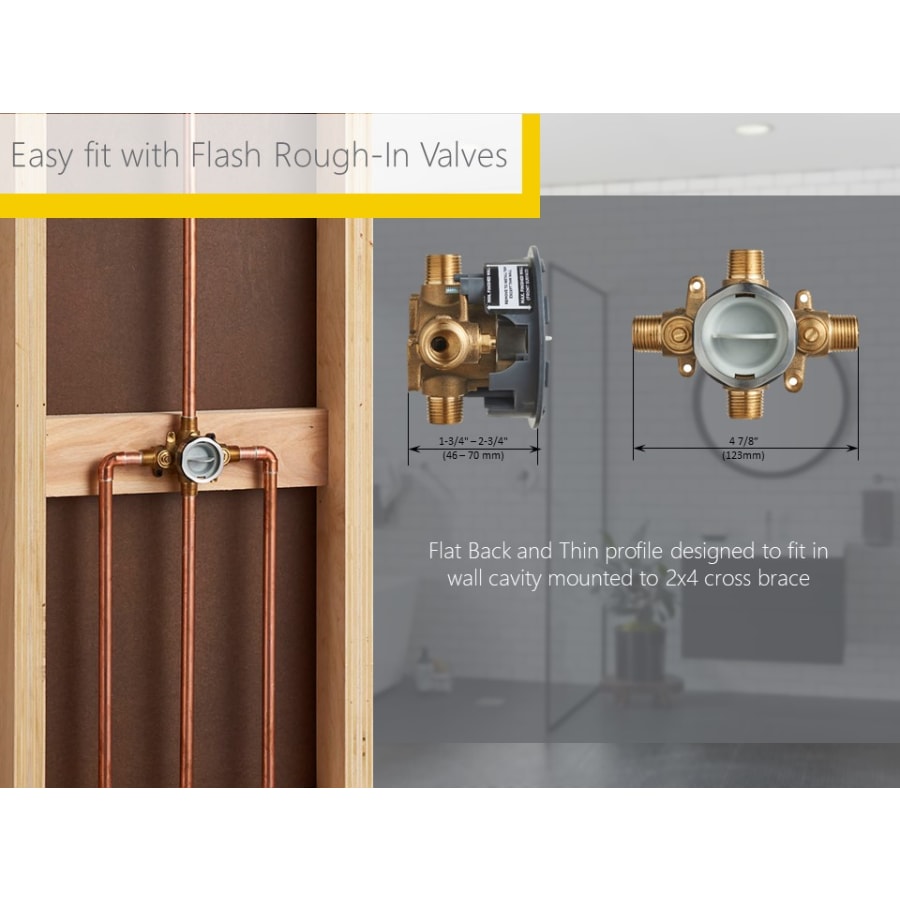

Flat back: Allows valve to be mounted flush against cross brace for easy and solid installation
Test cap: Allows valve body to be tested and flushed without the presence of the valve cartridge – can be tested using test cap with air (200 psi) or water (300 psi)
Stainless steel retaining ring with flats: Secures test cap/cartridge in place and eliminates need for screws
Back-to-back capability: Hot and cold can be reversed quickly and easily
Connection Size: 1/2″
Connection Type: Universal
American Standard 1660.774 Features:
Multi-function hand shower – featuring drench, powerwash®, sensitive, and massage spray patterns
Hand Shower package includes: hand shower, slide bar, hose, and supply elbows
Angle of holding bracket is adjustable
Designed to easily install with standard U.S. plumbing connections
Includes sliding bracket for hand shower
WaterSense certified
All hardware required for installation is included
Hand Shower Height: 10-1/16″
Hand Shower Width: 4-15/16″
Hand Shower Flow Rate: 1.8 gallons-per-minute
Hose Length: 59″
Slide Bar Length: 30-1/8″
Slide Bar Depth: 1-3/4″
American Standard T722.430 Features:
Trim constructed of brass – ensuring durability and providing aesthetic appeal
Premier finishing process – finishes will resist rusting and corrosion through every day use
Can be installed with 2-way or 3-way
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for shower systems
Secure mounting assembly
All hardware required for installation is included
Single lever handle
Escutcheon (Trim Plate) Diameter: 2-3/4”
Designed for use with standard U.S. plumbing connections
American Standard R433 Features:
Constructed of brass
3-way valve between 3 outlets
Outlets may only run independently
1/2″ NPT connections
American Standard 1660.130 Features:
Secure mounting assembly
Features four different spray functions
All hardware required for installation is included
Flow Rate: 1.5 GPM
Height: 3″ (top to bottom)
Width: 2-15/16″ (left to right)
Depth (Projection): 1/2″ (off of wall)
Number of Functions: 4
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Estate Collection
Specifications
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Material | Brass |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Faucet Type | Shower System |
| Showerhead | Multi Function |
| Spray Pattern | Drench, Full |
| Spray Settings | 3, 4 |
| Water Efficient | Yes |
| Handle Material | Brass |
| Valve Type | Pressure Balanced |
| Water Connection Type | NPT |
| Diverter Location | Wall Mounted |
| Handshower | Multi Function |
| Pause Control | No |
| Shell Material | Metal |
| Showerhead Shape | Round |
| Valve Trim Material | Brass |
| Scald Guard | Yes |
| Number Of Bodysprays | 2 |
| Certifications | UPC, ASME |
| ADA | Yes |
| Country Of Origin | Canada, Mexico |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| Low Lead Compliant | Yes |
| WaterSense Certified | Yes |
| Flow Rate (GPM) | 1.75 |
| Water Connection | 1/2" |
| Handshower Flow Rate | 1.8 |
| Hose Length | 59 in. |
| Shower Arm Reach | 5.5 in. |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Width | 5 in. |
| Valve Trim Height | 7.8125 in. |
| Valve Trim Width | 7.8125 in. |
| Bodyspray Flow Rate (GPM) | 1.5 |
| Slide Bar Height | 30.125 in. |
| Installation Hardware Included | Yes |
| Shower Arm Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Bodysprays Included | Yes |
| Diverter Included | Yes |
| Hose Included | Yes |
| Integrated Diverter | No |
| Shower Head Included | Yes |
| Slide Bar Included | Yes |
| Tub Spout Included | No |
| Valve Trim Included | Yes |
| Volume Control | No |
| Wall Supply Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
