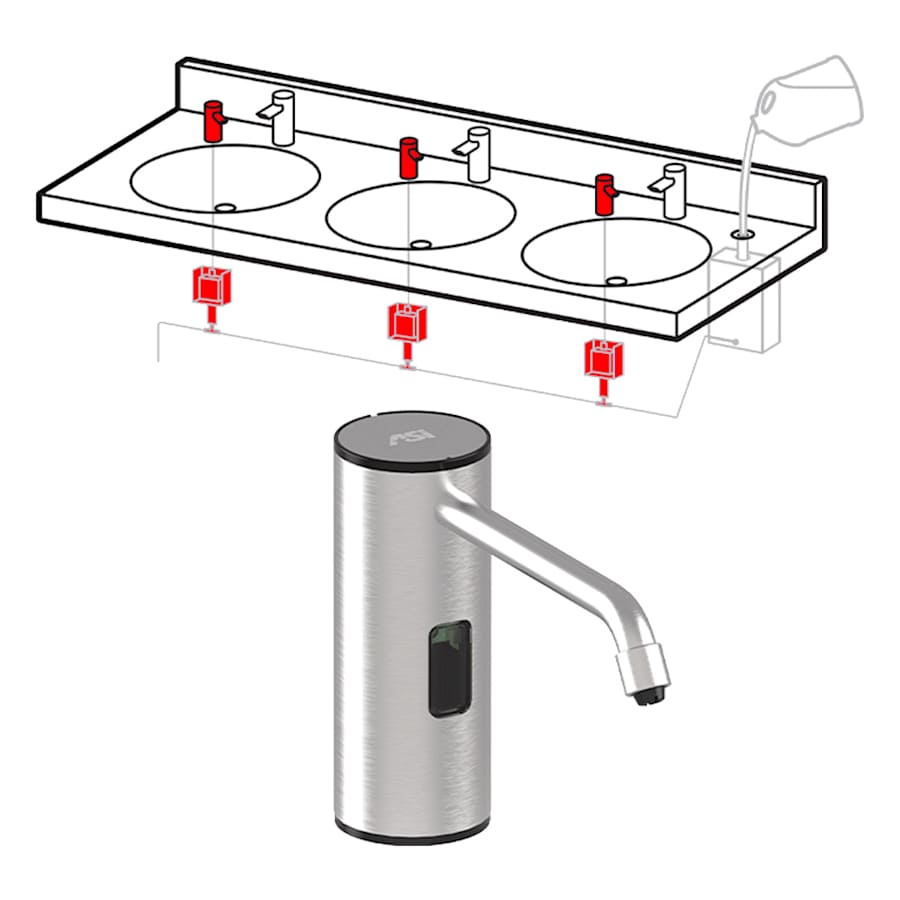

Save time and save your knees with ASI’s newest Top Fill Multi-Feed soap dispensing system. Fill up to 12 automatic foam soap dispensers with one pour using the counter fill port connected to a large capacity, leak-proof tank?a perfect addition to any high traffic washroom. Foam soap dispensers are constructed of type 304 stainless steel and are AC powered. Dispensers are equipped with individual replaceable control pumps. Multi-Feed Dispenser Heads do not include a Top Fill Multi-Feed tank. The control module/pump attached to this dispenser head (mounted below vanity) is fed soap through a supply tube connected to the Multi-Feed Tank (not included). A multi-feed dispensing system is created when additional dispensers, connected by soap tubing, are added.
American Specialties, Inc. 0389-1AC Features:
Covered under American Specialties, Inc.’s 1 year limited warranty
Constructed from brass and stainless steel for reliability
American Specialties, Inc. 0389-1AC Specifications:
Height: 3-13/16″ (top to bottom)
Width: 6-7/8″ (left to right)
Spout Reach: 5-3/8″ (center of dispenser to dispenser tip)
Additional ASI Links
Browse all ASI Products
Specifications
| Width | 6.875 in. |
| Height | 3.8125 in. |
| Spout Reach | 5.375 in. |
| Overflow Height | 6.625 in. |
| Material | Brass, Stainless Steel |
| Electronic | Yes |
| Insulation Type | Deck Mounted |
| ADA | No |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Manufacturer Warranty | 1 Year Limited |
| Product Variation | Foam Soap Dispenser |
| Escutcheon Included | No |
| Power Source | Plug-In |
| Color | Satin Stainless Steel |
| Color Tone | Stainless Steel |
