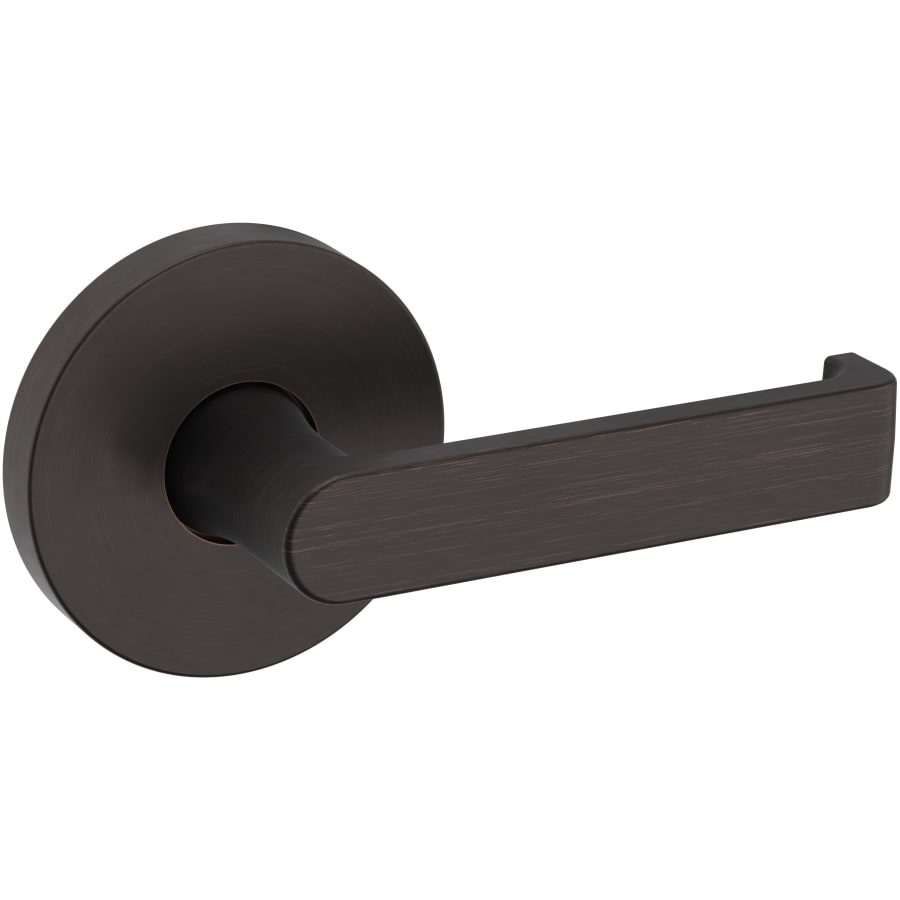

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Baldwin’s limited lifetime manufacturer warranty
ADA compliant
28 degree latch ensures easy operation
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Lifetime Finishes™: Baldwin’s multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Premium Estate Latch: An industry standard, Baldwin’s Estate latch features a 28 degree rotation providing for easier turning and smoother operation than latches utilizing a 40 degree rotation. Each lever-strength latch also includes heavy-duty springs to offset the weighty construction that accompanies solid forged brass. Further, each Baldwin latch comes with an anti-friction insert that allows for nearly silent closing while also greatly reducing strike plate scratches.
Concealed Screws: Baldwin Estate Collection knobs and levers install cleanly on both the interior and exterior of the door, completely concealing all screws required for the installation. All you’ll ever see is the door, and the hardware you’ve chosen for it—seamlessly co-existing.
Specifications:
Backset: 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Length: 3-5/8″
Handle Projection: 1-15/16″
Trim Width: 2-5/8″
Trim Height: 2-5/8″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin 5105 Collection
Specifications
| Thermostat | Contemporary, Modern |
| Concealed Screws | Yes |
| Material | Brass |
| Handshower | Left, Reversible, Right |
| Function | Passage |
| Solid Construction | Solid Brass |
| Latch Faceplate | Square Corner |
| Handle Material | Metal |
| Handle Style | Lever |
| Handle Design | 5105 |
| Rosette Shape | Round |
| Trim Design | 5046 |
| Lever Shape | Square, Straight |
| ADA | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Estate, Estate Pre-Configured |
| Approved for Commercial Use | No |
| Fire Rated | No |
| Series | 5105 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Product Weight | 2.4 lbs. |
| Backset | 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 3.625 in. |
| Handle Projection | 1.938 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| 28 Degree Latch | Yes |
| Color | Lifetime Graphite Nickel, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Oil Rubbed Bronze, Polished Chrome, Satin Black, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
