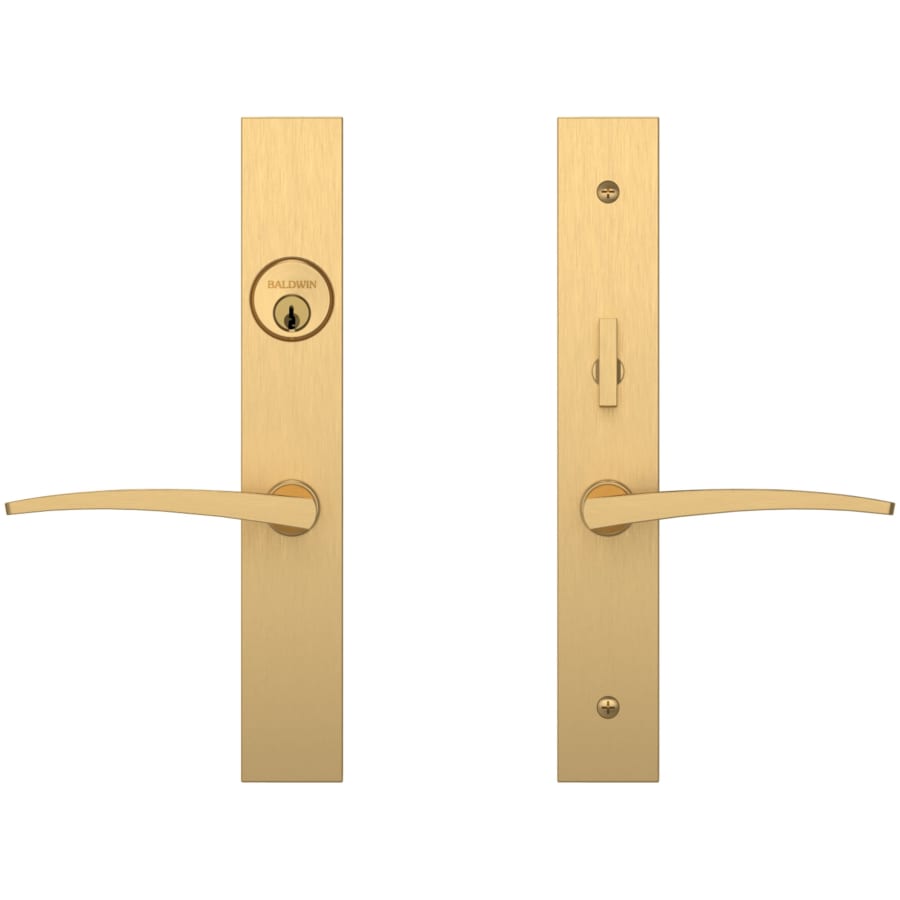

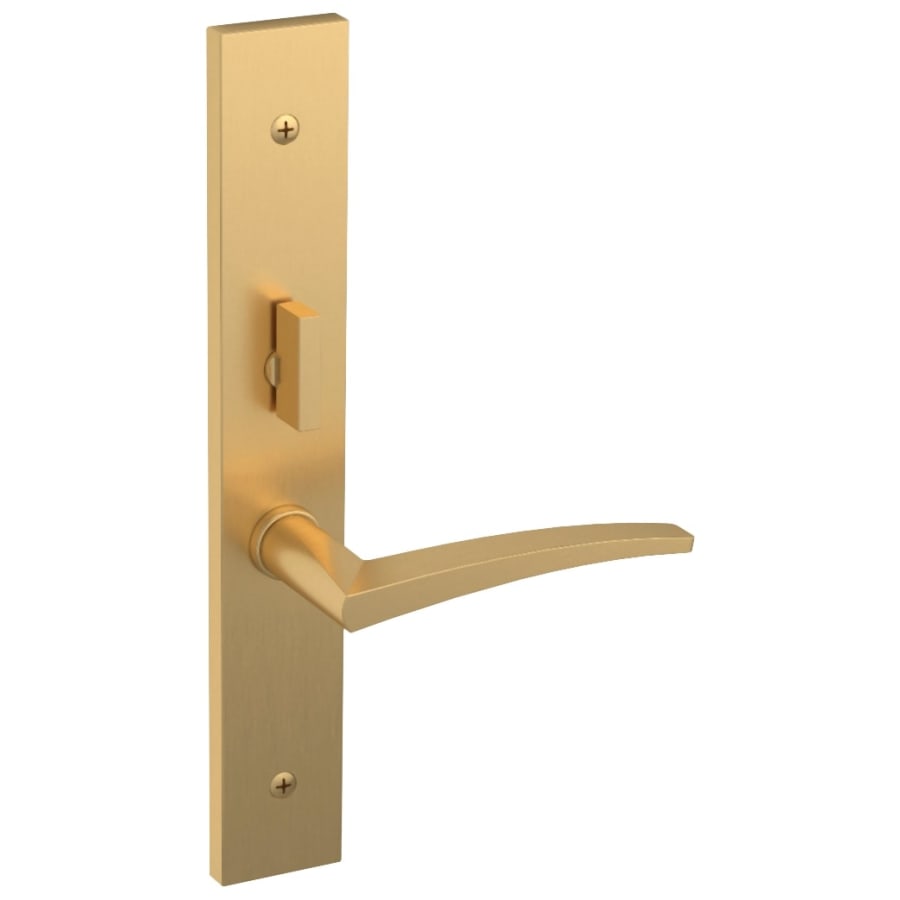

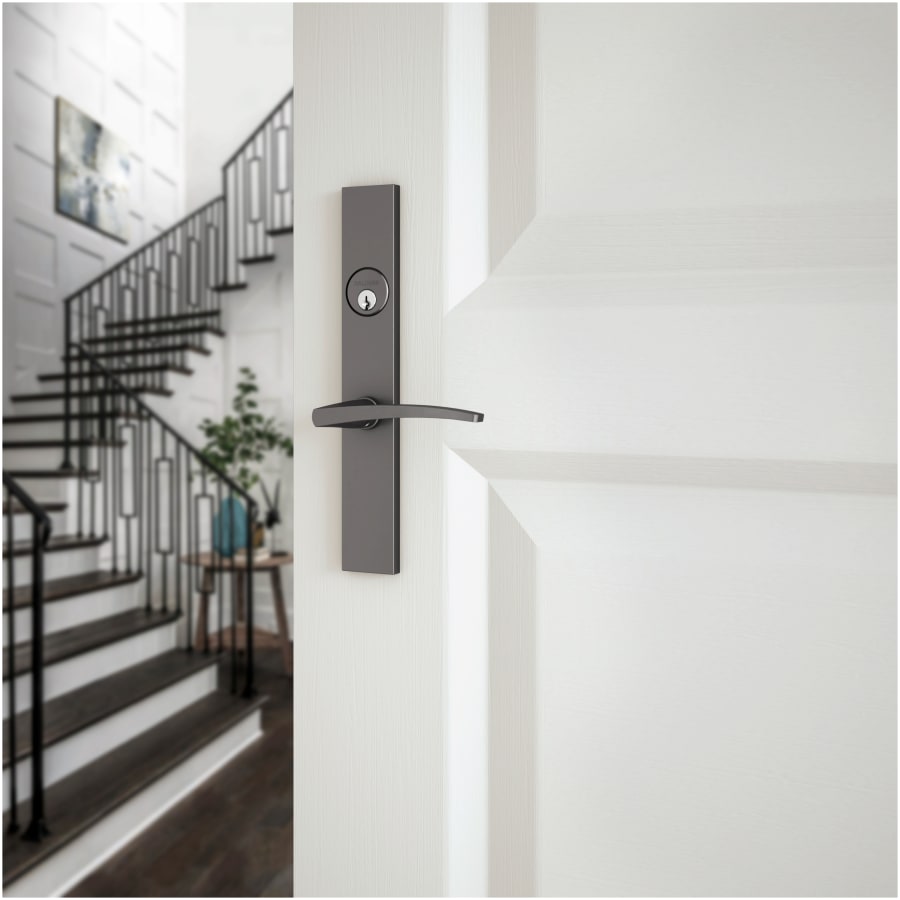

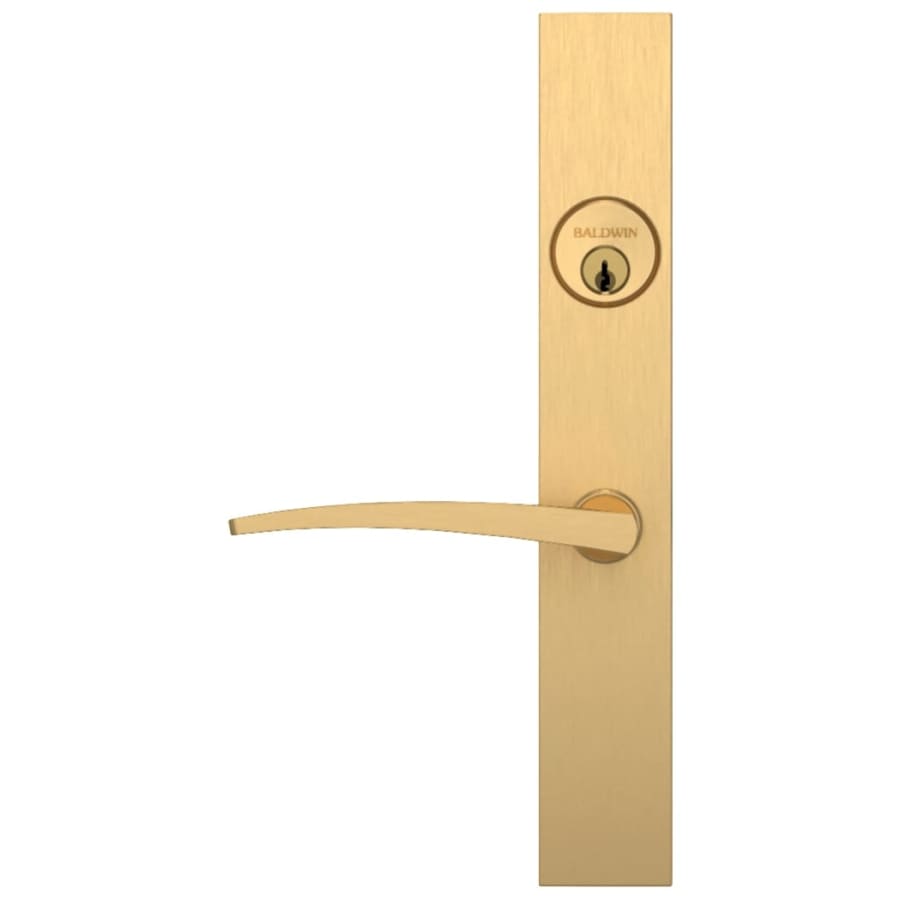

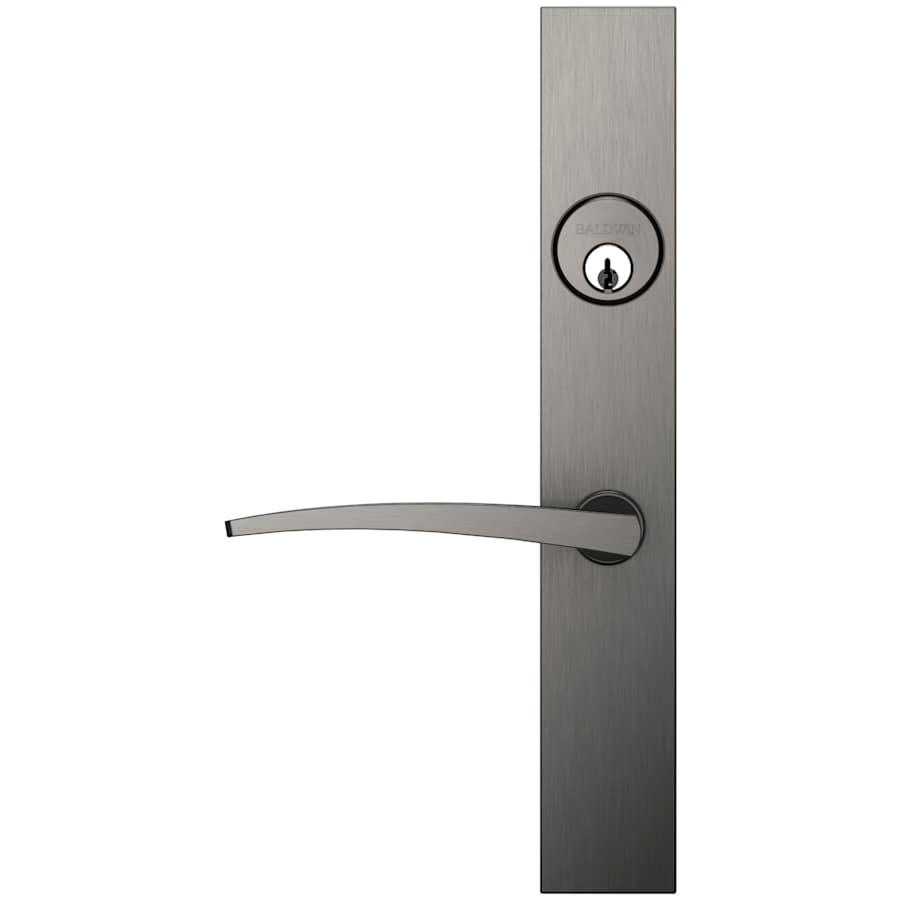

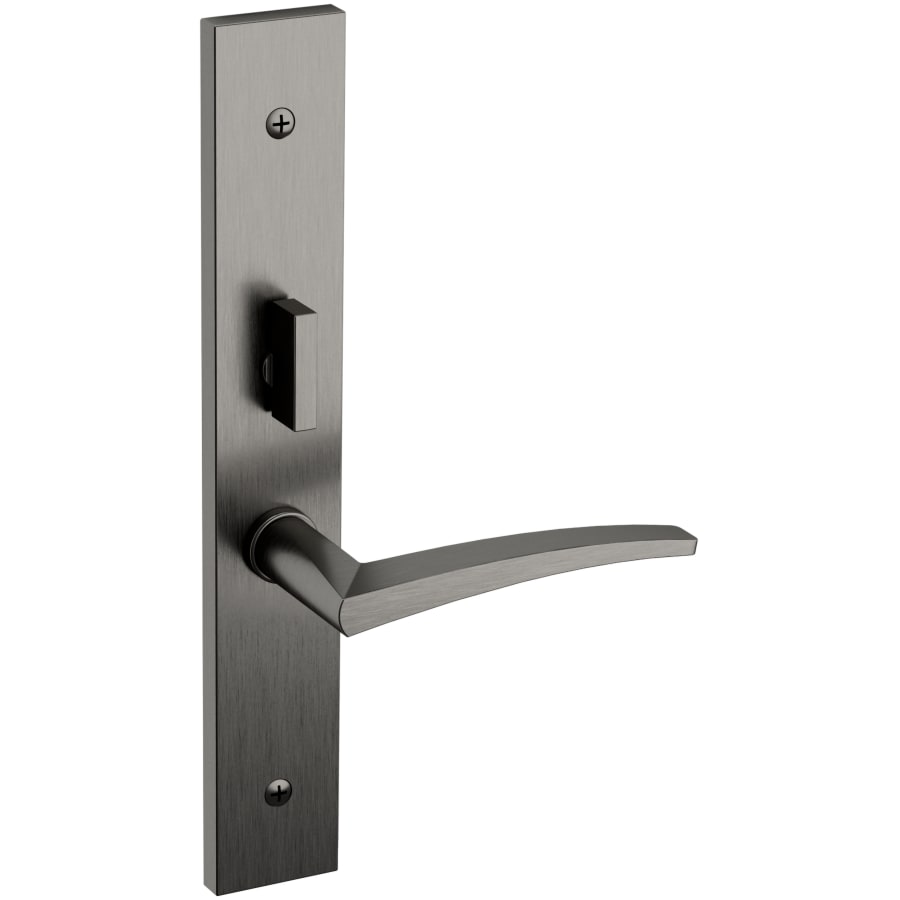

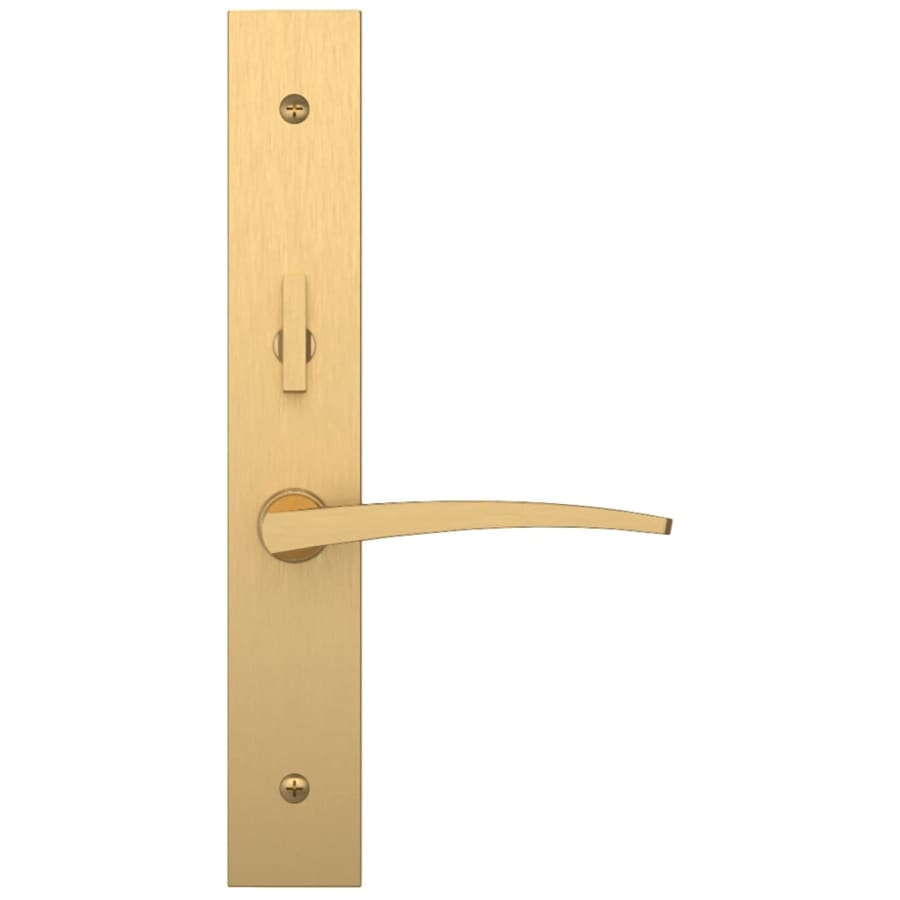

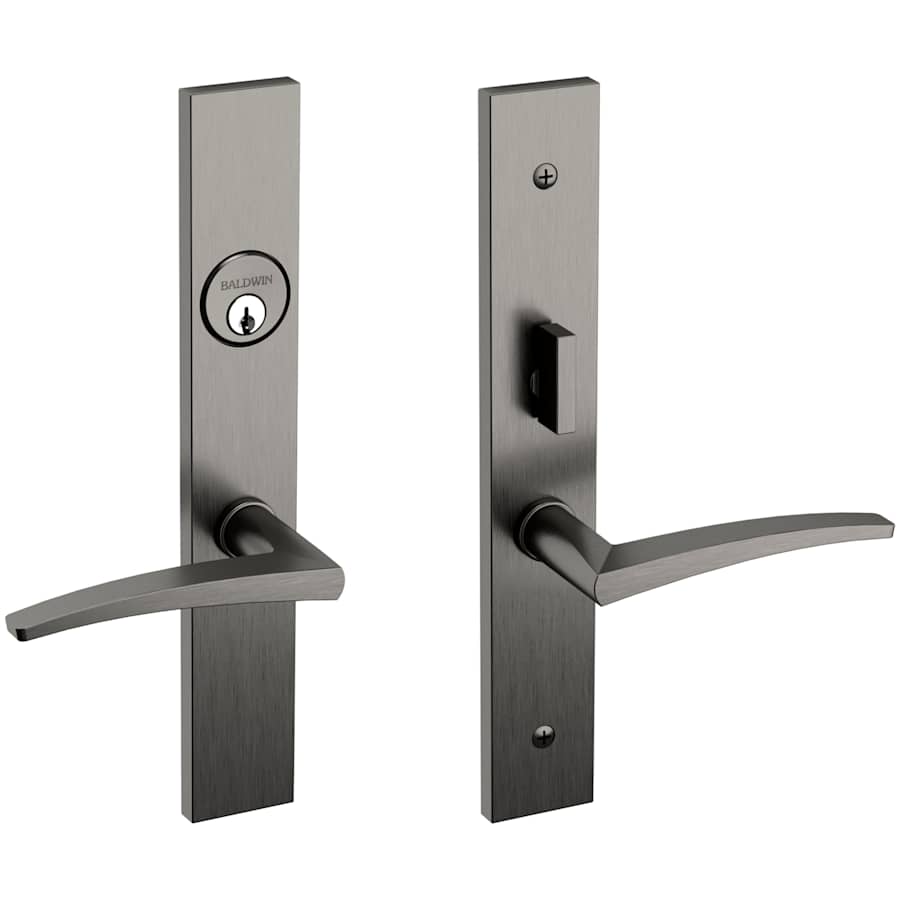

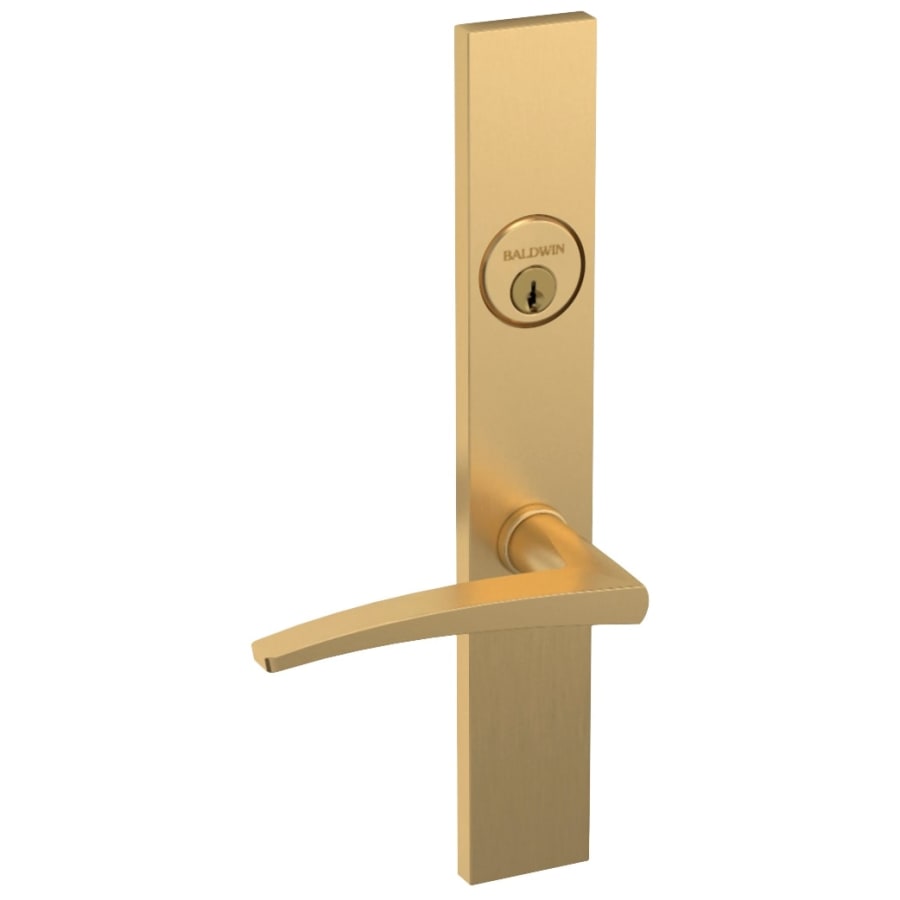

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Baldwin’s limited lifetime manufacturer warranty

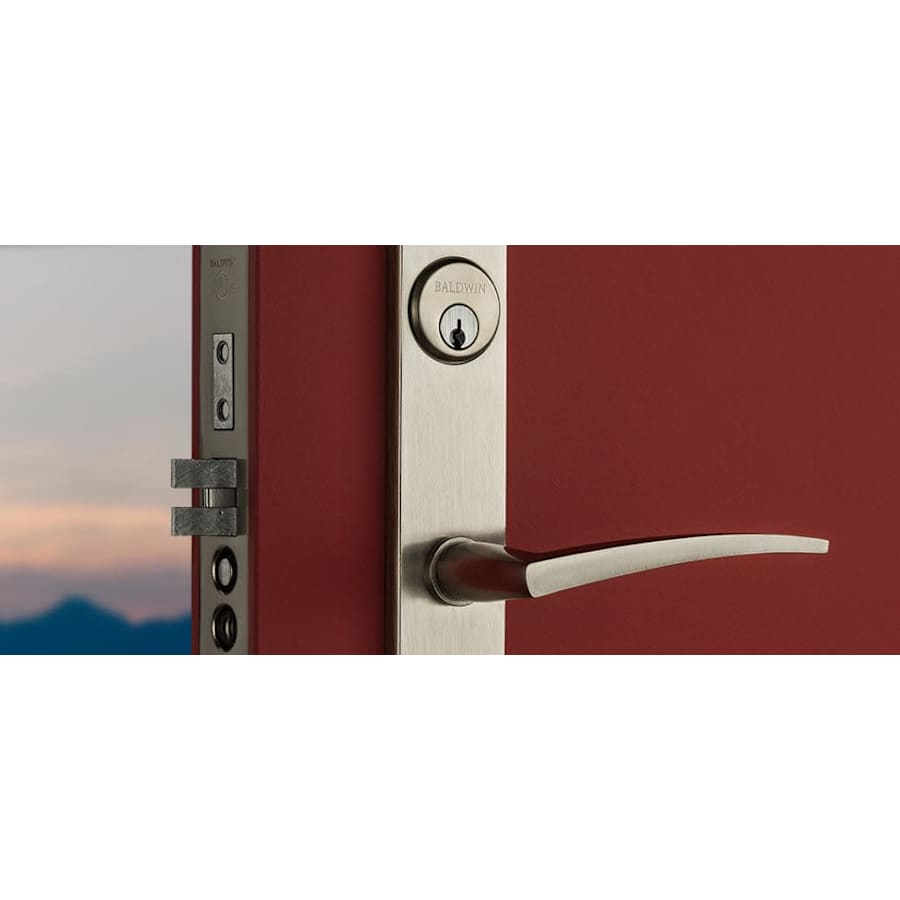

Trim only, purchase cylinder and mortise lock body separately
Thick door kits available for doors thicker than 1-3/4″
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Lifetime Finishes™: Baldwin’s multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: 2-1/2″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″
Handing: Reversible Left or Right
Latch Faceplate: Square Corner
Mounting Center to Center: 5-1/2″
Overall Height: 11″
Handle Projection: 2-3/4″
Trim Height: 11″
Trim Width: 1-11/16″
Interior Handle Length: 4-1/2″
Interior Handle Projection: 2-3/4″
Interior Trim Height: 11″
Interior Trim Width: 1-11/16″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Santa Monica Collection
Specifications
| Height | 11 in. |
| Width | 1.7 in. |
| Product Weight | 4.164 lbs. |
| Overflow Height | 11 in. |
| Backset | 2-1/2", 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Edge Bore | 1" |
| Projection | 2.8 in. |
| Center to Center | 5.5 in. |
| Trim Height | 11 in. |
| Trim Width | 1.6875 in. |
| Handle Projection | 2.75 in. |
| Interior Handle Length | 4.47 in. |
| Interior Handle Projection | 2.75 in. |
| Interior Trim Height | 11 in. |
| Interior Trim Width | 1.6875 in. |
| Thermostat | Contemporary |
| Material | Brass |
| Handle Style | Lever |
| Handle Material | Metal |
| Concealed Screws | No |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Square Corner |
| Solid Construction | Solid Brass |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Lock Style | Single Point |
| Mounting | Full Plate |
| Keyway | C |
| Interconnected | No |
| Panic Proof | No |
| Trim Design | Santa Monica |
| Handle Design | Santa Monica |
| Interior Handle Style | Lever |
| Approved for Commercial Use | No |
| Collection | Estate, Estate Pre-Configured |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Certifications | UL |
| Series | Santa Monica |
| BHMA Certification | Grade 1 |
| Cylinder Included | No |
| 28 Degree Latch | Yes |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
