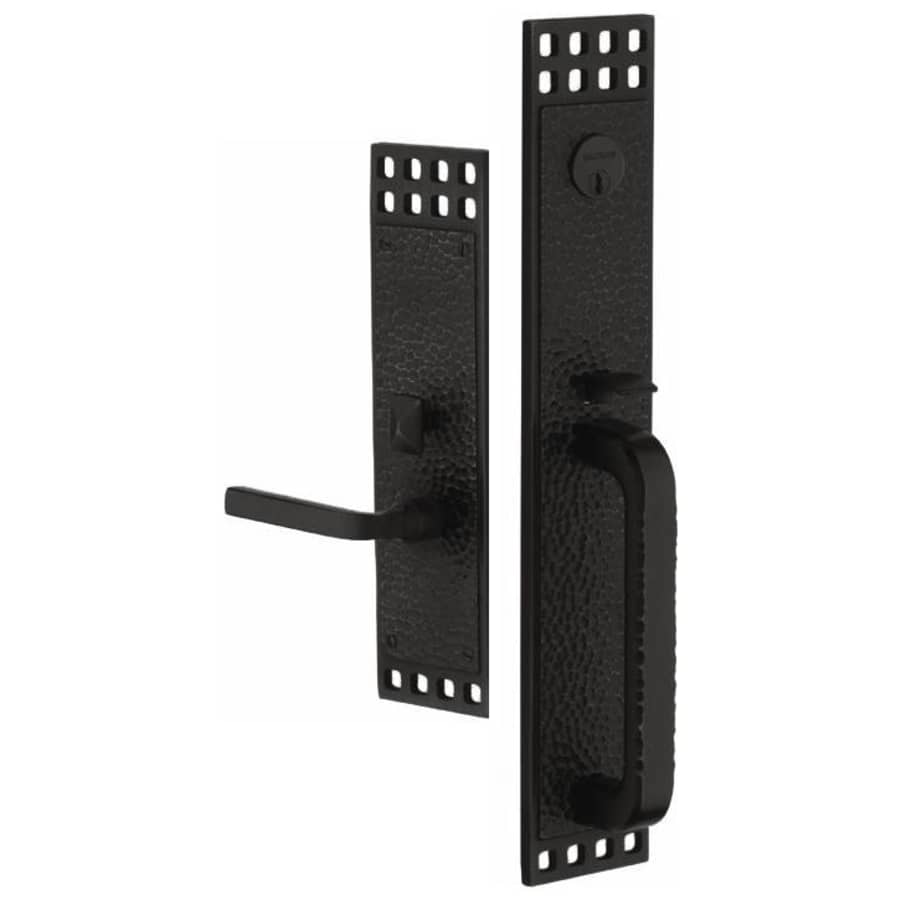

Double Cylinder: A double cylinder lock is keyed on both sides of the door and is only locked and unlocked via a key. Often times they are used on doors where glass is near the door that could be easily broken and the thumbturn on a standard single cylinder lock would be accessible. Note: Some images of this product may be of single cylinder version of the lock with a thumbturn on the interior rather than a keyed cylinder.
Caution: Double Cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock. Please check local codes before installing.
Baldwin Estate is a component door hardware system and each component must be purchased separately for a complete package. Choosing the correct components for your particular application can be confusing and frustrating. Baldwin even offers an entire training course on this subject matter. Let our trained professionals choose the correct components based on your measurements and take the hassle out of this process!
Below is a breakdown of components included with the product based on your configuration choices
Included Items when configured as TRIM SET ONLY:
Exterior and Interior Handleset Trim
Knob(s) or Lever(s)
Spindle
NOTE: TRIM SET ONLY IS NOT A DUMMY SET. THE KNOB, LEVER, OR THUMBPIECE HAVE FUNCTIONALITY.
TRIM SET ONLY IS SUGGESTED ONLY IF YOU ALREADY HAVE THE MORTISE HARDWARE!
For a Dummy Set, Please see this model in the “.FD” version
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Additional items included when you select a DOOR THICKNESS:
Mortise Lock (This depends on your door thickness and backset)
Lock Cylinder(s) (This depends on your door thickness)
Additional spindle if required (This depends on your door thickness)
Additional latch strike if required (This depends on your backset)
Blocking ring if required (This depends on your door thickness)
For custom configurations or questions please call us
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Pasadena Collection
Specifications
| Height | 13.05, 19.05 in. |
| Width | 3.35 in. |
| Product Weight | 9.5 lbs. |
| Backset | 2-1/2", 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-3/8", 2", 2-1/2", 2-1/4" |
| Edge Bore | 1" |
| Exterior Projection | 2.72 in. |
| Interior Projection | 2.4 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8 in. |
| Lever Length | 4 in. |
| Collection | Estate |
| Approved for Commercial Use | No |
| Series | Pasadena |
| ADA | Yes |
| Certifications | UL |
| Thermostat | Craftsman, Retro |
| Material | Brass |
| Cylinder Type | Double Cylinder |
| Function | Keyed Entry |
| Handshower | Right |
| Keyway | C |
| Latch Faceplate | Square Corner |
| Solid Construction | Solid Brass |
| Handle Material | Metal |
| Handle Style | Grip |
| Interior Handle Style | Lever |
| Lock Style | Single Point |
| Mounting | Full Plate |
| Panic Proof | No |
| Interconnected | No |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime PVD Satin Brass, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Brass, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Venetian Bronze, Vintage Brass, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
