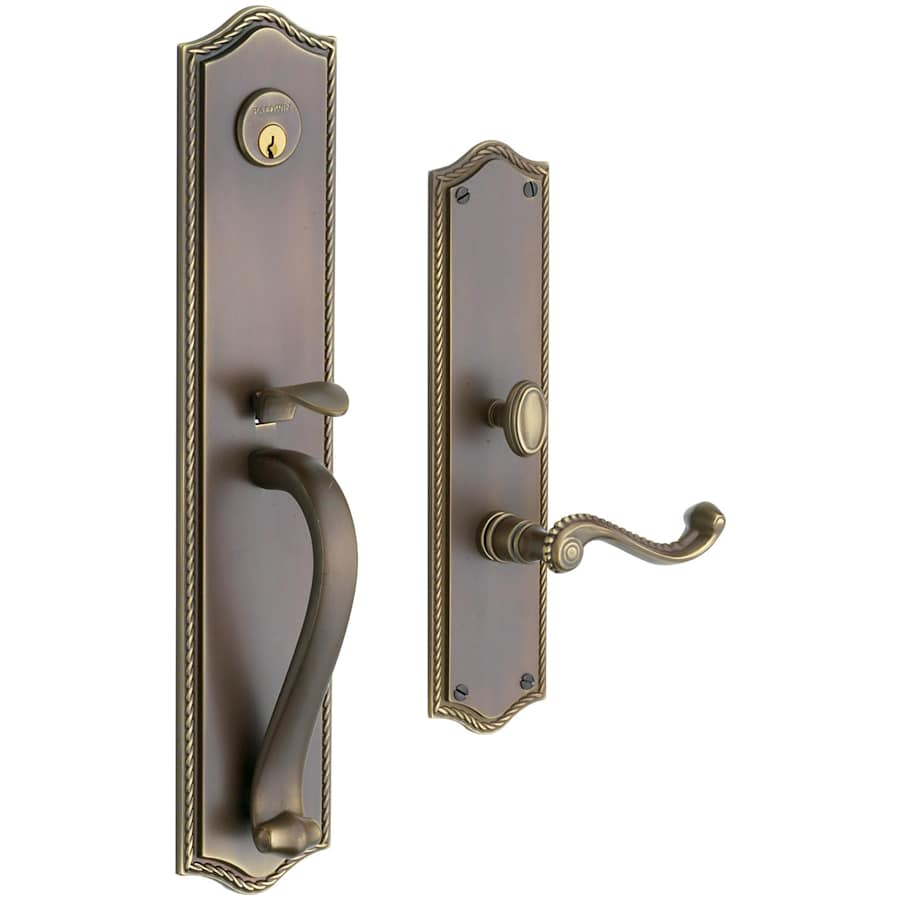

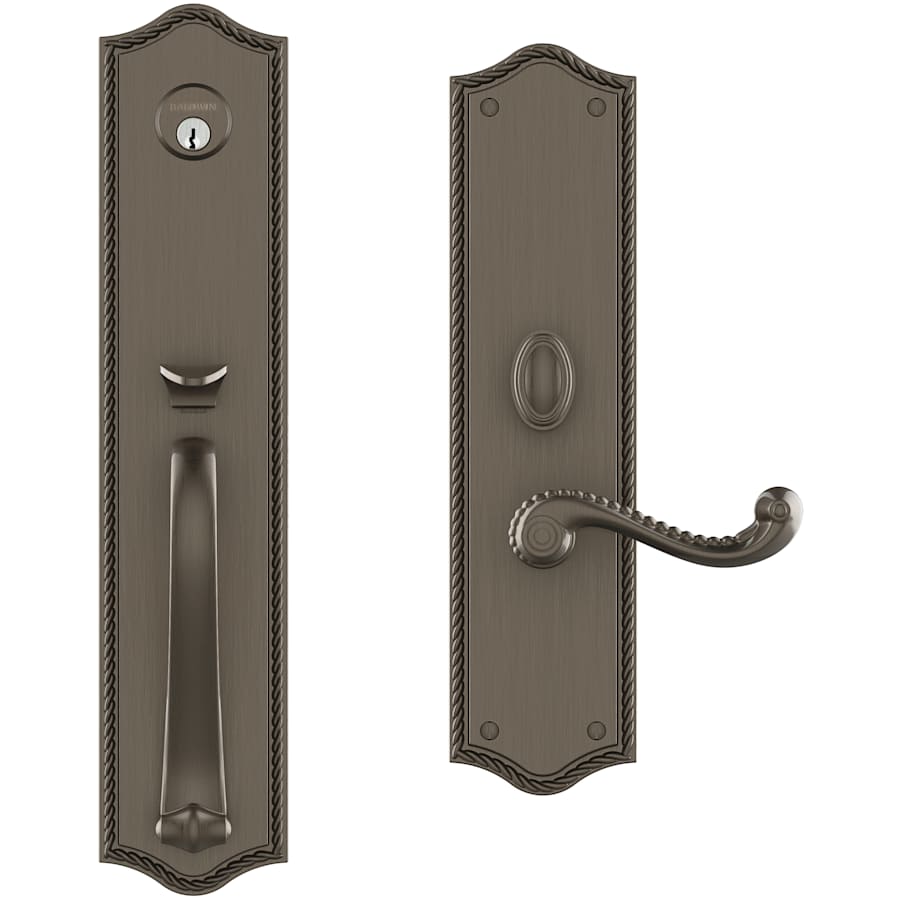

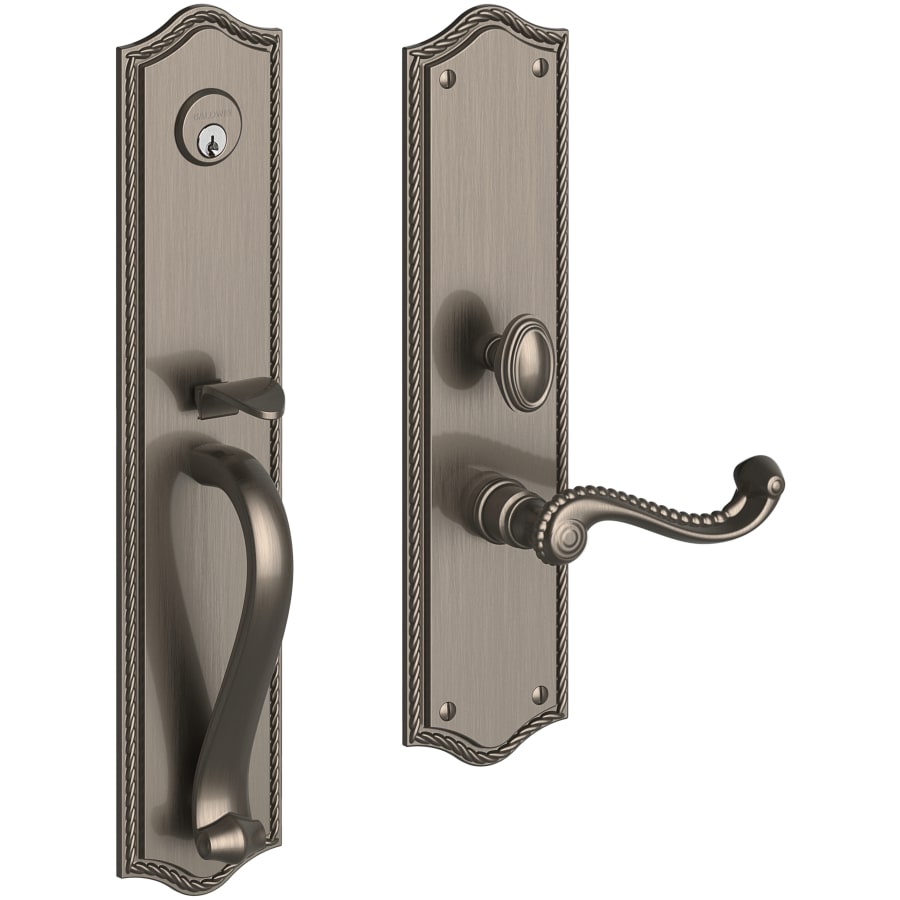

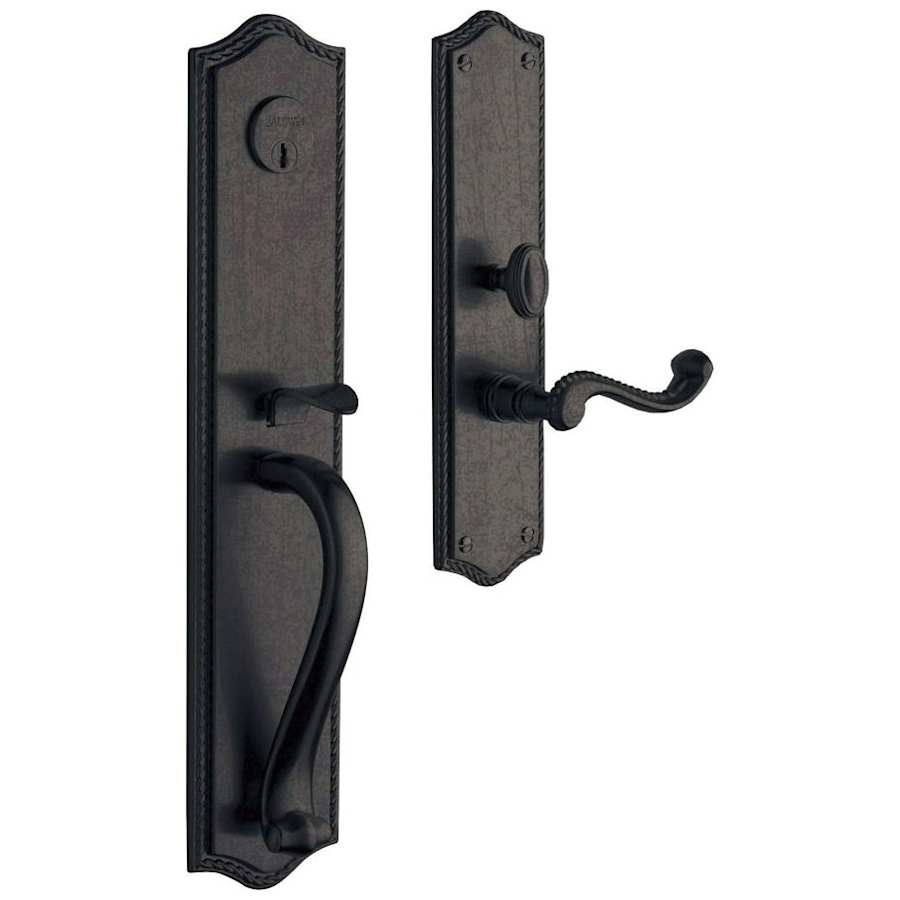

Baldwin Bristol Right Hand Single Cylinder Mortise Handleset Trim Set

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

Exceeds requirements for certification of BHMA Grade 1
Constructed of solid forged brass for durability and premium feel
Options for backset and handing are selected above
This trim set does not include a latch. It is intended to be paired with pre owned or separately purchased mortise hardware
To purchase mortise lock and cylinder, select above
Includes a limited lifetime mechanical warranty and 5 year finish warranty
This trim set is ADA compliant when levers are selected. Knobs are not ADA compliant

Product Technologies:

Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Lifetime Finishes™: Baldwin’s multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.

Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.

Premium Estate Latch: An industry standard, Baldwin’s Estate latch features a 28 degree rotation providing for easier turning and smoother operation than latches utilizing a 40 degree rotation. Each lever-strength latch also includes heavy-duty springs to offset the weighty construction that accompanies solid forged brass. Further, each Baldwin latch comes with an anti-friction insert that allows for nearly silent closing while also greatly reducing strike plate scratches.

Included:

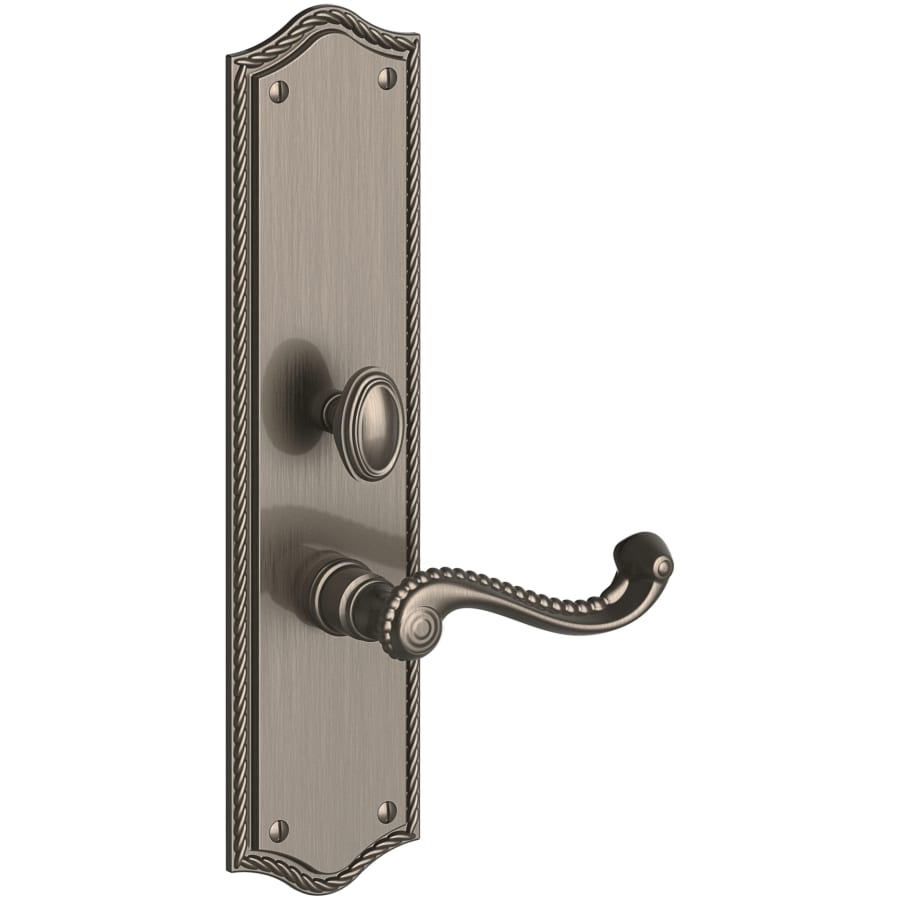

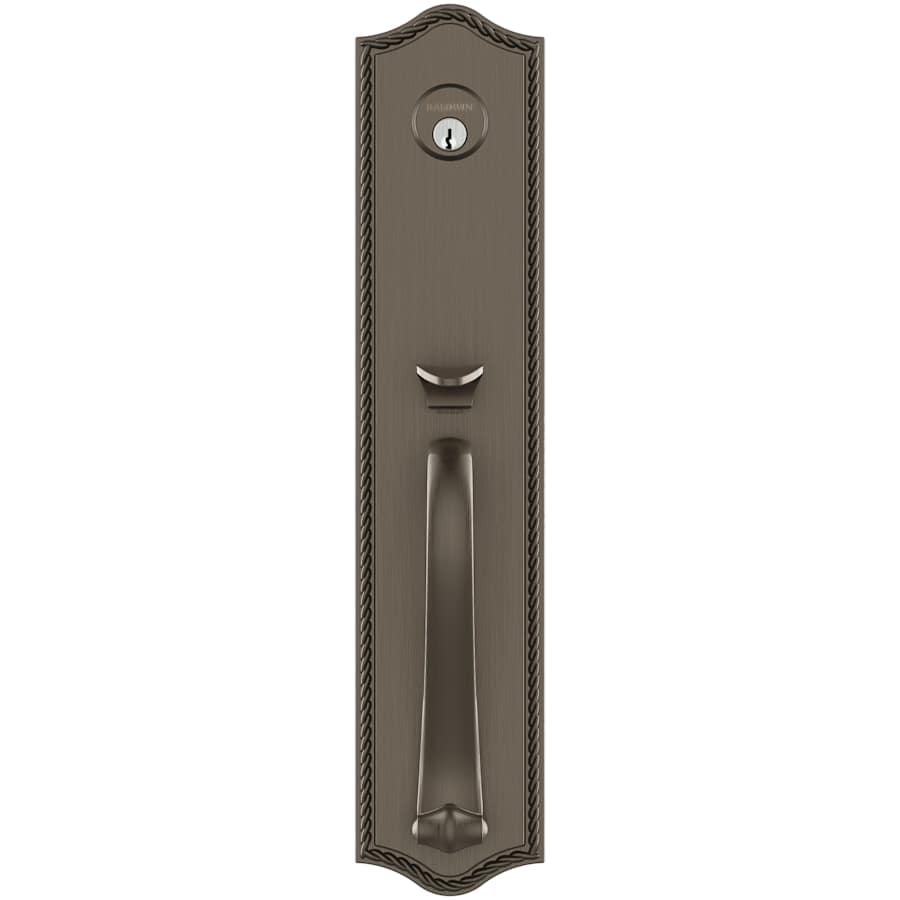

Exterior and Interior handleset trim
Knob(s) or Lever(s)
Spindle
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Specifications:

Backset: 2″, 2-1/2″, 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2-1/2″
Handing: Left, Right, Left Hand Reverse, Right Hand Reverse
Backplate Height: 8″
Backplate Width: 1-5/8″
Center to Center: 5″
Cylinder: 5 Pin Schlage C
Product Weight: 5 lbs
Latch Faceplate: Square Corner

Product Variations:

6548.ENTR: Residential Grade
EDE01.ENTR (This Model): Commercial Grade
