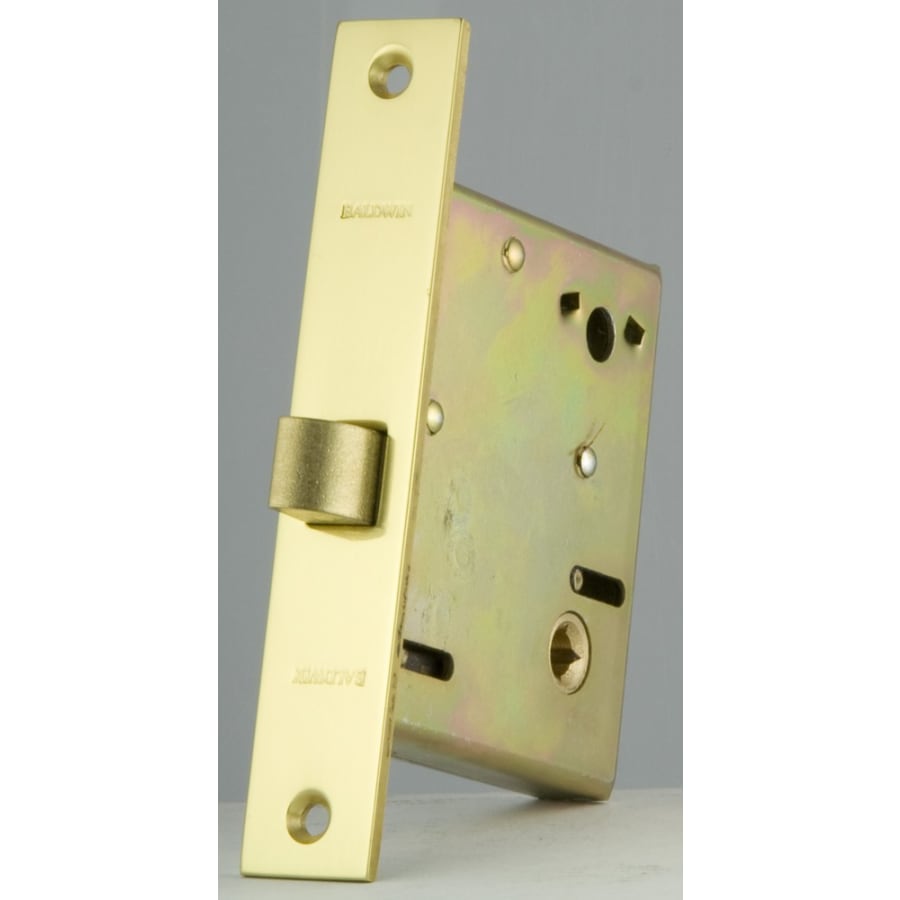

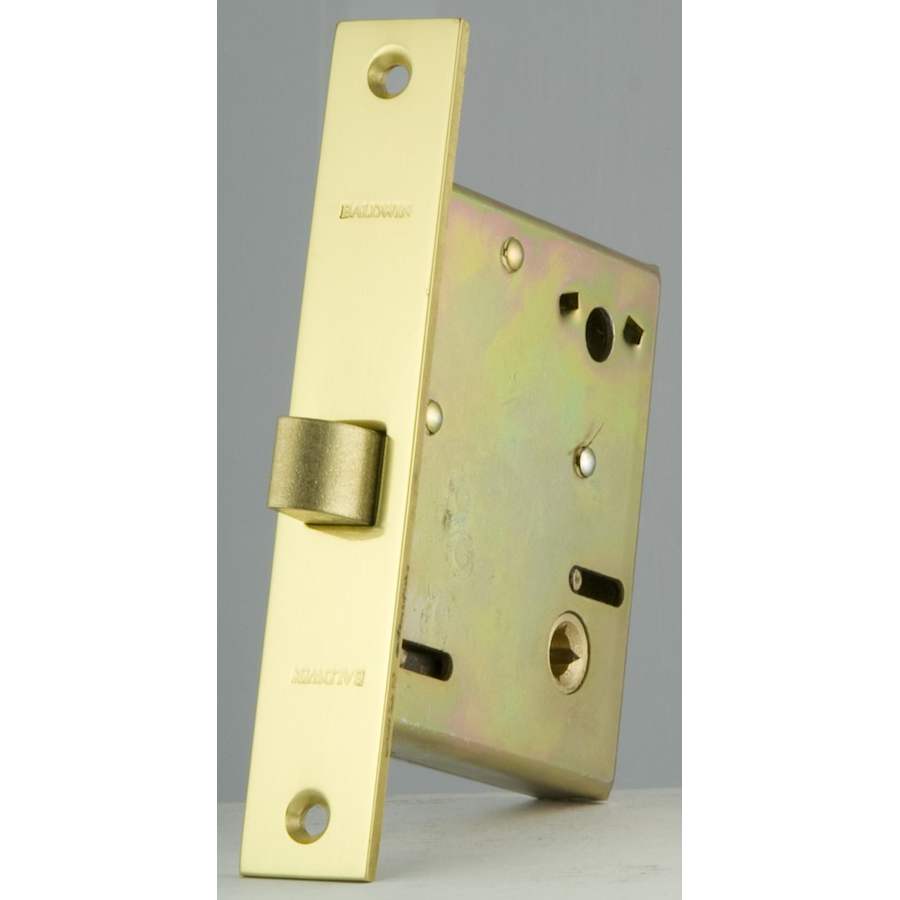

Baldwin 8530.L Small Case Mortise Lock For Left Handed Estates Knob by Knob
Reversible interior passage mortise lock with 2-1/2″ backset
Knob by Knob
Cost effective alternative to Tubular Latch with Mortise Bolt
Quick and easy install on pre-prepared doors

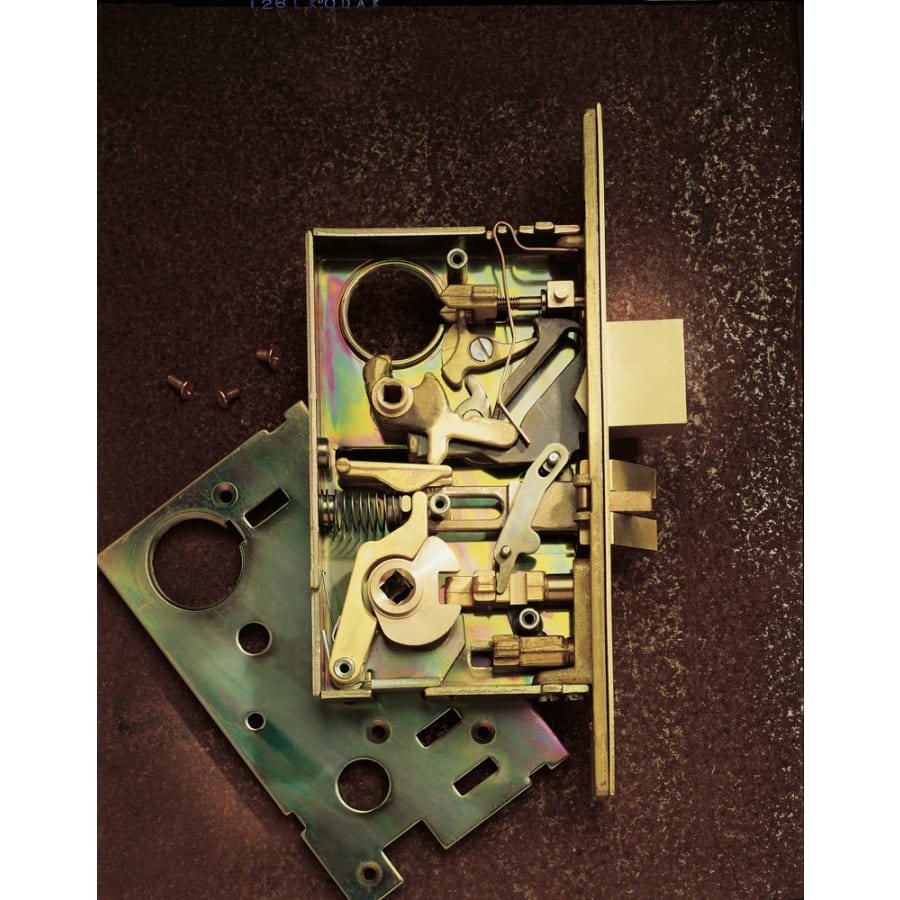

Heavy gauge steel case, solid forged brass interior working parts
Completely reversible for all door conditions
Turn Pieces and Emergency Release Trim must be ordered separately (Not included in price of lock)
Spindle not included
Steel Case: 0.625″ x 3.375″ x 3.75″
Front: 0.156″ x 1″ x 5.75″. Adjustable for beveled conditions; finished to match.
Latch Bolt: 0.5″ x 0.625″ x 0.5″ throw. Furnished in US4 and 26D finishes to match trim.
Hub Size: 0.29″. Broached on the diamond.
Backset: 2.5″
Spacing: Knob hub to turn piece: 2.25″
Strike: Specially-designed curved lip strike is fully reversible (non-handed); available in 1.25″ Lip to Center dimension only
Dust Box: Box is furnished unattached; conceals installation marks and cutouts
Packed: One in a box with a strike, dustbox, and fasteners.
Ordering Instructions: Locks are supplied as illustrated in left column. To install as illustrated in right column, specify the OPPOSITE HAND OF THE DOOR
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Mortise Lock Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Estate |
| Series | Mortise Lock |
| Color | Aged Brass, Antique Nickel, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Nickel, Matte Antique Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
