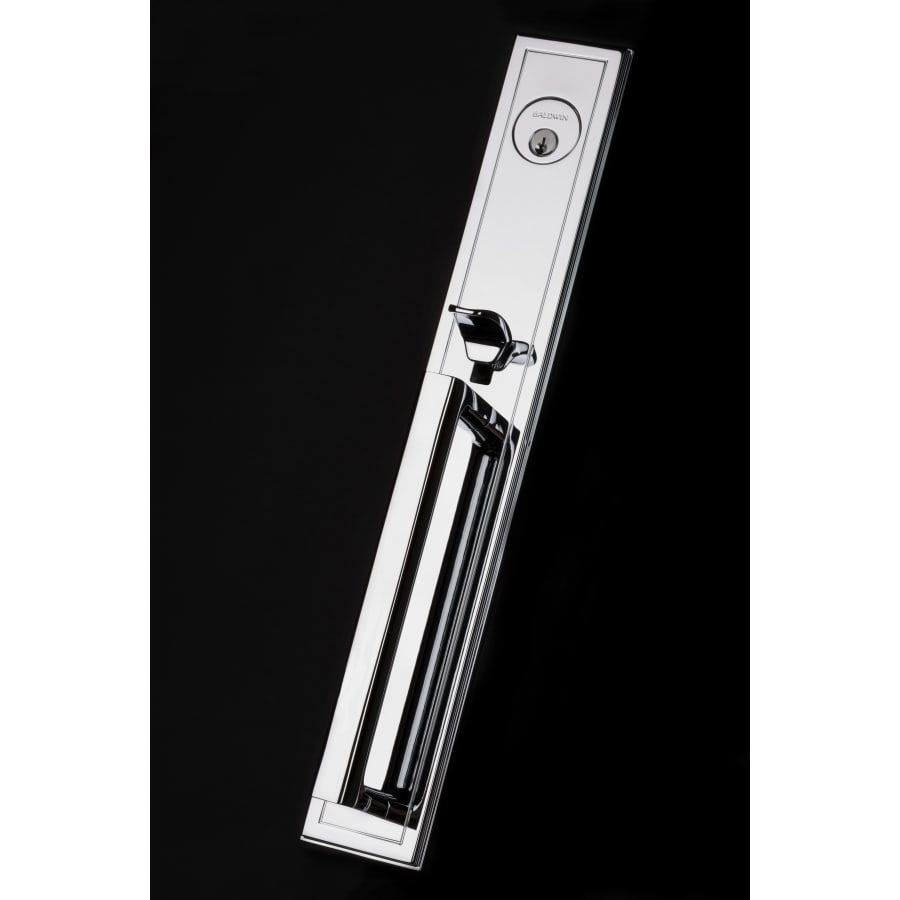

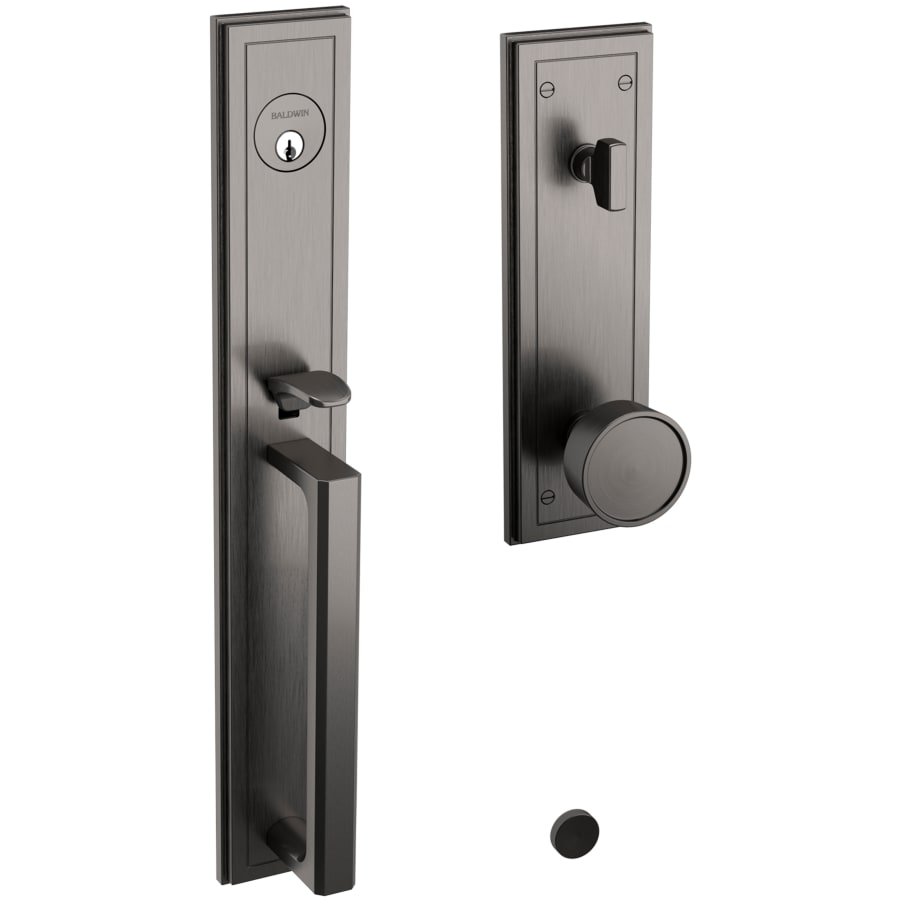

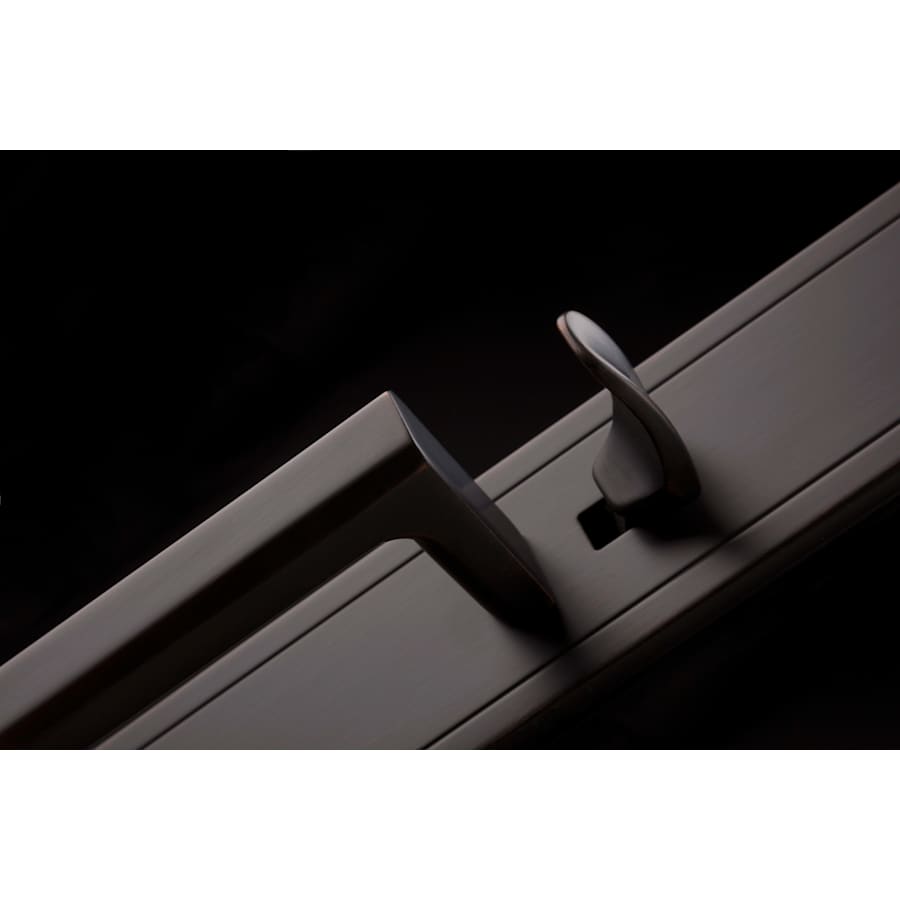

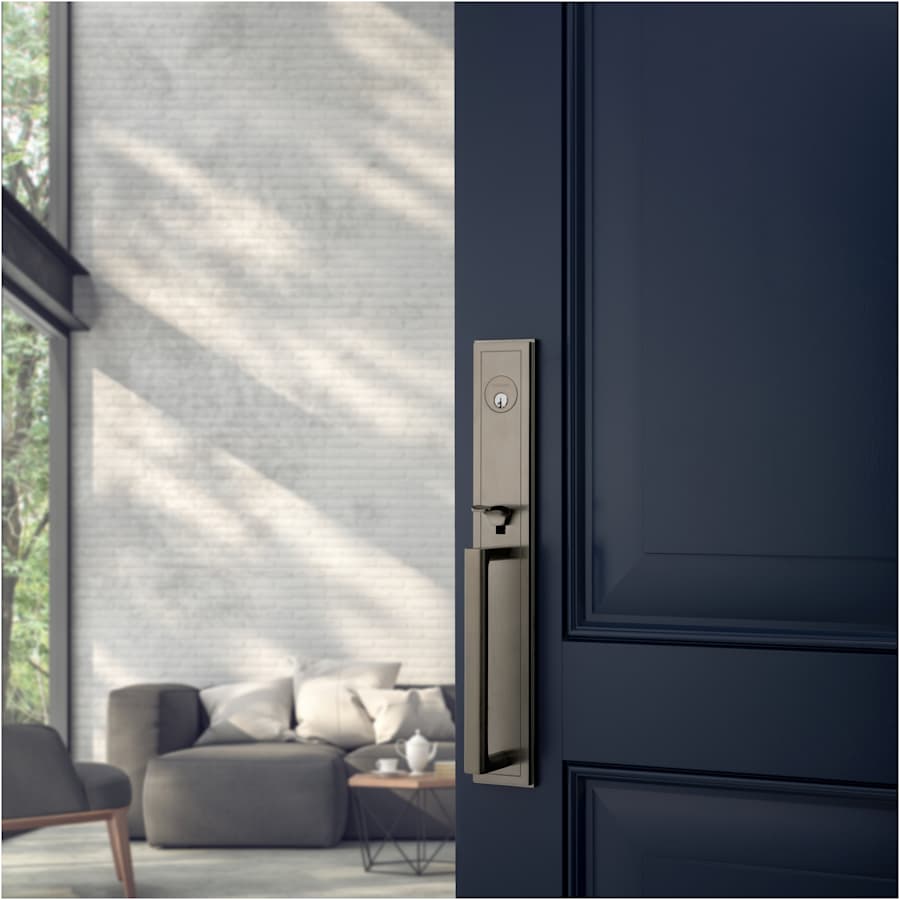

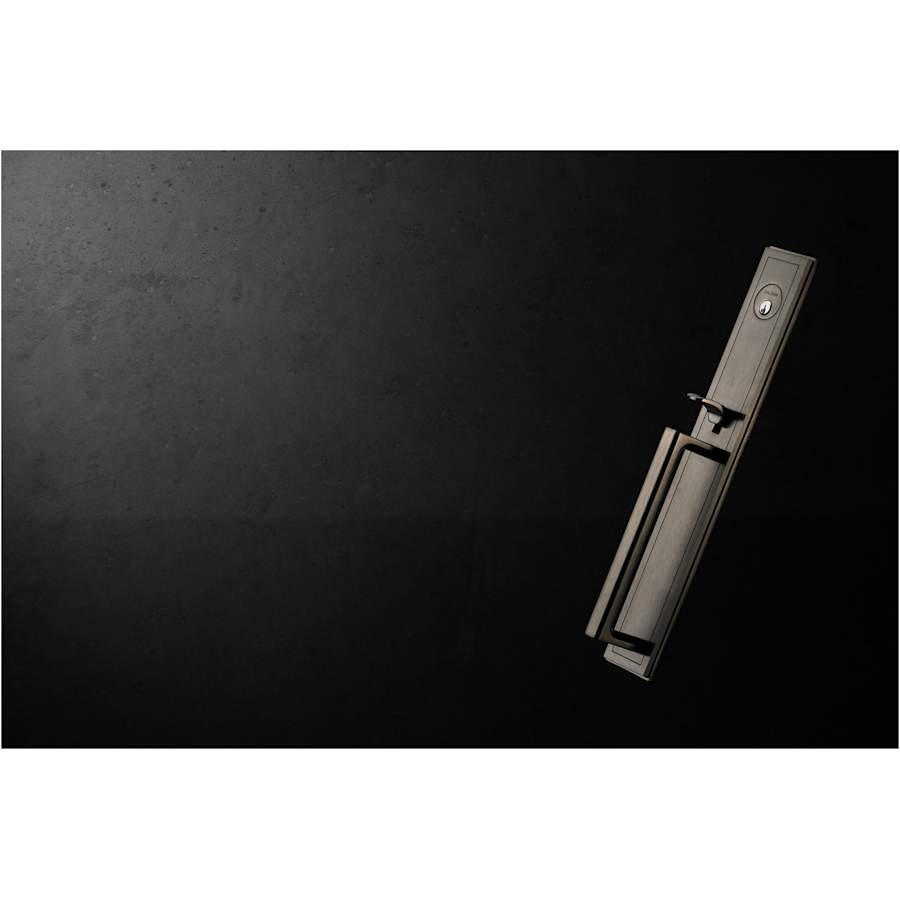

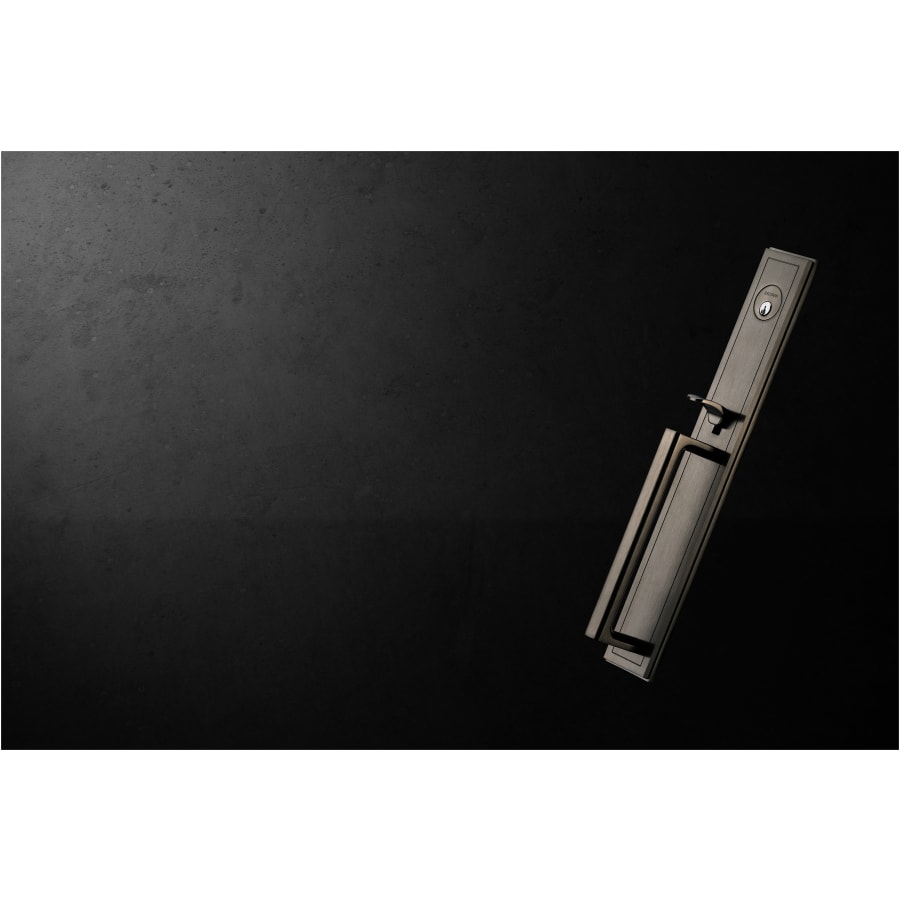

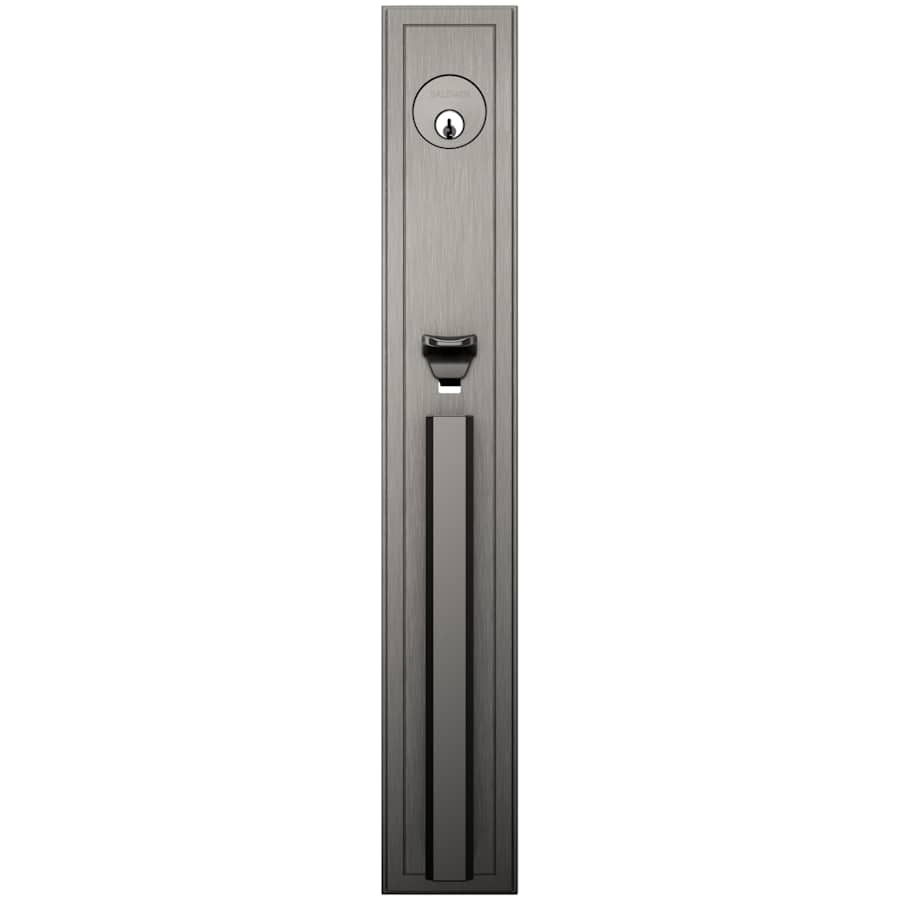

Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Designed by Erinn V., Hollywood Hills is chic and elegant
Exceeds criteria for ANSI/BHMA Grade 2 for residential security
A luxurious and premium finish maintains its appearance over time
Installs in standard prep doors with 1-3/4″ door thickness
Reversible handing installs on left or right handed doors
Featuring emergency egress which allows lock to retract the latch bolt and deadbolt simultaneously when the inside knob/lever is turned
Baldwin offers a Limited Lifetime Mechanical Warranty
Standard finishes have a One Year Limited Warranty when installed in exterior applications and a Five Year Limited Warranty for interior use
All necessary mounting hardware is included for easy installation
Interior comes in same finish as exterior. If split finish is desired please contact customer service
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid Brass Construction: Baldwin Estate Series products are constructed from solid brass – providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.
Lifetime Finishes™: Baldwin’s multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Edge Bore: 1″
Cross Bore: 2-1/8″
Backplate Height: 17-1/2″
Backplate Width: 2-11/16″
Center to Center: 5-1/2″
Grip Center to Center: 8″
Projection: 2-13/16
Latch Faceplate: Square Corner
Door Thickness: 1-3/4″ to 2-1/4″
Handing: Reversible Left or Right

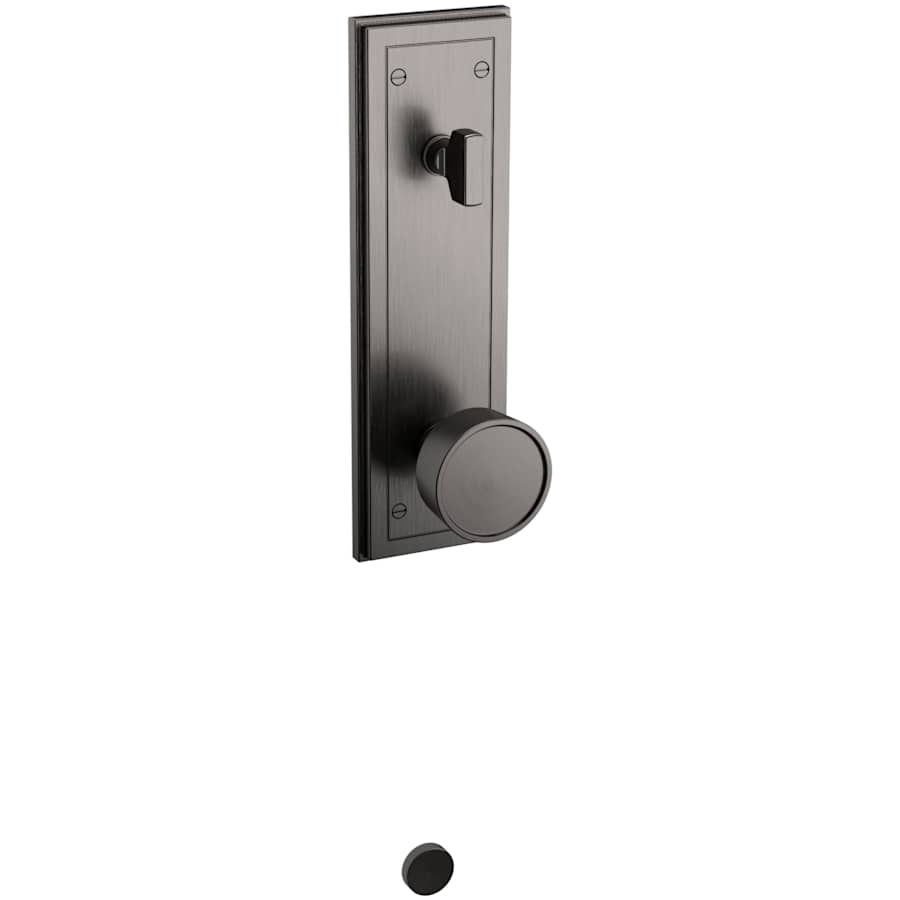

Interior Handle Style: Knob
Cylinder: 5 Pin
Material: Brass
Product Variations:
85311.FD: Dummy Handleset
85311.ENTR (This Model): Single Cylinder Handleset
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Hollywood Hills Collection
Specifications
| Product Weight | 7 lbs. |
| Center to Center | 5.5 in. |
| Door Thickness | 1-3/4" |
| Handle Projection | 2.8125 in. |
| Trim Width | 2.6875 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Grip Center to Center | 8 in. |
| Interior Handle Projection | 2.71875 in. |
| Overflow Height | 17.5 in. |
| Interior Handle Width | 2.6875 in. |
| Installation Hardware Included | Yes |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Material | Brass |
| Thermostat | Modern |
| Handle Material | Metal |
| Handle Style | Grip |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Panic Proof | Yes |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Latch Faceplate | Square Corner |

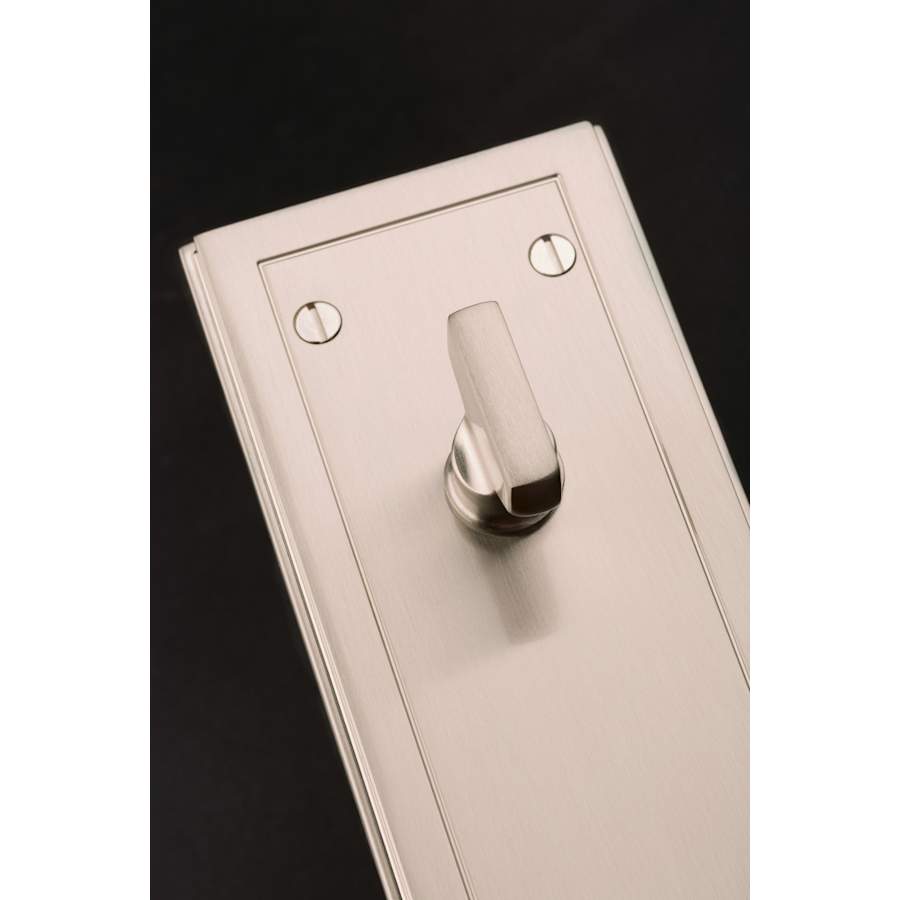

| Locking Mechanism | Thumbturn |
| Interior Handle Style | Knob |
| Lock Style | Single Point |
| Mounting | Full Plate |
| Solid Construction | Solid Brass |
| Number of Keys | 2 |
| Approved for Commercial Use | No |
| Collection | Estate Pre-Configured, Estate |
| Manufacturer Warranty | 1 Year Finish, 5 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Series | Hollywood Hills |
| Certifications | ANSI |
| BHMA Certification | Grade 2 |
| ANSI Certification | A156.5 |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
