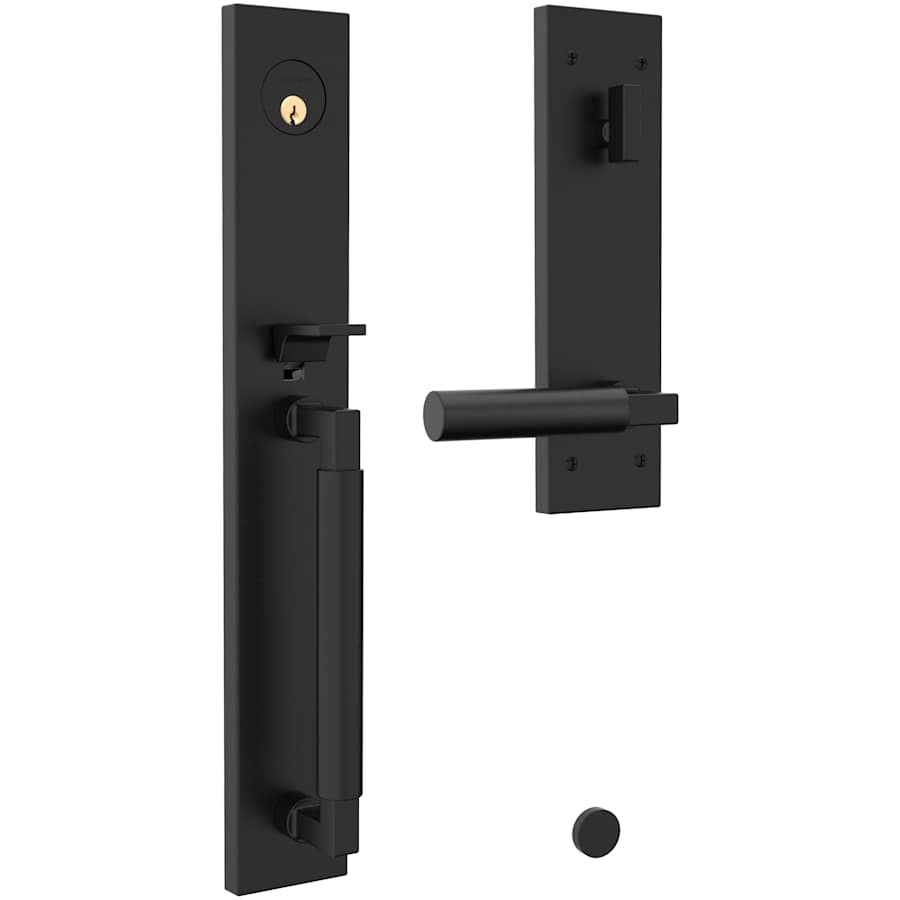

*This is a left handed lever. Images shown for right handed lever*
Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Baldwin’s limited lifetime manufacturer warranty
ADA compliant lever
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″”
Handing: Left
Latch Faceplate: Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8″
Overall Height: 17-1/2″
Handle Projection: 2-3/4″
Trim Height: 17-1/2″
Trim Width: 2-5/8″
Interior Handle Length: 4-5/8″
Interior Handle Projection: 2-15/16″
Interior Trim Height: 9-13/16″
Interior Trim Width: 2-5/8″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Gramercy Collection
Specifications
| Material | Brass |
| Handle Style | Grip |
| Thermostat | Contemporary |
| Cylinder Type | Single Cylinder |
| Handshower | Left |
| Keyway | C |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Keyed Entry |
| Solid Construction | Solid Brass |
| Cylinder | 5 Pin C |
| Adjustable Throughbolt | No |
| Handle Design | Gramercy |
| Interconnected | Yes |
| Interior Handle Style | Lever |
| Latch Faceplate | Square Corner |
| Lock Style | Single Point |
| Mounting | One Piece |
| Panic Proof | Yes |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Estate |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | Mexico |
| Series | Gramercy |
| Product Weight | 14.19 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-3/4" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.71875 in. |
| Interior Handle Length | 4.625 in. |
| Interior Handle Projection | 2.91 in. |
| Trim Height | 17.5 in. |
| Trim Width | 2.625 in. |
| Overflow Height | 17.5 in. |
| Grip Center to Center | 8 in. |
| Interior Trim Height | 9.8125 in. |
| Interior Trim Width | 2.625 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Distressed Oil Rubbed Bronze, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Non-lacquered Brass / Satin Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel / Satin Black, Polished Nickel / Satin Nickel, Satin Black, Satin Black / Non-Lacquered Brass, Satin Black / Polished Nickel, Satin Black / Satin Brass, Satin Black / Satin Nickel, Satin Brass / Satin Black, Satin Brass and Black, Satin Brass and Brown, Satin Nickel / Polished Nickel, Satin Nickel / Satin Black, Venetian Bronze, Vintage Brass |
