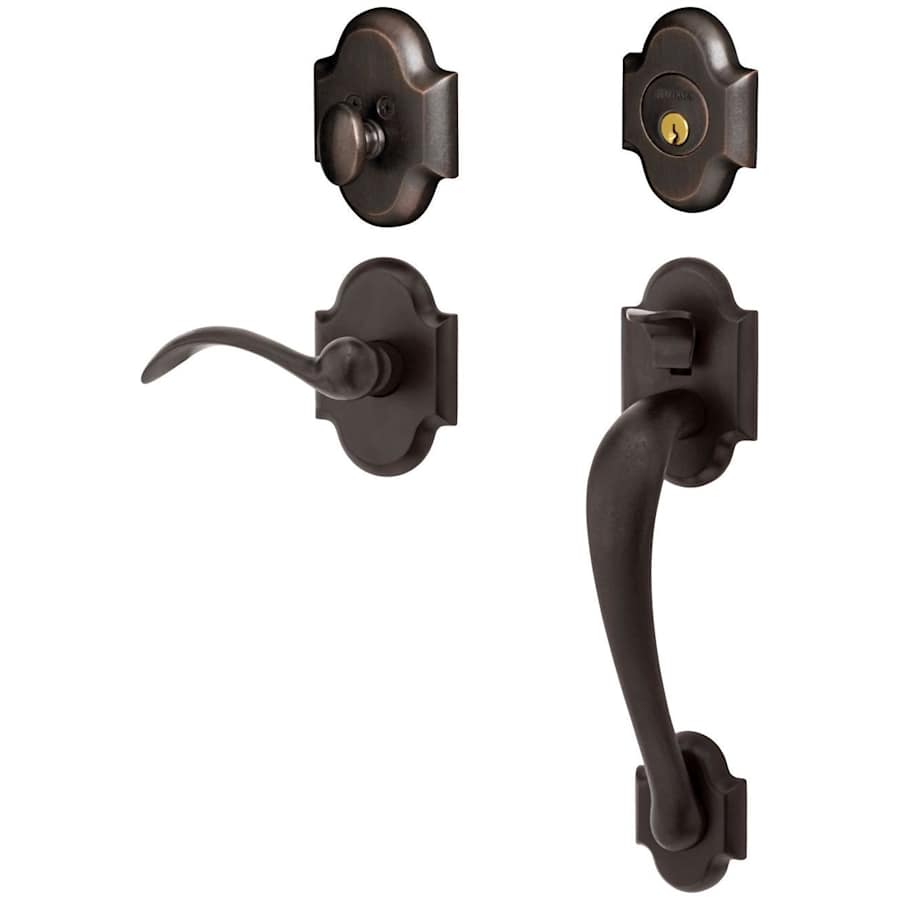

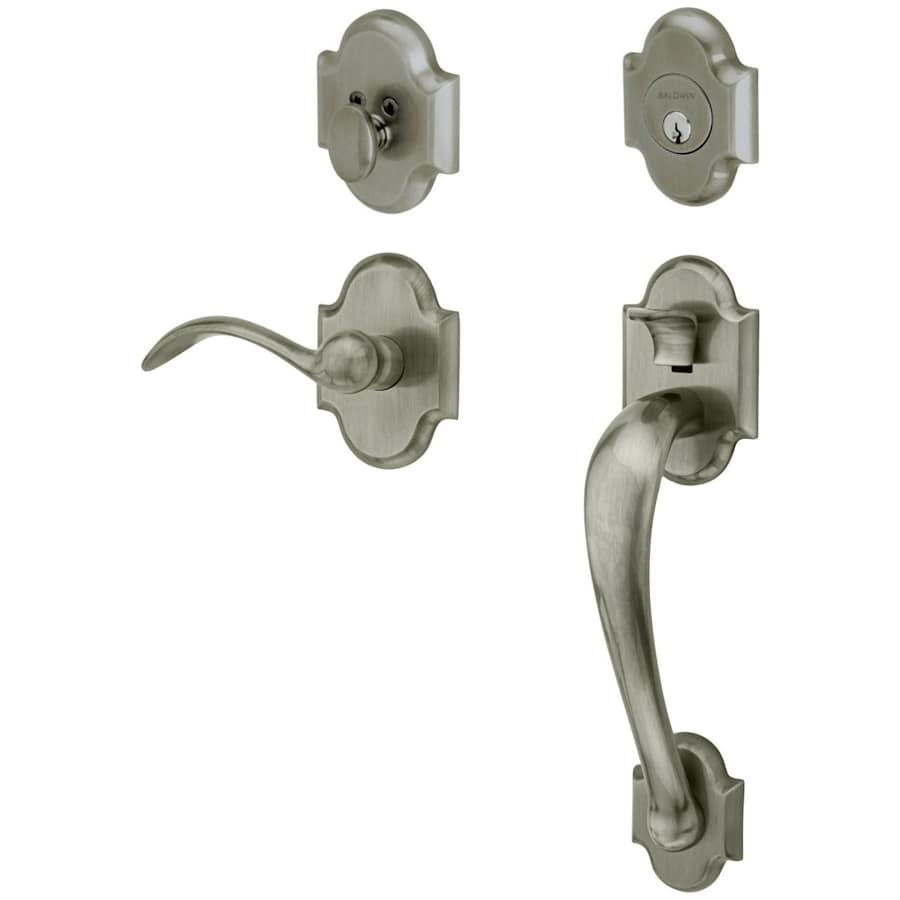

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of solid forged brass for durability and dependability
Covered by Baldwin’s 1 year electronics, 5 year finish, and limited lifetime mechanical manufacturer warranties
Installs easily with all necessary mounting hardware included
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8″
Door Thickness: 1-3/4″
Handing: Left
Cylinder: 5 Pin C
Latch Faceplate: Square Corner
Overall Height: 16-1/4″
Handle Height: 12-9/16″
Handle Projection: 3-5/16″
Trim Height: 12-9/16″
Trim Width: 3″
Interior Handle Length: 4-1/8″
Interior Handle Projection: 2-1/4″
Interior Trim Height: 7-9/16″
Interior Trim Width: 2-13/16″
Material: Brass
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Boulder Collection
Specifications
| Material | Brass |
| Thermostat | Traditional |
| Handle Material | Metal |
| Handle Style | Grip |
| Concealed Screws | Yes |
| Function | Keyed Entry |
| Handshower | Left |
| Latch Faceplate | Square Corner |
| Solid Construction | Solid Brass |
| Mounting | Sectional |
| Adjustable Throughbolt | No |
| Cylinder Type | Single Cylinder |
| Handle Design | Boulder |
| Interconnected | No |
| Interior Handle Style | Lever |
| Keyway | C |
| Lock Style | Single Point |
| Trim Design | Boulder |
| Cylinder | 5 Pin |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Estate, Estate Pre-Configured |
| Country Of Origin | Mexico |
| Certifications | ANSI |
| Series | Boulder |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 1 |
| Product Weight | 6.5 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Edge Bore | 1" |
| Handle Height | 12.59 in. |
| Handle Projection | 3.31 in. |
| Trim Height | 12.59 in. |
| Trim Width | 3.00 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8 in. |
| Overflow Height | 16.22 in. |
| Interior Handle Length | 4.13 in. |
| Interior Trim Height | 7.56 in. |
| Interior Trim Width | 2.81 in. |
| Interior Handle Projection | 2.25 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Antique Nickel, Distressed Oil Rubbed Bronze, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass and Black, Satin Brass and Brown, Venetian Bronze, Vintage Brass |
